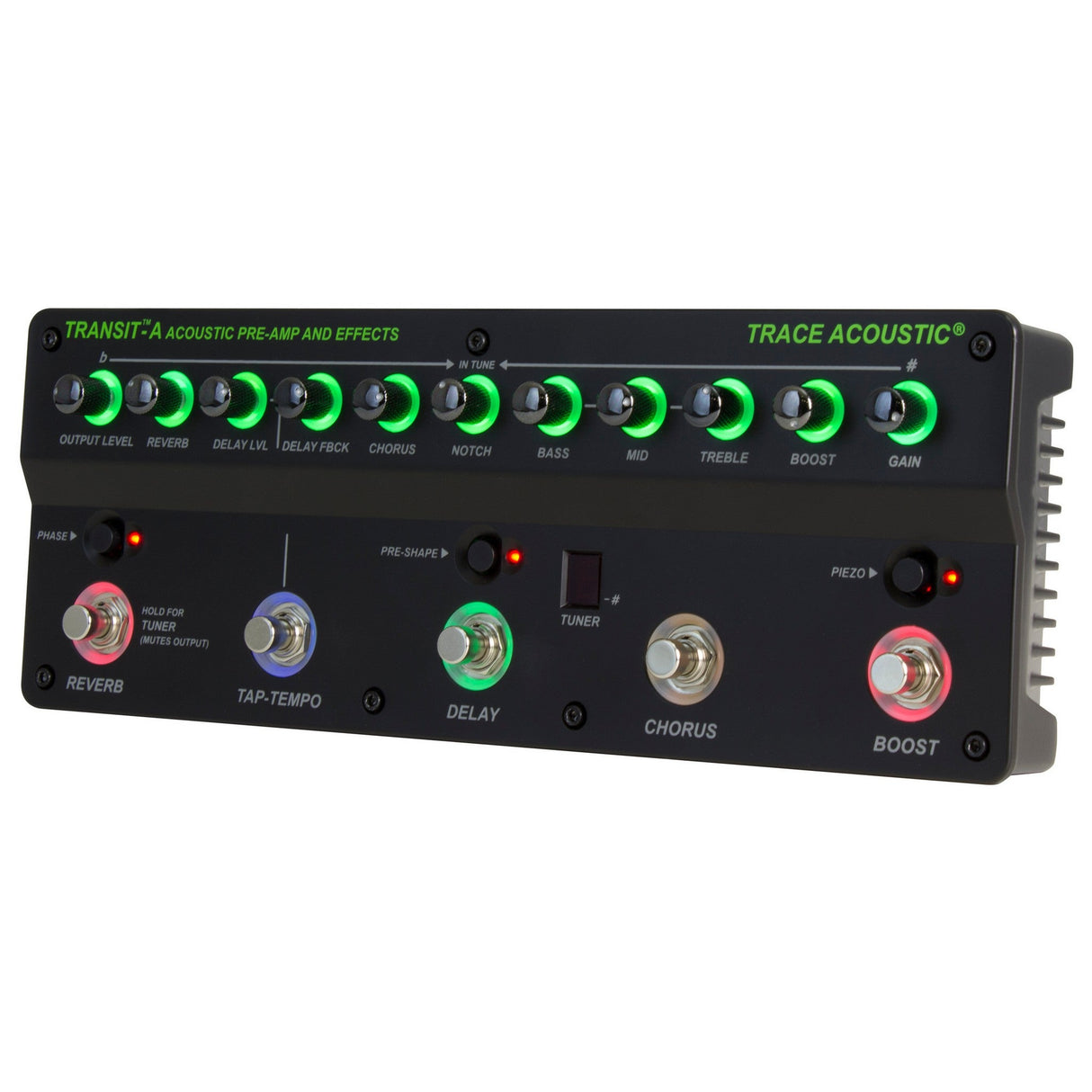

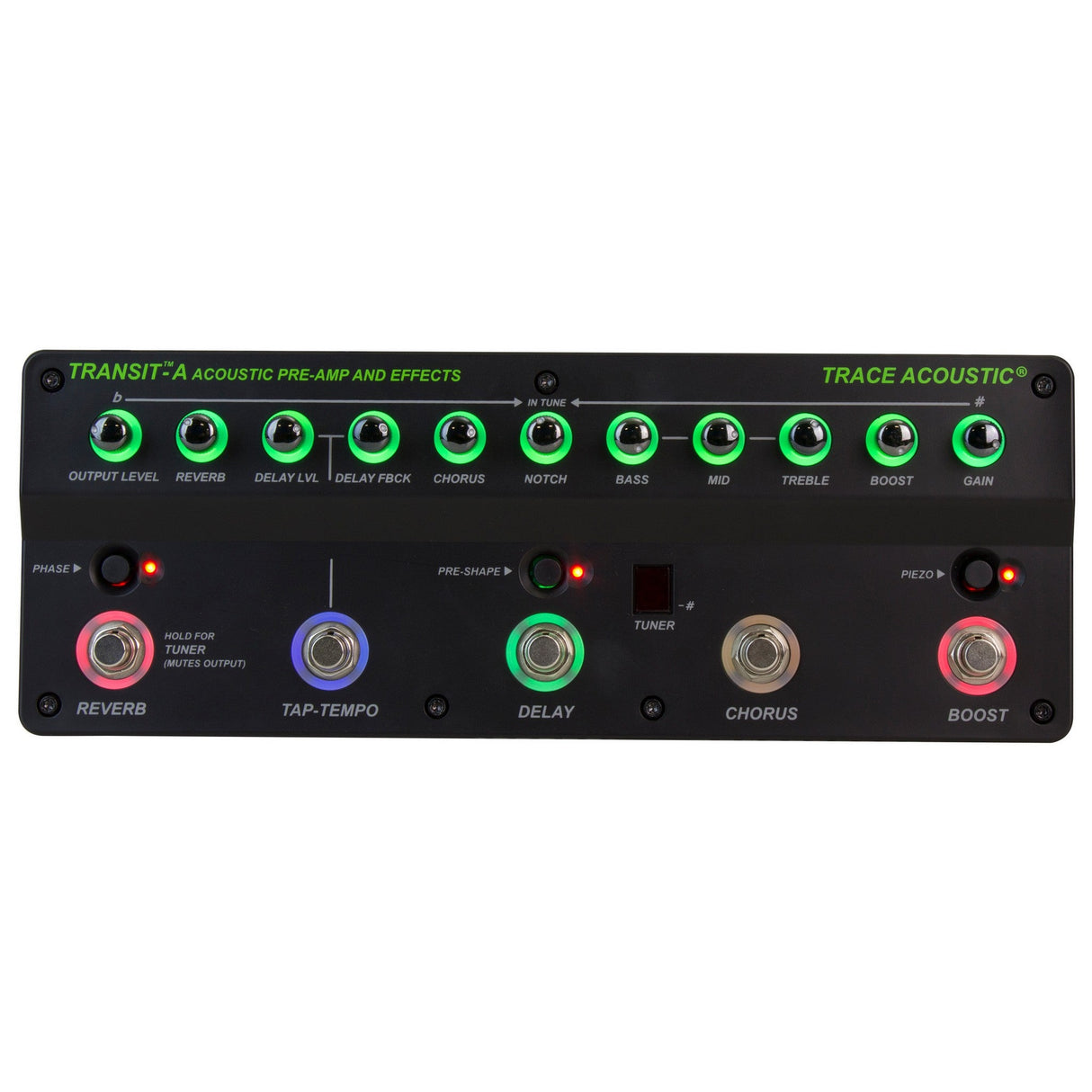

Peavey Trace Elliot Transit A Acoustic Pre-amp and Effects Pedal

The Trace Elliot Transit A preamp pedal includes the right features for a professional acoustic guitar player without over burdening the user with extra controls that hinder quick and easy tweaking. The built in Compression, Notch Filter, Pre-shape and simple EQ controls ensure great basic tone, while the user-definable Boost, Chorus, Delay and Reverb offer all the tools necessary for artistic expression. The back-lit control panel becomes the chromatic tuner for accurate tuning. Built-in Pre and Post XLR balanced output, dry output and headphone output give the user the ins and outs they need for the best live coverage.

Key Features

• Color coordinated backlit controls
• Built-in chromatic tuner
• Piezo button increases input impedance
• User definable boost switch
• Chorus with simple one knob operation
• Delay with Level, Feedback and Tap-Tempo
• Pre-shape switch for classic Trace Acoustic EQ curve
• Reverb with simple one knob operation
• Phase reverse switch
• 3 band active EQ
• Notch filter
• Input Gain and Output Level controls

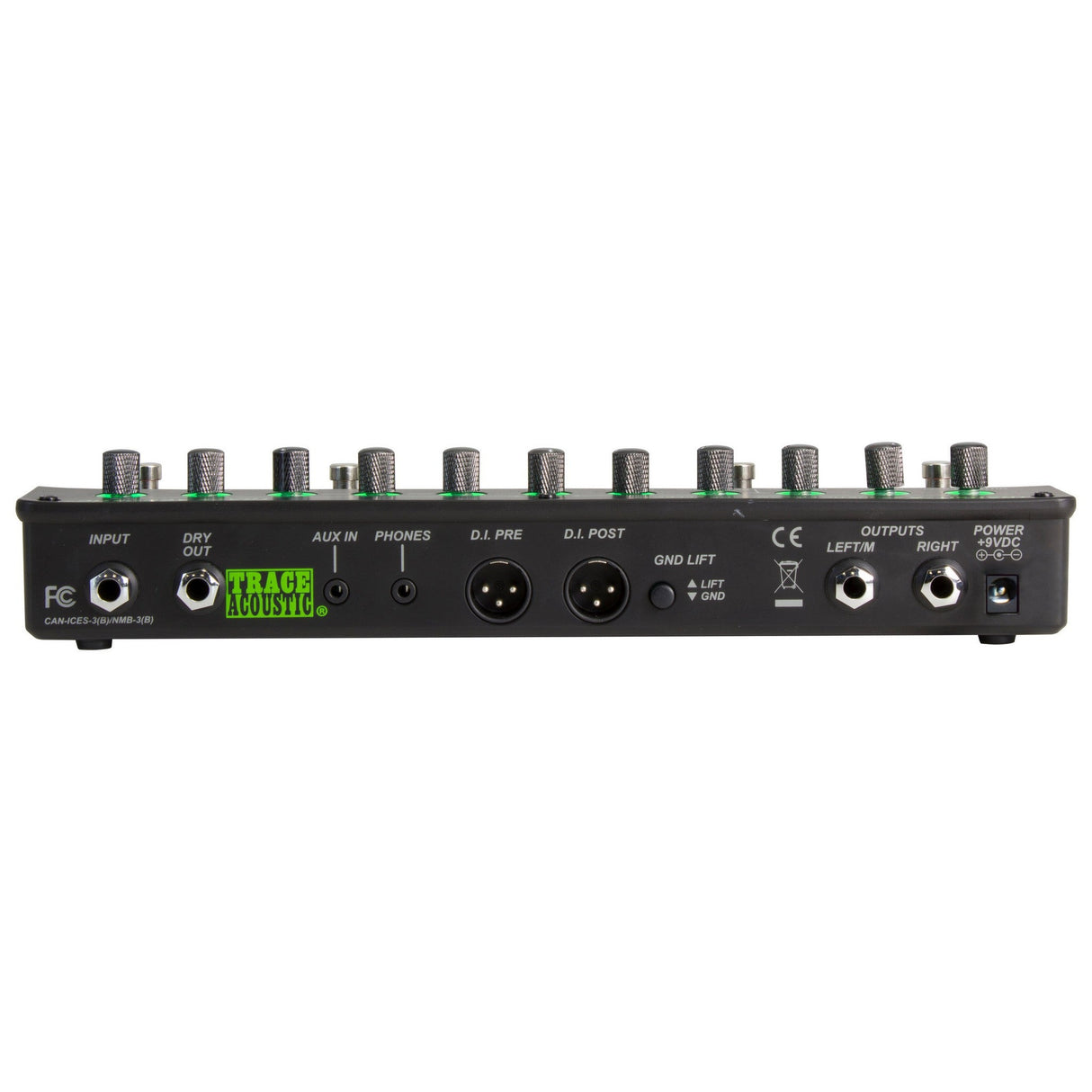

• Stereo outputs and Dry output
• Pre and Post balanced XLR outputs with Ground Lift
• Aux input
• Phones output

Technical Specifications

Unpacked Dimensions (pedal only)
312mm W x 114mm D x 58.4mm H (12.3 W x 4.5 D x 2.3 H)
Unpacked Weight
1.18 kg/2.6 lbs
