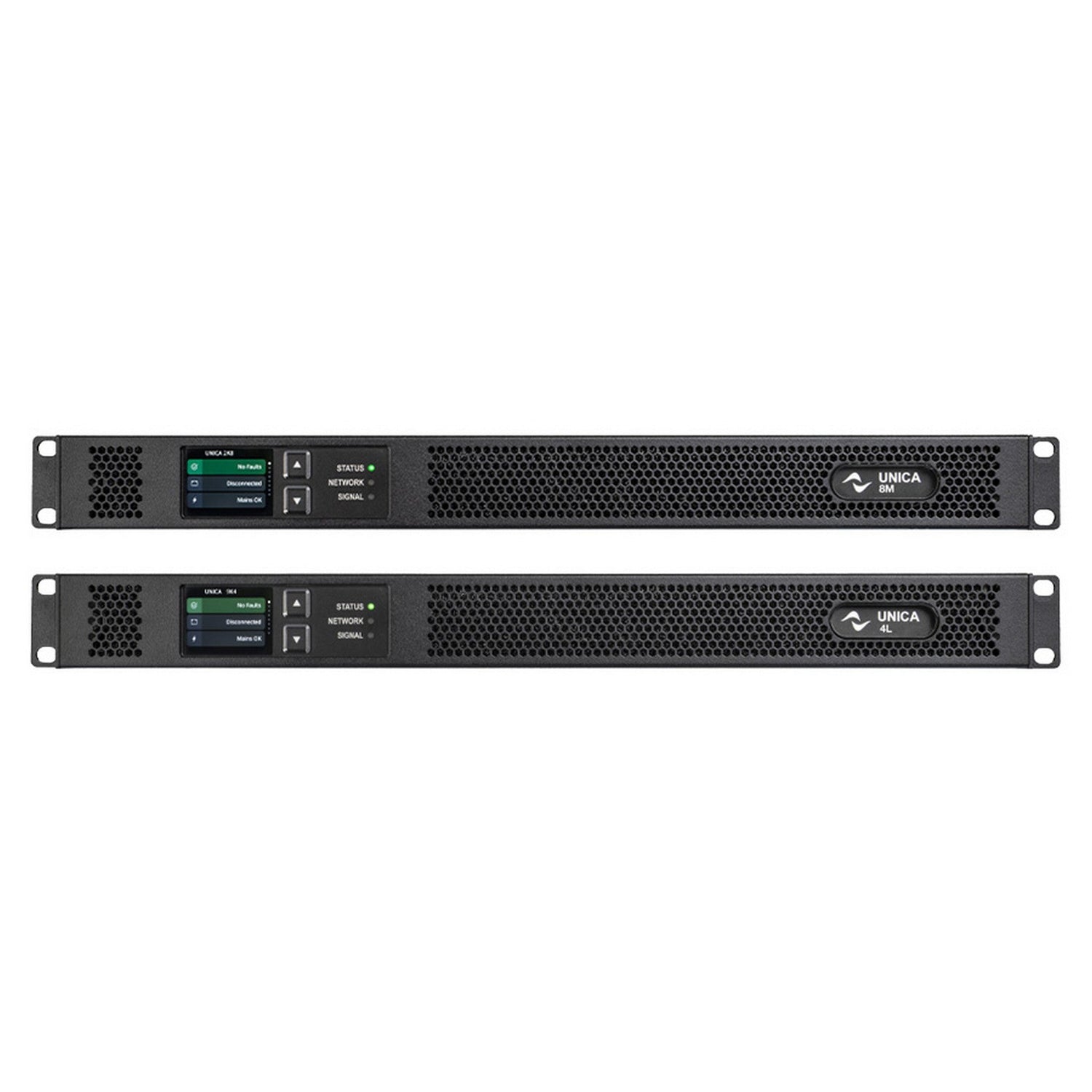

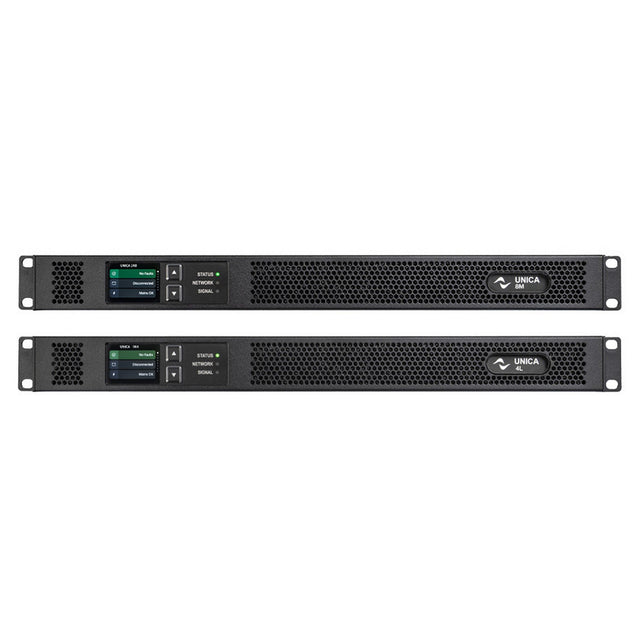

Powersoft Touring Series Power Amplifier

The Powersoft Unica Touring series is a compact and powerful amplifier platform designed for a wide range of professional applications. It integrates high-performance audio processing, flexible connectivity, and advanced power management into a streamlined 1RU design. Suitable for both touring and installed systems, it ensures reliability and consistent performance across diverse environments.

This amplifier series offers scalable power and multi-channel configurations to meet the needs of different systems. With robust DSP features, multiple networking options, and ruggedized connections, it provides exceptional versatility for any setup. Designed with efficiency in mind, the unit minimizes energy consumption while maintaining thermal stability and high output power.

Key Features:

• Available in 4-channel or 8-channel configurations
• Total rated power up to 20,800 W (4-channel) / 10,000 W (8-channel) @ 2.7 Ω full load
• Maximum output per channel (symmetrical):
  • 16 Ω: up to 1,300 W / 750 W
  • 8 Ω: up to 2,500 W / 1,000 W
  • 4 Ω: up to 4,400 W / 1,200 W
  • 2.7 Ω: up to 5,200 W / 1,250 W
  • 2 Ω: up to 5,500 W / 1,250 W
• Maximum output per channel (asymmetrical):
  • 16 Ω: up to 1,400 W / 750 W
  • 8 Ω: up to 2,700 W / 1,500 W
  • 4 Ω: up to 5,400 W / 2,900 W
  • 2.7 Ω: up to 7,500 W / 2,400 W
  • 2 Ω: up to 5,500 W / 2,400 W
• Bridgeable per channel pair
• Universal regulated switch mode power supply with PFC and SRM
• Three 1Gb Ethernet ports supporting Dante and AES67 protocols
• 24-bit Tandem™ AD/DA converters at 48 kHz
• Latency: 2.5 ms (analog input to amplifier output)
• Onboard memory for up to 50 amplifier snapshots
• Active DampingControl™ and multiple limiter types
• Front panel display for system monitoring
• Ruggedized Phoenix connectors with strain relief

Technical Specifications:

Dimensions: 19.25 in x 15.75 in x 1.75 in (W x D x H)
Weight: 17.6 lbs
Operating Temperature Range: 32°F to 122°F (derating above 95°F)
Storage Relative Humidity Range: 10% to 85% (non-condensing)
IP Class: IP 20
Maximum Unclipped Output Voltage: 220 Vpeak
Maximum Output Current: 80 Apeak
Startup Time: Less than 10 seconds (less than 0.5 s with PoE backup power)
Power Consumption @ 120V (Idle): 68.6 W
Power Consumption @ 230V (Idle): 82.5 W

Package Contents:

• Unica Touring amplifier unit
• Power cable
• User manual
• Phoenix connectors
