PreSonus  |  SKU: PRESNUS-STUDIOLIVE1602USB

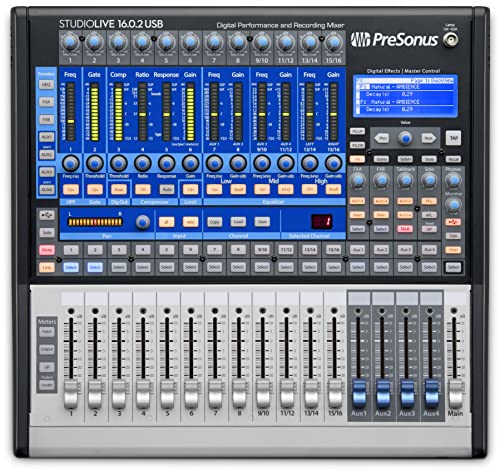

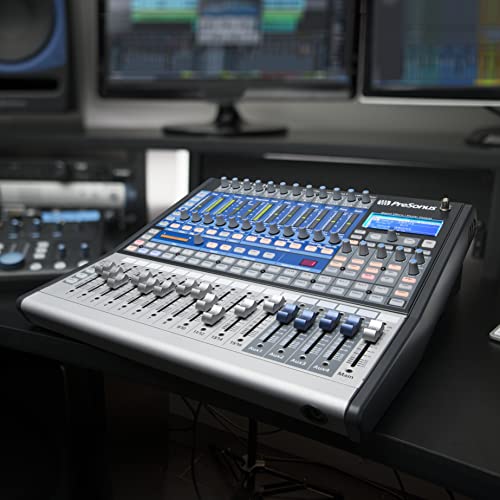

PreSonus StudioLive 16.0.2 USB 16-Channel Performance and Recording Digital Mixer with USB

$99999 $1,29999
Shipping calculated at checkout.

Condition: New



Description

PreSonus StudioLive 16.0.2 USB 16-Channel Performance and Recording Digital Mixer with USB

When you’re mixing a live event or have an artist in the studio, you need to be able to work quickly. The StudioLive 16.0.2 USB’s familiar, easy-to-use interface keeps all critical controls visible and accessible not buried in menus or layers. Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing. Aux sends have their own physical controls. Every channel has a big, bright meter display. But don’t let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more.

Key Features

  • 8 mono mic/line channel inputs
  • 4 stereo line channel inputs
  • 2 Internal FX buses
  • 2 stereo 32-bit digital effects processors with customizable reverb and delay presets
  • Fat Channel signal processing on all channels and buses
  • One 31-band stereo graphic EQ (on main outputs only)
  • 18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
  • Scene store and recall
  • Settings can be copied among channels and buses and saved as user presets.
  • Lockout mode protects your settings from meddlers and accidents

Technical Specifications

Mac
macOS 10.11 or higher (64-bit only)
Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Windows
Windows 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution
iOS
iOS 10 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
Android 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Microphone Preamp
Type
XLR Female, Balanced
Frequency Response to Direct Output (at unity gain)
20 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain)
20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced)
1 kohms
THD to Direct Output (1 kHz at unity gain)
<0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain)
0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output
+125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)
-102 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)
-95 dB
Common Mode Rejection Ratio (1 kHz at unity gain)
+65 dB
Gain Control Range (± 1 dB)
-16 dB to +67 dB
Maximum Input Level (unity gain)
+16 dBu
Phantom Power (± 2 VDC)
+48 VDC
Line Inputs, Balanced
Type
¼" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain)
10 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain)
20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance
10 kohms
THD to Direct Output (1 kHz at unity gain)
<0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain)
<0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)
-105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)
-95 dB
Gain Control Range (± 1 dB)
-20 dB to +20 dB
Maximum Input level (unity gain)
+22 dBu
Line Inputs, Unbalanced
Type
RCA Female, unbalanced (stereo pair)
Maximum Input Level
+22 dBu
Main Outputs
Type
XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level
+24 dBu
Output Impedance
100ohms
Aux Outputs
Type
¼” TRS Female, balanced (mono)
Rated Output Level
+18 dBu
Output Impedance
100ohms
Monitor Outputs
Type
¼” TRS Female, balanced (stereo pair)
Rated Output Level z
+18 dBu
Output Impedance
100ohms
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
-90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
-87 dBu
Noise Gate (Expander)
Threshold Range
-84 dB to 0 dB
Attack Time
Adaptive (0.2 - 2.5 ms)
Release Time
70 ms
Expander Attenuation Range
2:1
Compressor
Threshold Range
-56 dB to 0 dB
Ratio
1:1 to 14:1
Response Time (Attack/Release
0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release
Attack = 10 ms, Release = 150 ms
Curve Types
hard and soft knee
EQ
Type
2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass)
36 to 465 Hz, ±15 dB
Mid
260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass)
1.4 kHz to 18 kHz, ±15 dB
Digital Audio
Host Interface
USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz)
118 dB
DAC Dynamic Range (A-wtd, 48 kHz)
118 dB
Internal Processing
32-bit, floating point
Sampling Rate
44.1, 48 kHz
A/D/A Bit Depth
24 bits
Reference Level for 0 dBFS
+18 dBu
Clock
Jitter
<20 ps rms (20 Hz - 20 kHz)
Jitter Attenuation
>60 dB (1 ns in, 1 ps out)
Power
Connector
IEC
Input-Voltage Range
100 to 240 VAC (factory-configured for country of destination)
Power Requirements (continuous)
100W
Physical
Length
15.56 inches (397 mm)
Width
16 inches (406 mm)
Maximum Height
5.5 inches (140 mm)
Weight
20 lbs.
