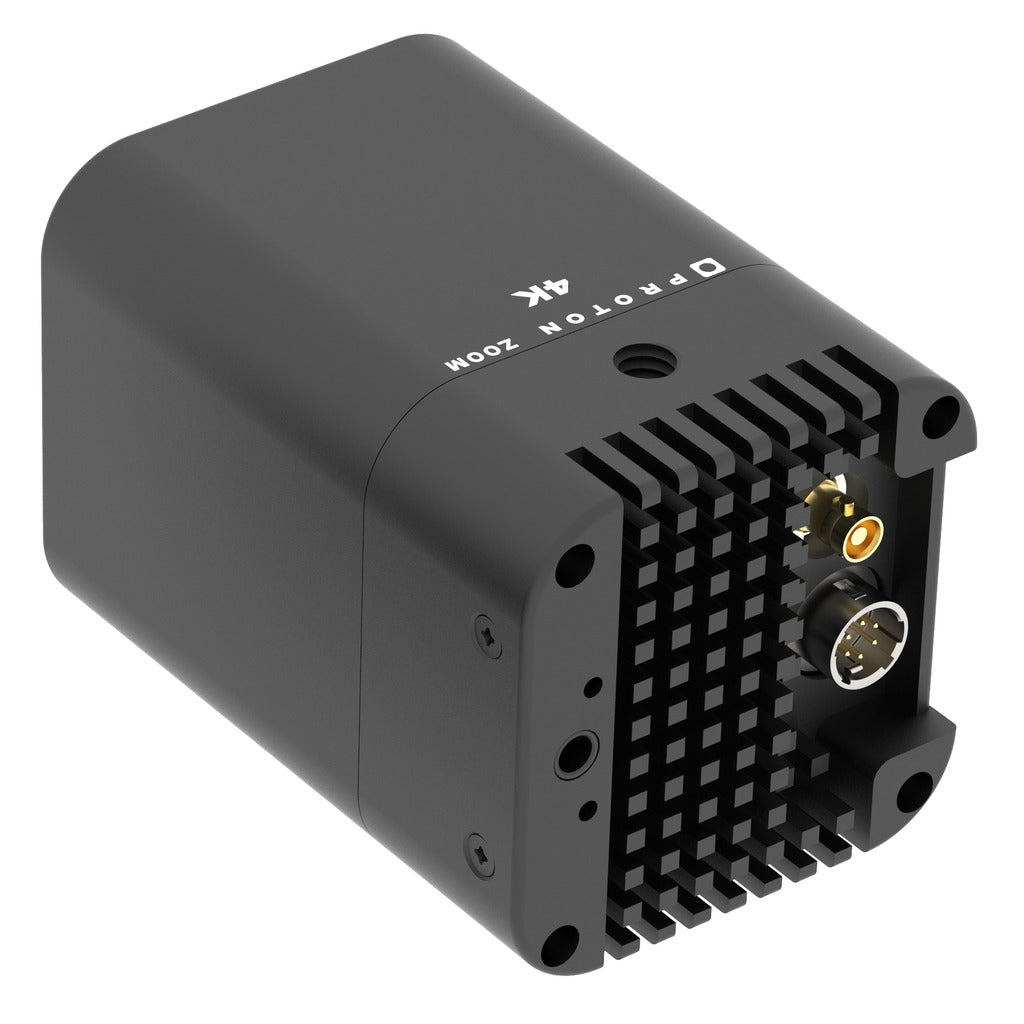

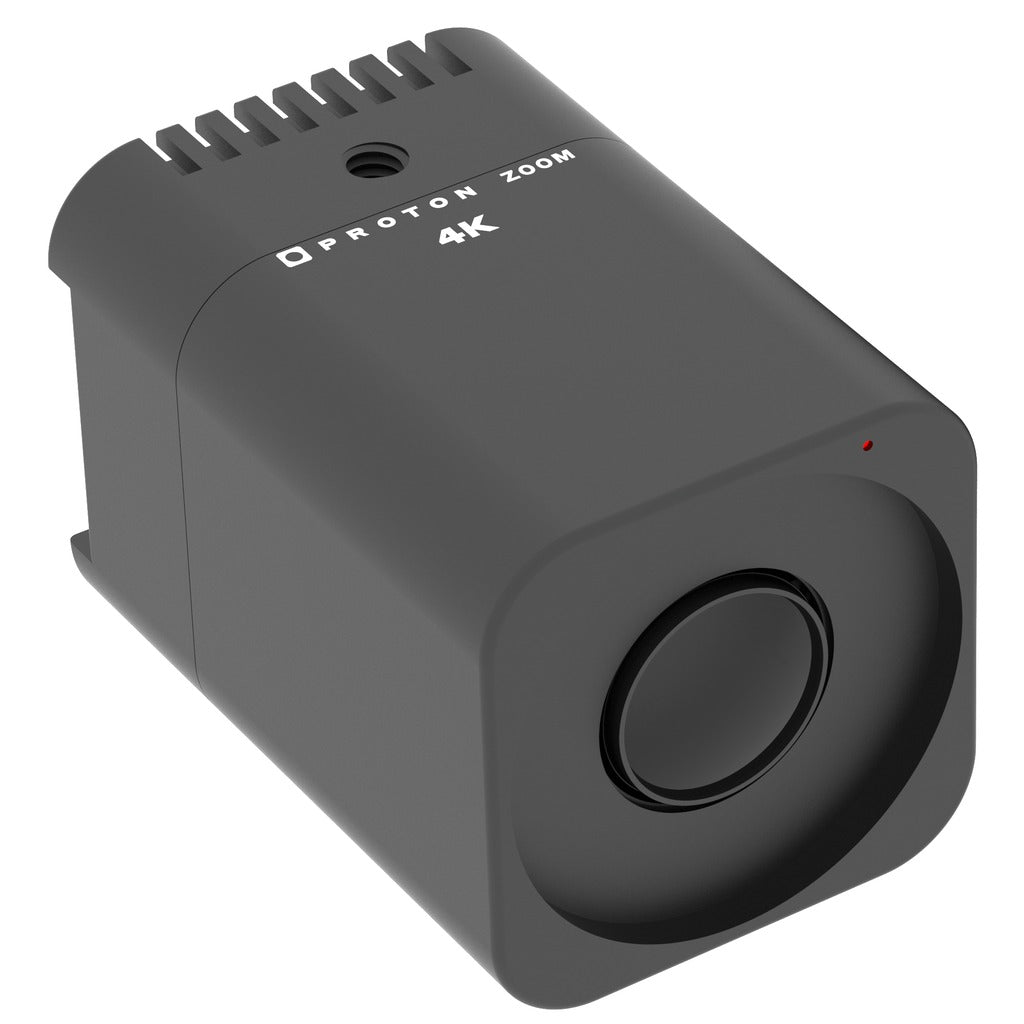

Proton PCI-4K-ZOOM-CON Miniature 4K Zoom POV Camera with Connectors

The PROTON 4K ZOOM is designed for productions that demand both precision and flexibility in an ultra-compact form factor.

Combining true 4K resolution with advanced zoom control, it allows operators to frame the action with accuracy, even in the most constrained environments.

Based on the PROTON 4K architecture, it delivers exceptional image fidelity, low latency, and rock-solid performance.

Distributed in the US through authorized Proton dealers, the PCI-4K-ZOOM-CON integrates seamlessly into broadcast, live sports, esports, house of worship, and remote production workflows. Its miniature footprint, professional signal outputs, and broadcast-grade image pipeline make it a natural companion to camera control systems such as Cyanview, letting productions place a true broadcast POV camera where no conventional camera can go.

Features

• Connectors:
• HD-SDI connector (mini SDI)
• Hirose male connector
• Smallest Broadcast camera with zoom on the market (50x50x73mm), 234g
• From 55° to 115° ultra wide angle, 2.2x zoom
• High 12 bit dynamic 4Kp60
• 2-stops more on mini cameras
• HDR compliant
• HLG, PQ and S-log3
• High sensitivity Low noise, less light required
• Lowest operational voltage 12V-25V
• Lowest Power – 7W
• Connection:
• 1.8m coax cable 12G SDI video – BNC plug
• 1.8m power cable and control (RS485) – Hirose connector
• Tally light integrated
