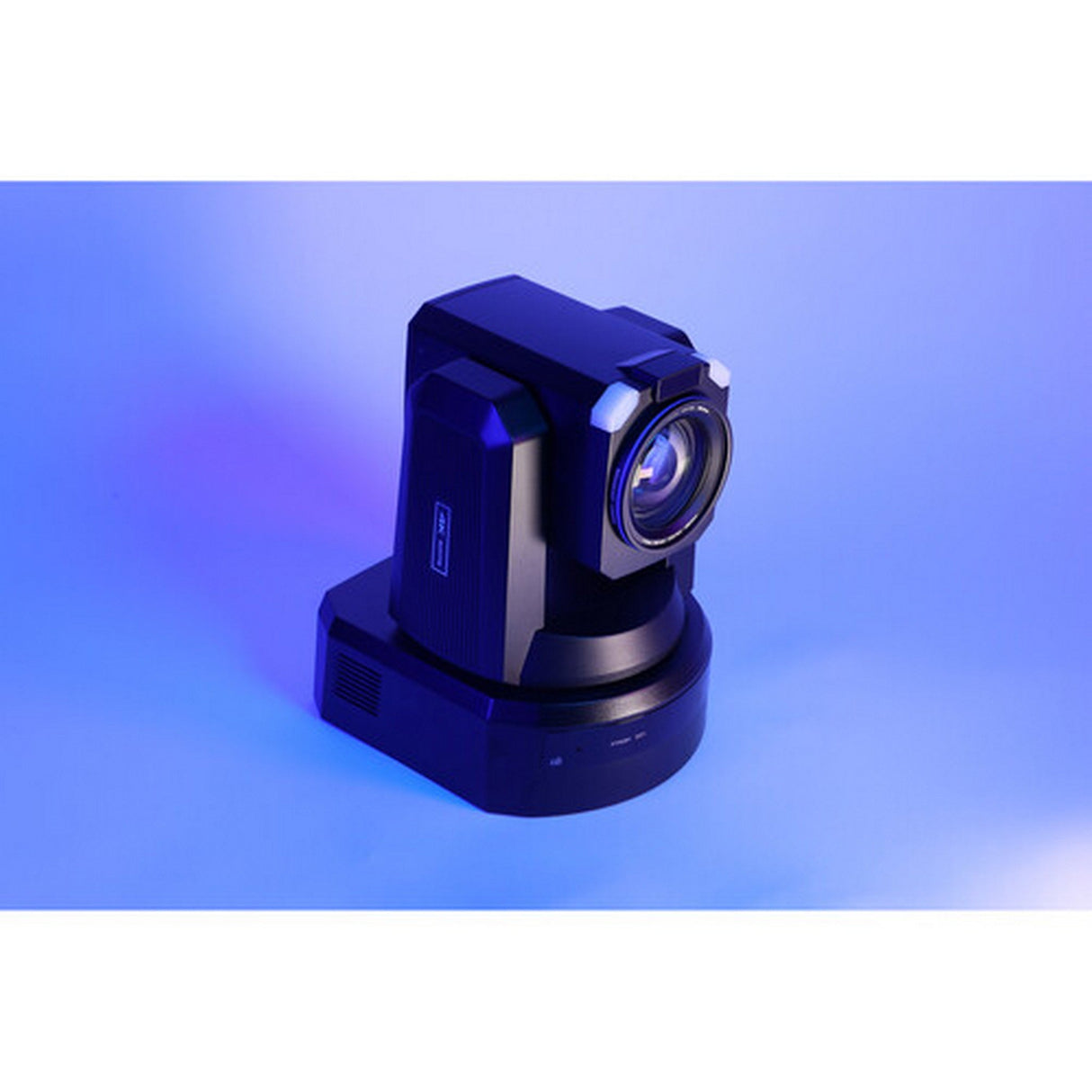

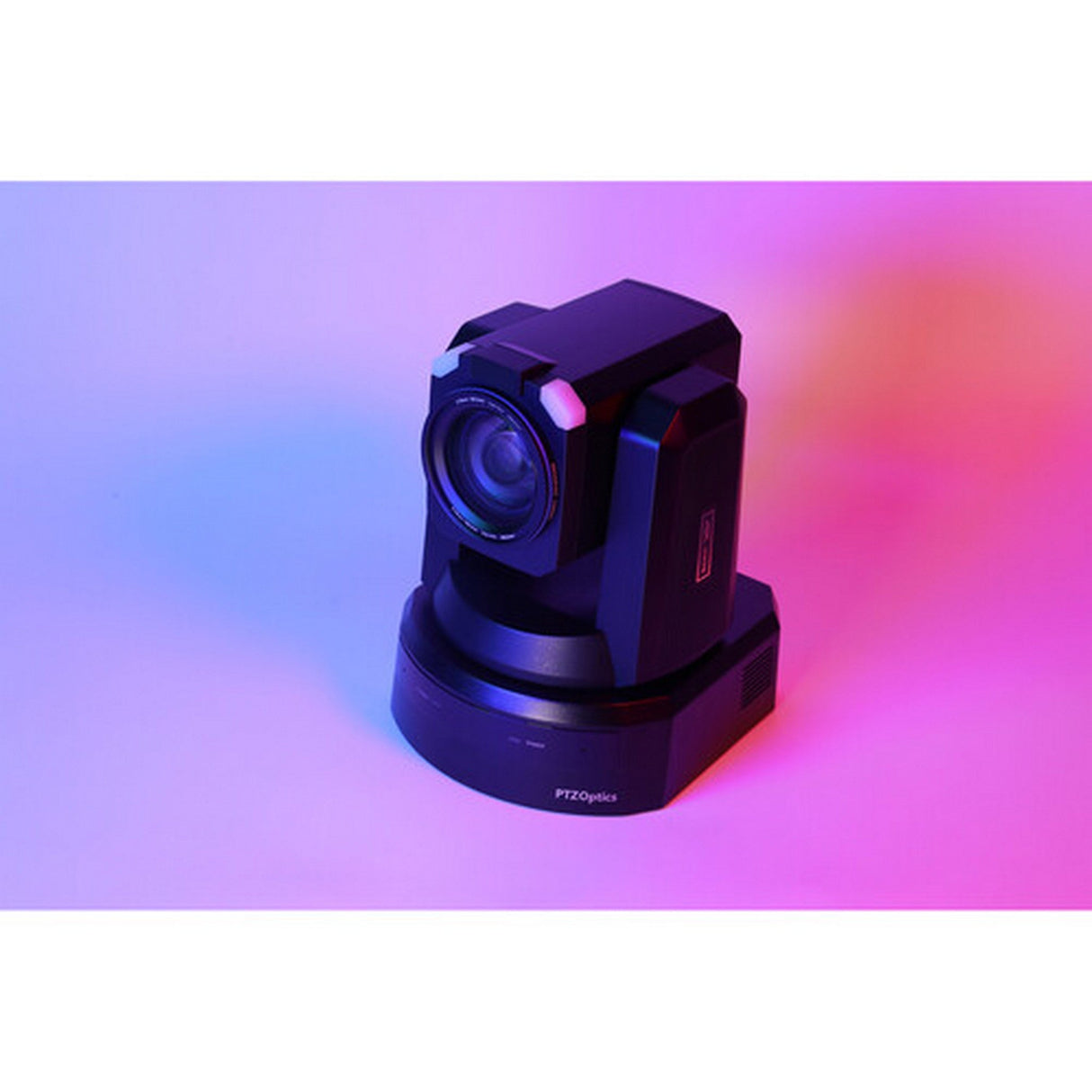

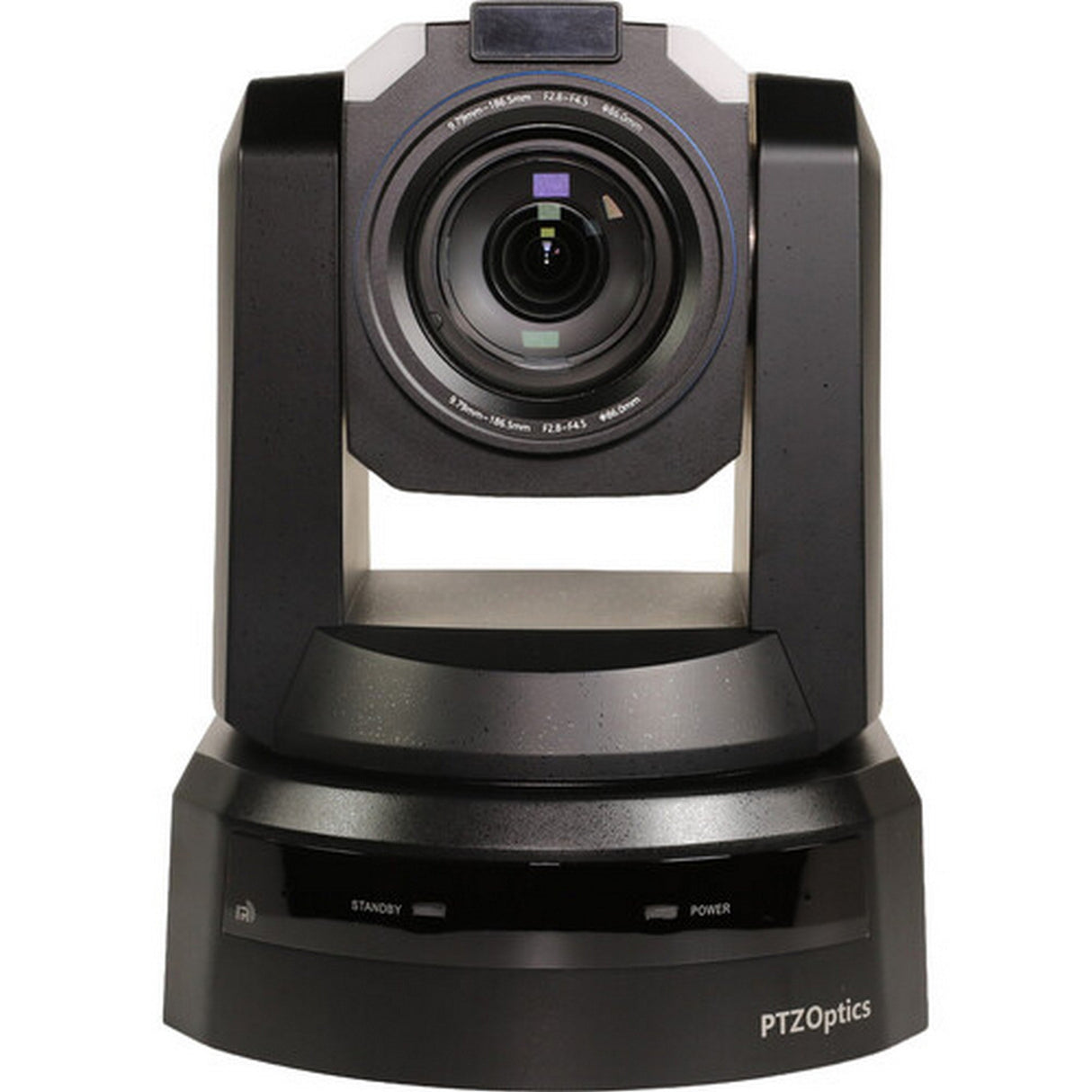

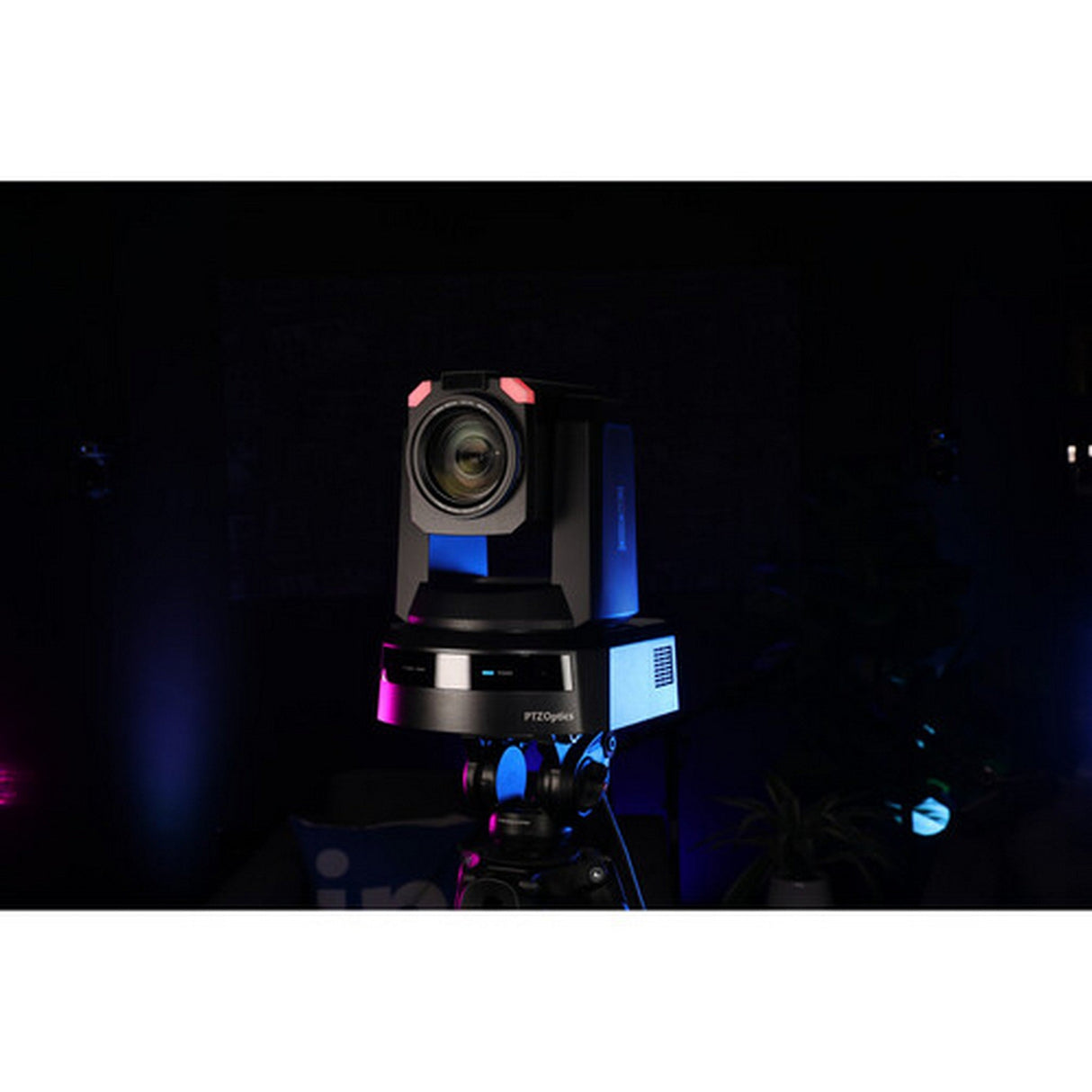

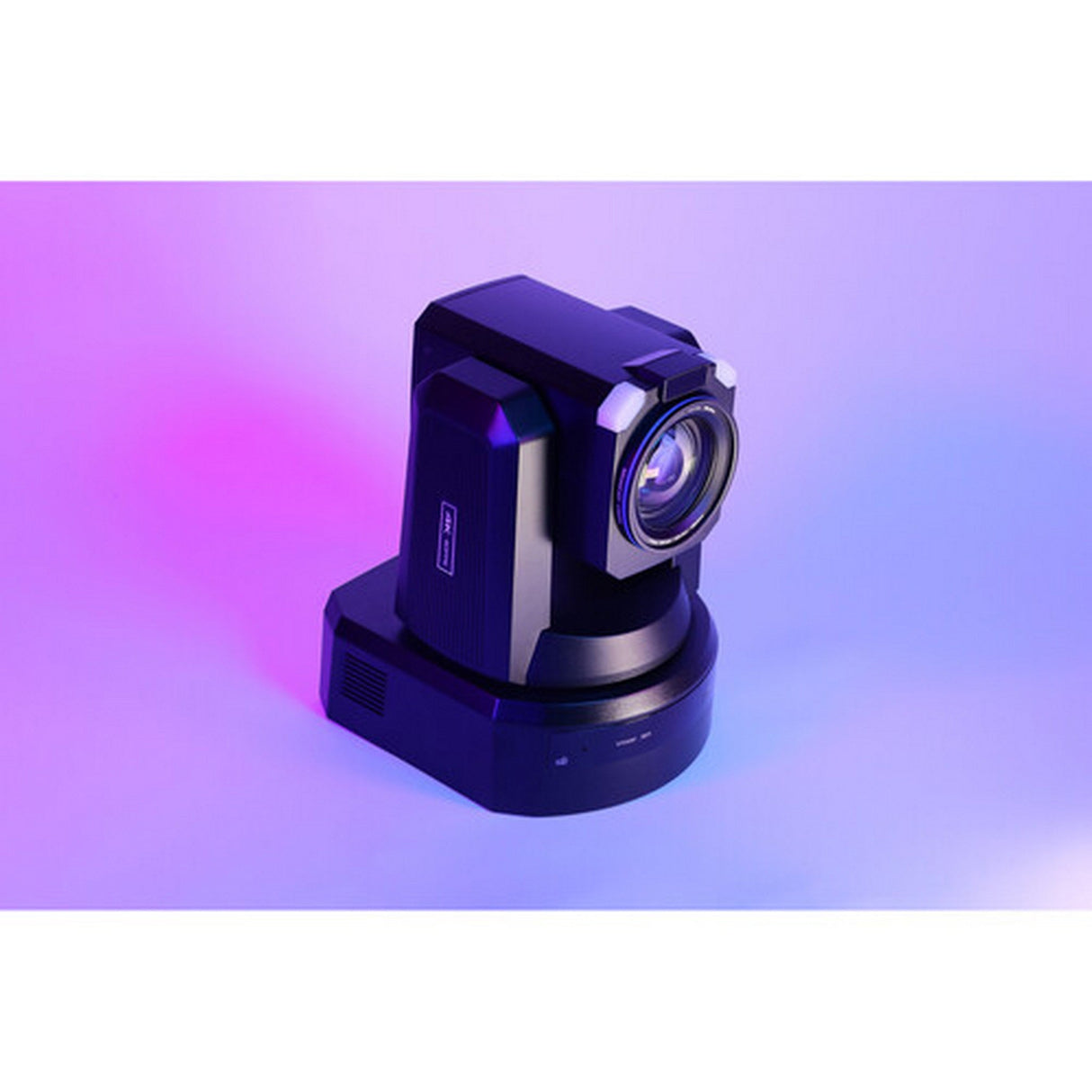

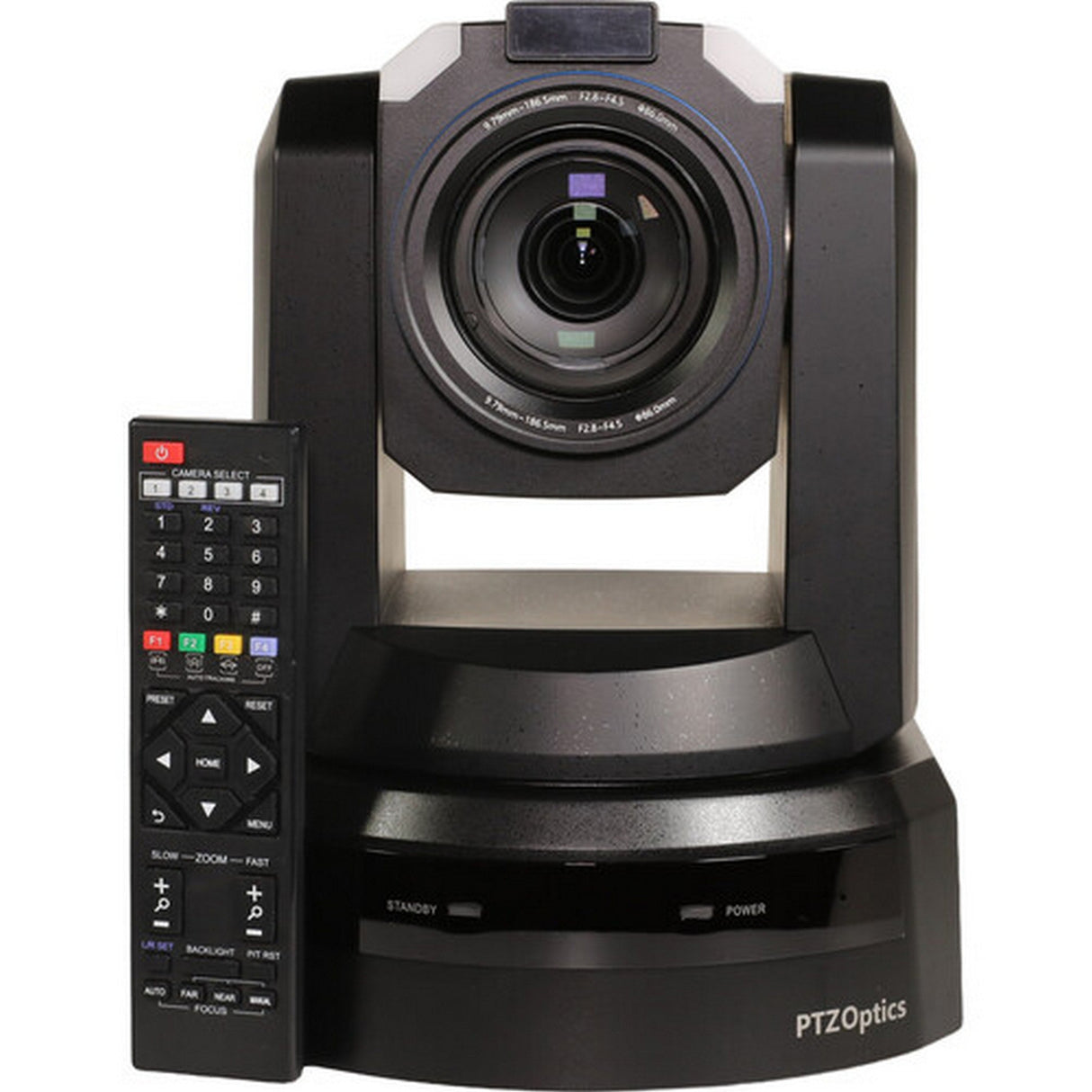

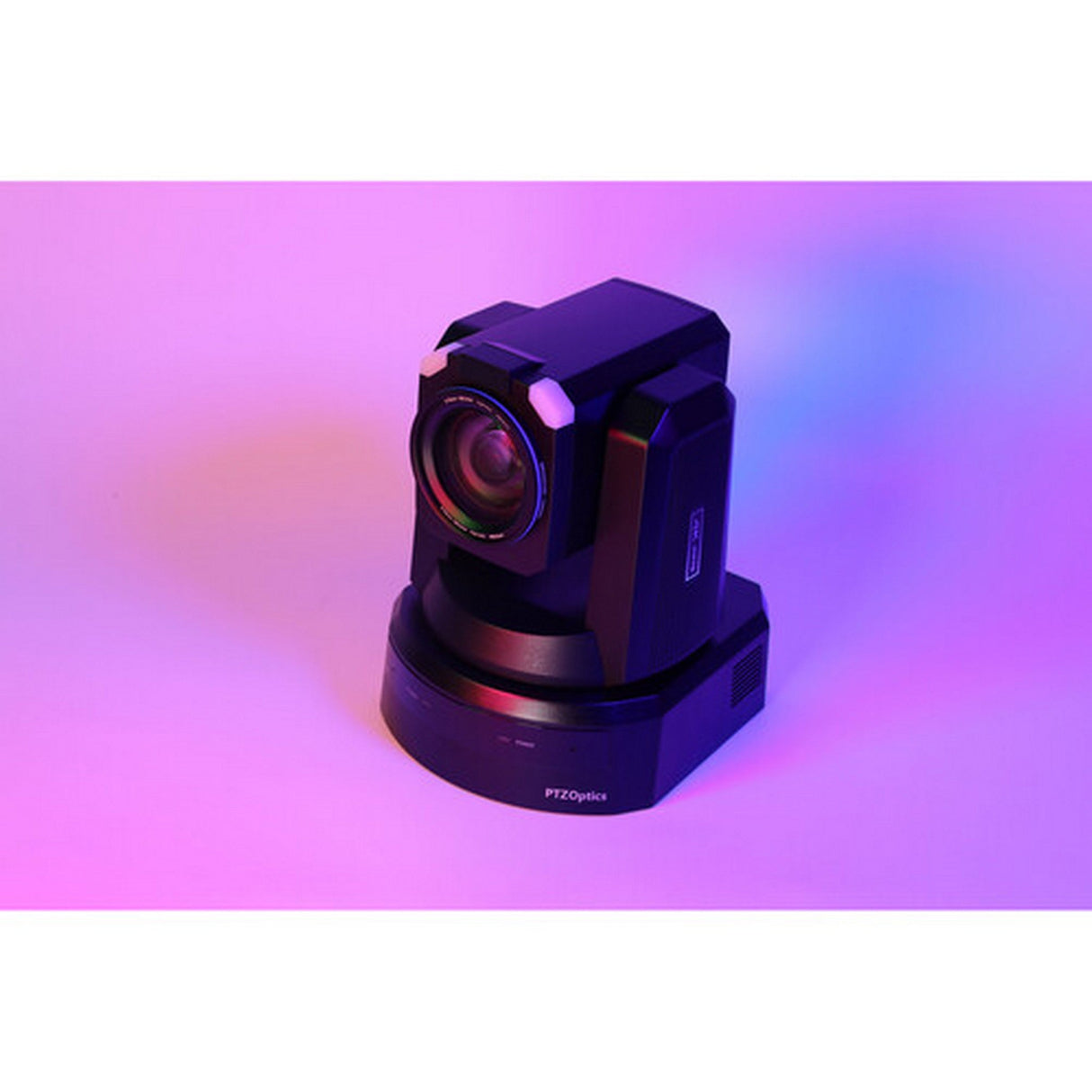

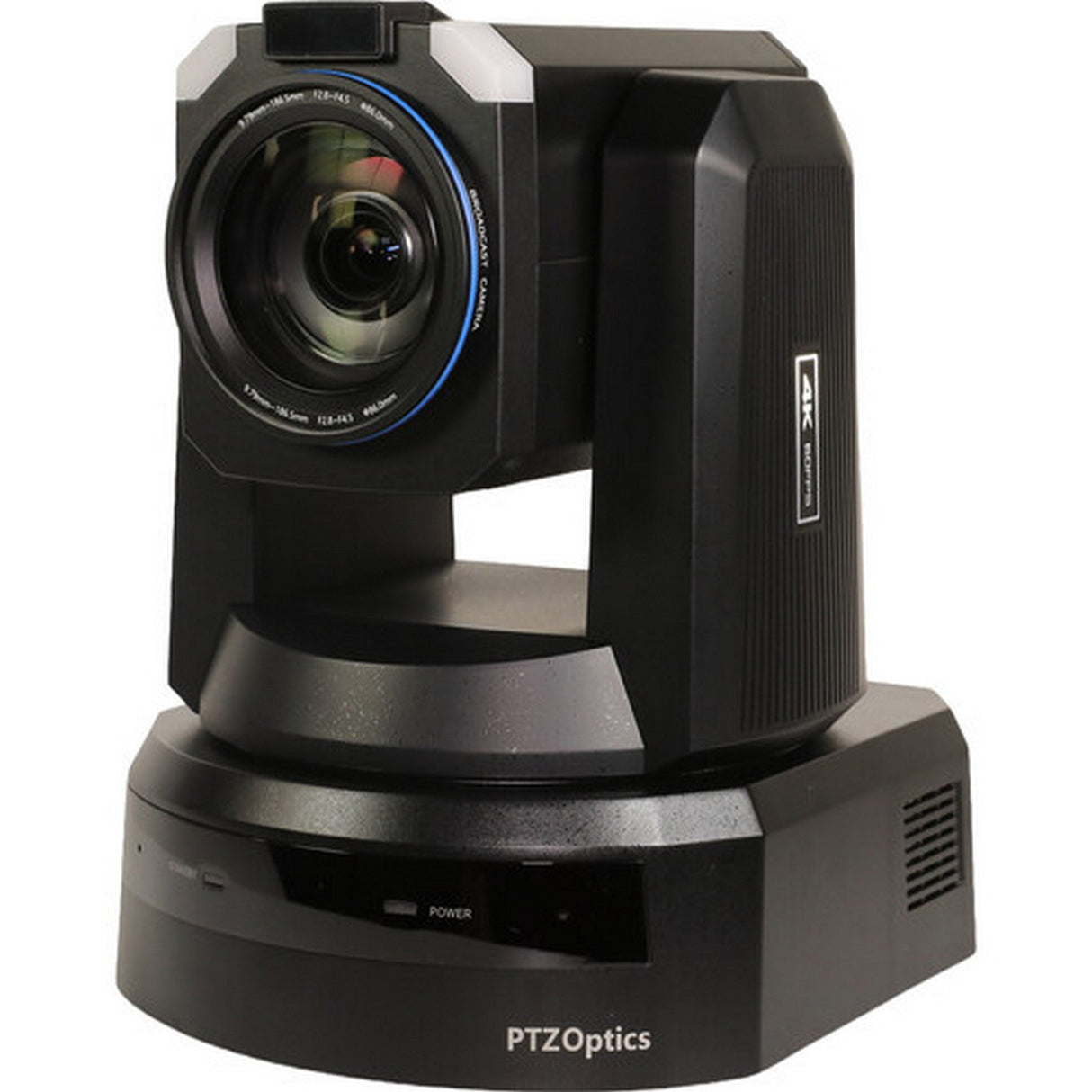

PTZOptics PT20X-RISE-4K-BK Rise 4K 20x Broadcast PTZ Camera

PTZOptics PT20X-RISE-4K-BK Rise 4K 20x Broadcast PTZ Camera

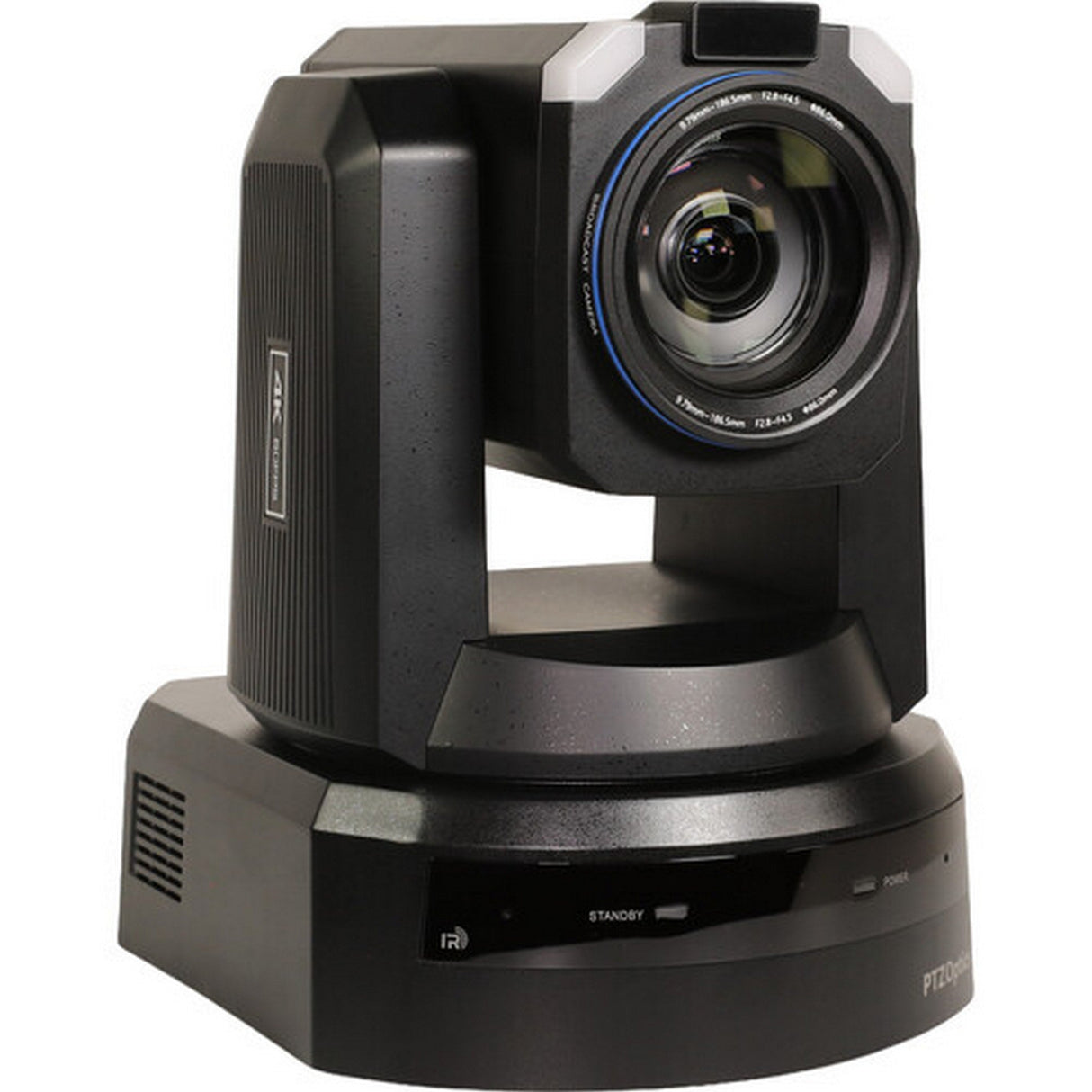

The PTZOptics PT20X-RISE-4K-BK Rise 4K Broadcast PTZ Camera combines a 1-inch 50MP Sony CMOS sensor, 20x optical zoom, and UHD 4K video at up to 60 fps. Phase-detection autofocus, optical image stabilization, and professional synchronization make it a high-end robotic camera for demanding multicamera productions.

Designed for broadcast studios, sports, live events, universities, houses of worship, and enterprise production, Rise 4K integrates directly into baseband, IP, and fiber workflows. Outputs include 12G-SDI, 3G-SDI, HDMI, USB 3.0, Ethernet, and SFP+ fiber, while genlock, timecode, and FreeD support synchronized and virtual-production environments.

Intelligent production tools include ReID and FaceID tracking, voice tracking, auto-framing, and automated presets through the Horizon Web interface. A three-stage ND filter helps manage exposure, while professional XLR audio with 48V phantom power, onboard card recording, dual tally indicators, PoE++ power, and serial control provide the connectivity expected in permanent broadcast installations.

Key Features

• 1-Inch 50MP Sensor: Large-format Sony CMOS imaging supports UHD 4K capture at up to 60 fps with increased detail and low-light capability.
• 20x Optical Zoom: Covers wide establishing views and distant close-ups with an approximately 71-degree maximum horizontal field of view.

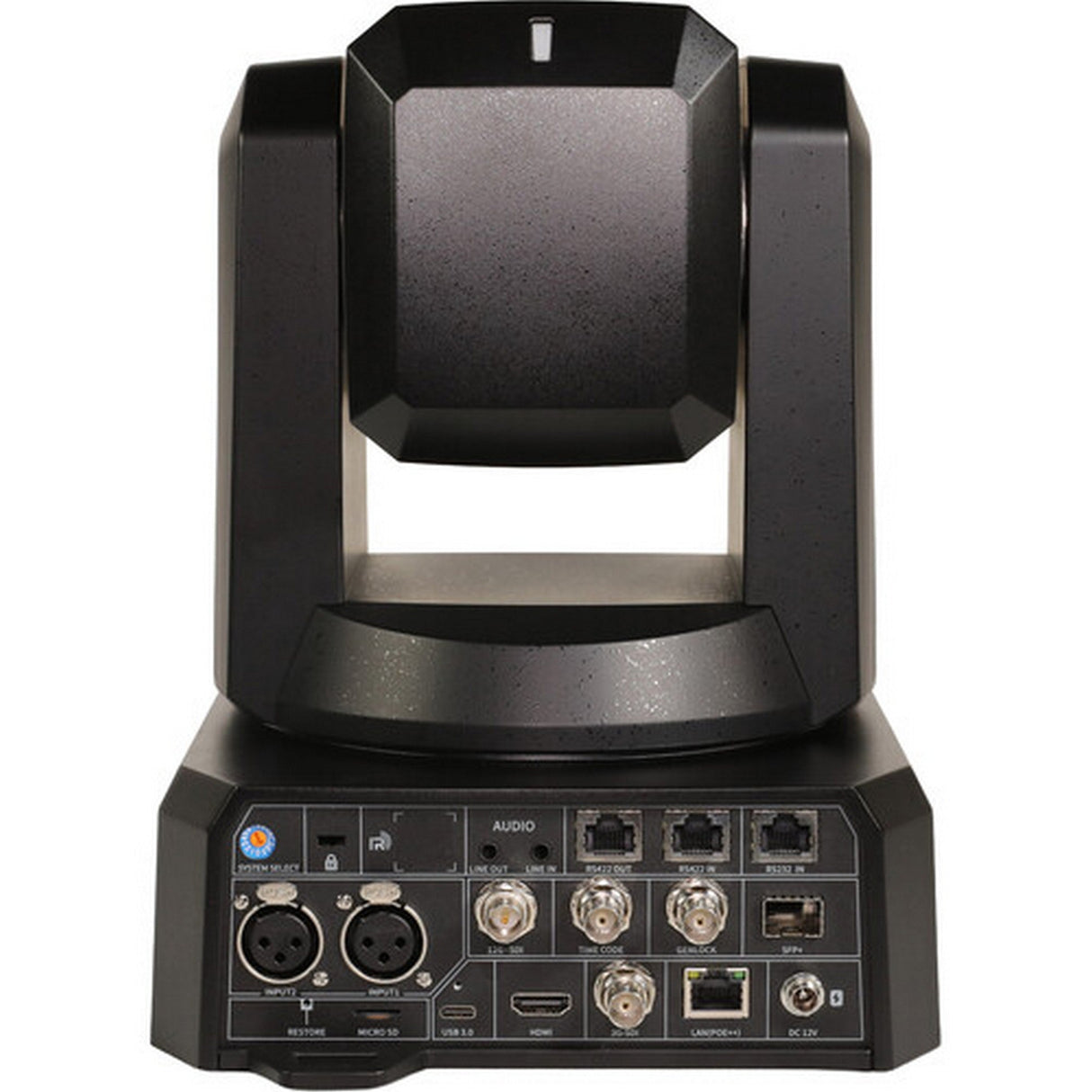

• Broadcast Video Connectivity: 12G-SDI, 3G-SDI, HDMI, USB 3.0, Ethernet, and SFP+ accommodate baseband, computer, IP, and fiber workflows.
• Professional Synchronization: Genlock and timecode integrate the camera into synchronized multicamera production environments.
• FreeD Tracking: Outputs camera-position data for compatible virtual production, augmented reality, and graphics systems.
• Intelligent Subject Tracking: ReID, FaceID, voice tracking, auto-framing, and automated presets reduce routine manual camera operation.
• Professional Audio: Dual XLR mic/line connectivity supports 48V phantom power for direct connection of compatible microphones and audio feeds.
• Horizon Control: Browser-based Horizon Web provides PTZ operation, image adjustment, scopes, presets, tracking, and automation from the production network.

Technical Specifications

• Brand: PTZOptics
• Model: PT20X-RISE-4K-BK
• Series: Rise 4K
• Product Type: Broadcast PTZ camera
• Color: Black
• Image Sensor: 1-inch Sony CMOS
• Sensor Resolution: 50MP
• Maximum Video Resolution: 3840 x 2160p
• Maximum Frame Rate: 60 fps
• Optical Zoom: 20x
• Maximum Horizontal Field of View: Approximately 71 degrees
• Focus: Phase-detection autofocus and manual focus
• Image Stabilization: Optical
• ND Filter: Built-in three-stage neutral density filter
• Camera Motors: Brushless motors
• Pan Range: -170 to +170 degrees
• Pan Speed: 0.7 to 100 degrees/second
• Tilt Range: -30 to +90 degrees
• Tilt Speed: 1.7 to 100 degrees/second
• Tracking: AI auto-tracking, ReID, FaceID, voice tracking, auto-framing
• Camera Tracking Data: FreeD
• Video Output: 1 x HDMI 2.0
• 12G-SDI Output: 1 x BNC
• 3G-SDI Output: 1 x BNC
• USB Video: USB 3.0
• Network Video: Ethernet/IP
• Fiber Expansion: 1 x SFP+ slot with 12G-compatible fiber support
• IP Video Protocols: NDI, NDI HX3, RTMP, RTSP, SRT
• Audio Inputs: 2 x 3-pin XLR mic/line inputs
• Phantom Power: 48V
• Analog Audio: 3.5mm line input and line output
• Embedded Audio: Supported over fiber, HDMI, IP, NDI, SDI, and USB
• Audio Encoding: AAC
• Genlock: 1 x BNC input/output
• Timecode: 1 x BNC input/output
• Serial Control: RS-232, RS-485, RS-422
• Browser Interface: Horizon Web
• Desktop Software Support: Horizon Hub
• Production Monitoring Tools: Waveform, vectorscope, RGB parade
• Onboard Recording: Memory card recording
• Tally: Front and rear tally indicators
• Wireless: No
• Power: 12V DC or PoE++
• PoE Standard: IEEE 802.3bt PoE++
• Manufacturer Warranty: Limited 5-year parts and labor warranty

What's In the Box

• PTZOptics PT20X-RISE-4K-BK Rise 4K Broadcast PTZ Camera
• Limited 5-year manufacturer warranty
