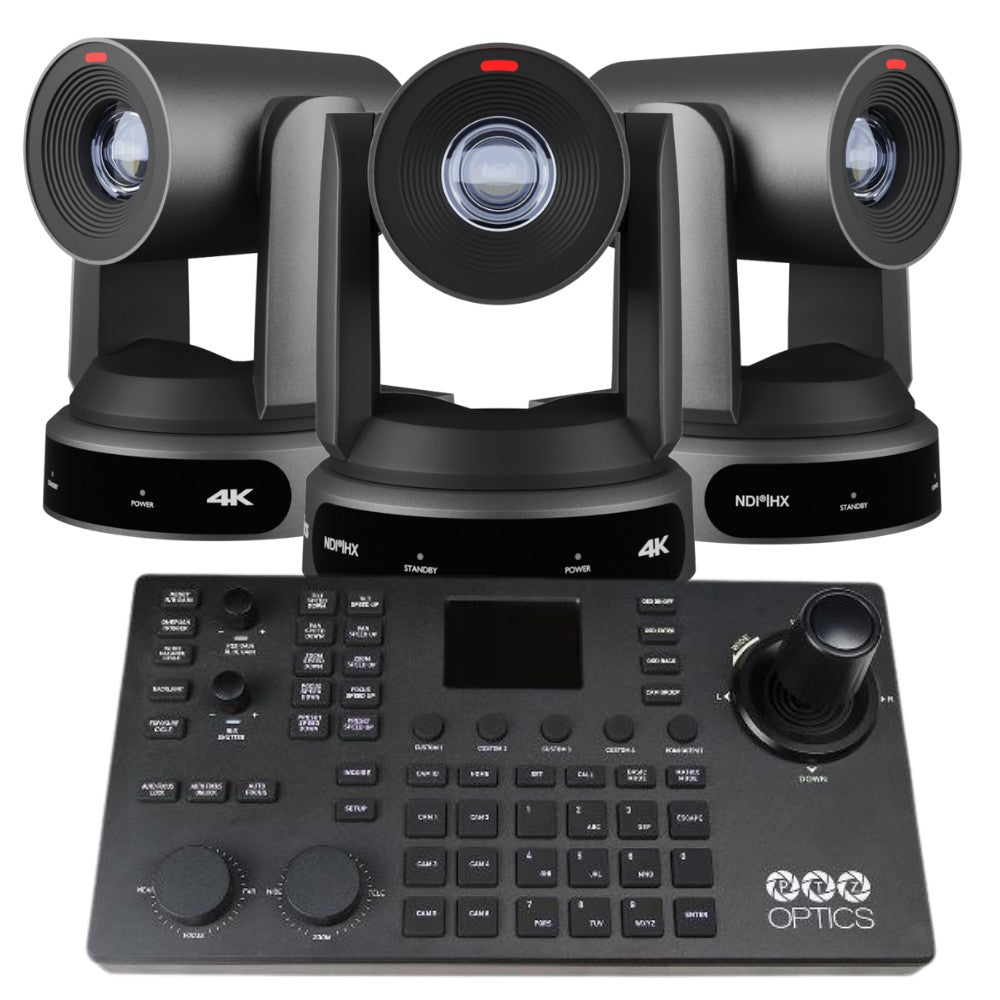

PTZOptics PT30X4K Producer Kit 30X 4K PTZ Camera Bundle with Joystick

Ultimate Precision: The Producer 4K Bundle
Capture every detail in ultra-high-definition 4K with 3 award-winning 30X Move 4K cameras. Each camera includes our most advanced auto-tracking capabilities and comes native with NDI® HX3 for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of professionals seeking the best.

Features:

• Three 30X Move 4K Cameras: Offers 4K at 60fps (1080p at 60fps over SDI).
• Unmatched Clarity: The PTZOptics Producer 30x offers improved low-light performance and advanced auto-tracking, so you never miss a moment.
• Future Proofin: The Move 4K cameras offer PoE+ capabilities, SDI, HDMI, USB, IP outputs, and out-of-the-box NDI 6.
• SuperJoy Joystic: The SuperJoy controller empowers you to manage multiple cameras easily. The Superjoy takes remote pan, tilt, and zoom camera operations to the next level with advanced controls for power users.

Technical Specifications

Image Sensor & Lens

Optical Zoom

• 12x

Video Sensor and Frame Rate

• HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
• SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94

Digital Zoom

• Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)

Field of View

• 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
• 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)

Min. Lux

• 0.5 Lux @ (F1.8, AGC ON)

Shutter

• 1/30s ~ 1/10000s

Pan/Tilt Movement

Pan Speed

• 1.7° ~ 100°/s

Tilt Movement

• +90° to -30

Tilt Speed

• 1.7° ~ 69.9°

Presets

• 255 Presets

Video Tracking

• Supported

Image Flip, Mirror and Freeze

• Supported

Power Options
Power Supply

• DC 12V / PoE+ (802.3at)

Input Power

• 18W (Max)

Physical Specifications
Material

• Aluminum, Plastic

Color

• Gray

Dimensions (W x D x H)

• 5.57 W x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm

Weight

• 3.25 lbs (1.47 kg)

Working Environment

• Indoor

Operating Temperature

• 14°F ~ 104°F (-10°C to 40°C)

Storage Temperature

• -40°F ~ 140°F (-40°C to 60°C)

Rear Board Connectors

• NDI|HX Included

HD Video Output

• 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
• 1x HDMI: version 2.0
• 1x USB 2.0: type A
• 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard

Audio Interface

• 1x 3.5mm Line level Input

Communication Interface

• 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P

Network Interface

• RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE

Power Jack

• JEITA type (DC IN 12V)

Note: NDI|HX Included

What's Included

• 3x Move 4K 30x PTZ Cameras IR Remote Control 12 VDC Power Adapter USB-A to USB-A Cable RS-232 Cable 2 x AA Battery Warranty: Limited 5-Year Manufacturer Warranty 1x SuperJoy Controller 12 VDC Power Adapter RS-232C Cable (8') Warranty: Limited 2-Year Manufacturer Warranty
