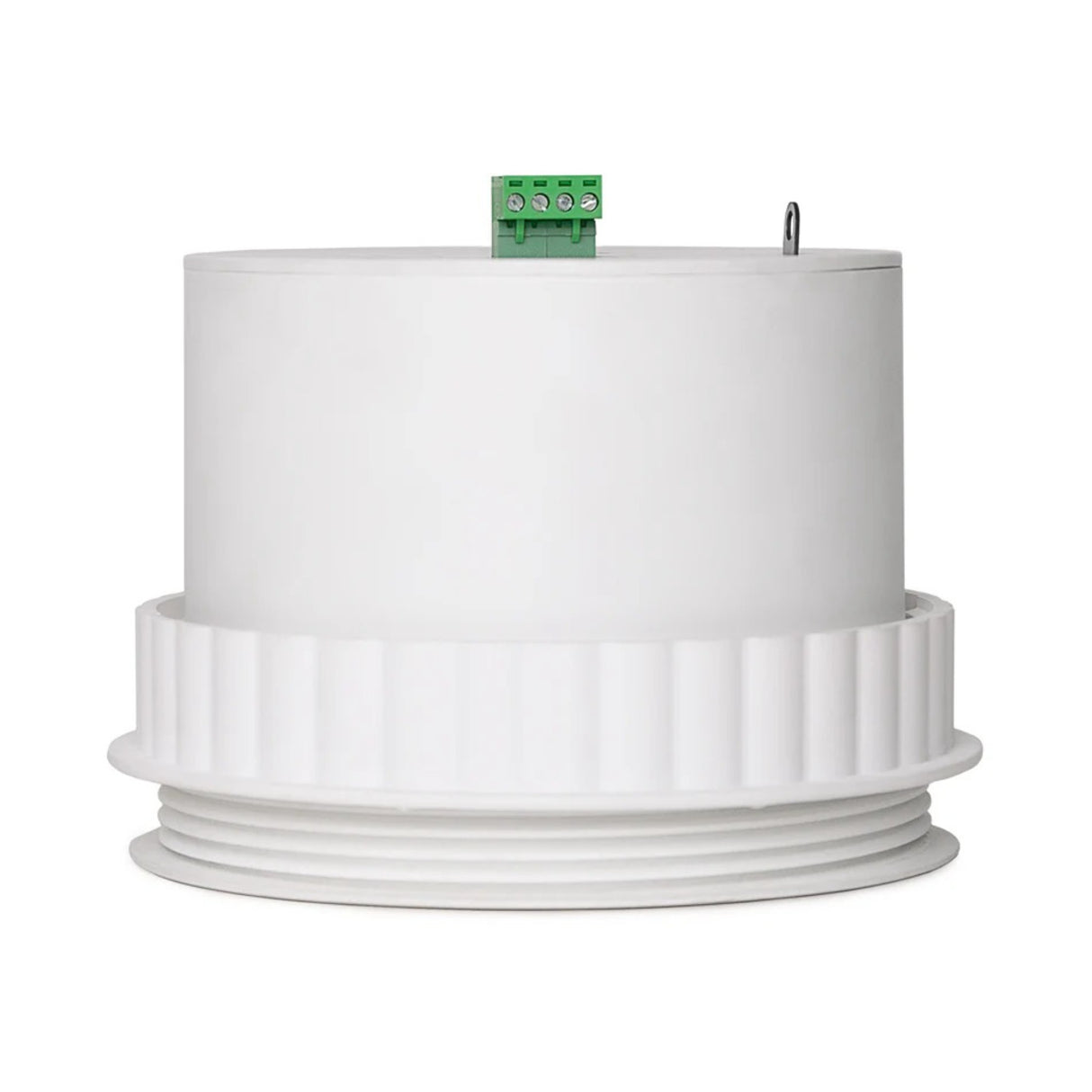

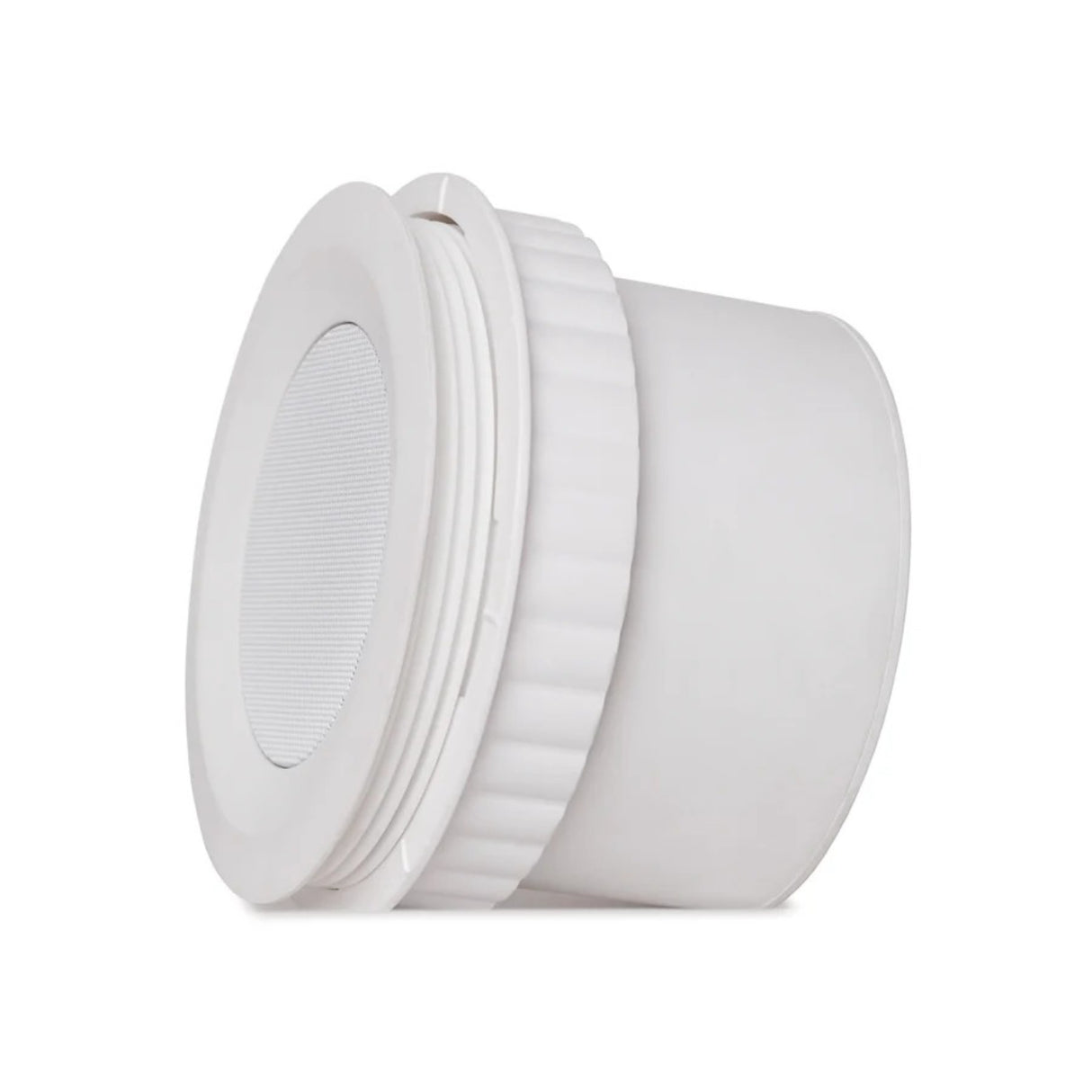

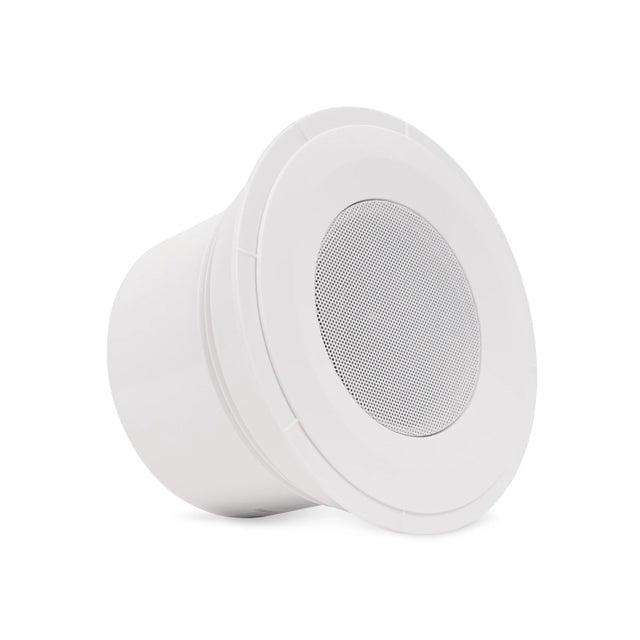

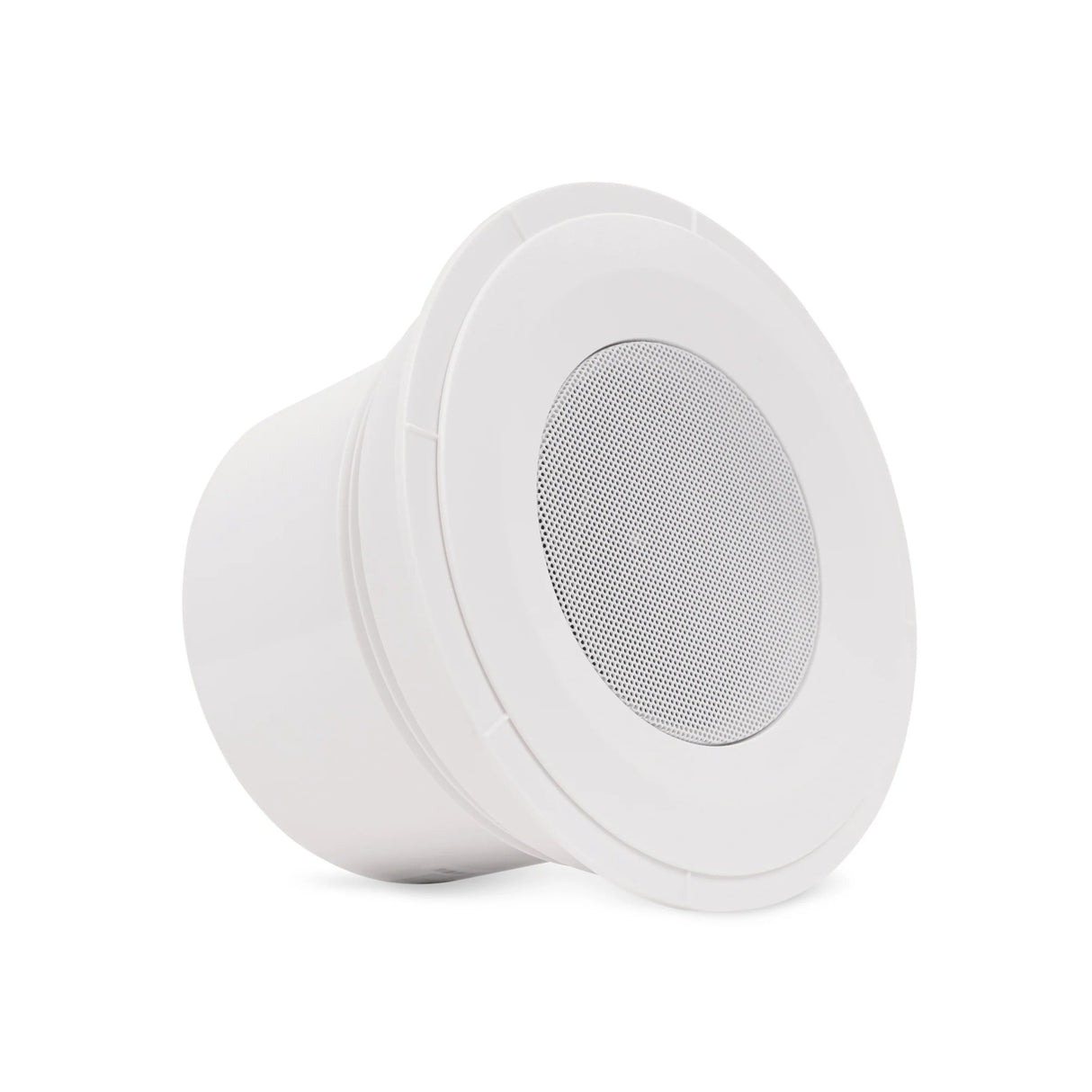

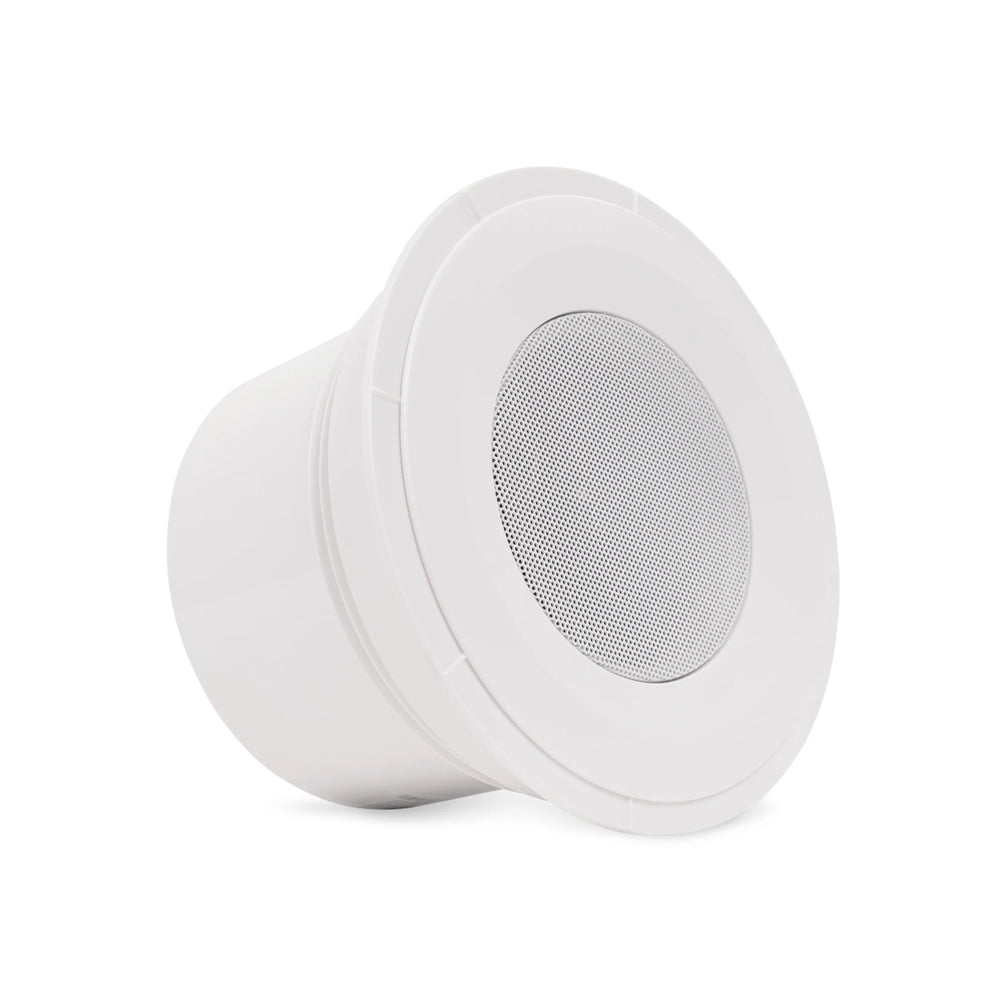

Pure Resonance Audio C5 4" 70V Ceiling Mount Speaker

Pure Resonance Audio C5 4-Inch 70V Commercial Ceiling Speaker

The Pure Resonance Audio C5 Micro 4" 70V Ceiling Mount Speaker is a compact commercial audio solution designed to deliver reliable full-range sound in professional environments. Its recessed design with an ultra-thin flat bezel provides a clean, low-profile appearance that integrates seamlessly into drop tile ceilings while maintaining high-quality audio performance. Ideal for offices, retail spaces, restaurants, hospitality venues, and other commercial installations, the C5 offers versatile sound distribution for music, paging, announcements, and sound masking applications.

Engineered for dependable performance, the C5 features a 4-inch full-range paper cone driver with a durable butyl rubber surround housed within an intelligently designed enclosure. This configuration produces clear, balanced audio with wide 120° x 120° coverage, a 90Hz – 20kHz frequency response, and 91 dB sensitivity for consistent sound dispersion throughout a space. The integrated 70V/100V multi-tap transformer with selectable 8-ohm bypass provides flexible system compatibility, making it easy to integrate with distributed audio systems.

Installation is quick and efficient thanks to the threaded screw-on Easy-Mounting ring, allowing secure placement in drop tile ceilings without complicated hardware. Optional accessories—including a tile bridge, drywall mounting ring, and pendant mounting kit—provide additional installation flexibility for a wide range of ceiling types and architectural layouts. The Pure Resonance Audio C5 ceiling speaker delivers dependable commercial audio performance in a compact and easy-to-install design.

Key Features

• Compact Recessed Design: Ultra-thin flat bezel provides a discreet appearance that blends seamlessly into ceiling installations.
• Full-Range 4-Inch Driver: Paper cone driver with butyl rubber surround delivers clear, balanced audio with excellent durability.
• Wide Audio Coverage: 120° x 120° coverage ensures consistent sound distribution across large areas.
• 70V / 100V Multi-Tap Transformer: Integrated transformer with selectable 8-ohm bypass provides flexible compatibility with distributed audio systems.
• Commercial Audio Applications: Ideal for background music, foreground music, paging, announcements, and sound masking in business environments.

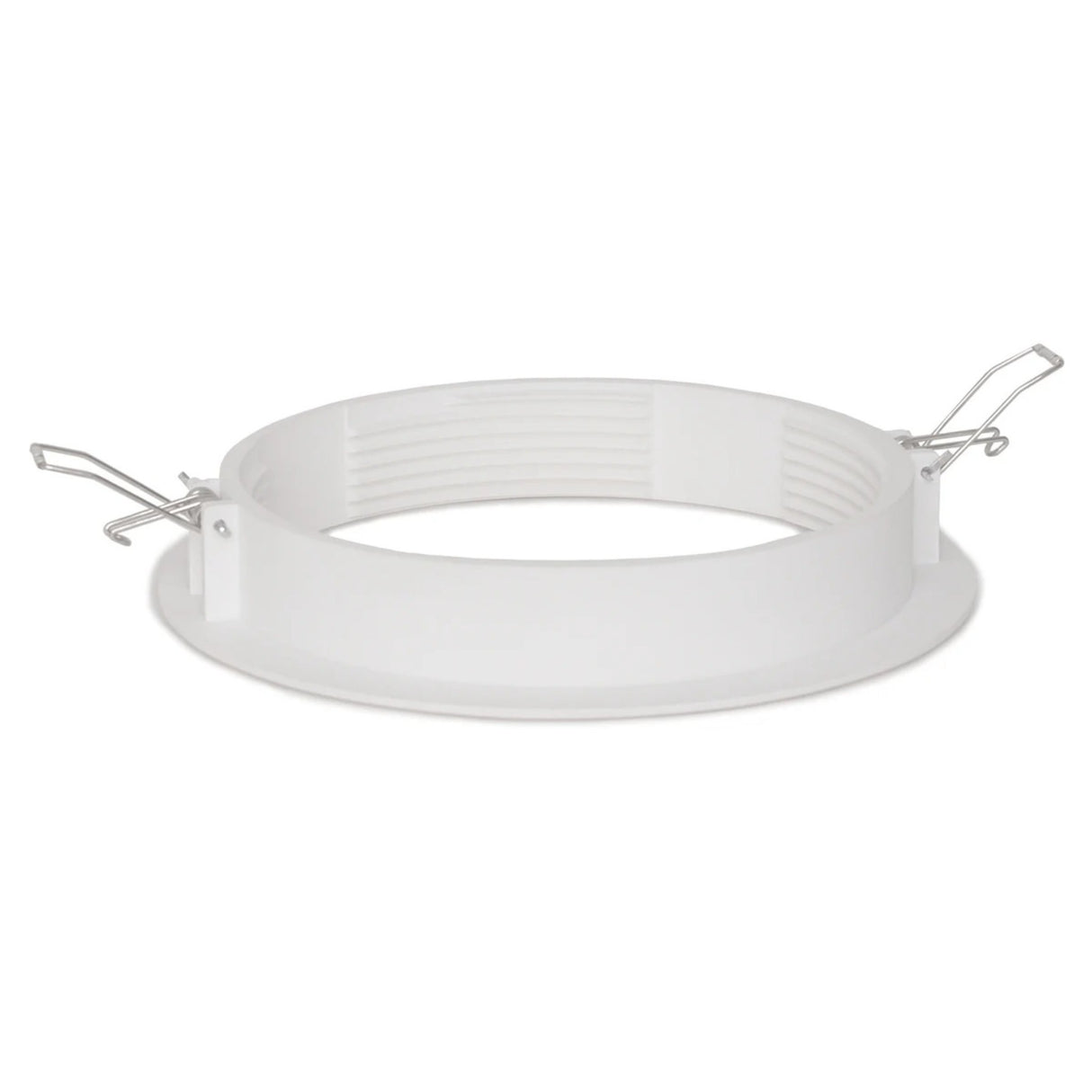

• Easy Ceiling Installation: Threaded screw-on Easy-Mounting ring enables quick and secure installation in drop tile ceilings.

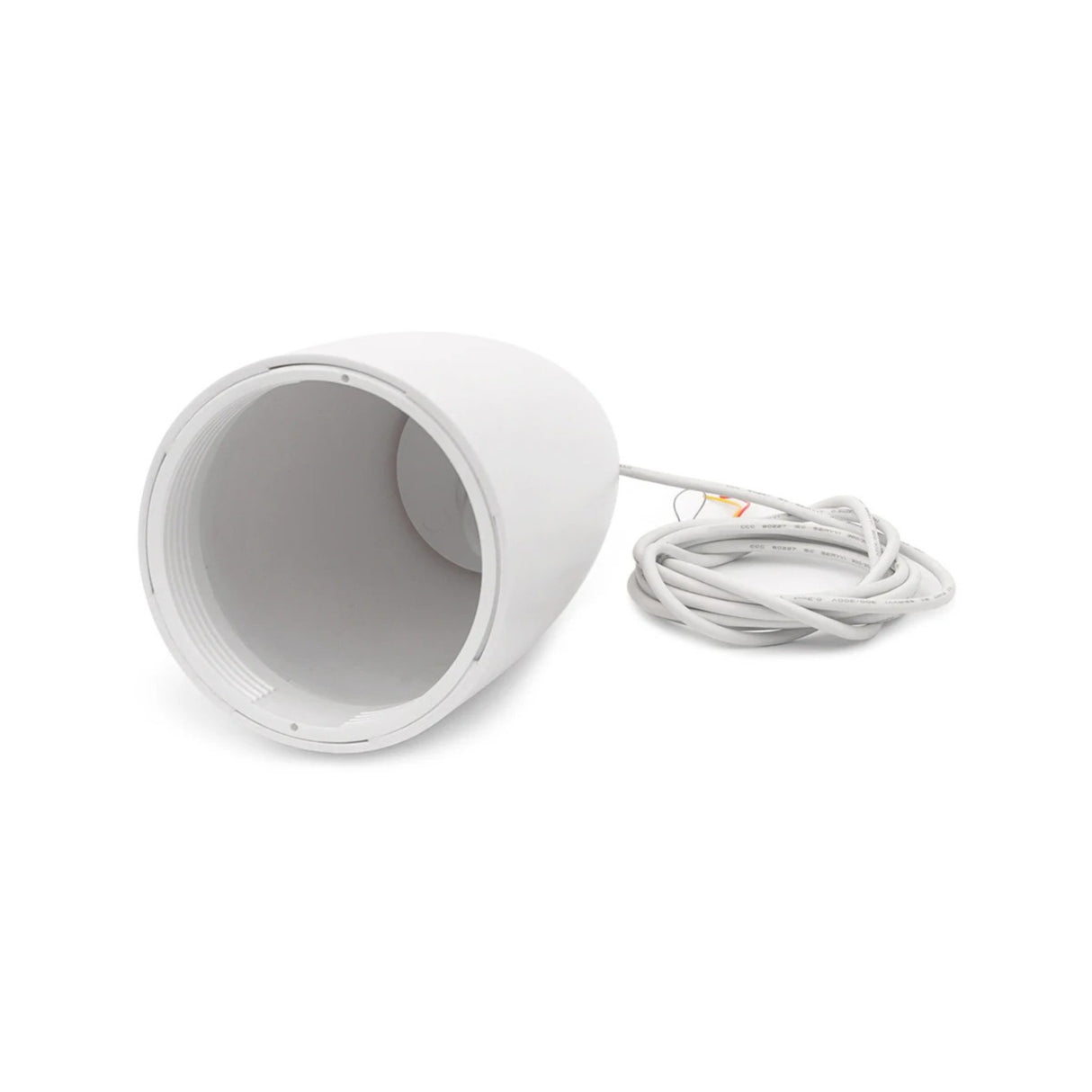

• Expandable Mounting Options: Optional drywall mount, tile bridge, and pendant mounting accessories allow flexible installation across multiple ceiling types.
• Professional Connectivity: 4-pin Euroblock screw terminal connector ensures reliable speaker wire connections.

Technical Specifications

• Speaker Type: Commercial Ceiling Mount Speaker
• Driver Size: 4-inch full-range paper cone
• Surround Material: Butyl rubber
• Frequency Response: 90 Hz – 20 kHz
• Sensitivity: 91 dB
• Coverage Angle: 120° × 120°
• Power Handling: 10 Watts
• Impedance: 70V / 100V with selectable 8-ohm bypass
• Connector Type: 4-pin Euroblock screw terminal
• Mounting Method: Threaded Easy-Mount ceiling ring

What's Included

• Pure Resonance Audio C5 4" Ceiling Speaker
• Easy-Mounting Threaded Ring
