Q-SYS NC-20x60 20x Optical Zoom PTZ Conference Camera
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

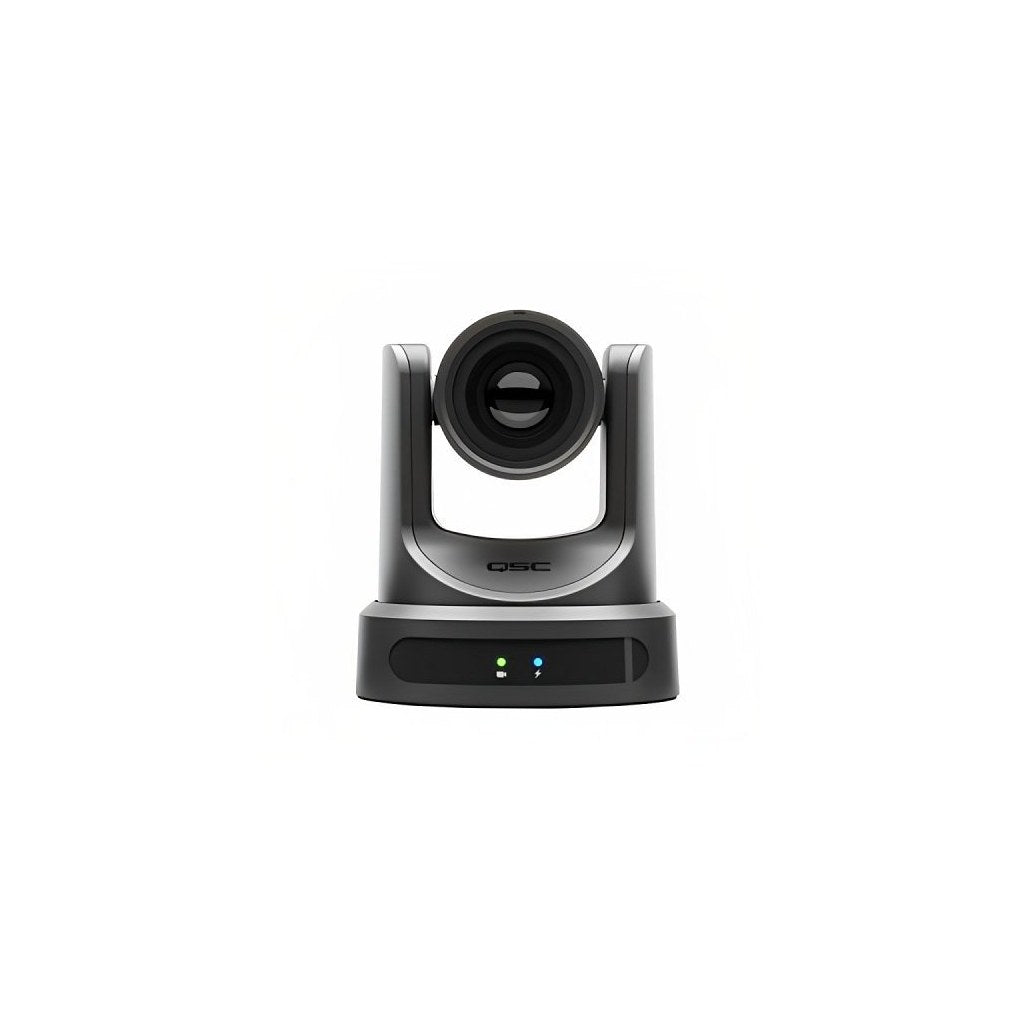

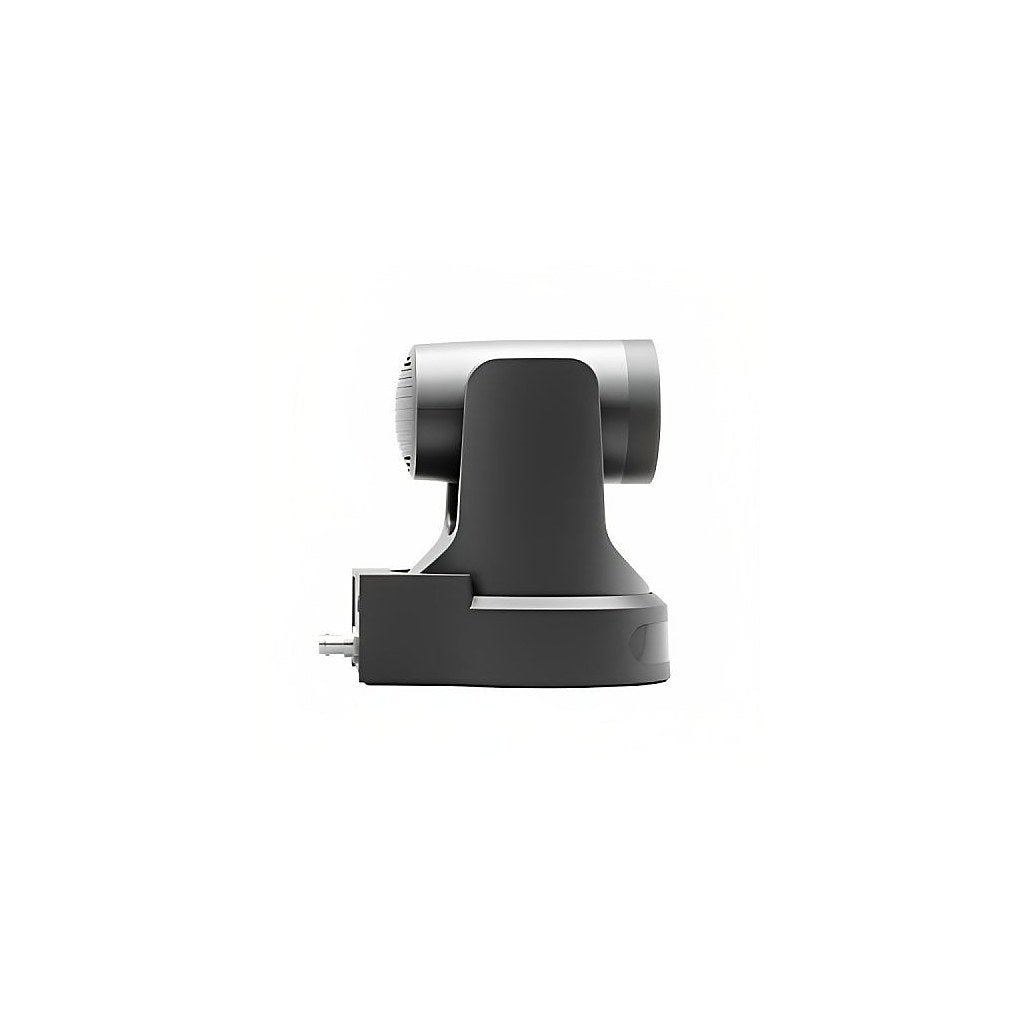

Q-SYS NC-20x60 20x Optical Zoom PTZ Conference Camera
The Q-SYS NC-20x60 20x optical zoom PTZ conference camera delivers networked video for Q-SYS meeting spaces, combining motorized pan, tilt, and zoom with a 60° horizontal field of view. It routes camera feeds across Q-LAN and supports professional conferencing applications through Q-SYS AV bridging.
Built for medium and large collaboration rooms, lecture spaces, training rooms, and corporate AV systems, this PTZ network camera gives integrators flexible placement and extended presenter framing. Buyers looking to purchase a Q-SYS PTZ conference camera, add a 20x zoom meeting room camera, or build a Q-LAN video system get native platform control without separate video matrix hardware.
The NC-20x60 integrates with Q-SYS Designer Software and Q-SYS Reflect for camera management, routing, and monitoring. Power over Ethernet simplifies installation, while HDMI 2.0 and 3G-SDI outputs support professional video workflows. Auto-Framing can frame detected faces within the camera’s field of view for more natural remote collaboration.
Q-SYS Network PTZ Camera Features
- 20x Optical Zoom: Frames presenters and participants from longer distances while maintaining optical image quality.
- 60° Horizontal Field of View: Captures focused room coverage for medium and large conferencing spaces.
- Q-LAN Network Video: Distributes camera video across the Q-SYS network for flexible system design.
- Power over Ethernet: Carries power and network connectivity over a single Ethernet connection.
- Motorized PTZ Control: Supports pan, tilt, and zoom control for room presets and precise framing.
- Image Control Tools: Provides white balance, focus, exposure, shutter, and image rotation settings.
- Auto-Framing Support: Frames detected faces within the camera’s current field of view when enabled.
- Included Wall Mount: Ships with the PTZ-WMB1 wall mount bracket for straightforward installation.
Technical Specifications
- Product Type: Network PTZ conference camera
- Model: NC-20x60
- Optical Zoom: 20x
- Horizontal Field of View: 60°
- Image Sensor: 1/1.8" low-noise CMOS
- Lens: f=6.25 mm to 125 mm, F1.58 to F3.95
- Sensor Scanning Mode: Progressive
- Horizontal Rotation Range: ±170°
- Vertical Rotation Range: -30° to +90°
- Pan Speed Range: 1.7° to 100°/s
- Tilt Speed Range: 1.7° to 69.9°/s
- Minimum Illumination: 0.5 Lux at F1.8, AGC on
- Shutter: 1/30 s to 1/1000 s
- White Balance: Auto, indoor, outdoor, one-push, manual, specified color temperature
- IP Stream Resolutions: H.264 at 360p, 270p, or 180p for preview window

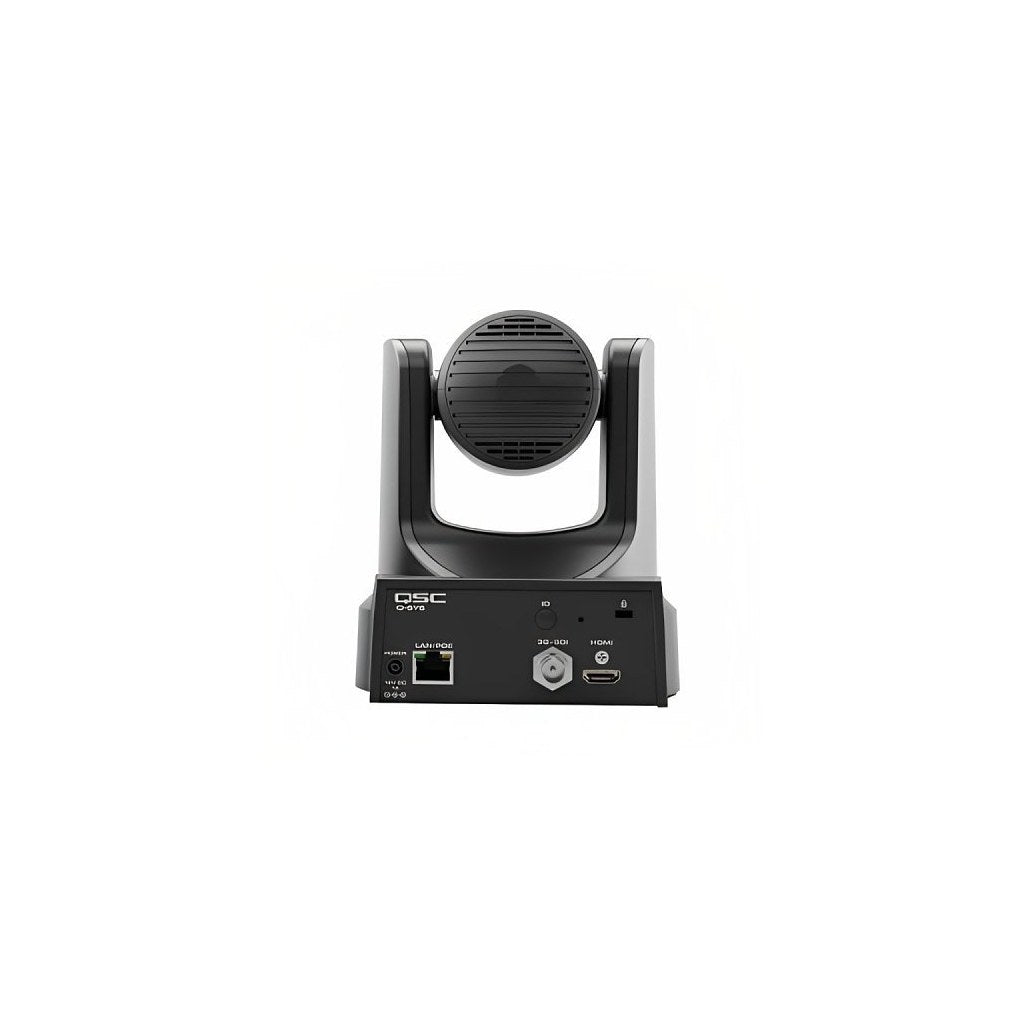

- HDMI Output: HDMI 2.0
- SDI Output: 3G-SDI
- HDMI Video Formats: 4K at 25, 29.97, 30 fps; 1080p at 25, 29.97, 30, 50, 59.94, 60 fps; 1080i at 50, 59.94, 60 fps; 720p at 30, 50, 59.94, 60 fps
- SDI Video Formats: 1080p at 25, 29.97, 30, 50, 59.94, 60 fps; 1080i at 50, 59.94, 60 fps; 720p at 50, 59.94, 60 fps
- DC Power Input: 12 V, ±20%, 12 W, JEITA connector
- Power over Ethernet: PoE Class 3, Type 1
- Power Consumption: 12.95 W max
- Network Interface: 1000BaseT Ethernet
- Operating Temperature: 32°F to 104°F
- Storage Temperature: -40°F to 140°F
- Dimensions: 6.7" x 7.95" x 5.6"
- Net Weight: 3.5 lbs
What's In the Box
- Q-SYS NC-20x60 PTZ conference camera
- PTZ-WMB1 wall mount bracket
