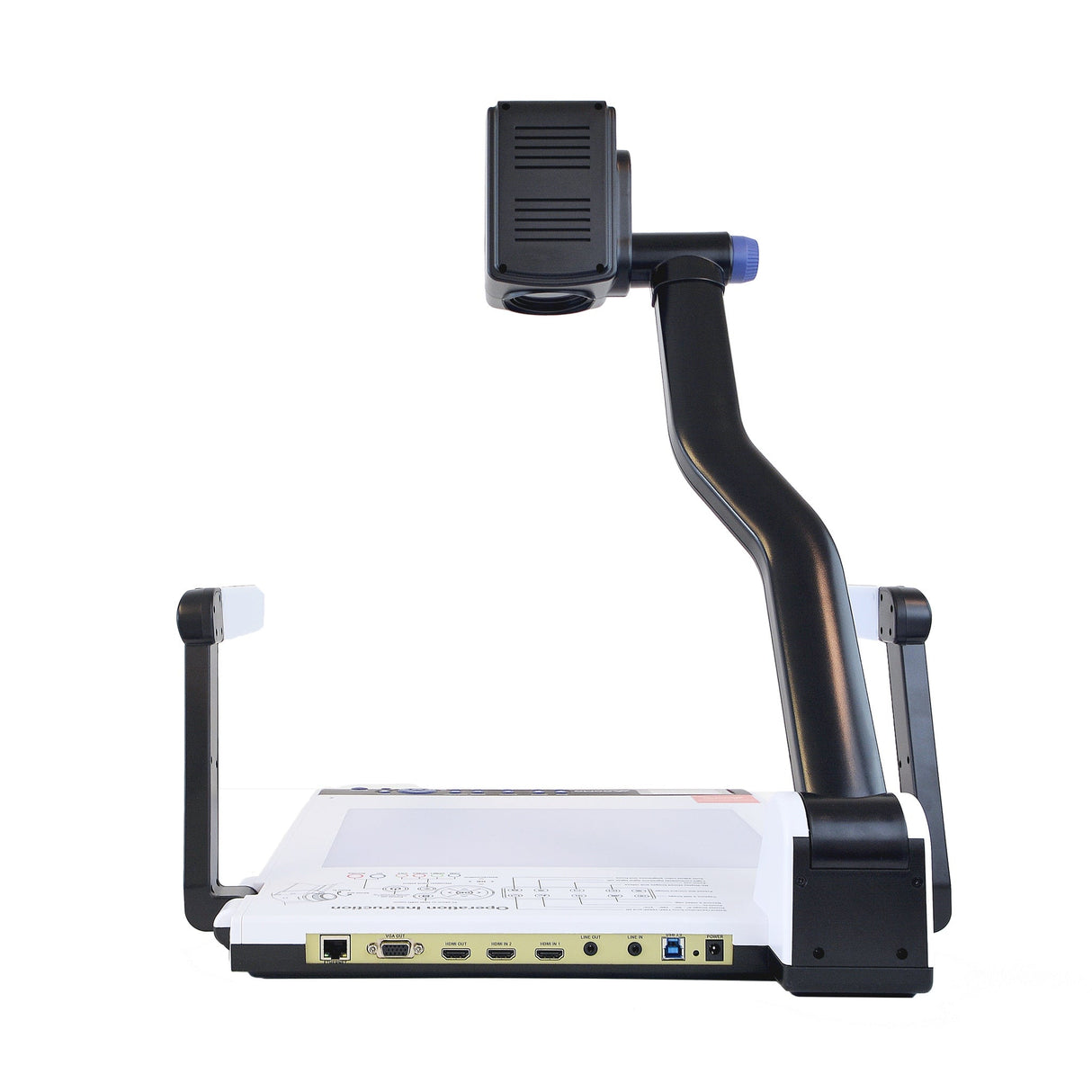

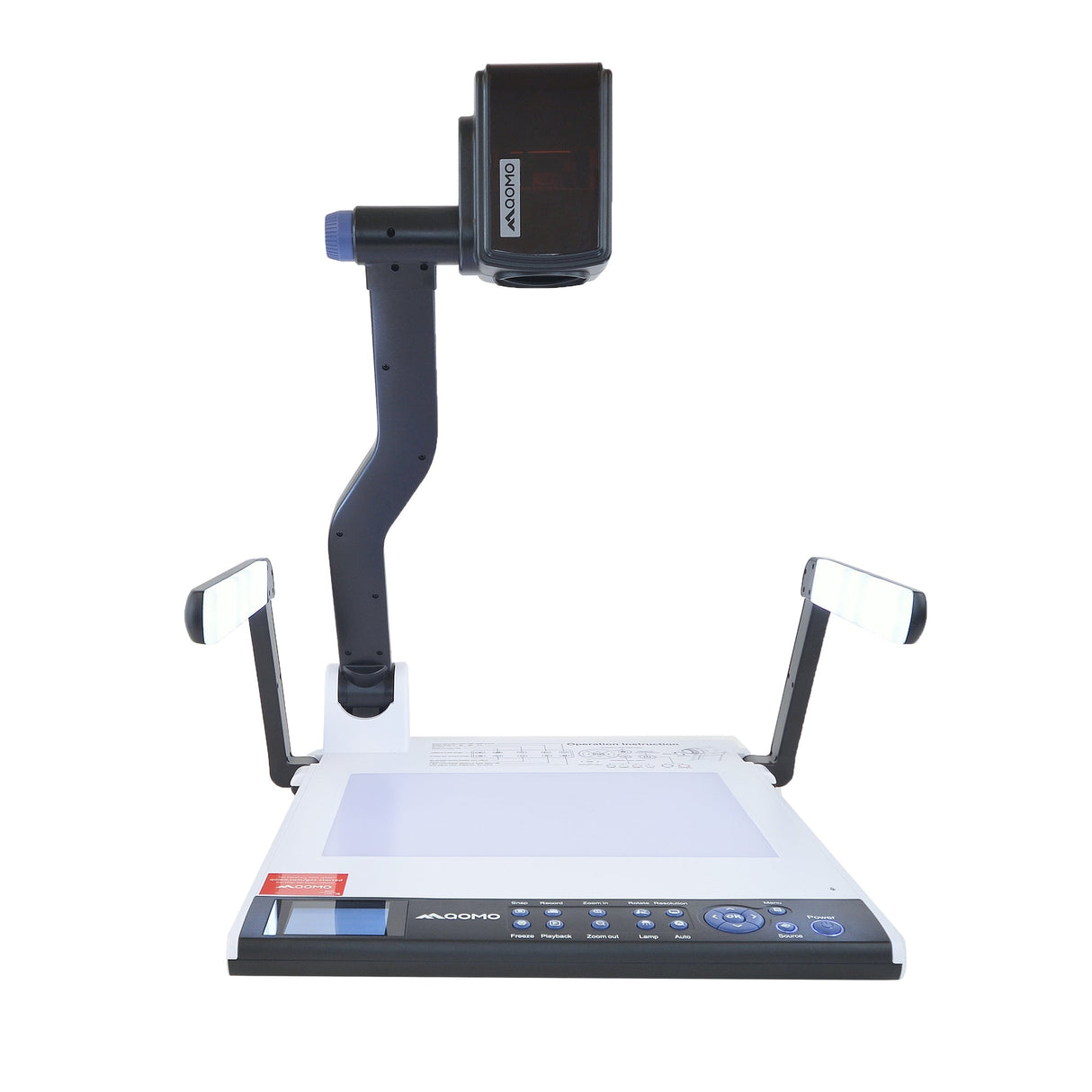

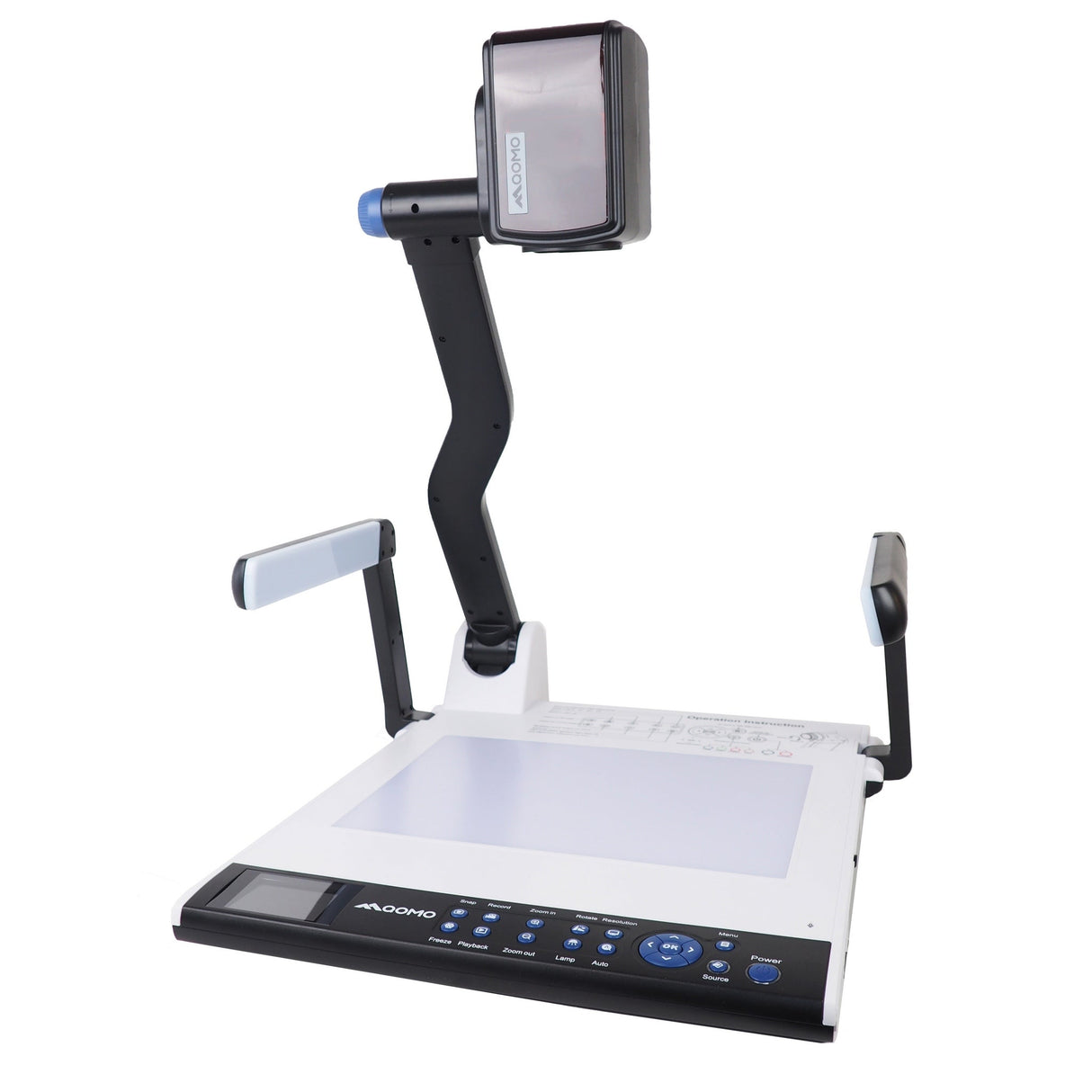

QOMO QD5000 CenterCam 4K 8.3 MP Smart Document Camera

QOMO QD5000 CenterCam 4K 8.3 MPSmart Document Camera

The QOMO QD5000 CenterCam is a professional flatbed document camera that combines 4K Ultra HD imaging with a powerful zoom, built-in storage, and versatile connectivity. Designed for classrooms, courtrooms, and conference rooms, it delivers crisp visuals and seamless functionality for teaching, presenting, and collaboration.

Equipped with an 8.3 MP CMOS sensor, the QD5000 captures documents and objects in resolutions up to 4K (3840 × 2160) at 30 fps. Its 10x optical and 10x digital zoom allow close-up detail viewing, while the built-in LCD preview screen ensures you can frame and adjust your image instantly. Onboard memory lets you capture, save, and replay content without a computer.

The large A4 backlit stage with dual LED lamps guarantees clear visibility, even in dim environments. With multiple input and output ports including HDMI, VGA, USB, RS232, and Ethernet, this smart document camera integrates smoothly into diverse AV setups, making it a reliable solution for professional and educational applications.

Key Features

• Ultra HD Imaging: 4K resolution with 8.3 MP CMOS sensor
• Zoom: 10x optical and 10x digital zoom for detailed close-ups
• Backlit Stage: Large A4 flatbed with evenly lit dual LED lamps

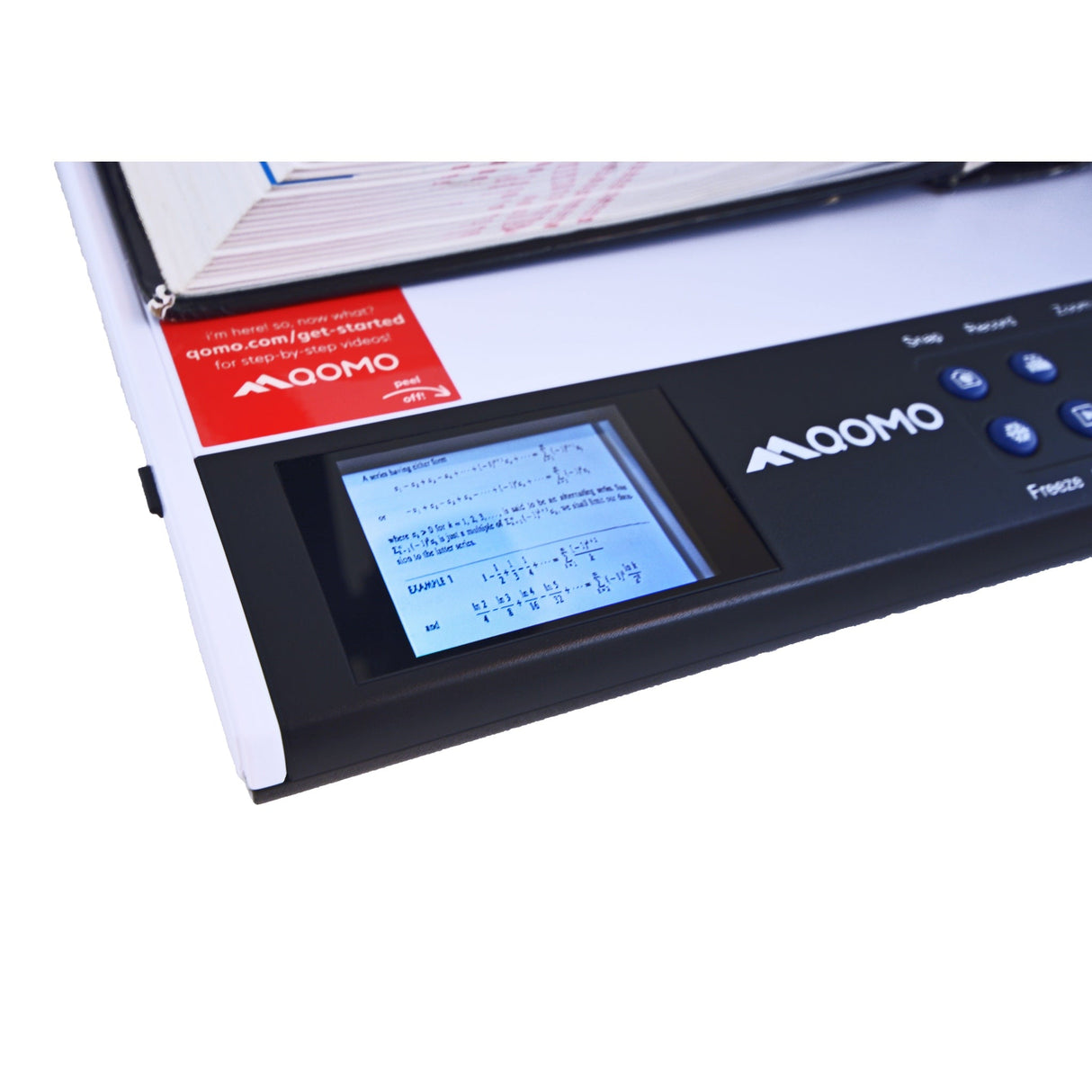

• Preview Screen: Built-in LCD screen for real-time monitoring
• Onboard Memory: Capture, save, and replay without a computer
• Flexible Rotation: Image rotation at 0°, 90°, 180°, 270°
• Functions: Split screen, freeze, mirror, negative/positive conversion
• Remote Control: Easy navigation and operation at a distance
• Applications: Ideal for classrooms, conference rooms, and courtrooms

Technical Specifications

• Model: QD5000
• Image Sensor: 8.3 MP CMOS
• Optical Zoom: 10x
• Digital Zoom: 10x
• Frame Rate: 30 fps
• Video Resolution: 720p (1280 × 720), 1080p (1920 × 1080), 4K (3840 × 2160)
• Image Rotation: 0° / 90° / 180° / 270°
• White Balance: Auto
• Special Functions: Image split, freeze, mirror, negative/positive conversion
• Inputs: VGA (1), Audio In (1), HDMI 1.4 (2), USB Type A (1), Built-in Mic (1), RS232 DB9 (1), RS232 PS2 (1), Line In (1), RJ45 (1)
• Outputs: VGA (1), HDMI (1), Audio Out (mini-jack, 1)
• USB (UVC): Yes
• Video Output: Yes
• Dimensions (Folded): 20 × 16 × 4.5 in (508 × 406 × 114 mm)
• Dimensions (Set Up): 20 × 21 × 22.5 in (508 × 533 × 571 mm)
• Weight: 12 lbs (5.5 kg)

What’s in the Box

• 1x QOMO QD5000 CenterCam Document Camera
• 1x Power adapter
• 1x Remote control
• 1x User guide
