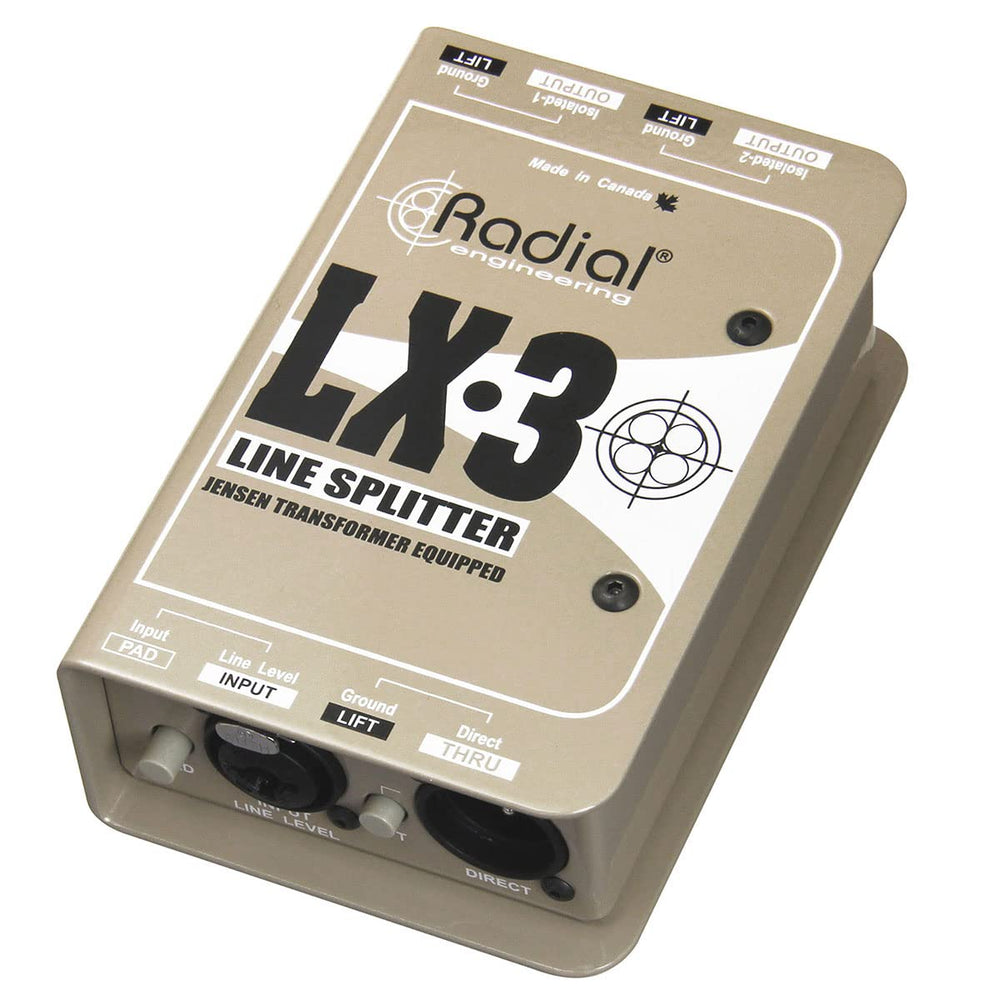

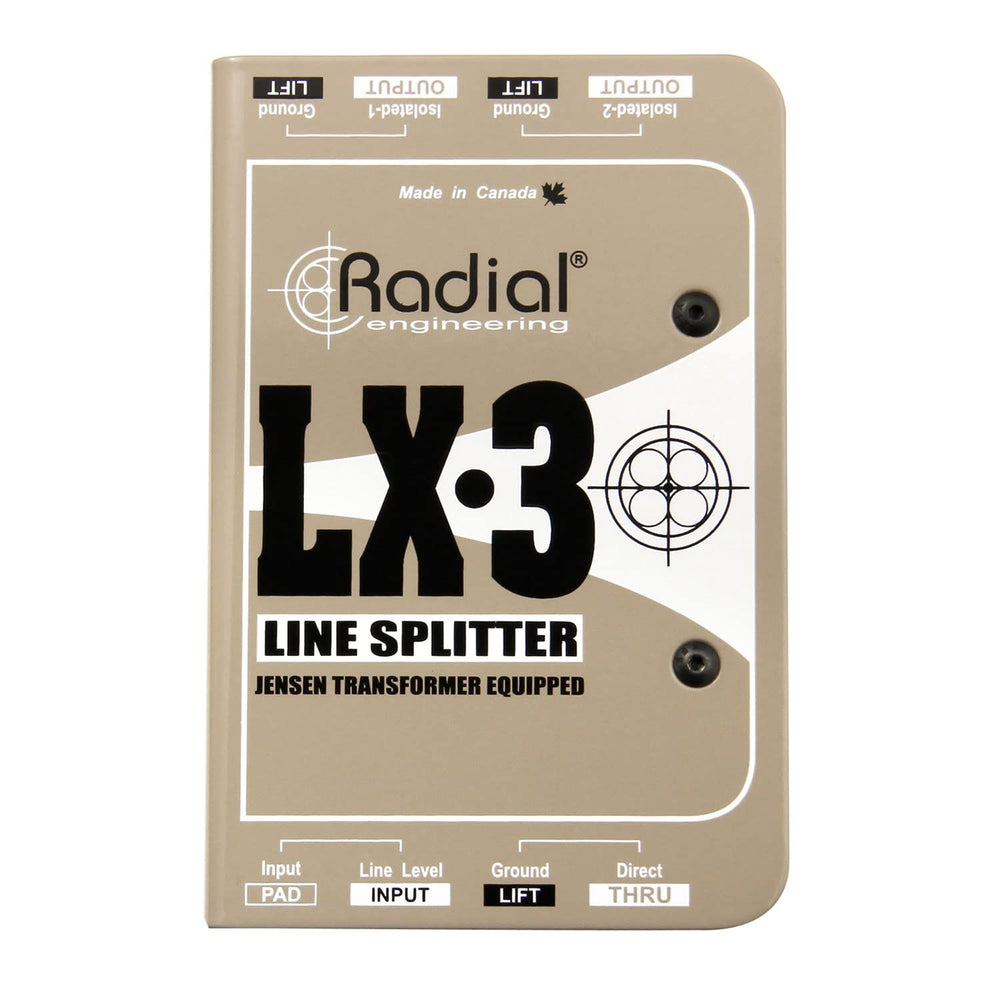

Radial LX-3 | Passive Line Splitter

The Radial LX-3 is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once. Completely passive with no need for power, you simply plug in and the LX-3 goes to work delivering your audio wherever it needs to go. Featuring the industry's best combination of frequency response, signal level handling, and low distortion, the Radial LX-3 ensures pristine audio quality, making it a must-have tool for any professional audio engineer.

The heart of the LX-3 is a premium Jensen JT-123-FLPCH transformer. This carefully selected transformer not only provides superior sound quality but also ensures your audio signal remains free of unwanted noise and distortion. The Radial LX-3 includes two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. For added convenience, all three XLR outputs are equipped with ground lift switches, which further enhance noise suppression. Additionally, a switchable -12dB input pad allows you to connect even the hottest line outputs without worrying about overloading or distortion.

Beyond its technical prowess, the LX-3 excels in build quality. Constructed from heavy-duty 14-gauge steel, this line splitter is designed to withstand years of abuse on the road. A unique book-end design creates a protective housing around the connectors and switches, ensuring they remain safe even in the harshest environments. The internal I-beam frame design makes it nearly impossible to torque the circuit board and damage connections. Whether you're in the studio or on a live stage, the Radial LX-3 offers reliable performance and exceptional durability.

Key Features

• Send one audio signal to three destinations simultaneously
• Jensen transformer equipped for exceptional audio quality
• Eliminates hum and buzz caused by ground loops
• 14-gauge steel construction and military-grade circuit board for incredible durability
• Switchable -12dB input pad for hot line outputs
• Ground lift switches on all XLR outputs
• Compatible with both balanced and unbalanced cables

Specifications

• Transformer: Jensen JT-123-FLPCH
• Construction: 14-gauge steel
• Input: XLR/TRS combo jack
• Outputs: 3 x XLR (2 isolated, 1 direct)
• Input Pad: -12dB, switchable
• Ground Lift: Switchable on each output

Package Contents

• Radial LX-3 Passive Line Splitter
• Instruction Manual
