Radial MIX 2:1 2-Channel Summing Mixer

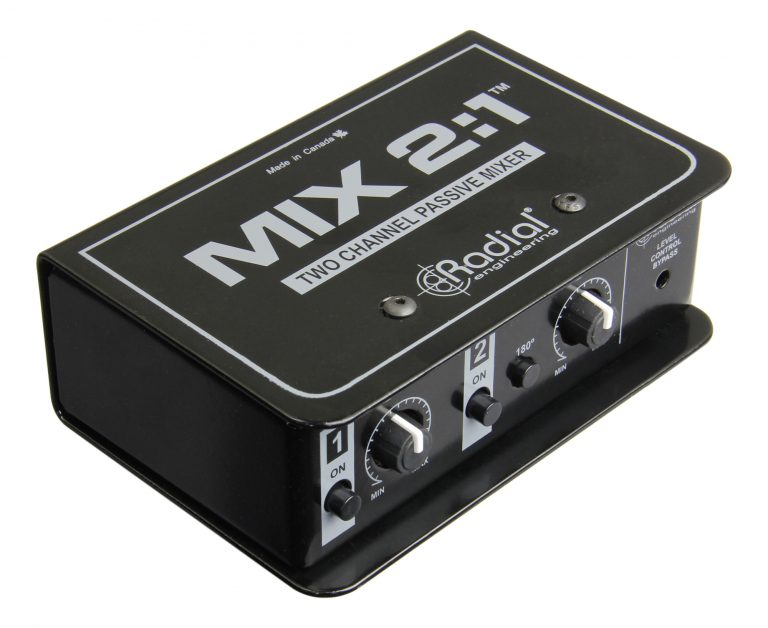

The Radial MIX 2:1 is an essential tool for anyone needing to sum two audio channels down to one with ease and precision. This passive summing mixer is perfect for a myriad of applications, whether you're looking to combine the stereo outputs of a console, a recording interface, or a portable playback device into a single mono output. Its utility extends to mixing any two signals together while maintaining the capability to balance their relative input levels with its individually bypassable level controls.
Constructed with a durable 14-gauge steel chassis, the Radial MIX 2:1 ensures reliability and longevity in various environments. Its passive design means no power is required, making it ideal for both studio and remote applications. With balanced 1/4" TRS and XLR inputs, this mixer is versatile and straightforward, providing high fidelity audio with a frequency response from 20Hz to 20kHz and negligible distortion levels, ensuring your sound is reproduced with ultimate clarity.
Key Features
- Mix two channels to a single mono output
- Individual level controls can be bypassed when not in use

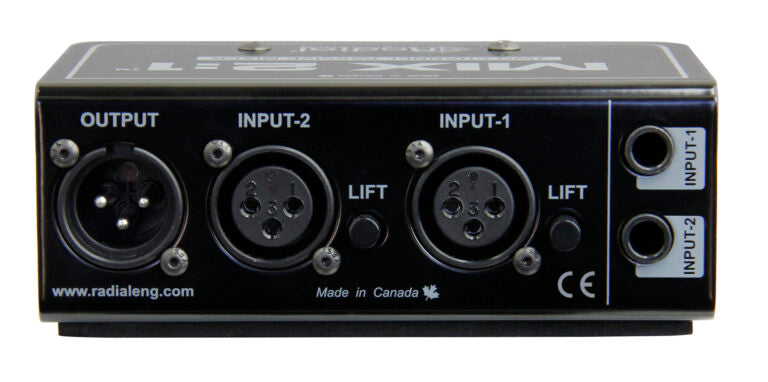

- Balanced 1/4" TRS and XLR inputs
- Completely passive, no need for power
- Durable 14-gauge steel chassis and outer shell
- 180-degree polarity reverse switch
- Ground lift switch to eliminate hum
Specifications
- Audio circuit type: Passive mixer
- Frequency response: 20Hz to 20kHz
- Dynamic range: >133dB
- Total harmonic distortion: greater than 0.005 percent @ 0dBu
- Intermodulation distortion: greater than 0.002 percent @ 0dBu
- Phase deviation: 0 deg @ 20Hz, 0 deg @ 1kHz +2 deg @10kHz
- Input impedance: 8 k OHM
- Output impedance: 1 k OHM
- Common mode rejection ratio: >80dB
- Noise: -113dBu
- Maximum input: greater than +20dBu
- Input connectors: 1/4", XLR
- Output connectors: XLR
- Construction: 14-gauge steel chassis and outer shell
- Size (L x W x D): 5" x 3.25" x 1.85" (12.7 x 8.3 x 4.7cm)
- Weight: 1.48lb (0.67kg)
- Shipping size (L x W x D): 6.25" x 4.12" x 3" (15.9 x 10.5 x 7.6cm)
- Shipping weight: 1.77lb (0.8kg)
- Power: Passive, no power required
- Conditions: For use in dry locations only, between 5Ā°C and 40Ā°C
- Warranty: Radial 3-year, transferable
Package Contents
- Radial MIX 2:1 2-Channel Summing Mixer
- User Manual
