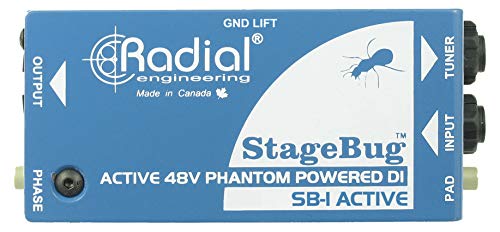

Radial SB-1 ACTIVE | StageBug Active Acoustic Direct Injection Box
The Radial SB-1 Acoustic StageBug Active Direct Injection Box is the perfect companion for musicians on the go. Designed to easily fit inside a guitar case, the SB-1 is Radial's smallest DI box yet, but it packs a punch with its superior sound quality. This ultra-compact device ensures that your acoustic guitar delivers the best sound possible, whether you're playing live onstage or recording in the studio.
The SB-1's design starts with a standard 1/4-inch instrument input and a thru-put to feed your tuner or on-stage amp. The ultra-quiet active circuit immediately converts your signal from high to low impedance, minimizing noise and ensuring a clear, crisp sound. The signal is then balanced and buffered for long cable runs to the PA system. Powered by 48V phantom power, the SB-1 eliminates the need for batteries or external power suppliesājust plug it in and you're ready to perform.
The active circuit boasts an 800k-ohm input impedance, eliminating loading problems and delivering extra sparkle to the top-end frequencies, making it perfect for vintage guitars with low-output pickups. Equipped with a -15dB pad, the SB-1 can gracefully handle loud active instruments like electric basses and keyboards. Additionally, the 180-degree polarity switch helps reduce feedback by eliminating low-frequency resonance, making this direct box essential for any onstage setup.
Key Features
- Active direct box for acoustic guitar
- Ultra-compact to fit in your guitar case
- Plug and play ease of use
- 48V phantom power, no batteries needed
Specifications
- Audio circuit type: Active Buffer with Phase Splitter
- Frequency response: 20Hz to 20KHz
- Total harmonic distortion: less than 0.006 percent
- Dynamic range: greater than 100dB
- Input impedance: 800K/23K
- Maximum input: +2dBu/+8dBu
- Gain: +1.3dBu/+4.4dB
- Clip level output: +3.3dBu/+12.3dBu
- Output impedance: 330 Ohms
- Equivalent input noise: -101dBu
- Noise floor: -97dBu
- Intermodulation distortion: less than 0.01 percent
- Phase deviation: 25/12 degrees maximum
Package Contents
- Radial SB-1 ACTIVE StageBug Acoustic Direct Injection Box
- Instruction manual
