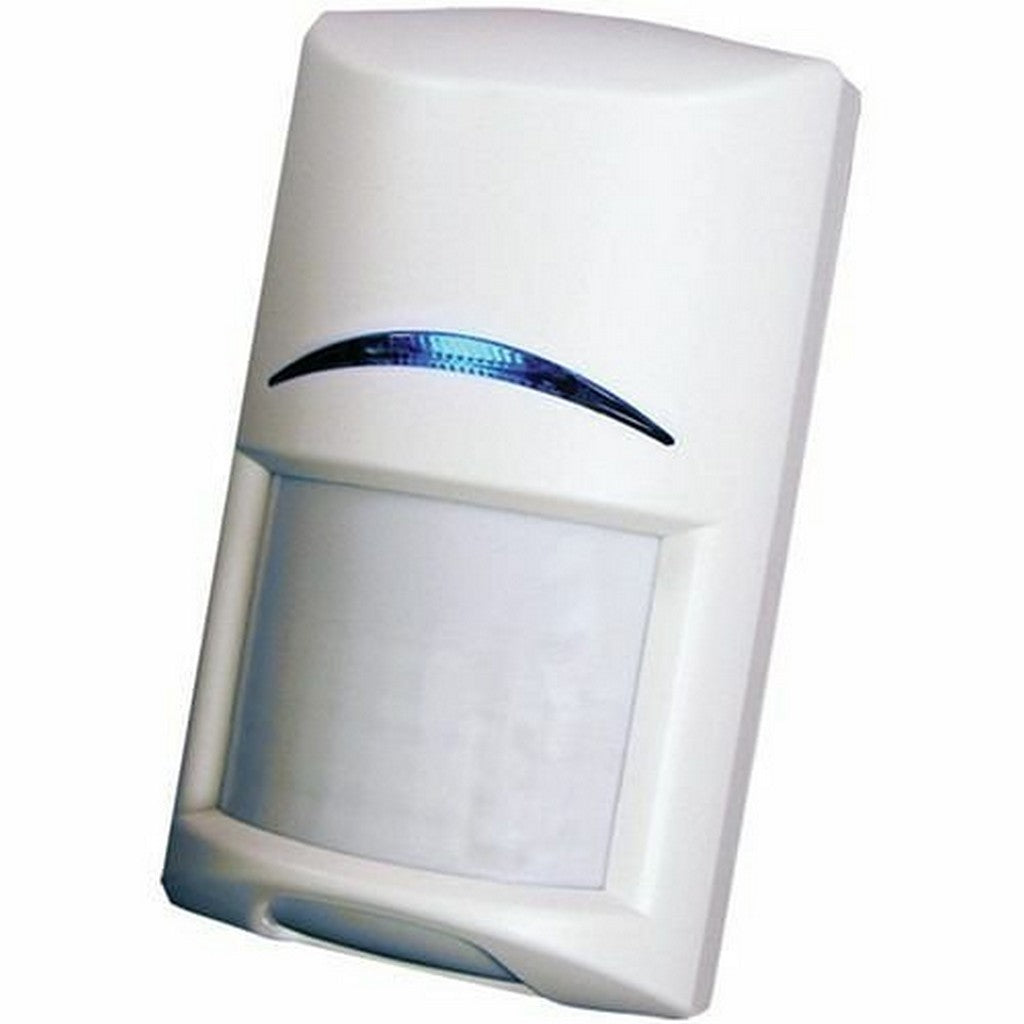

Radionix Blue Line Gen2 TriTech Motion Detector - Pet-Friendly

Radionix Blue Line Gen2 TriTech Motion Detectors

Radionix Blue Line Gen2 TriTech Motion Detectors combine passive infrared (PIR) sensing and microwave radar to monitor a 40 x 40 ft area. The ISC-BDL2-W12G is the standard model. The ISC-BDL2-WP12G adds selectable pet immunity up to 100 lb when configured and installed according to manufacturer instructions.

Choose the standard motion detector for indoor security applications that do not require selectable pet immunity. For spaces shared with animals, select the pet-friendly motion detector and follow the specified mounting guidance. Both versions offer the same coverage area, allowing buyers to choose based on pet requirements without changing the stated detection range.

These wired intrusion sensors operate from a 9 to 15 VDC supply and connect to compatible alarm systems. Adaptive microwave processing helps address repetitive background disturbances, while temperature compensation adjusts detection sensitivity as conditions change. The self-locking housing and integrated bubble level simplify installation. Installers should confirm control-panel compatibility, follow the wiring instructions, and perform a walk test after mounting.

Choose Standard or Pet-Friendly Detection

• Standard - ISC-BDL2-W12G: Provides PIR and microwave detection with 40 x 40 ft coverage. This model does not include the selectable 100 lb pet-immunity feature.
• Pet-Friendly - ISC-BDL2-WP12G: Provides the same coverage with selectable pet immunity up to 100 lb. Correct installation and configuration are required.

Key Features

• Combined Sensing: PIR and microwave technologies evaluate movement within the protected area.
• Room Coverage: A 40 x 40 ft detection area supports indoor intrusion monitoring.
• Pet-Friendly Option: The WP model accommodates applications with pets through its selectable immunity setting.
• Adaptive Microwave Processing: Background-noise compensation helps reduce alarms caused by repetitive disturbances.
• Temperature Compensation: Automatic sensitivity adjustment supports detection across changing ambient conditions.
• Installation Aids: An integrated bubble level and self-locking enclosure assist mounting and alignment.
• Protected Components: Sealed optics and electronics help protect the sensing assembly.

Technical Specifications

• Brand: Radionix
• Series: Blue Line Gen2 TriTech
• Standard Model: ISC-BDL2-W12G
• Pet-Friendly Model: ISC-BDL2-WP12G
• Application: Indoor intrusion detection
• Connection: Wired
• Sensor Technologies: Passive infrared and microwave Doppler radar
• Coverage: 40 x 40 ft
• Microwave Frequency: 10.525 GHz
• Selectable Pet Immunity: ISC-BDL2-WP12G only; up to 100 lb under manufacturer installation conditions
• Operating Voltage: 9 to 15 VDC
• Current Consumption: 10 mA at 12 VDC
• Power Consumption: 0.12 W at 12 VDC
• Contact Rating: Up to 100 mA, 25 VDC, 2.5 W
• Closed Contact Resistance: Less than 20 ohms
• Mounting Height: Manufacturer-stated range of 7.5 to 9 ft; recommended height of 7.5 ft
• Optional Mounting Brackets: B328, B338, B335
• Relative Humidity: 0 to 95%; 0 to 85% for UL/C-UL installations
• UL/C-UL Installation Temperature: 32 to 120°F
• Environmental Classification: EN 50130-5 Class II
• Enclosure Ratings: IP30 and IK04
• Security Standard: EN 50131-2-4 Grade 2; applies to non-pet applications only for the WP model
• Housing Material: ABS plastic
• Dimensions, Both Models (H x W x D): Approximately 4.1 x 2.4 x 1.7 inches
• Standard Model UPC: 800549613125
• Pet-Friendly Model UPC: 800549612821

What's In the Box - ISC-BDL2-WP12G Only

• One motion detector
• One installation guide
• Two anchors, #6 and #8 x 7/8 inch
• Two #6 x 1.25-inch screws
• One 0.1-inch cable tie
