RCF JMIX-9 Active 2100W 12 Inch Three Way Column Array PA System with 8-Channel Digital Mixer and Bluetooth - Full System / Black

RCF JMIX9 Active 2100W 12 Inch Three Way Column Array PA System with 8-Channel Digital Mixer and Bluetooth

The RCF JMIX9 is an active, three-way portable column array system that combines high-output sound reinforcement with an integrated digital mixer and wireless control. Part of the EVOX J Series, it is designed to deliver exceptional clarity, power, and flexibility in a compact format for live sound, DJ, and performance applications.

Powered by a 2100W dual-channel Class-D amplifier with built-in DSP, the JMIX9 features a 1.75 inch neodymium compression driver on a 120° × 40° True Resistive Waveguide, six 3 inch full-range transducers, and a high-power 12 inch bass-reflex subwoofer. This advanced configuration delivers articulate mids, deep controlled lows, and up to 130 dB maximum SPL with wide and consistent audience coverage.

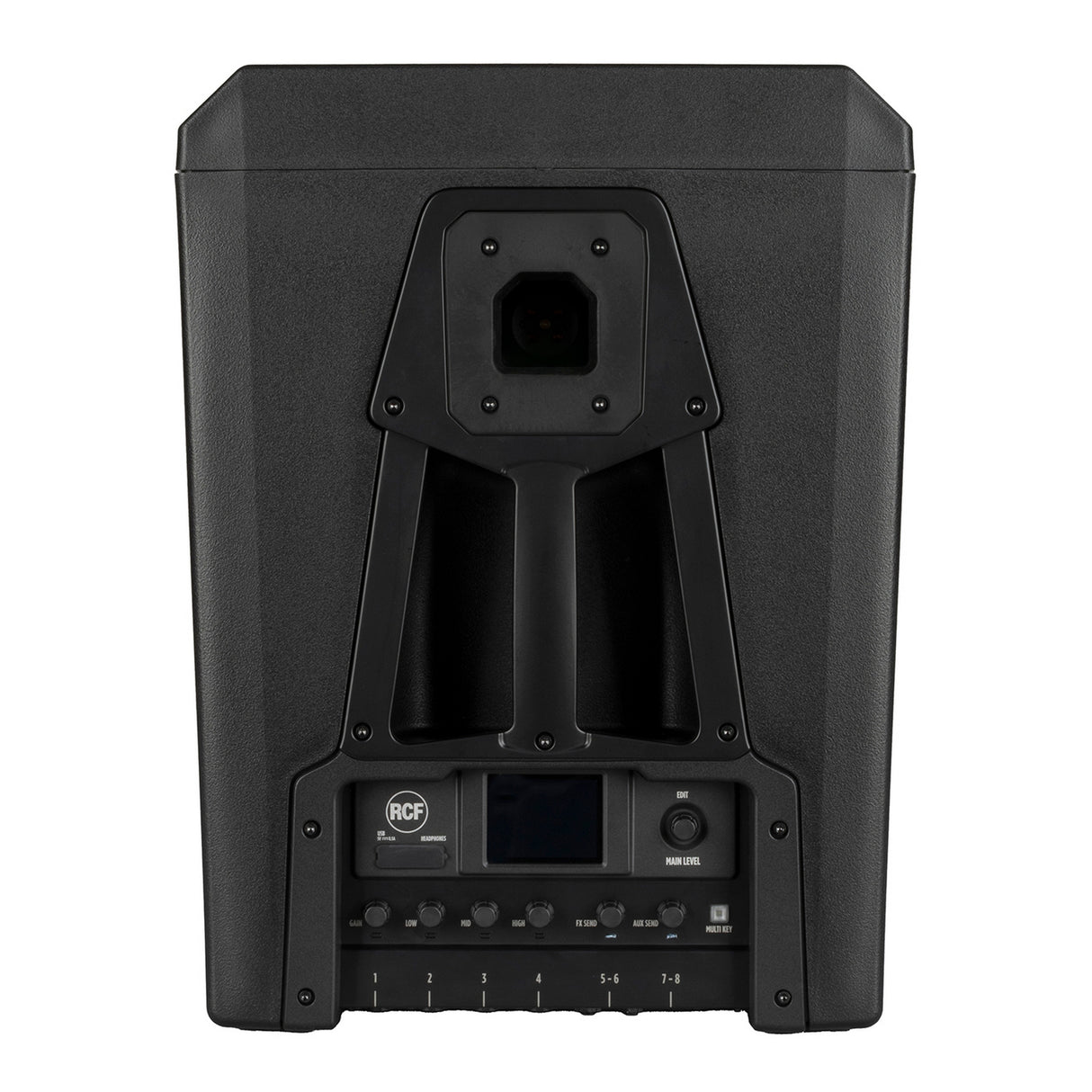

At the core of the system is a true stereo 8 channel digital mixer with EQ, compression, reverb effects, phantom power, and Bluetooth audio streaming. Control is available directly from the onboard 2.4 inch color touch display or wirelessly through the JMixRemote app, making the JMIX9 an ideal all-in-one solution for bands, DJs, and live performers who require professional sound and intuitive control.

Key Features

• Integrated digital mixer: True stereo 8 channel mixer with onboard processing and wireless control.
• 2100W Class-D amplification: Dual-channel amplifier with integrated DSP for high efficiency and performance.
• 130 dB maximum SPL: High output capability for medium to large venues.
• Advanced speaker design: Three-way column array optimized for clarity, coverage, and controlled low end.
• Wireless control and streaming: Bluetooth audio streaming and full system control via JMixRemote app.
• Portable column array format: Fast setup with a compact footprint and professional appearance.

Technical Specifications

System Type
Active three-way column array PA system with integrated digital mixer

Amplifier Power
2100 W Class-D with built-in DSP

Maximum SPL
130 dB

High-Frequency Driver
1.75 inch neodymium compression driver

Midrange Drivers
6 × 3 inch full-range transducers

Low-Frequency Driver
12 inch RCF precision woofer, bass-reflex design

Coverage Angle
120° horizontal × 40° vertical

Digital Processing
48 kHz sample rate, 32 bit DSP

Mixer Channels
8 channel true stereo digital mixer

Microphone Inputs
4 mic or line inputs with programmable gain and studio-grade preamps

Phantom Power
Individual 48V phantom power on channels 1 through 4

Wireless Audio
Bluetooth audio streaming and control

User Interface
2.4 inch color touch display with capacitive touch and rotary encoders

Available Variations

The RCF JMIX9 is available in six configurations, offered in black or white finishes. Each color option is available as a complete system or as individual replacement components.

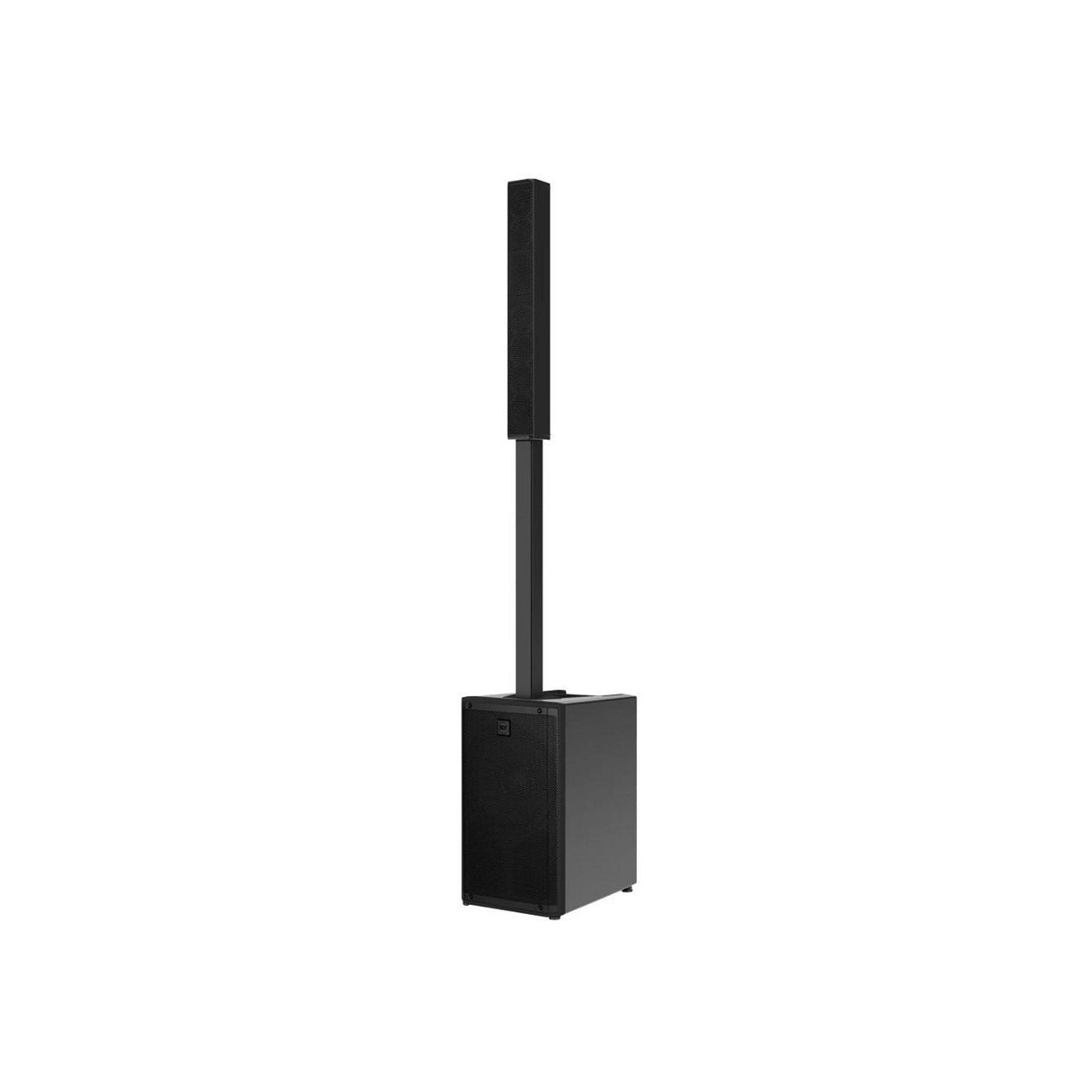

JMIX9 (Black, Full System)

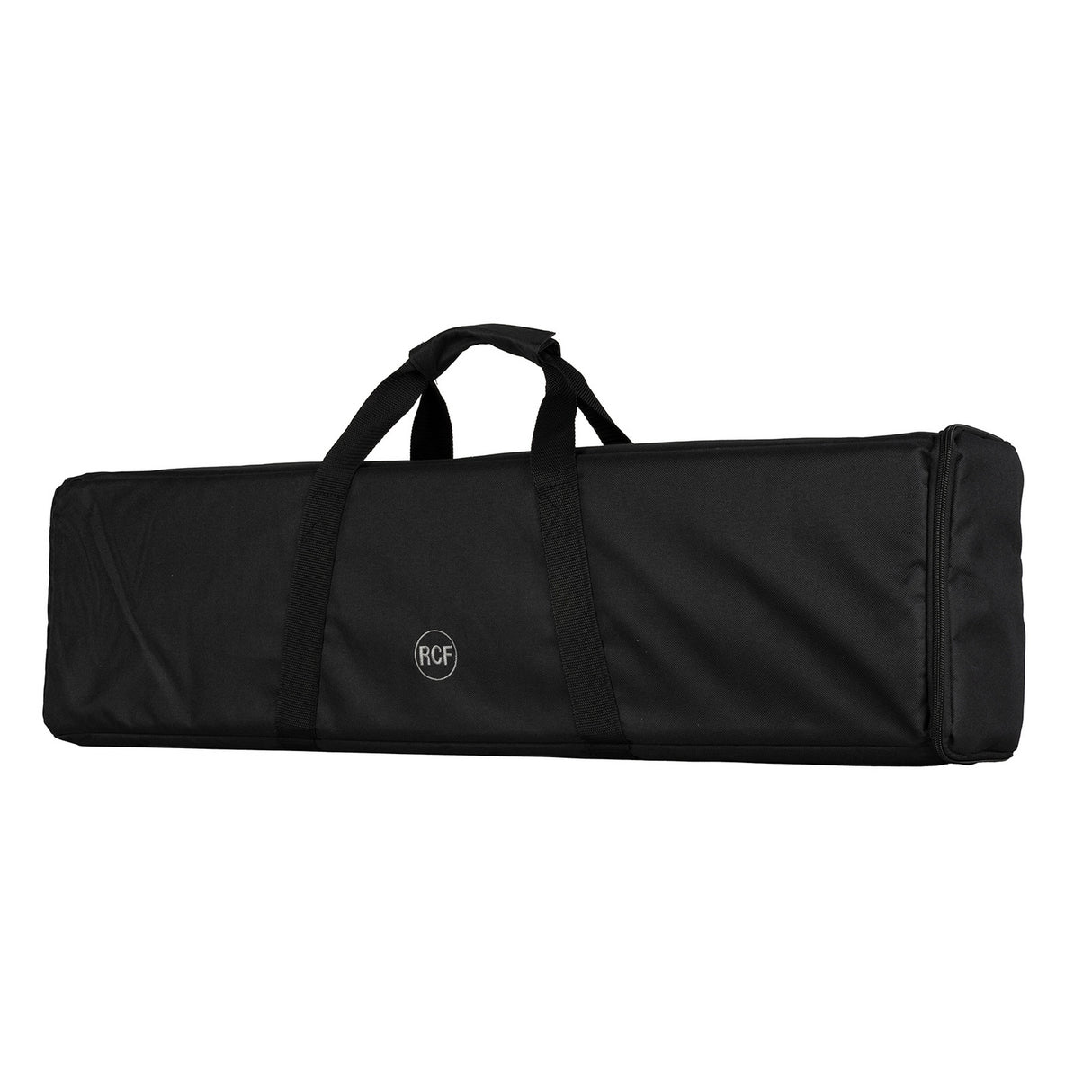

Includes top column speaker with integrated mixer, powered 12 inch subwoofer, aluminum stand and spacer system, and padded carrying bag for the top column speaker.

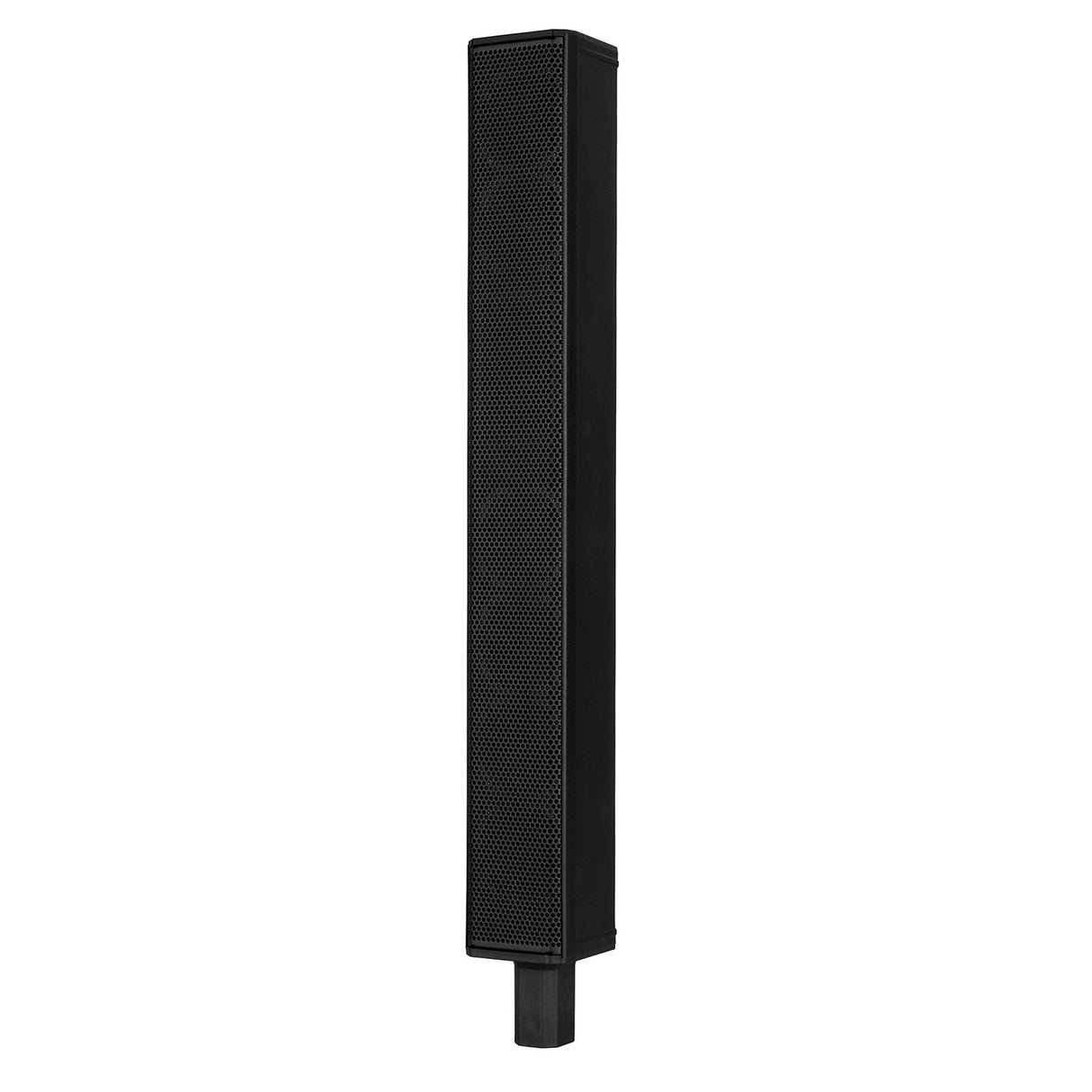

JMIX9 (Black, Top Only)
Column array speaker with integrated digital mixer only. Does not include subwoofer, stand system, or accessories.

JMIX9 (Black, Sub Only)
Powered 12 inch subwoofer only. Does not include top column speaker or stand components.

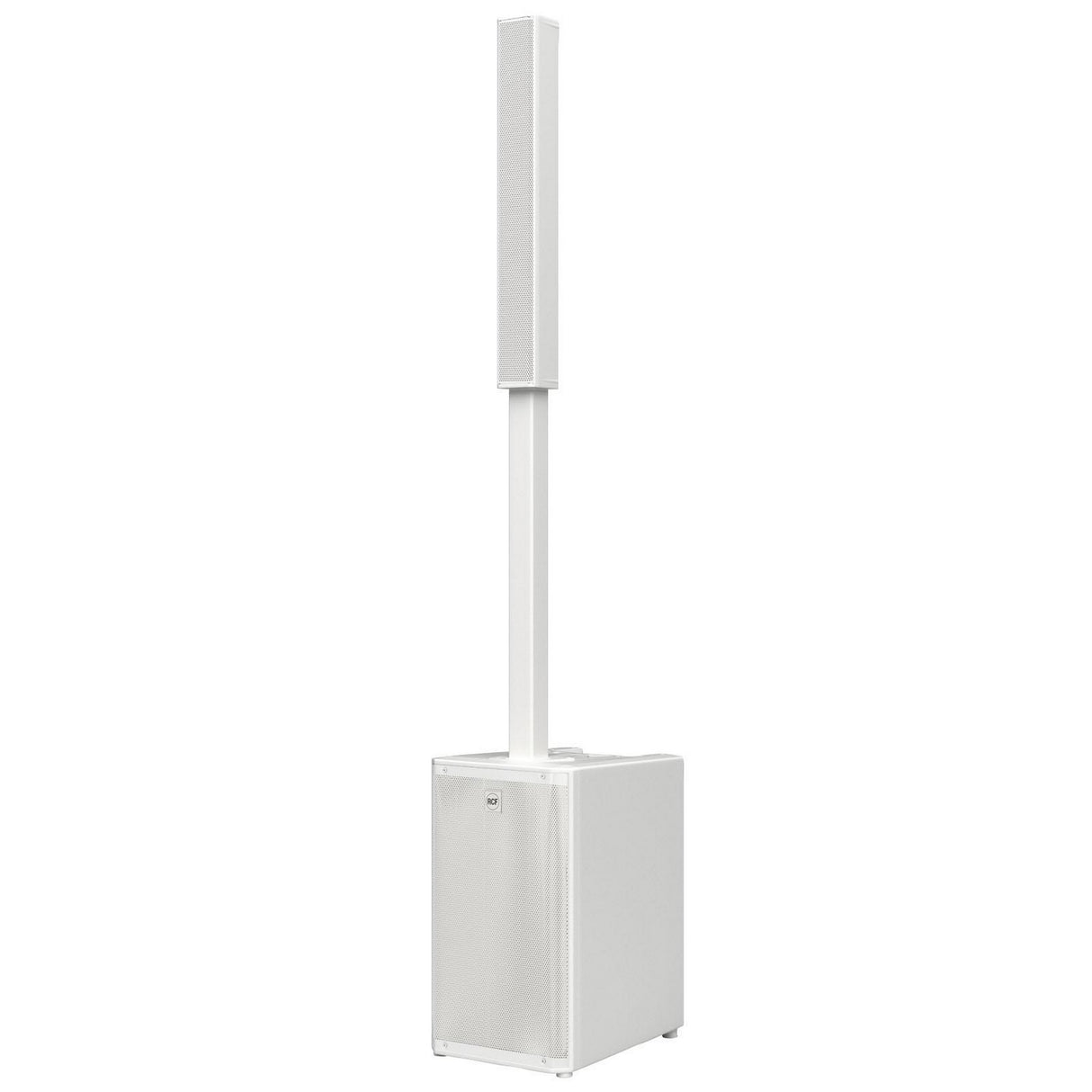

JMIX9-W (White, Full System)
Includes top column speaker with integrated mixer, powered 12 inch subwoofer, aluminum stand and spacer system, and padded carrying bag for the top column speaker.

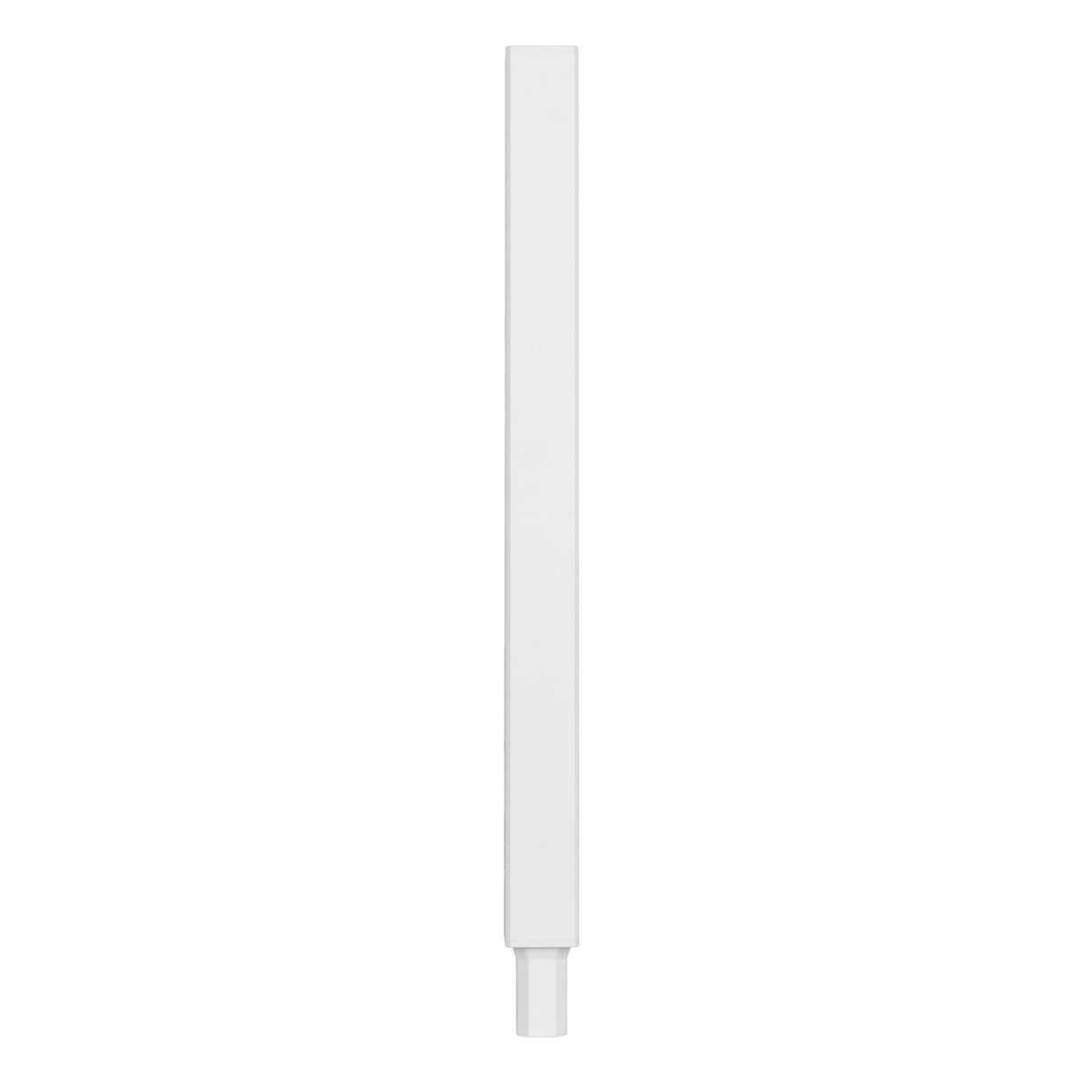

JMIX9-W (White, Top Only)
Column array speaker with integrated digital mixer only. Does not include subwoofer, stand system, or accessories.

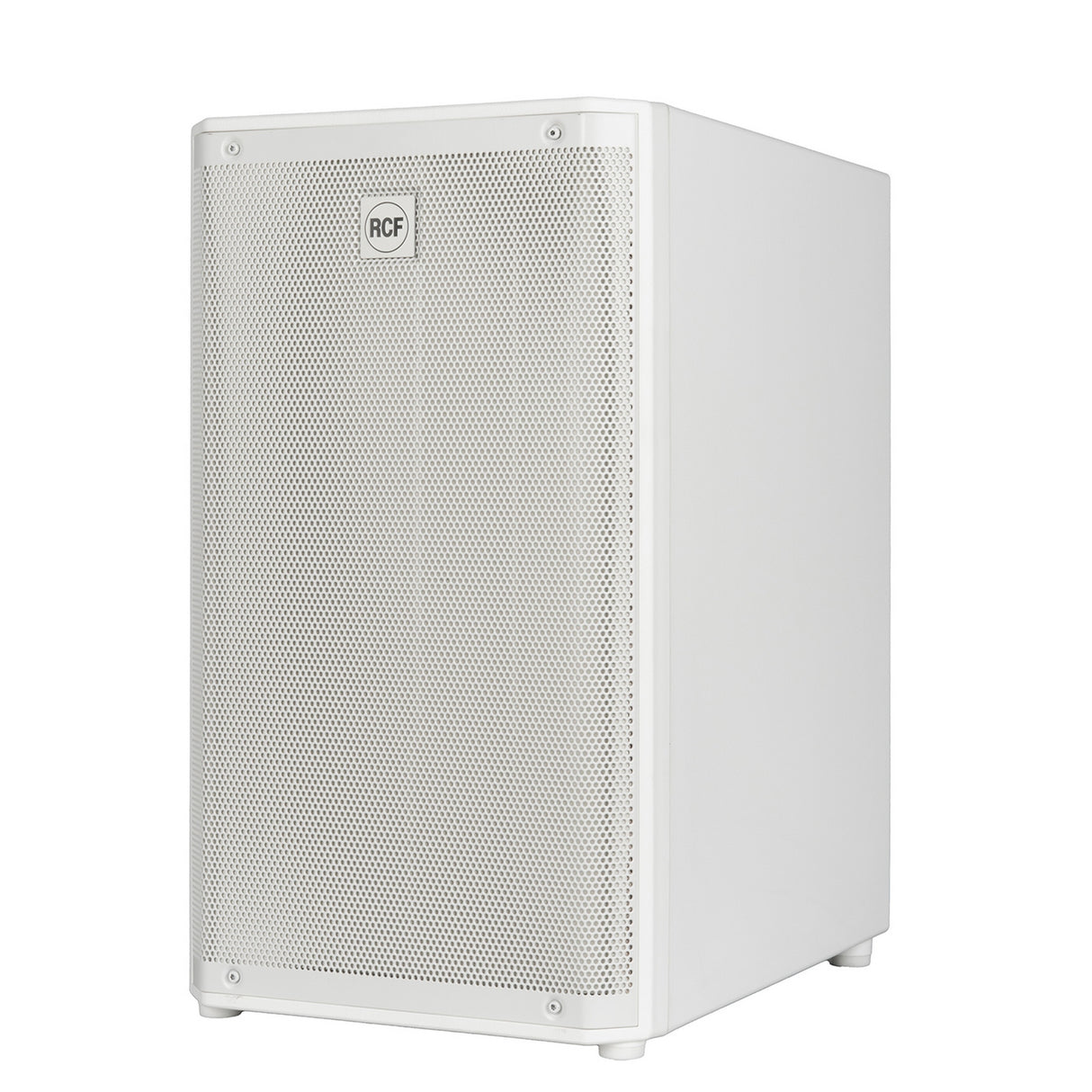

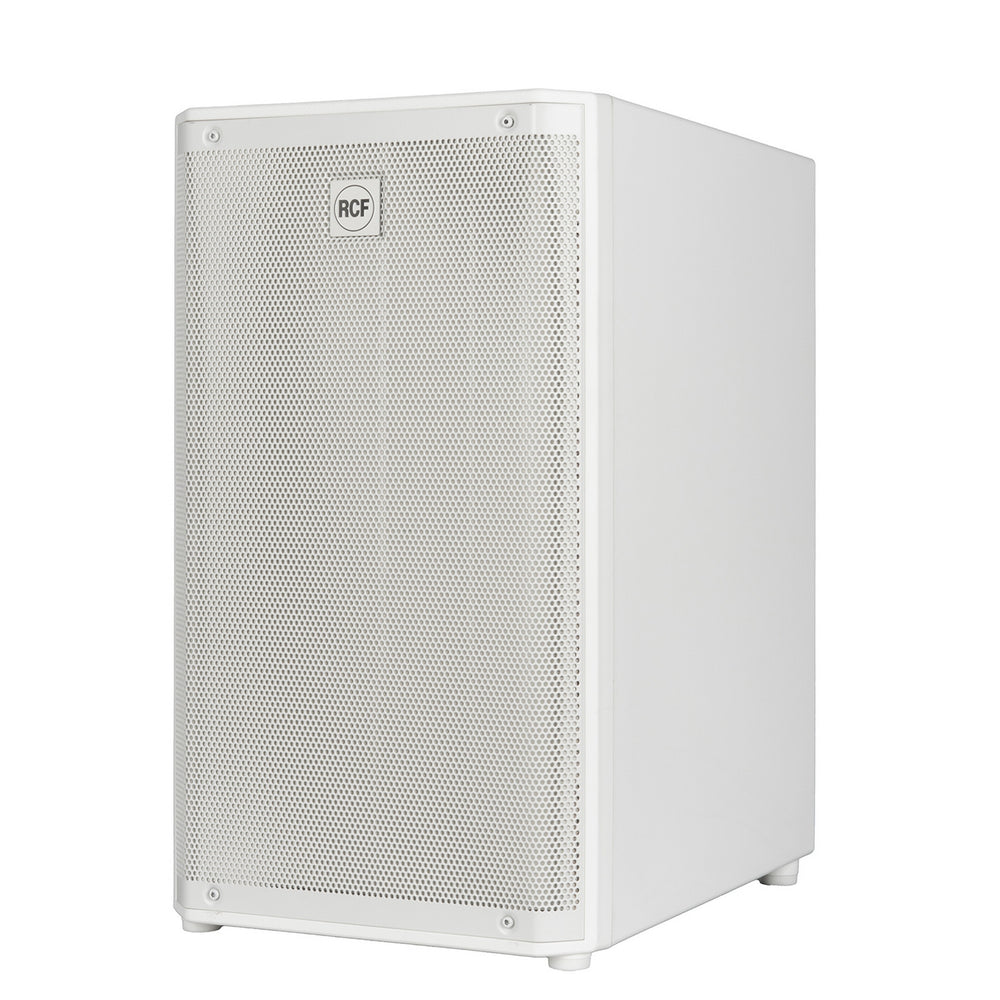

JMIX9-W (White, Sub Only)
Powered 12 inch subwoofer only. Does not include top column speaker or stand components.
