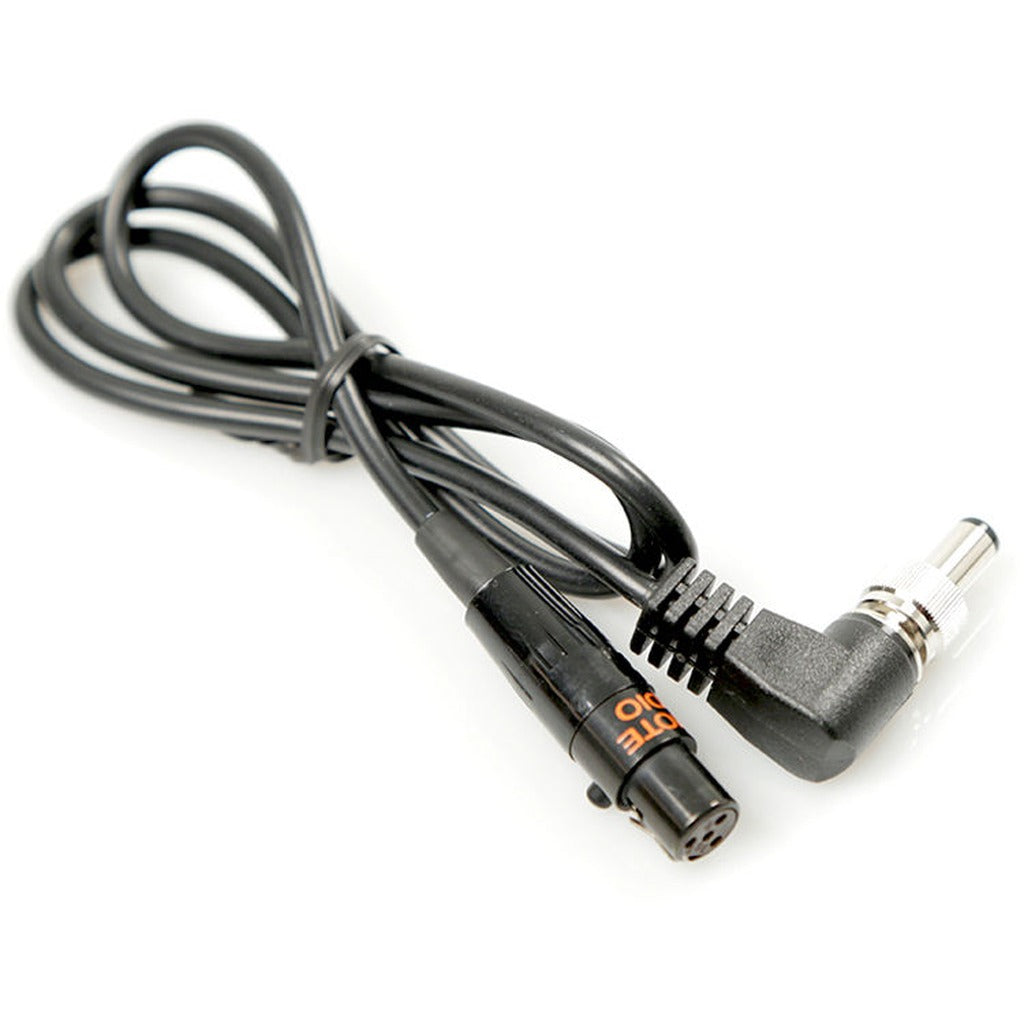

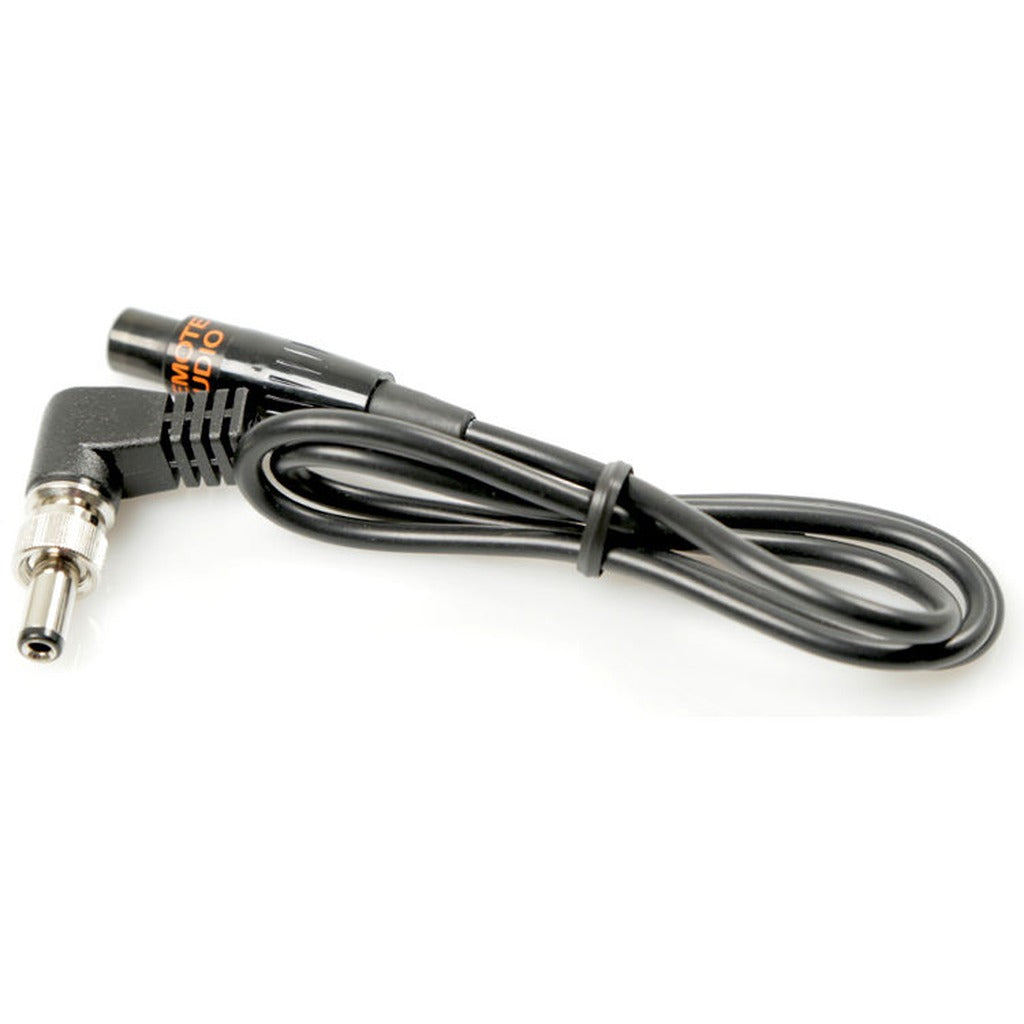

Remote Audio BDSCT4F BDS to TA4F DC Power Output Cable for Sound Devices 2 ft

Modern bag mixers such as the Sound Devices 888, 833 and Scorpio take power through a TA4 input, and the Remote Audio BDSCT4F feeds them directly from the BDS. A BDS (5.5 x 2.5 x 12mm) right-angle coaxial plug connects at the distributor while a TA4F connector plugs into the mixer.

The 2 ft cable works with any gear that uses a TA4M power input. B&H lists the pin assignment as pin 1 negative and pin 4 positive, matching common TA4 DC power wiring.

Features

• BDS right-angle plug to TA4F
• For Sound Devices 888, 833 and Scorpio (per B&H)
• Fits any mixer with a TA4M power input
• Pin 1 negative, pin 4 positive
• 2 ft length

Technical Specifications

• Connector 1: BDS (5.5 x 2.5 x 12mm) right-angle coaxial plug
• Connector 2: TA4F
• Length: 2 ft
• Pin 1: Negative
• Pin 4: Positive

What's Included

• Remote Audio BDSCT4F power output cable
