Remote Audio BDSv4U Battery Distribution System 6 Coax Outlets with USB

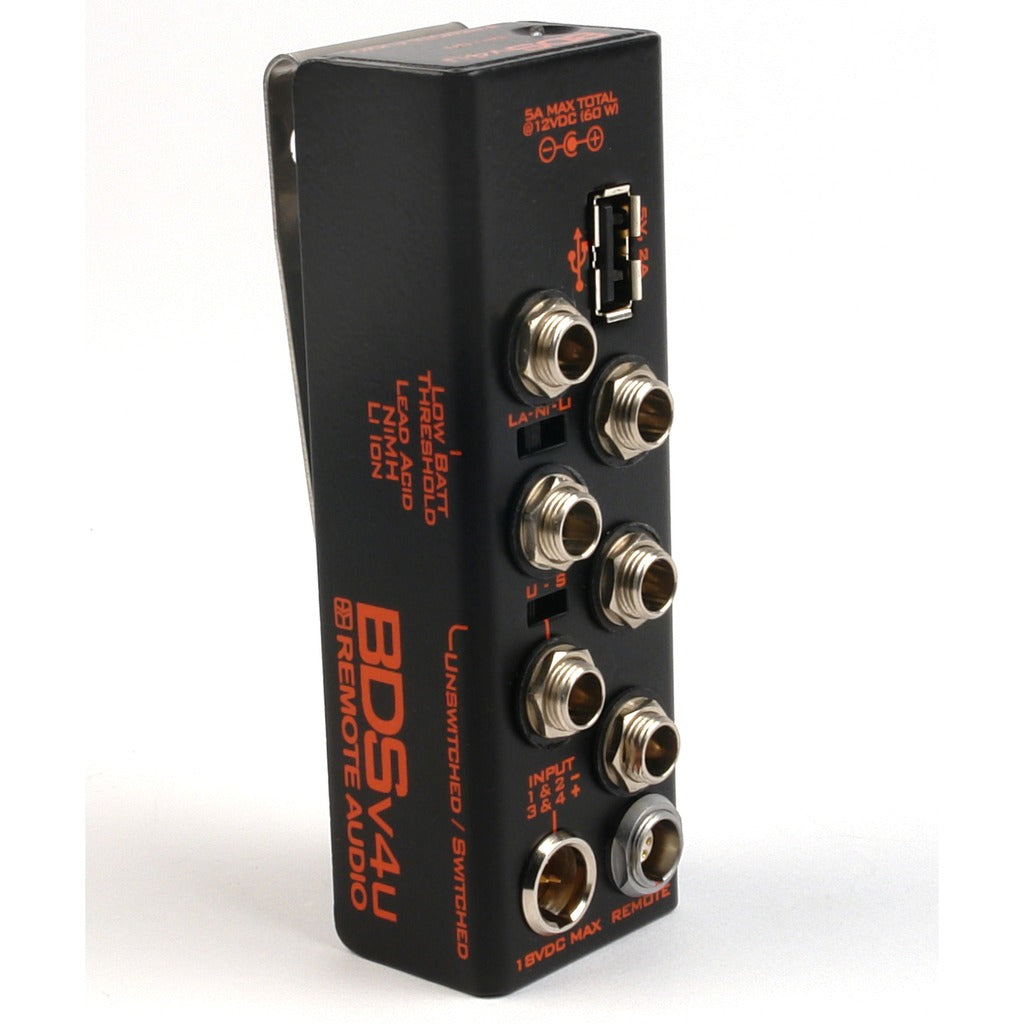

ENG and bag mixers have relied on the Remote Audio BDS to run a whole kit from one rechargeable battery, and the BDSv4U is the USB-equipped version of that system. A TA4M input feeds six outlets and a USB port, all switched from one illuminated toggle.

The outlets are a special switching type that stays inactive until a proper long-shaft plug with a 2.5mm hole is inserted, helping prevent accidental shorts; polarity is center positive. Protection includes reverse polarity and auto-resetting overload handling (3A per outlet, 5A total at 12V), and a bi-color switch turns red when the battery falls below a selectable threshold for lithium-ion, NiMH or lead acid.

The USB port delivers a regulated 5V at up to 2A for phones and handheld recorders, and a 6-pin remote port accepts the RM remote meter so the box can live deep in the bag. All earlier Remote Audio BDS input and output cables remain compatible, and a stainless steel belt clip comes attached.

Features

• Powers multiple devices from a single source with one switch
• Reverse-polarity and auto-resetting overload/short-circuit protection

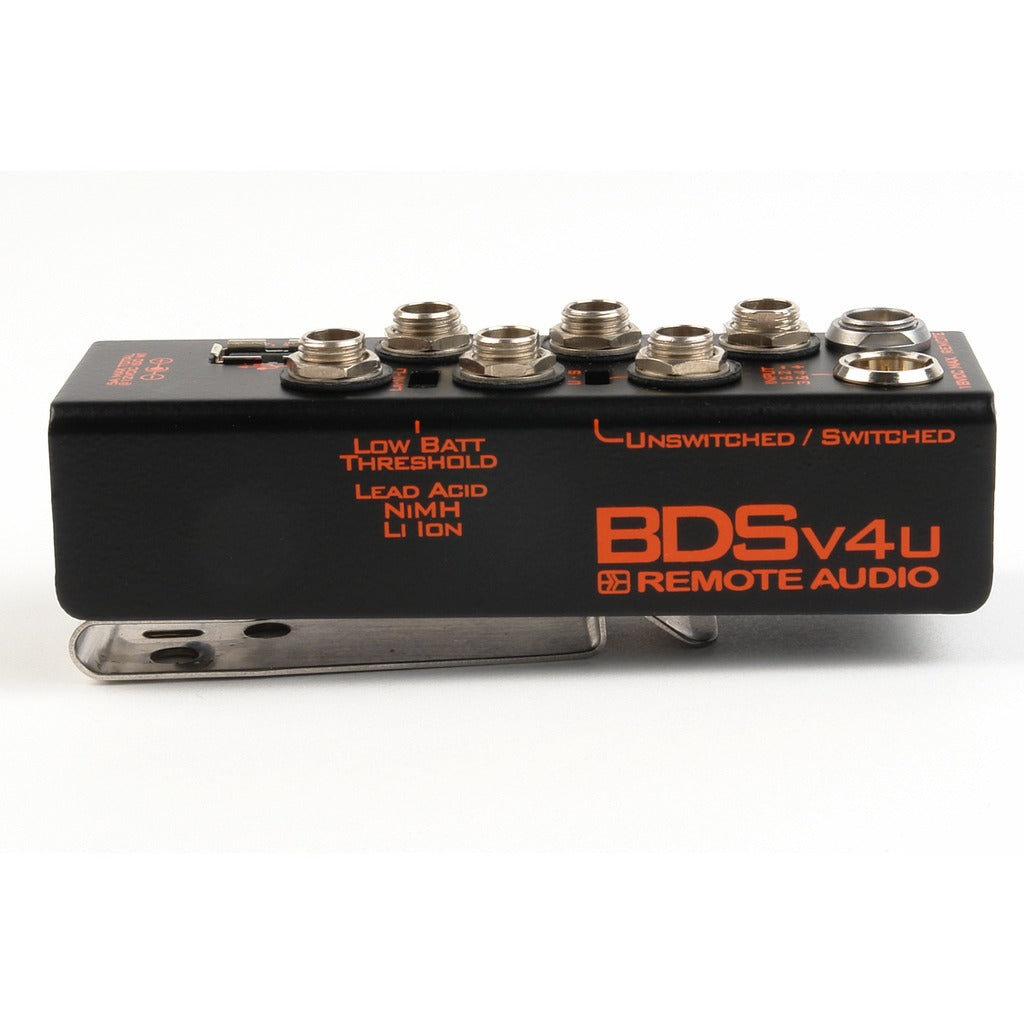

• Bi-color illuminated switch with selectable low-battery threshold (13V / 11.5V / 11V)
• 6th outlet selectable switched or unswitched

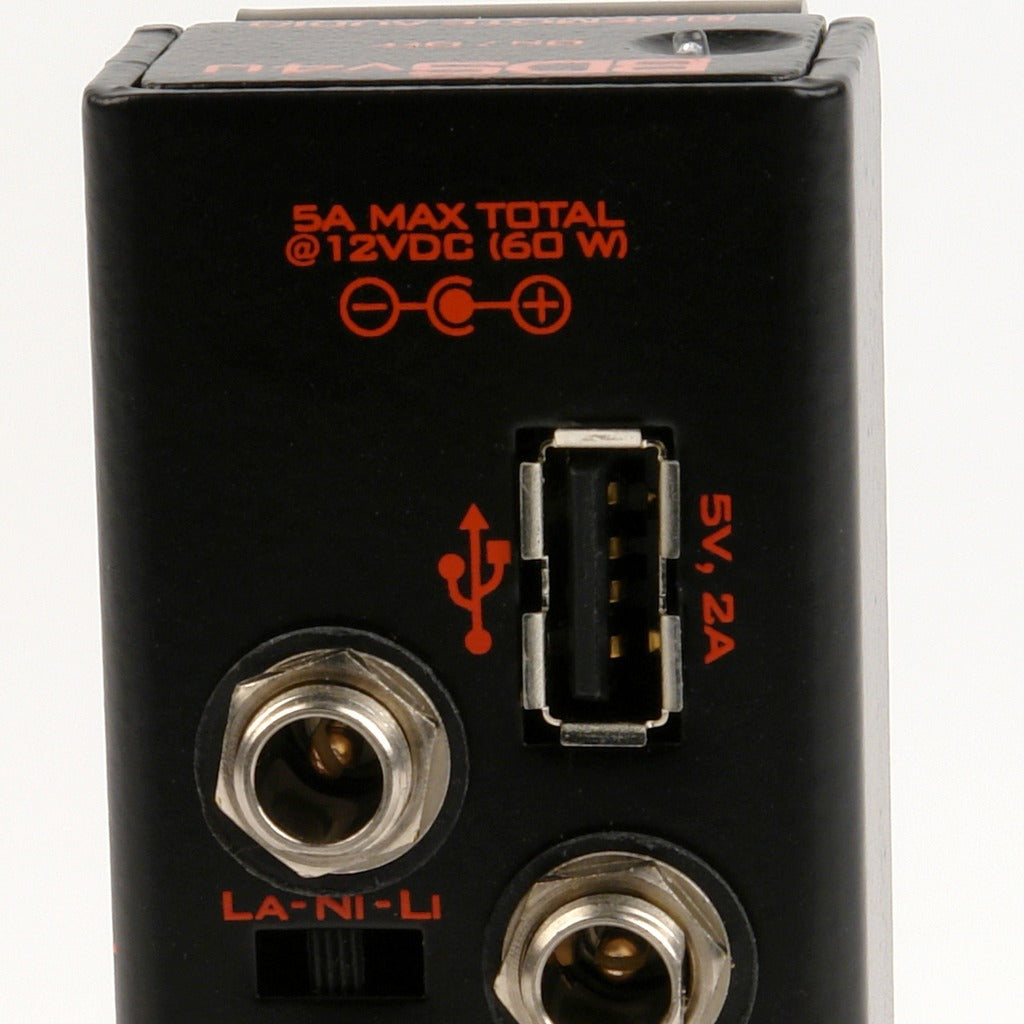

• USB power outlet rated 2A at 5V
• Remote port for the RM remote meter and RS remote switch

Technical Specifications

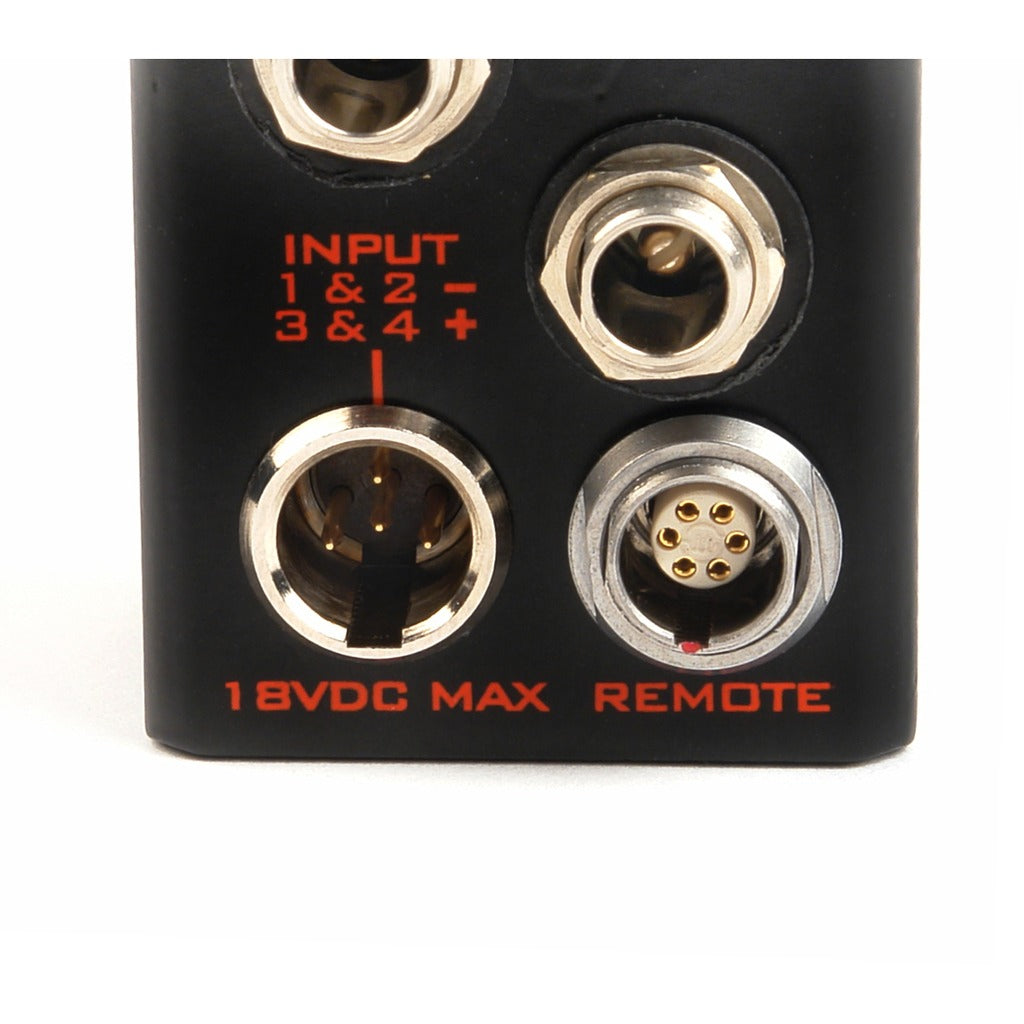

• Input: TA4M (pin 1 NEG, pin 4 POS)
• Outputs: (6) locking coaxial BDS outlets, center positive
• Input voltage: 6-20V
• Output current: 3A max per output, 5A global max (60W)
• USB: 2A at 5V regulated (10W)
• Dimensions: 3.977 x 1.329 x 1.165 in (101 x 33.8 x 29.6 mm)
• Weight: 4.8 oz

What's Included

• Stainless steel mounting clip (attached)
