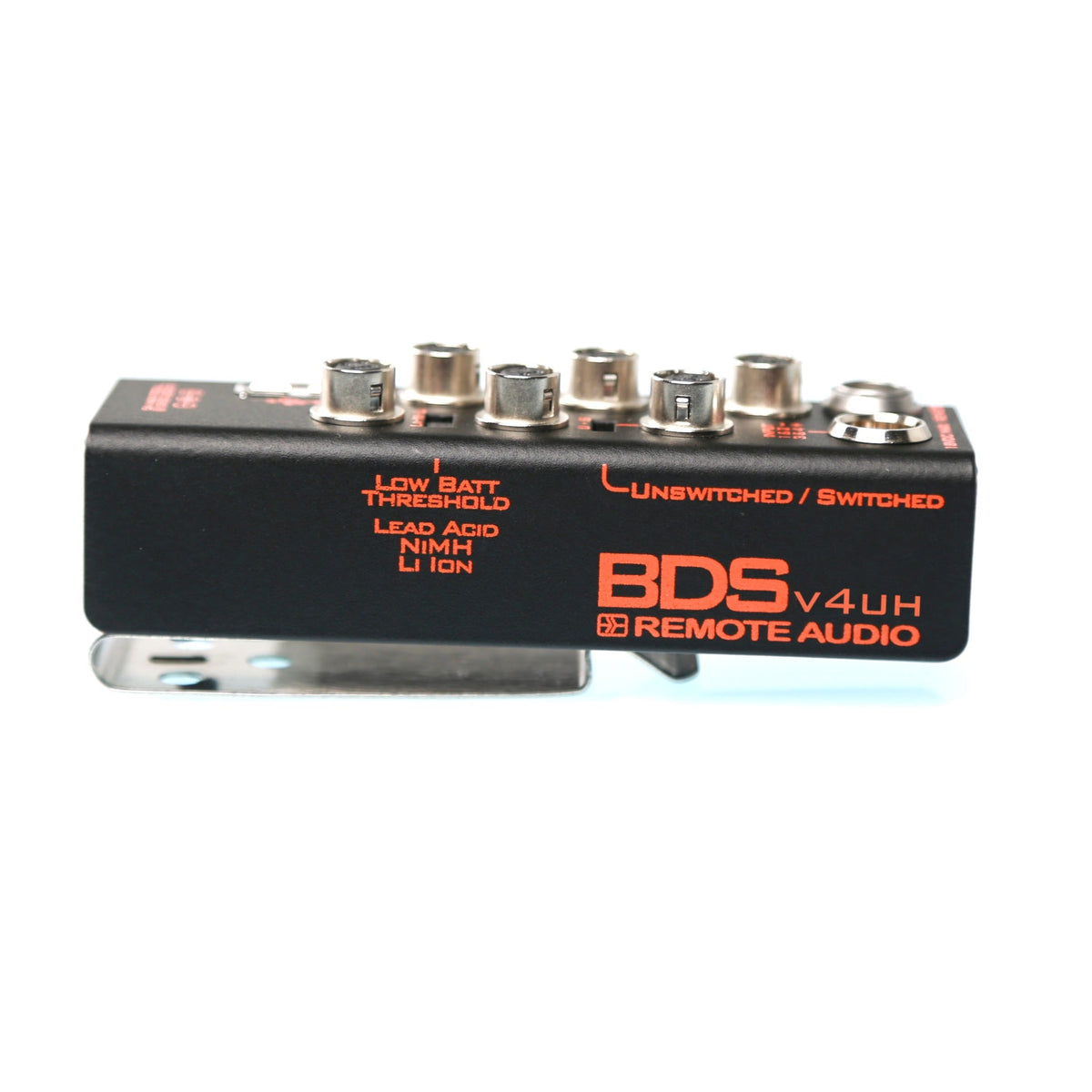

Remote Audio BDSv4UH Battery Distribution System 6 Hirose Outlets with USB

Tight bags and fast changes favor push-on, pull-off connectors, which is why Remote Audio offers its BDS with 4-pin Hirose outlets. The BDSv4UH is the BDSv4U battery distribution system fitted with six locking 4-pin Hirose-style outlets in place of the standard coaxial jacks.

Other than the connectors, the box is unchanged: a TA4M DC input, one USB port, fusing and protection, a low-battery indicator and a meter port for the optional RM remote meter. One illuminated switch powers the recorder, receivers and accessories together from a single battery.

Four-pin Hirose has become the standard for compact, locking, low-current power connections, and it is much easier to manage in crowded bag rigs than larger plugs.

Features

• Six locking 4-pin Hirose-style outlets
• TA4M DC input
• USB power port
• Fused outputs with low-battery indicator
• Meter port for the RM remote meter

Technical Specifications

• Input: (1) TA4M DC
• Outputs: (6) locking 4-pin Hirose-style
• USB: (1) port
• Protection: fused; low battery indicator
• Remote/meter port: yes
