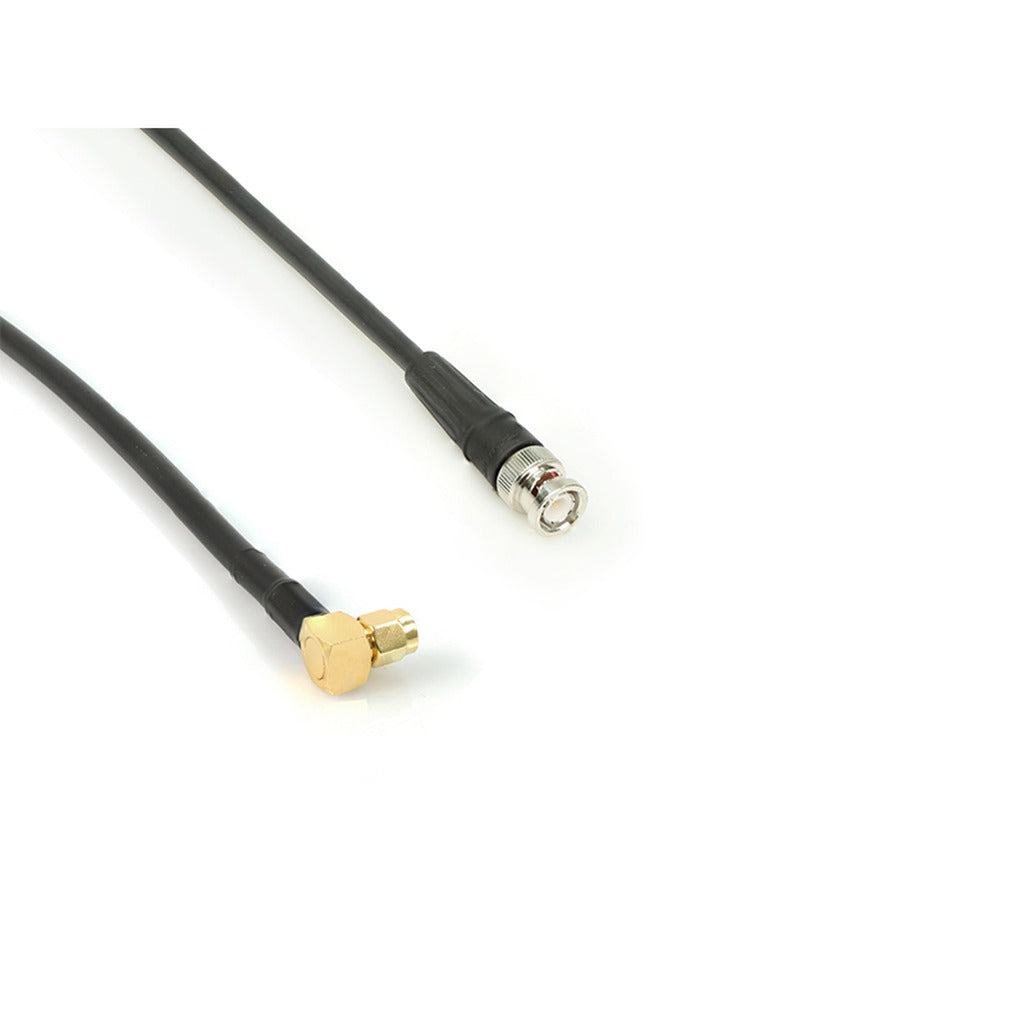

Remote Audio CASMARBNC010 50 Ohm Antenna Cable SMA RA to BNC 10 ft
Estimated Shipping Widget will be displayed here!
Condition: New
Description
Wireless gear with SMA antenna jacks, such as many compact receivers, needs an adapter cable to reach standard BNC antennas and distribution. The CASMARBNC010 is a 10 ft, 50 ohm antenna cable with a right-angle SMA connector on one end and a BNC connector on the other, built on RG8x cable with Amphenol connectors.
The right-angle SMA end keeps the connection low on a compact receiver or bag slot, while the BNC end connects to a remote antenna, antenna amplifier or distribution system. RG8x keeps losses low over the 10 ft run.
Features
- Right-angle SMA connector for compact receivers
- BNC connector for standard antennas and distribution
- RG8x cable
- Amphenol connectors
- 50 ohm impedance
- 10 ft length
Technical Specifications
- Type: 50 ohm antenna cable
- Connector A: SMA right-angle
- Connector B: BNC
- Cable: RG8x
- Connector brand: Amphenol
- Length: 10 ft
