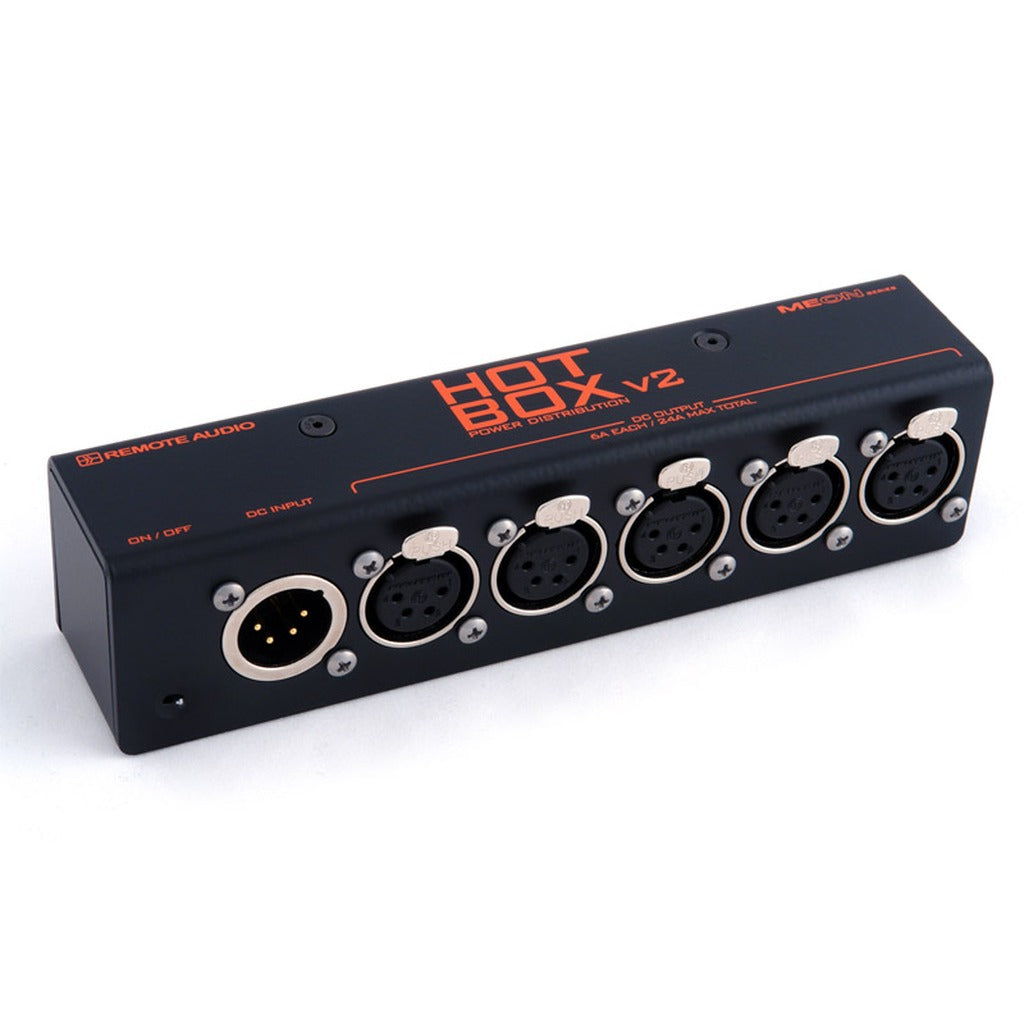

Remote Audio HOTBOXV2 Hot Box v2 DC Power Distribution XLR4M to 5x XLR4F

Splitting one 12V cart battery into five protected feeds is the Hot Box v2's job. The latest revision of Remote Audio's popular DC power distribution box and a member of the MEON series, it takes a 4-pin XLR input and distributes it to five 4-pin XLR female outlets.

Each outlet has an auto-resetting 6A breaker, the box handles 24A maximum total, and an illuminated master toggle switches everything on and off. Reverse-polarity protection keeps the switch dark and passes no voltage if the input is miswired, and input voltage should fall in the 6-20V range.

All connectors enter and exit on the same side of the compact enclosure, so it mounts easily inside a cart or bag with Velcro strips. Pair it with the Shunt Box and RM remote meter for remote monitoring and power cycling of the whole system.

Features

• 1 in, 5 out on 4-pin XLR connectors
• Auto-resetting 6A breaker on each output
• Illuminated master toggle switch
• Reverse-polarity protected input
• All connectors on one side for easy cart mounting

Technical Specifications

• Input: 4-pin XLR male (pin 4 +, pin 1 -)
• Outputs: (5) 4-pin XLR female
• Input voltage: 6-20V
• Current: 6A max per output, 24A max total
• Dimensions: 6.4 x 1.6 x 1.9 in
• Weight: 7.5 oz
