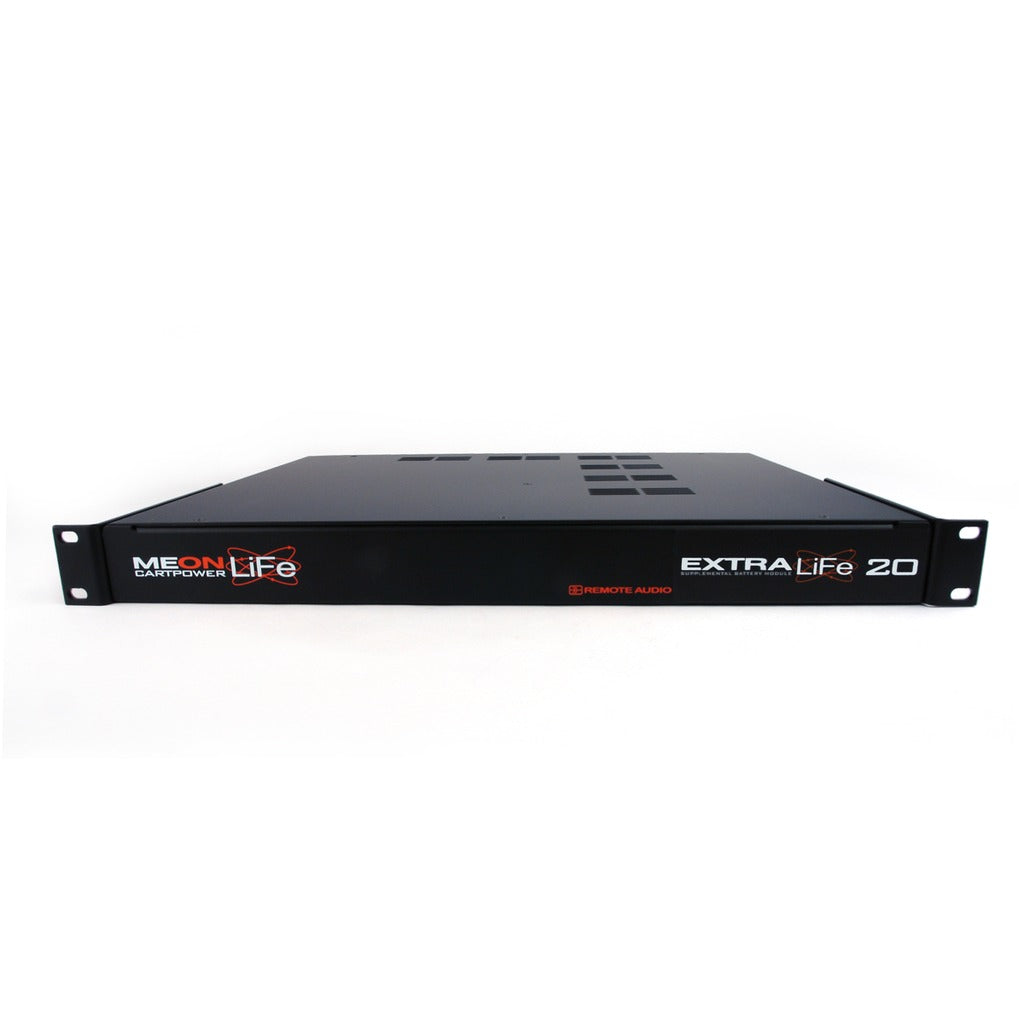

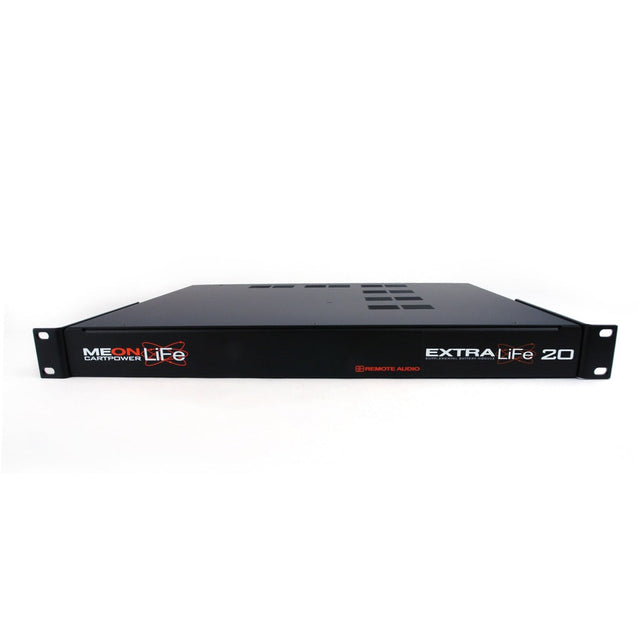

Remote Audio MEONEL20 MEON Extra LiFe 20 1U 20Ah LiFePO4 Battery Module

Doubling the battery run time of a MEON LiFe equipped sound cart takes one rack space and a single cable with the Extra LiFe 20 (EL20). This supplemental battery module contains a 20 amp-hour lithium iron phosphate (LiFePO4) battery designed for use with the MEON LiFe and MEON LiFe Smart cart power systems.

The EL20 charges simultaneously with the internal battery of the MEON LiFe, requires no ventilation space, and can be daisy-chained. Removable mounting ears allow front, rear or unmounted rack orientation, and the module can also be charged from a lead acid battery charger (see the user guide for details).

With its steady, silent LiFePO4 chemistry and mount-it-and-forget-it design, the EL20 gives production sound mixers a reliable backup power reserve for demanding days on location.

Features

• 20Ah lithium iron phosphate (LiFePO4) battery
• Designed for MEON LiFe and MEON LiFe Smart cart power systems
• Single rack unit saves cart space
• Charges simultaneously with the MEON LiFe internal battery
• Daisy-chainable; requires no ventilation space
• Removable ears for front, rear or unmounted orientation

Technical Specifications

• Capacity: 20Ah
• Chemistry: LiFePO4
• Dimensions: 19.00 x 13.00 x 1.75 in (1 rack space)
• Weight: 10.4 lb
• Max output current: 14A
• Connectors: one 4-pin XLR female and one 4-pin XLR male

What's Included

• Removable rack ears
• 4-pin XLR cable (14 AWG Powerflex, 6 in)
