RF Explorer Pro - Advanced Spectrum Analyzer
The RF Explorer Pro is a high-performance spectrum analyzer that delivers accurate and comprehensive RF signal analysis. Designed for professionals and enthusiasts alike, this advanced tool offers an exceptional range of capabilities for evaluating and troubleshooting radio frequency signals. Whether you’re working in wireless communications, broadcasting, or any field that requires precise RF measurement, the RF Explorer Pro provides a reliable and effective solution.
With its intuitive interface and advanced features, the RF Explorer Pro allows users to quickly identify and analyze signals across a wide frequency range. The device’s compact and portable design ensures ease of use in various environments, from field work to laboratory settings. Its high-resolution display and detailed analysis capabilities make it an essential instrument for any RF engineer or technician looking to enhance their signal measurement and diagnostic capabilities.
Equipped with advanced technology, the RF Explorer Pro supports a wide frequency range and offers multiple modes of operation to cater to diverse measurement needs. Its robust construction and user-friendly interface ensure that it stands up to the demands of rigorous RF analysis while remaining accessible to users of all skill levels.
Key Features
- Wide frequency range for comprehensive signal analysis.
- High-resolution display for detailed measurements.
- Intuitive user interface for easy operation.
- Portable and durable design suitable for various environments.
- Multiple operation modes to meet diverse measurement needs.
- Future firmware upgrades to enhance functionality.
Technical Specifications
Frequency Range
15 MHz to 3.3 GHz (baseline)
15 MHz to 6.1 GHz (license 6G)
15 MHz to 7.5 GHz (license 7G)
Frequency Span
0 (zero span)
500 kHz to 6 GHz (sweep)
Resolution Bandwidth (RBW)
3 kHz – 2.5 MHz
Future firmware upgrade will enable 100 Hz – 2.5 MHz
Video Bandwidth (VBW)
Automatic
Low Frequency Support
100 kHz – 240 MHz with external RF Explorer Upconverter module
Frequency Resolution
1 kHz
Future firmware upgrade will enable 100 Hz
Sweep Time
3 GHz / 280 ms with RBW 2.5 MHz
Sweep Points
512 - 65,000
Frequency Stability
TCXO ±0.5 ppm (typical)
Amplitude Stability and Accuracy
±1.5 dB (typical)
Factory Calibration
3K reference points
Frequency Accuracy
TCXO ±1 ppm (internal reference)
Aging ±1 ppm/year
Displayed Frequency Accuracy
Span / (Sweep Points - 1)
Amplitude Resolution
0.5 dB
Future firmware upgrade will enable 0.25 dB
Dynamic Range
Direct: -110 dBm to +10 dBm
Preamplifier LNA: -130 dBm to -30 dBm
Attenuator: -80 dBm to +33 dBm
Absolute Max Input Power
+33 dBm internal Attenuator selected
Display Average Noise Level
-130 dBm (typical LNA)
Noise Floor
-160 dBm/Hz (typical LNA)
WiFi Analyzer
2.4 GHz / 5.8 GHz
CPU
Advanced Intel 64 bits
DSP
High Performance Dual DSP 32 bits + 16 bits
Save/Replay
100,000 Sweeps on Memory
Unlimited Sweeps on File
File Export
Compatible with CSV and Binary formats
Suitable for WSM/WWB6/Excel/Matlab
Wideband Power Meter Frequency Range
10 MHz to 8 GHz
Wideband Power Meter Dynamic Range
Direct: -60 dBm to +10 dBm
Preamplifier LNA: -130 dBm to -30 dBm
Attenuator: -80 dBm to -10 dBm
Operational Modes
Continuous, Trigger
Event Detection
100 µs
Samples
2 - 1024 Trigger Samples
100,000 Captures on Memory
Amplitude Resolution
0.25 dB
Amplitude Stability and Accuracy
±1.5 dB (typical)
Factory Calibration
1K reference points
Signal Tracking Generator Frequency Range
24 MHz to 6 GHz
Signal Tracking Generator Frequency Step/Resolution
1 kHz
Frequency Stability
TCXO ±0.5 ppm (typical)
Output Power Accuracy
Typical ±3 dB
Output Power Stability
Typical ±0.5 dB
Output Amplitude Settling Time
500 µs
Factory Calibration
1K reference points
Frequency Accuracy
TCXO ±1 ppm (internal reference)
Output Power Range (Nominal)
-40 dBm to -30 dBm in 3 dB steps
-10 dBm to 0 dBm in 3 dB steps
Operational Modes
CW, Tracking, SNA, Frequency Sweep (future firmware), Amplitude Sweep (future firmware)
Harmonics
Typical < -10 dBc
Spurious
Typical < -50 dBc
Frequency Sweep Settling
< 5 ms
Amplitude Sweep Settling
< 500 µs
Sweep Hops Range
Unlimited
Tracking Speed
>500 pts/sec
Remote Display
VNC Compatible
Video Output
Micro HDMI port
USB Type A
USB 3.0
Network
Ethernet with USB adapter
Adapter Not Included
Remote Control
VNC multiplatform free viewer
Audio
Internal Speaker
Audio Jack
3.5 mm
Micro SD Card
Up to 64 GB
SD Card Not Included
Operating Temperature
41°F to 95°F (5°C to 35°C)
Operating Humidity
Max 90%
Connector Type
SMA 50 ohms
Display Technology
Anti-glare 8” IPS TFT Capacitive Touchscreen
Display Resolution
1280 x 800 pixels
Display Luminance
250 cd/m²
Display Contrast Ratio
800:1
Viewing Angle
85 degrees
Weight
1.26 lbs (570 g)
Size
8.5" x 5.5" x 1.0" (215 x 140 x 25 mm)
Charge
USB-C 5VDC 2A
Charger Not Included
Charge Time
3 hours
Internal Battery
Lithium Ion 4500 mAh
Battery Lifetime
3.5 – 5 hours depending on operational mode

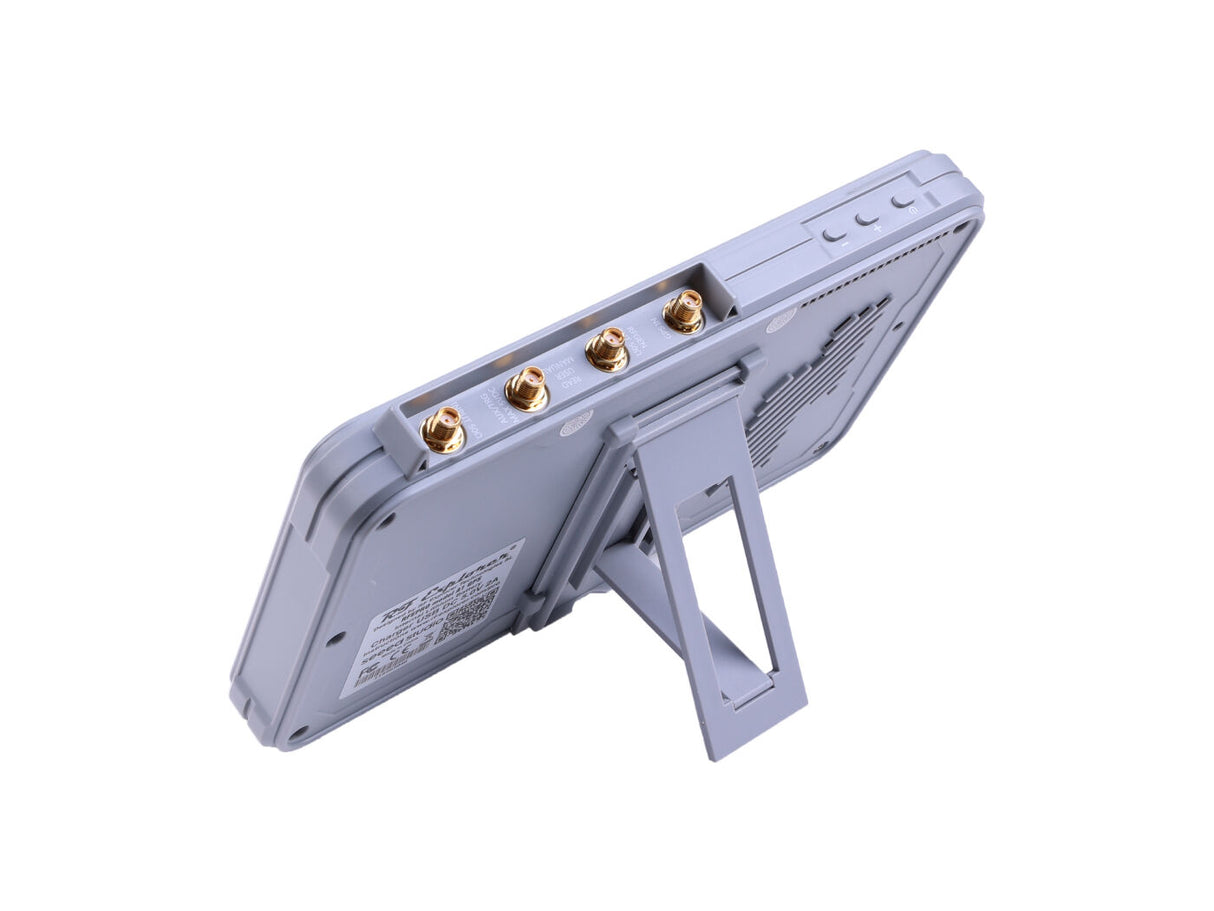

Holder
Back Removable Holder
Tripod Support
Compatible with standard 1/4-20 Camera tripod
Certification
CE/FCC/RoHS/MSDS
Included Antennas
UHF: 400 MHz - 900 MHz (gray)
Wideband: 900 MHz - 6 GHz (black)
Included Cable
USB-C 2A rated cable, 1 m length
Installation / Use Cases
- RF coordination and wireless system planning using a portable spectrum analyzer
- Wireless microphone and IEM workflows requiring 15 MHz to 7.5 GHz signal analysis with license options
- RF troubleshooting using sweep, zero-span, continuous, trigger, and event detection modes
- WiFi analysis for 2.4 GHz and 5.8 GHz environments
- Field measurement setups requiring 8-inch anti-glare capacitive touchscreen display and internal battery operation
- Data export workflows using CSV and binary formats for WSM, WWB6, Excel, and Matlab
- Bench and field RF testing using SMA 50 ohm connectors, included UHF and wideband antennas, and USB-C cable
Package Contents
- RF Venue RF Explorer Pro Spectrum Analyzer
- UHF Antenna: 400 MHz - 900 MHz (Gray)
- Wideband Antenna: 900 MHz - 6 GHz (Black)
- USB-C 2A Rated Cable, 1 m Length
Frequently Asked Questions
What is the RF Venue RF Explorer Pro used for?
The RF Explorer Pro is used for RF spectrum analysis, wireless system coordination, signal troubleshooting, WiFi analysis, and field RF measurements.
What frequency range does the RF Explorer Pro cover?
The listed frequency range is 15 MHz to 3.3 GHz baseline, 15 MHz to 6.1 GHz with license 6G, and 15 MHz to 7.5 GHz with license 7G.
Does the RF Explorer Pro support WiFi analysis?
Yes. It supports WiFi analyzer functions for 2.4 GHz and 5.8 GHz environments.
What display does the RF Explorer Pro use?
The RF Explorer Pro uses an anti-glare 8 inch IPS TFT capacitive touchscreen with 1280 x 800 resolution.
What antennas are included with the RF Explorer Pro?
The package includes a UHF antenna for 400 MHz to 900 MHz and a wideband antenna for 900 MHz to 6 GHz.
What comes with the RF Explorer Pro?
The package includes the RF Venue RF Explorer Pro Spectrum Analyzer, UHF antenna, wideband antenna, and USB-C 2A rated cable.
