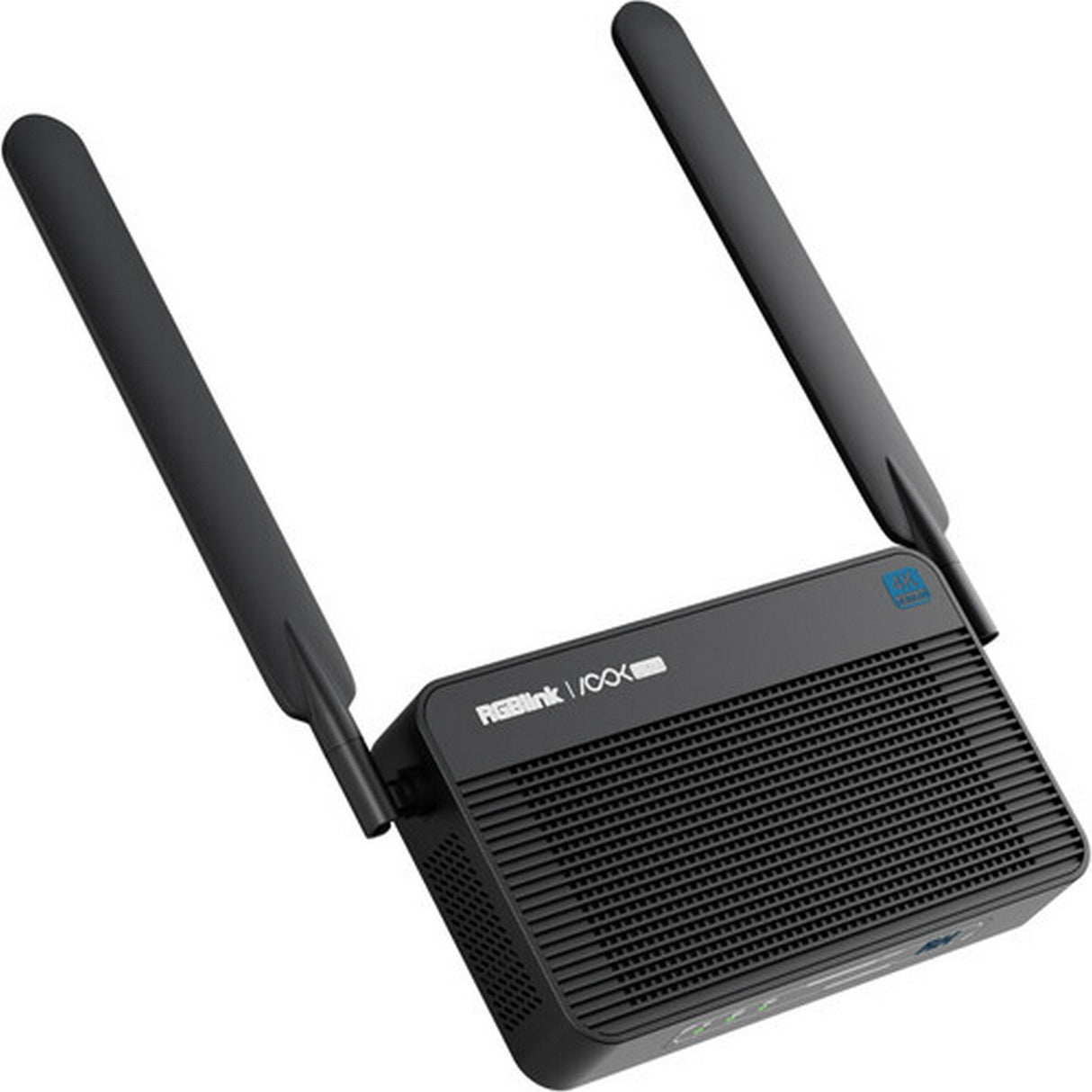

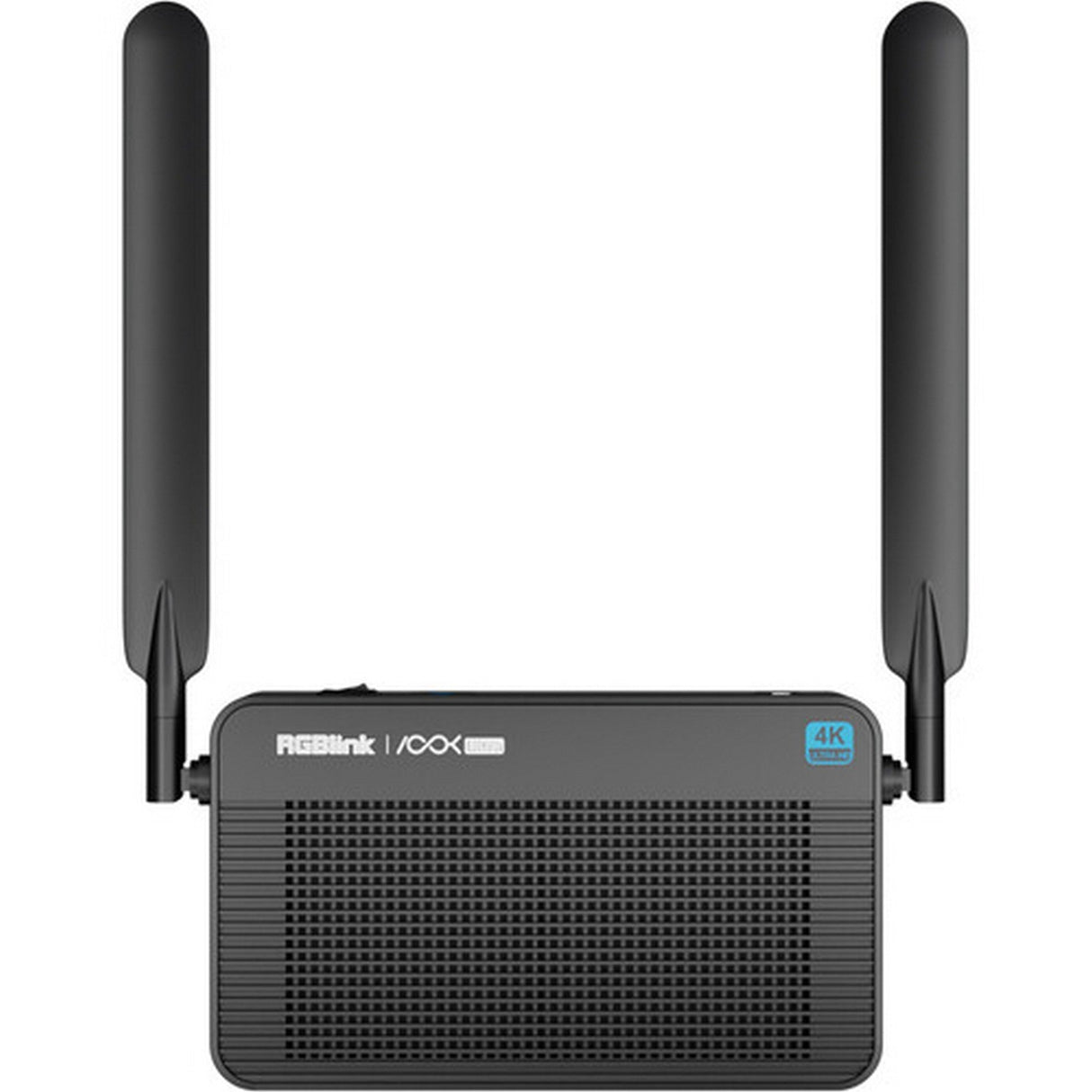

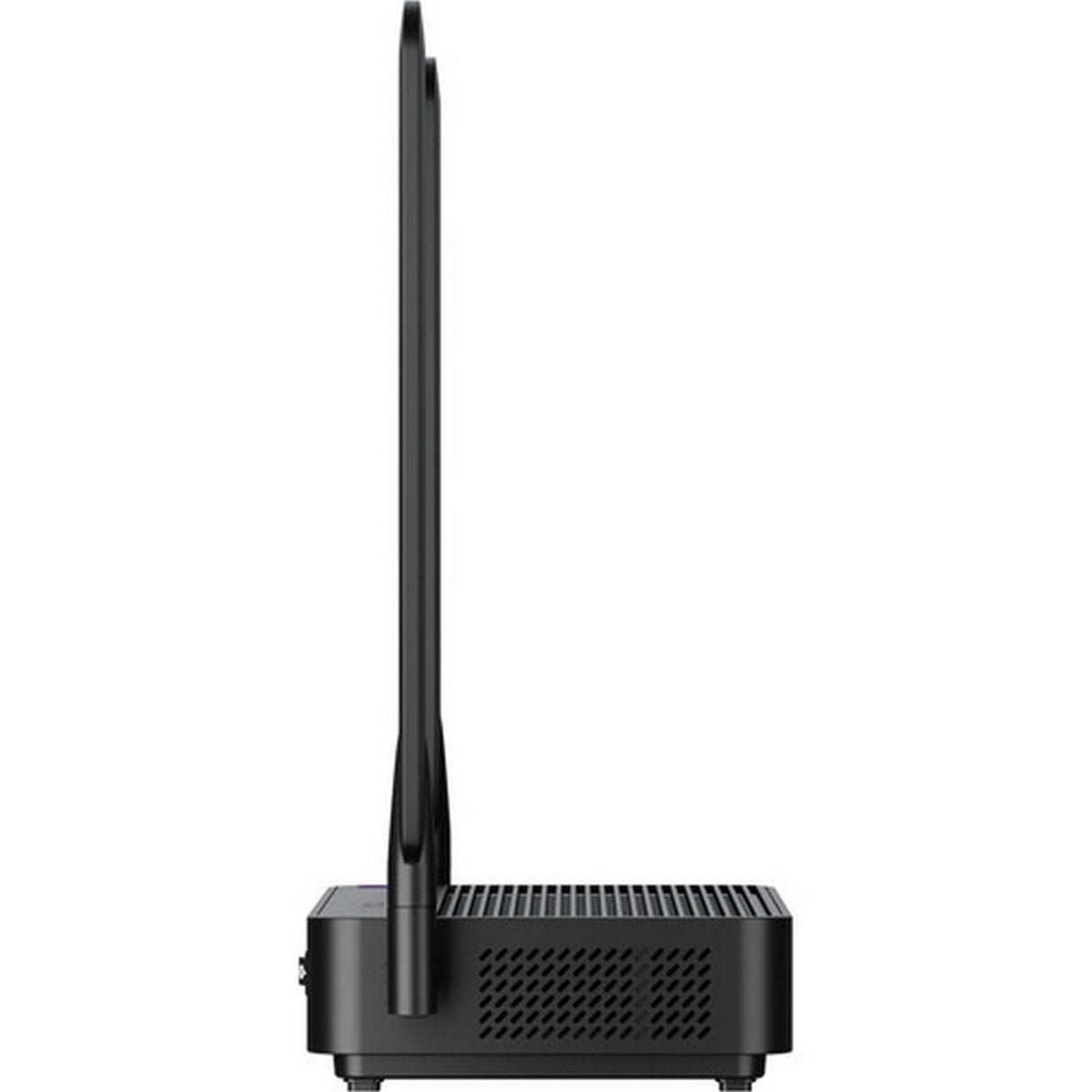

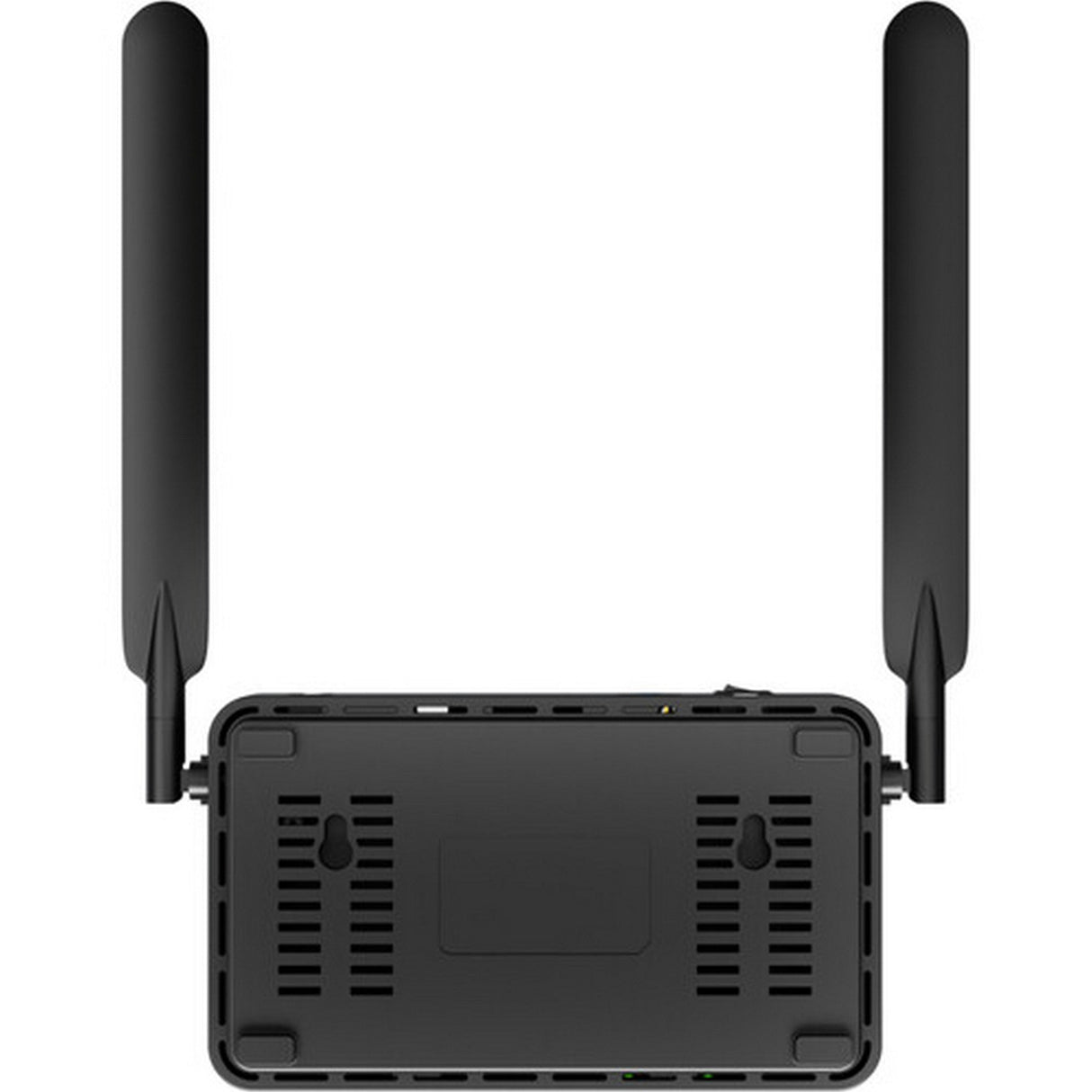

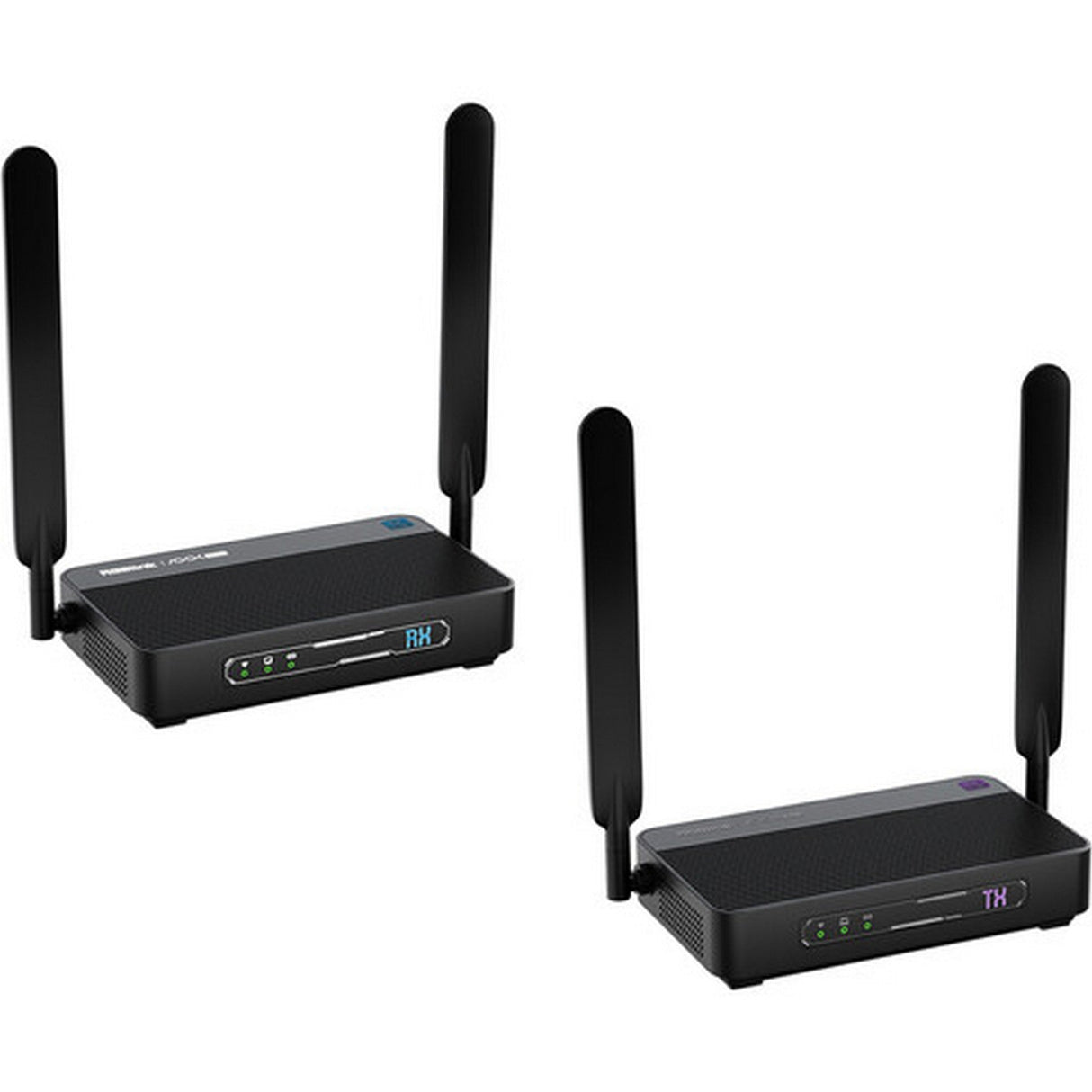

RGBlink ASK Ultra p2p 4K Wireless HDMI Extender

RGBlink ASK Ultra p2p 4K Wireless HDMI Extender

The RGBlink ASK Ultra p2p 4K Wireless HDMI Extender sends HDMI video and multichannel audio from its transmitter to receiver without a signal cable between locations. The system supports resolutions through 4096 x 2160 at 60 Hz, HDR 10-bit video, visually lossless YUV 4:4:4 transmission, and approximately 16 ms latency.

Built for professional AV, presentations, live production, education, and other installations where long HDMI runs are impractical, the ASK Ultra p2p combines an 802.11ac 2T2R Wi-Fi MIMO link with automatic channel selection. Its wireless range reaches 984.3 ft in an open environment, while the transmitter provides an HDMI loop output for convenient local monitoring.

The transmitter and receiver use HDMI 2.0 and support HDCP 2.2, 7.1-channel audio, Dolby Atmos/DTS bypass, and resolutions up to 4K60. AES128 encryption and proprietary transmission technology help protect the wireless link, while dual antennas on each endpoint support the high-bandwidth connection required for professional 4K wireless HDMI distribution.

Key Features

• 4K60 Wireless HDMI: Transmits and receives video resolutions through 4096 x 2160 at 60 Hz using HDMI 2.0 connectivity.
• Low-Latency Transmission: Maintains approximately 16 ms latency for responsive presentation, monitoring, and production applications.
• Long Wireless Range: Reaches up to 984.3 ft between transmitter and receiver in an open environment.
• 802.11ac MIMO Link: Uses a 2T2R Wi-Fi MIMO module with data rates reaching 866 Mbps and automatic Wi-Fi channel selection.
• High-Quality Video: Supports visually lossless YUV 4:4:4 wireless transmission and HDR 10-bit signals.
• Multichannel Audio: Carries up to 7.1-channel audio with Dolby Atmos and DTS bypass support.
• Local HDMI Monitoring: Provides an HDMI 2.0 loop output on the transmitter for a nearby display.
• Encrypted Wireless Link: Uses AES128 encryption with proprietary coding and transmission technology for added data security.

Technical Specifications

• Model: ASK Ultra p2p
• Product Code: 450-4002-01-0
• Product Type: 4K wireless HDMI extender transmitter and receiver set
• Wireless Technology: 802.11ac 2T2R Wi-Fi MIMO
• Maximum Wireless Data Rate: Up to 866 Mbps
• Wireless Channel Selection: Automatic
• Transmission Distance: Up to 984.3 ft in an open environment
• Latency: Approximately 16 ms
• Video Transmission: Visually lossless YUV 4:4:4
• HDR: HDR 10-bit
• Audio: Up to 7.1 channels
• Dolby Atmos/DTS: Bypass supported
• Encryption: AES128 with proprietary coding and transmission technology
• HDMI Standard: HDMI 2.0
• HDCP: HDCP 2.2

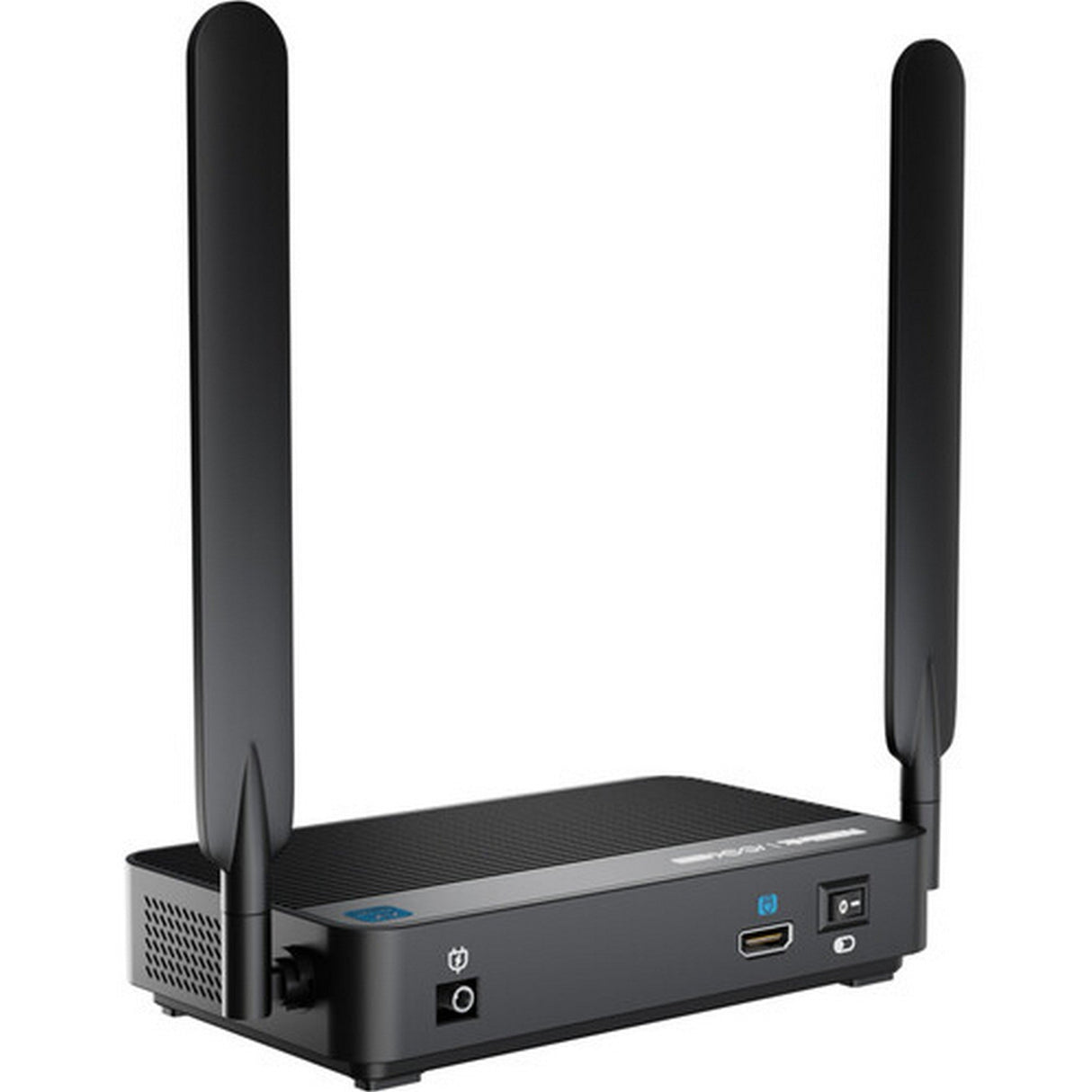

• Transmitter Video Input: 1 x HDMI Type A
• Transmitter Video Output: 1 x HDMI Type A loop output

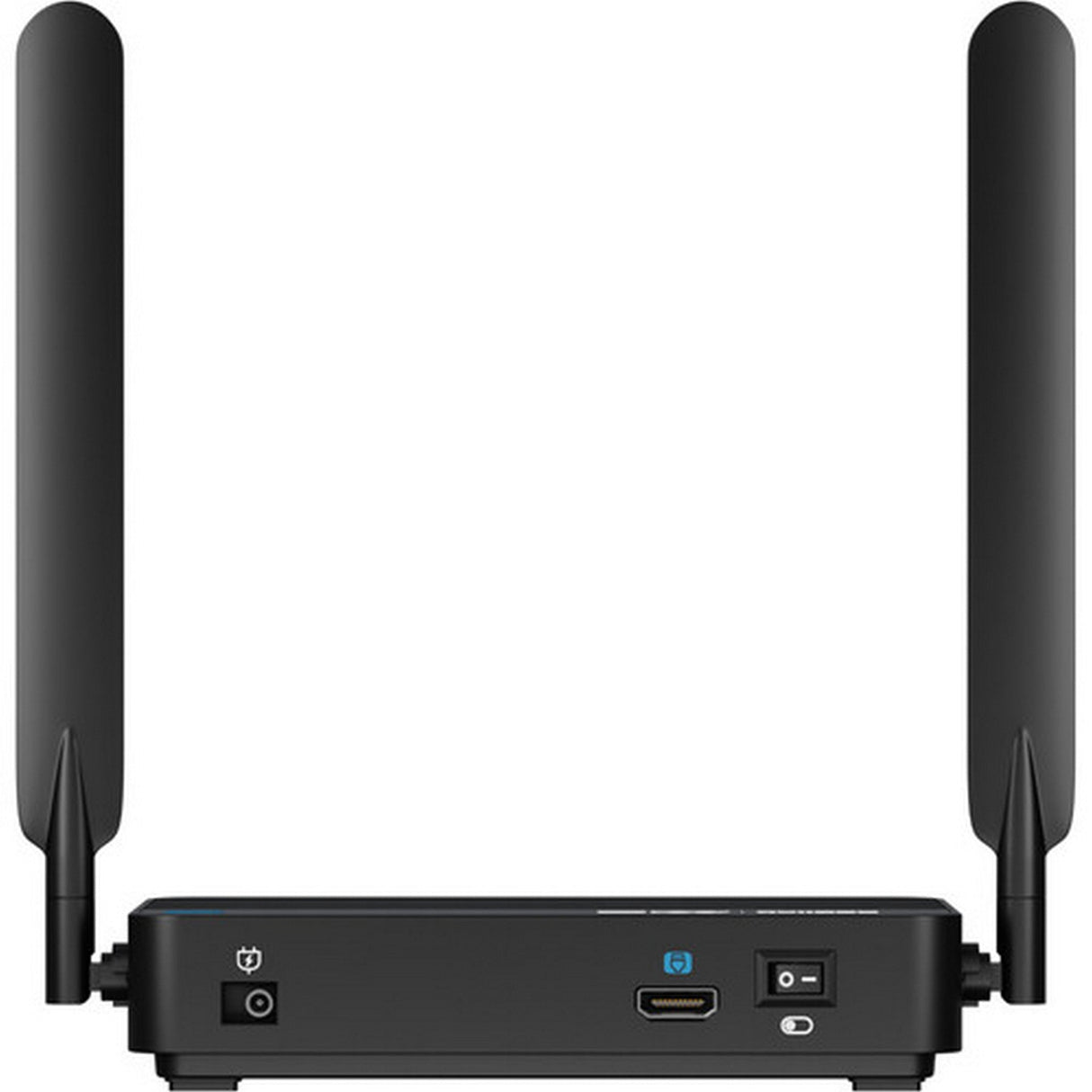

• Receiver Video Output: 1 x HDMI Type A
• Transmitter Power Connection: 1 x DC power jack
• Receiver Power Connection: 1 x DC power jack
• Supported Input Resolutions: 4096 x 2160p at 30/60 Hz; 3840 x 2160p at 30/60 Hz; 2160 x 1200p at 90 Hz; 2880 x 1600p at 90 Hz; 1920 x 1080p at 24/30/60/120 Hz; 1920 x 1080i at 50/60 Hz; 1280 x 720p at 30/60 Hz; 640 x 480p at 60 Hz
• Supported Output Resolutions: 4096 x 2160p at 30/60 Hz; 3840 x 2160p at 30/60 Hz; 2160 x 1200p at 90 Hz; 2880 x 1600p at 90 Hz; 1920 x 1080p at 24/30/60/120 Hz; 1920 x 1080i at 50/60 Hz; 1280 x 720p at 30/60 Hz; 640 x 480p at 60 Hz
• Input Voltage: DC 12V/1.5A per transmitter and receiver
• Power Consumption: 10W per transmitter and receiver
• Operating Temperature: 32 to 104°F
• Storage Temperature: 14 to 140°F
• Operating Humidity: 10% to 80% RH
• Transmitter Dimensions: 6.3 x 3.7 x 1.3 in
• Receiver Dimensions: 6.3 x 3.7 x 1.3 in
• Transmitter Weight: 0.7 lb
• Receiver Weight: 0.7 lb
• Configuration: XPOSE

What's In the Box

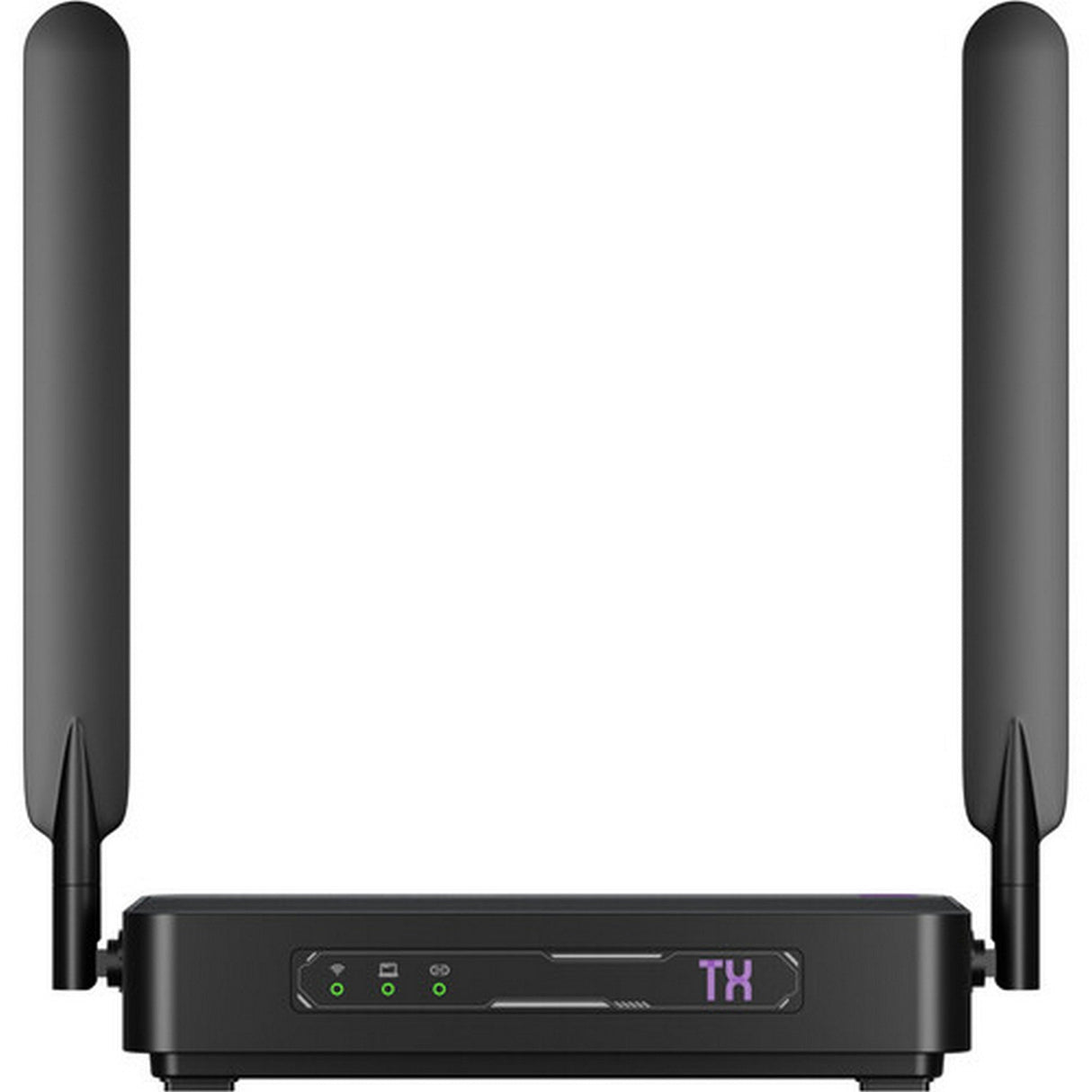

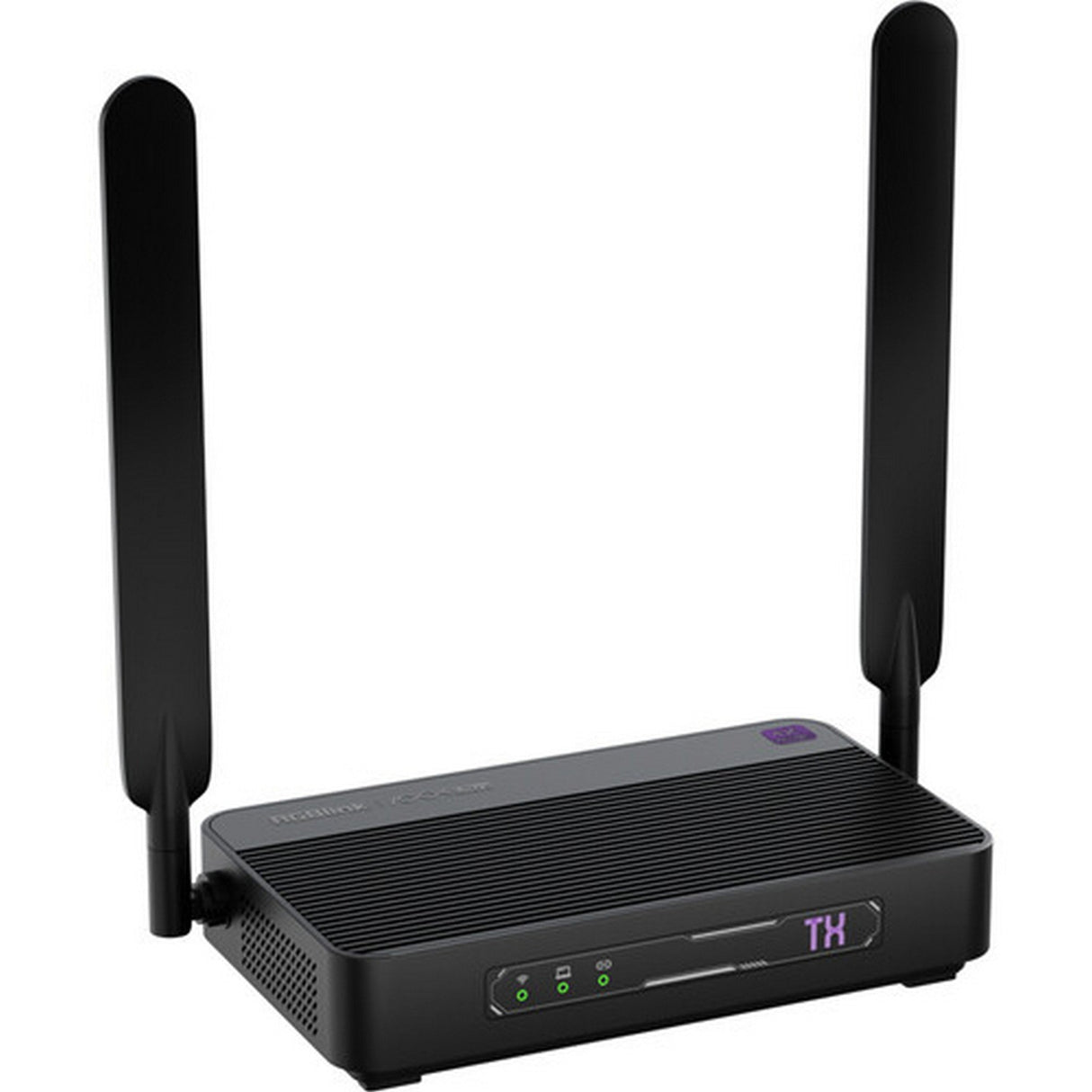

• ASK Ultra p2p transmitter

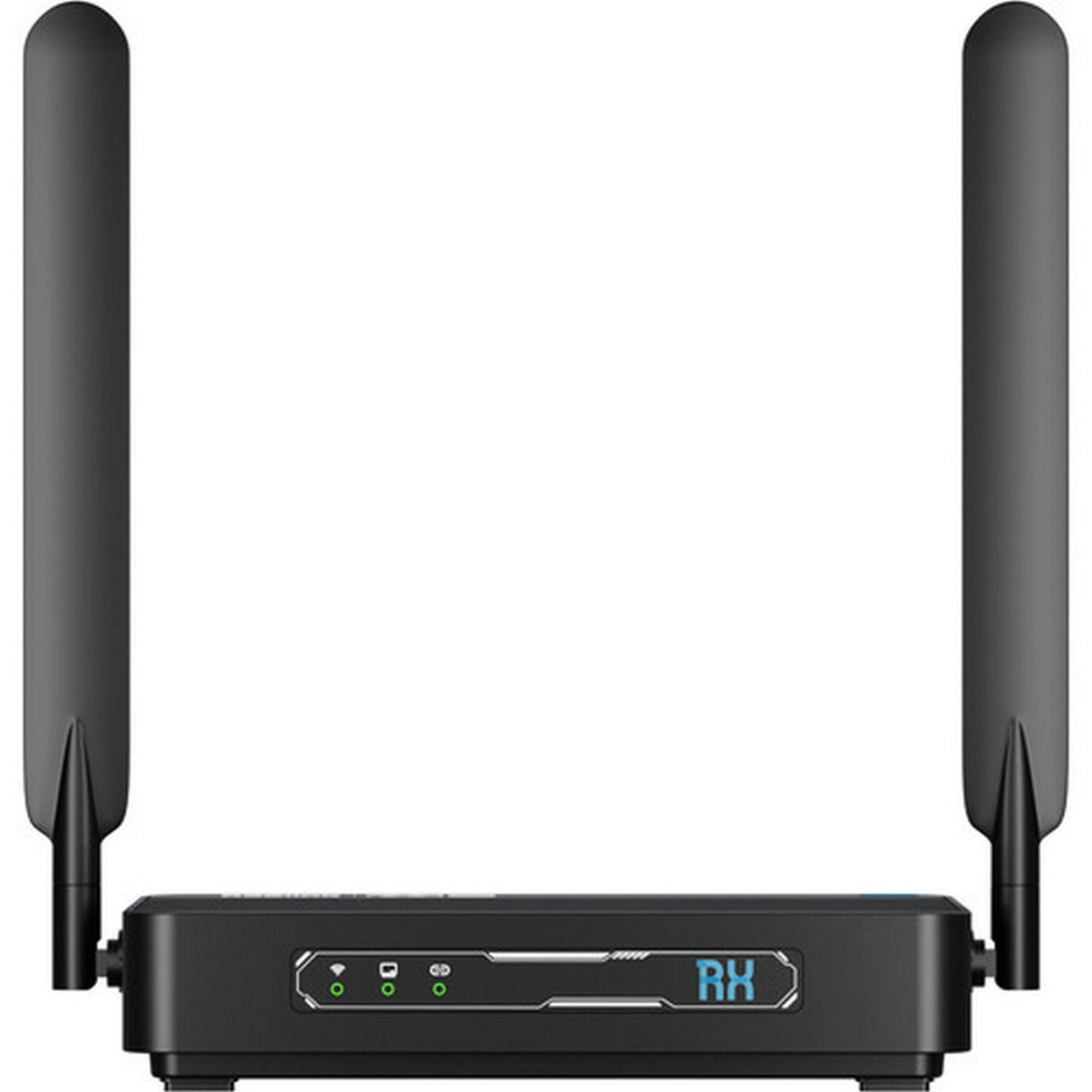

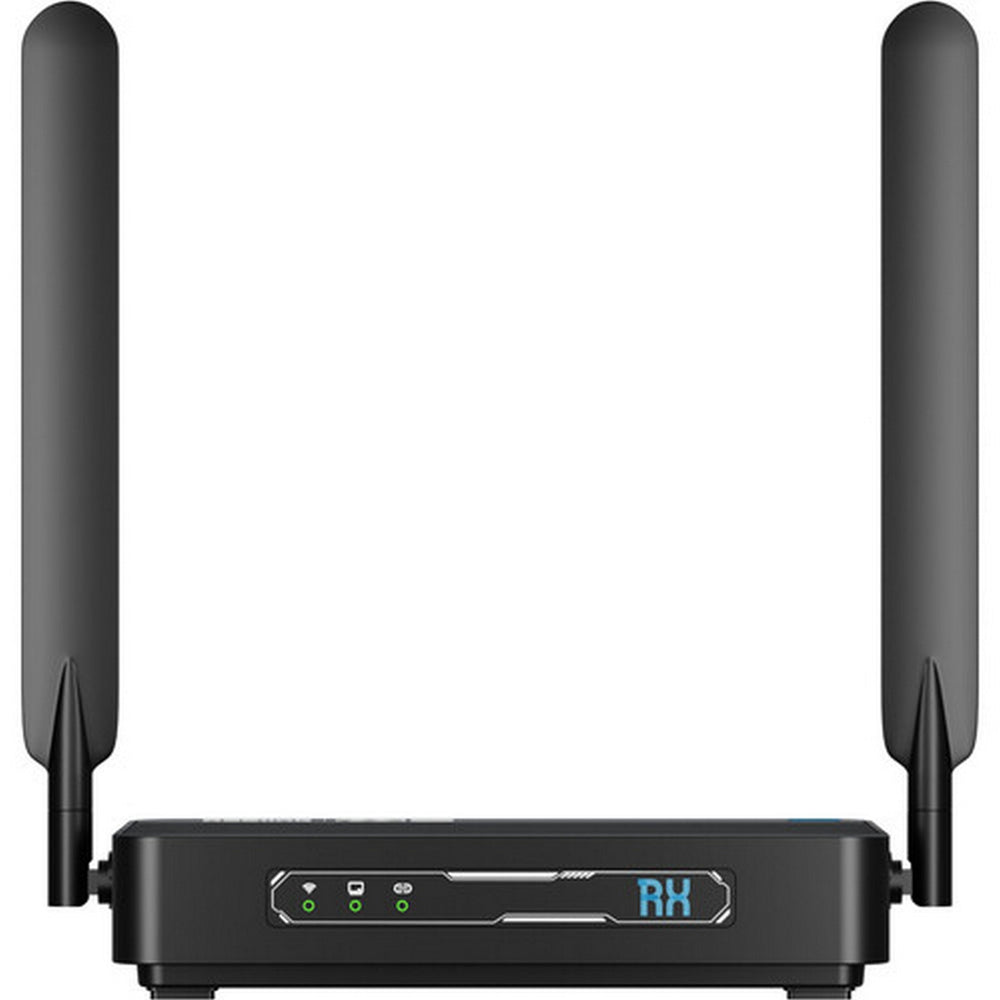

• ASK Ultra p2p receiver
