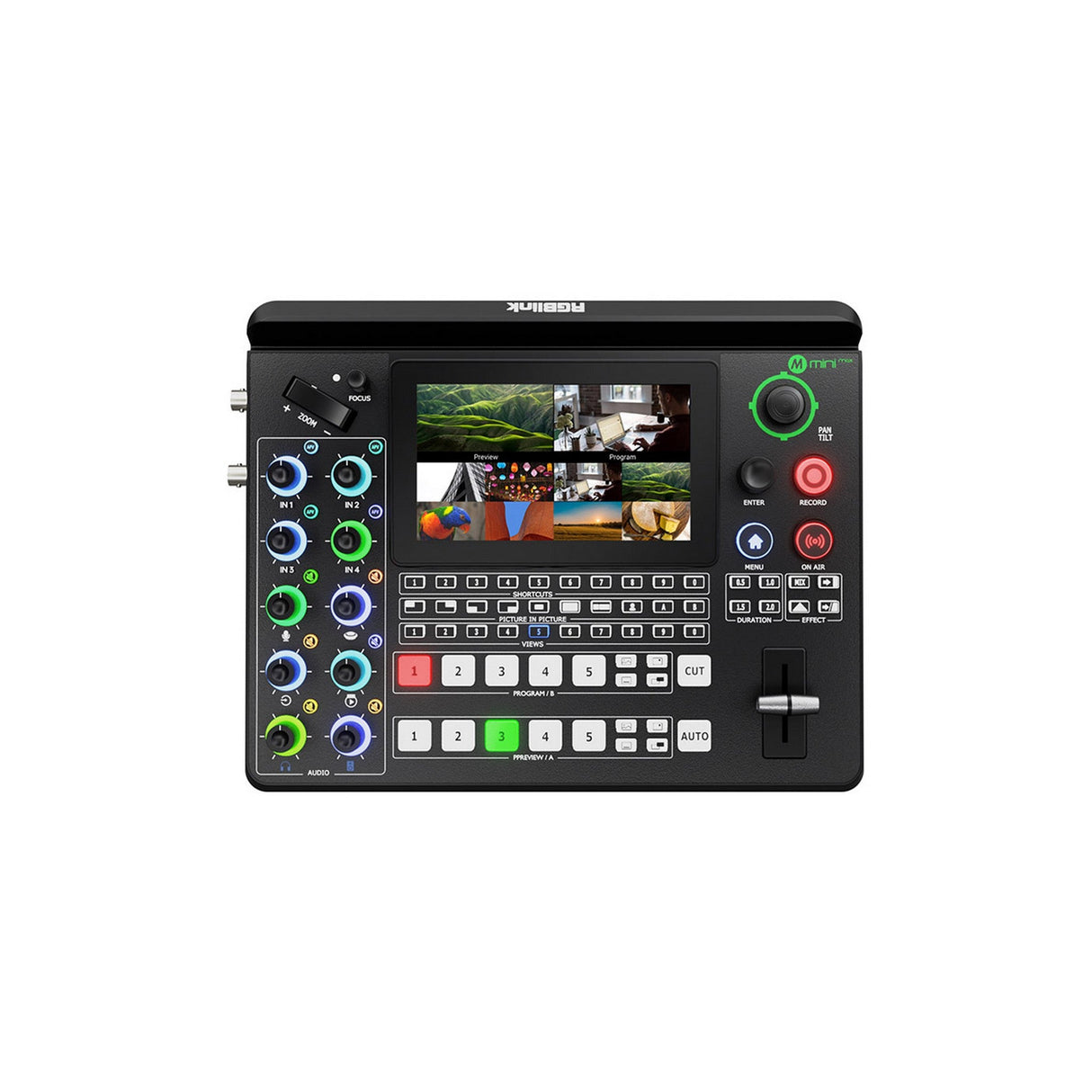

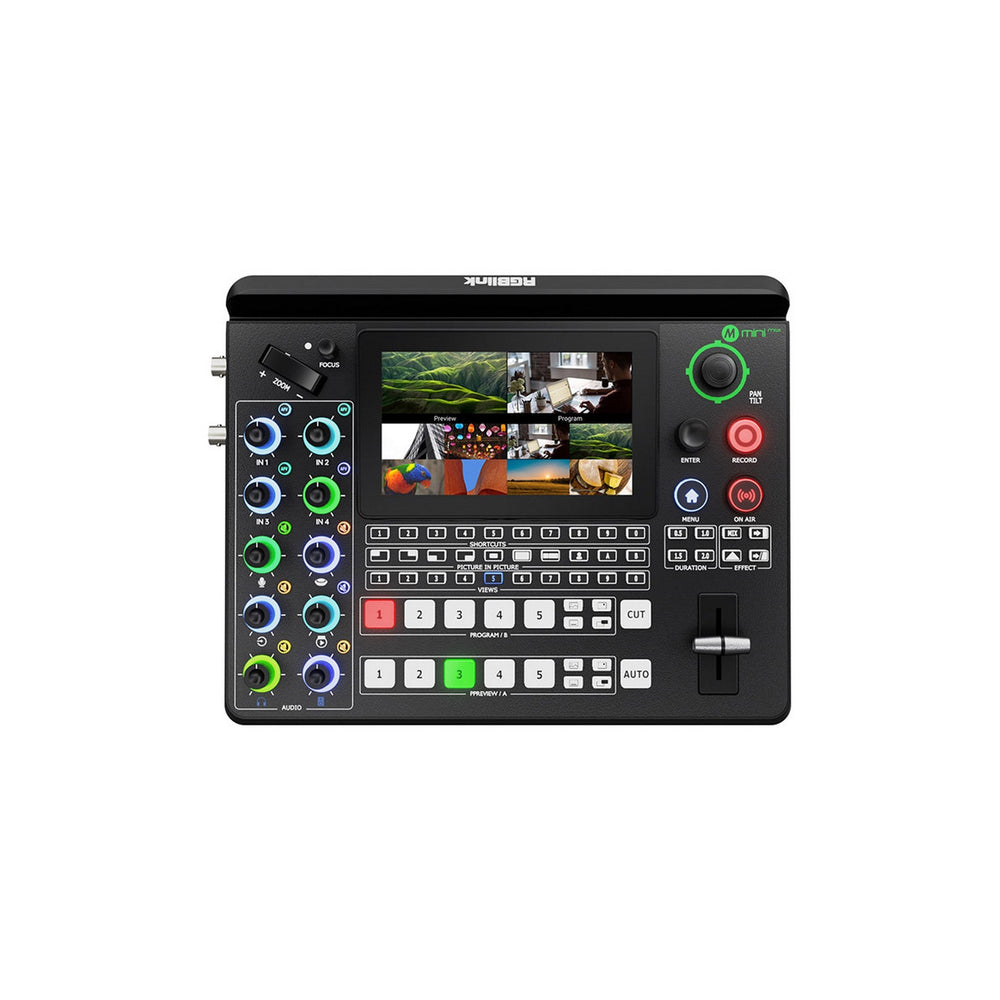

RGBlink Mini-Max 4K All-in-One Video Switcher
The RGBlink mini-max 4K All-in-One Video Switcher combines 4K switching, recording, streaming, and monitoring in a compact production console. It supports HDMI, 12G-SDI, UVC, MP4, and NDI sources, giving creators a flexible hub for live events, broadcasts, worship, education, and remote production workflows.
Built for teams that need to buy a 4K live video switcher without adding a large control surface, mini-max offers a 5.5-inch touchscreen, physical controls, dual HDMI outputs, USB 3.0 capture, and direct streaming support. It suits mobile studios, multi-camera streaming setups, and compact production desks that need reliable source control.
Professional operators can manage video, audio, PTZ cameras, and output routing from one device. With TAO Cloud, Web App support, XPOSE control, NDI HX3 support, chroma key, luma key, audio noise reduction, and RGBlink Central Control Protocol integration, mini-max fits modern IP, USB, and baseband video workflows.
Key Features
- 4K All-In-One Workflow: Switch, stream, record, capture, and monitor 4K production from one compact desktop unit.
- Multi-Format Inputs: Connect HDMI 2.0, 12G-SDI, UVC, MP4, and NDI sources for flexible live production setups.
- 5.5-Inch Touchscreen: Control menus, preview sources, and view working status directly from the integrated display.
- Dual HDMI Outputs: Use HDMI 2.0 for main output and HDMI 1.3 for preview, multiview, or test patterns.
- USB 3.0 4K Capture: Output as a UVC webcam for streaming through compatible third-party production platforms.
- Integrated Audio Mixing: Mix up to eight audio channels with microphone, line, HDMI, and USB audio support.
- PTZ Camera Control: Independently control PTZ movement, zoom, and focus across multiple PTZ cameras.
- Cloud And IP Streaming: Stream with RTMP(S) and NDI over Ethernet, with management through TAO Cloud.
Technical Specifications
- Product Type: 4K all-in-one video switcher
- Order Code: 230-0012-01-0

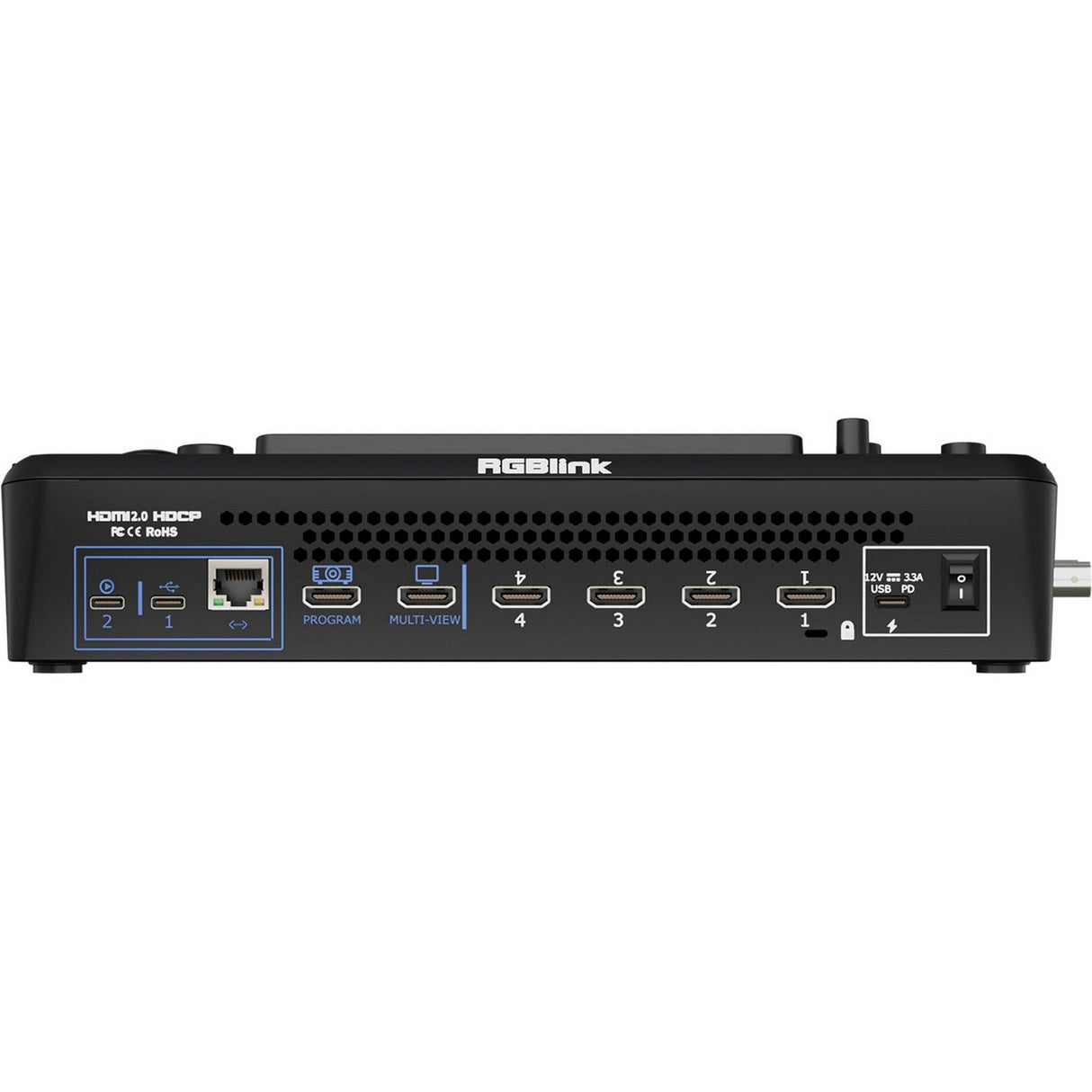

- Video Inputs: 4 x HDMI 2.0, 1 x USB-C UVC 4K webcam, 2 x 12G-SDI BNC, 1 x RJ45 NDI
- Customizable Video Inputs: 6 channels
- Input Connectors: 9 total connectors
- Video Outputs: 1 x HDMI 1.3, 1 x HDMI 2.0, 1 x USB-C 4K record, 1 x USB-C 4K capture, 1 x NDI

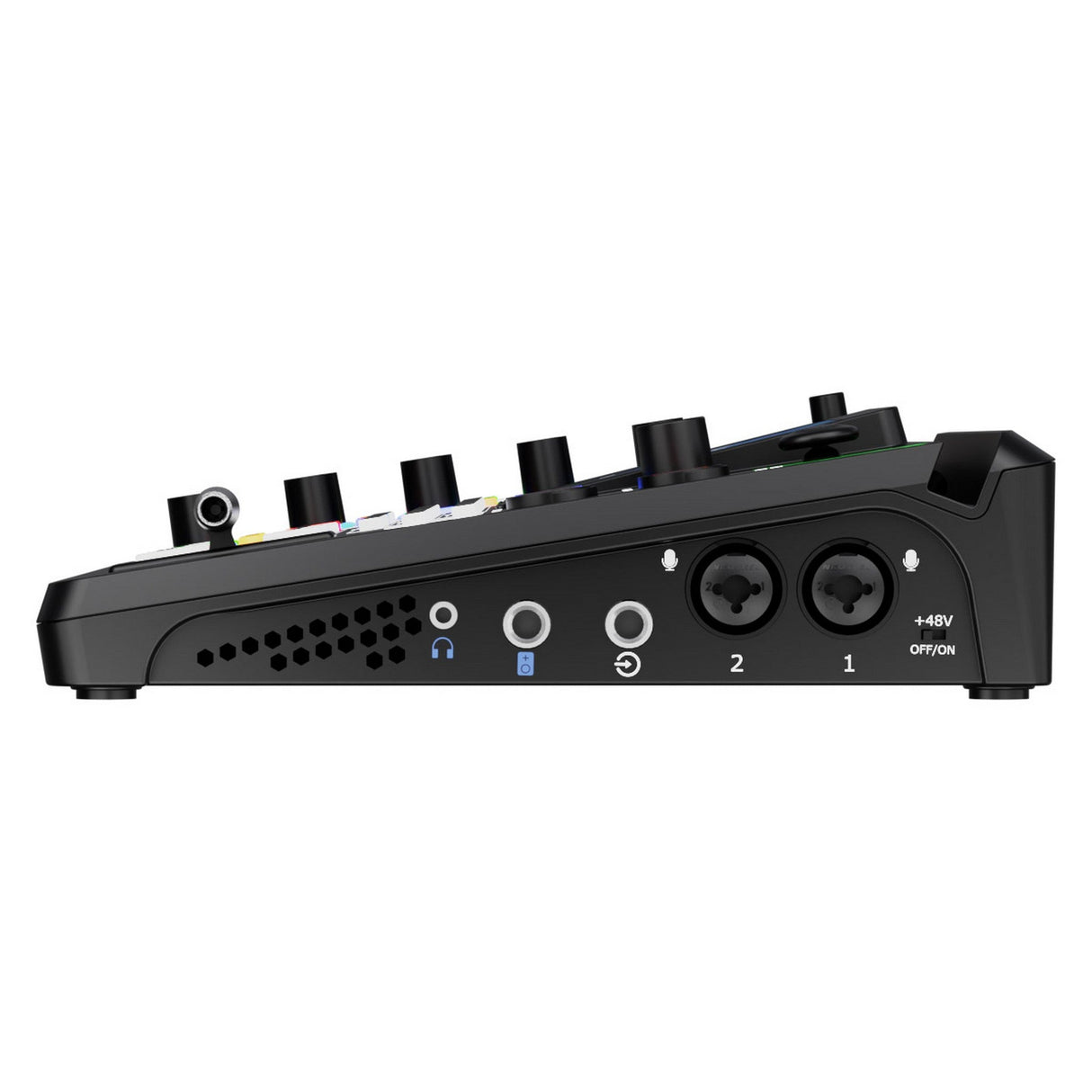

- Audio Inputs: MIC IN 1 with 6.35mm XLR + TS jack and 48V phantom power, MIC IN 2 with 6.35mm XLR + TS jack, LINE IN with 6.35mm TRS jack
- Audio Outputs: 1 x 6.35mm TRS jack, 1 x 3.5mm mini-jack
- Audio Mixing: Up to 8 channels
- Communication, Stream, And Upgrade: 1 x RJ45 LAN
- Power Connector: 1 x USB-C power supply input
- HDMI 2.0 SMPTE Input Resolutions: 720p@50/60, 1080p@30/50/60, 2160p@30/50/60
- HDMI 2.0 VESA Input Resolutions: 1024 x 768p@60, 1280 x 720p@60, 1280 x 768p@60, 1280 x 800p@60, 1280 x 1024p@60, 1360 x 768p@60, 1366 x 768p@60, 1440 x 900p@60, 1600 x 1200p@60, 1680 x 1050p@60, 1920 x 1080p@60, 1920 x 1200p@60, 3840 x 2160p@60, 4096 x 2160p@60
- 12G-SDI SMPTE Input Resolutions: 2160p@30/50/60, 1080p@30/50/60, 1080i@50/59.94/60, 720p@50/59.94/60
- HDMI 1.3 Output Resolution: 1080p@60
- HDMI 2.0 And USB Webcam Output Resolutions: 1080p@30/50/60, 2160p@30/50/60
- Video Formats: HDMI 2.0, HDCP 2.2
- HDMI 2.0 Input Sampling: YUV444, YUV422, RGB, 8/10/12-bit
- HDMI 2.0 Output Sampling: RGB 8-bit
- USB Record Sampling: YUV420 8-bit
- Video Latency: Less than 4 frames
- Line Input Delay: Up to 8 frames
- HDMI Audio Format: Linear PCM, 24-bit/48 kHz, 2-channel
- USB Audio Format: Linear PCM, 16-bit/48 kHz, 2-channel
- Recording Format: MP4
- Disk Formats: FAT32 up to 32 GB, exFAT from 64 GB to 2 TB
- Supported Standards: HDMI 2.0, USB 3.0, H.265 ITU-T H.265/ISO/IEC 23008-2, NDI, NDI HX3
- Streaming: RTMP(S) and NDI via Ethernet
- USB Recording: USB 3.0 4K recording, bitrate up to 32 Mbps
- Control Support: XPOSE, TAO Cloud, Web App, RGBlink Central Control Protocol
- Keying: Chroma key for green and blue, luma key
- Transition Modes: Cut mode and preview transition mode
- Power Compatibility: USB Power Delivery PD 3.0
- Supported Power Cables: Certified USB PD aware
- Input Voltage: USB-C 12V/3.3A
- Maximum Power: 40W
- Operating Temperature: 32°F to 113°F
- Operating Humidity: 10% to 85% RH
- Net Weight: 3.26 lbs
- Packaged Weight: 6.17 lbs
- Net Dimensions: 11.46" x 8.77" x 2.74"
- Packaged Dimensions: 13.07" x 9.39" x 4.29"
