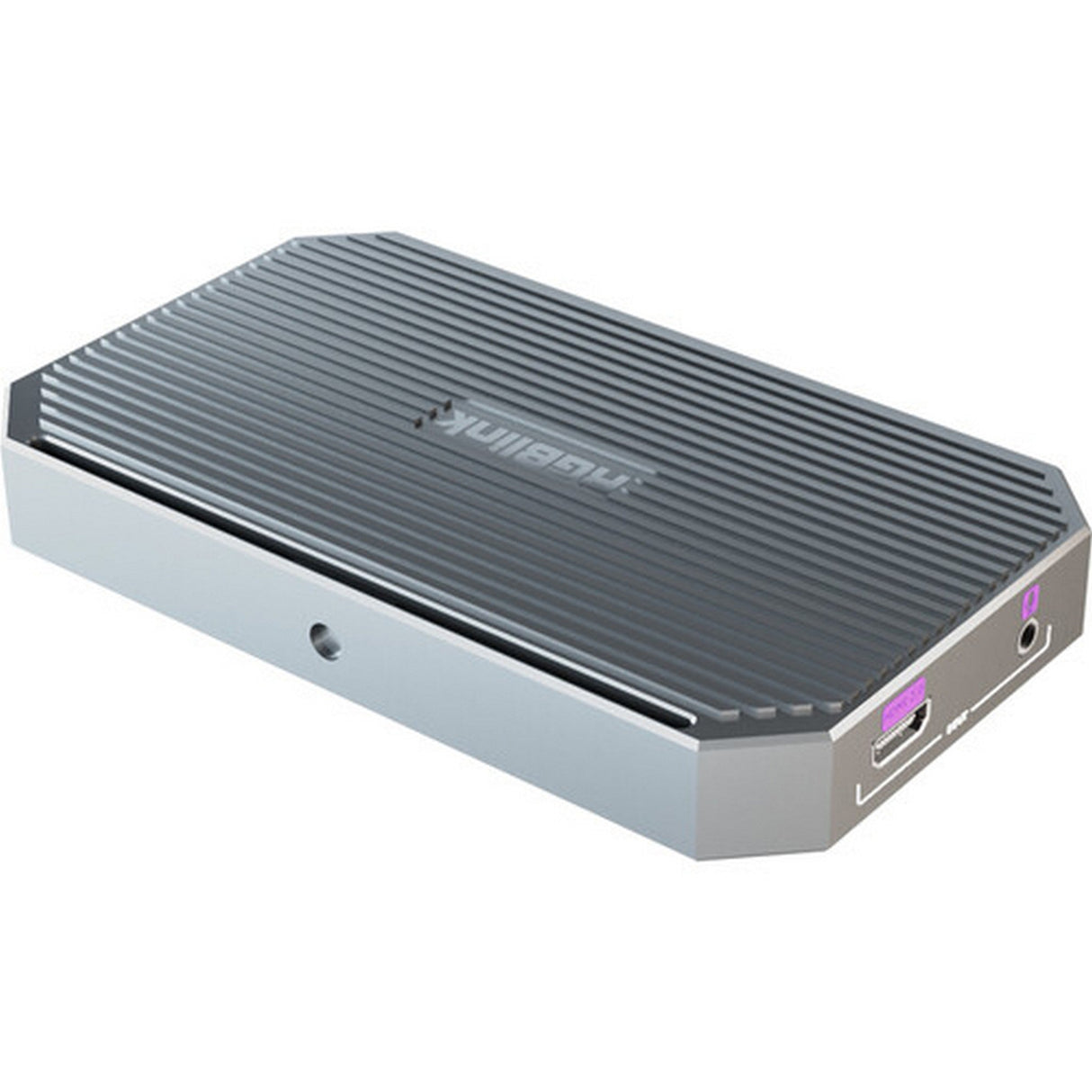

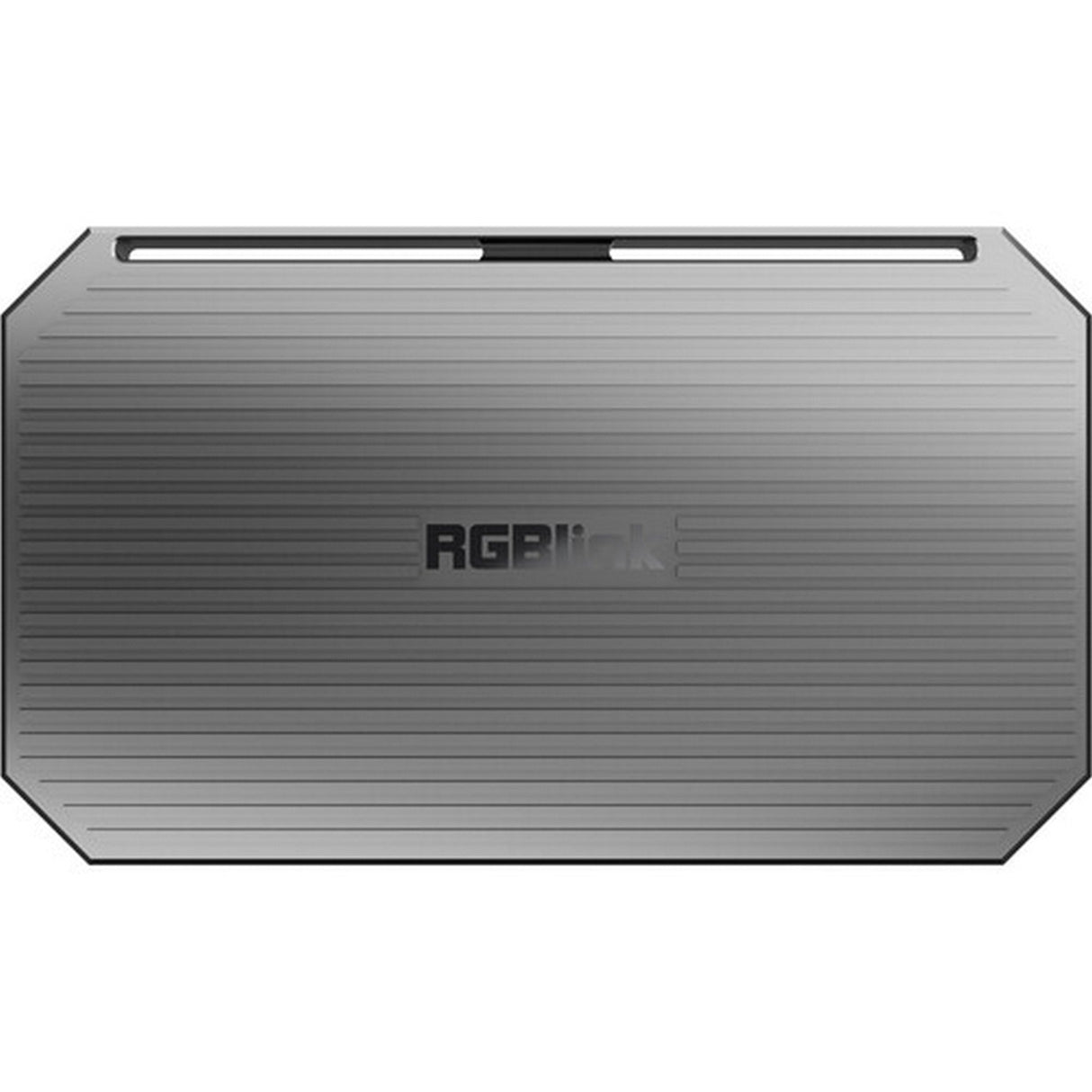

RGBlink MSP 331U Gen2 HDMI 2.0 4K60 Capture Card

RGBlink MSP 331U Gen2 HDMI 2.0 4K60 Capture Card

The RGBlink MSP 331U Gen2 HDMI 2.0 4K60 Capture Card converts high-resolution HDMI sources into USB video for recording, streaming, conferencing, and production software. It accepts HDMI signals through 4096 x 2160 at 60 Hz, provides an HDMI loop output, and delivers USB capture resolutions up to 3840 x 2160 at 60 Hz depending on the selected capture format.

Built for cameras, computers, game consoles, presentation systems, and live production equipment, the MSP 331U Gen2 combines HDMI 2.0 connectivity with a 5 Gbps USB 3.2 interface. Its plug-and-play UVC/UAC design makes it useful for 4K HDMI capture, live streaming workflows, video conferencing, and portable production systems without proprietary capture drivers.

The unit supports HDR signals, HDCP 2.3, HDMI audio mixing with an external line input, and a dedicated 3.5mm analog audio output. Multiple USB capture formats provide flexibility for different bandwidth and resolution requirements, while a dynamic status light displays signal conditions in real time. Compatibility includes Windows, macOS, Linux, and a range of DirectShow, V4L2, and AVCaptureSession applications.

Key Features

• 4K60 HDMI Input: Accepts HDMI 2.0 sources through 4096 x 2160 at 60 Hz with support for RGB 4:4:4 8-bit video.
• HDMI Loop Output: Passes the incoming HDMI signal to a local monitor, recorder, switcher, or other compatible display device.
• USB 3.2 Capture: Provides a 5 Gbps USB-C connection for high-bandwidth video capture and bus power.
• Flexible Capture Formats: Supports RGB24, YUY2, NV12, I420, P010, and MJPEG formats for different resolution and bandwidth needs.
• HDR Support: Handles HDR video for workflows that require expanded highlight and color information.
• Audio Mixing: Combines HDMI embedded audio with an external 3.5mm line input and provides analog audio output.
• Plug-and-Play Operation: Uses UVC 1.5 and UAC 1.0 standards for compatibility with Windows, macOS, and Linux systems.

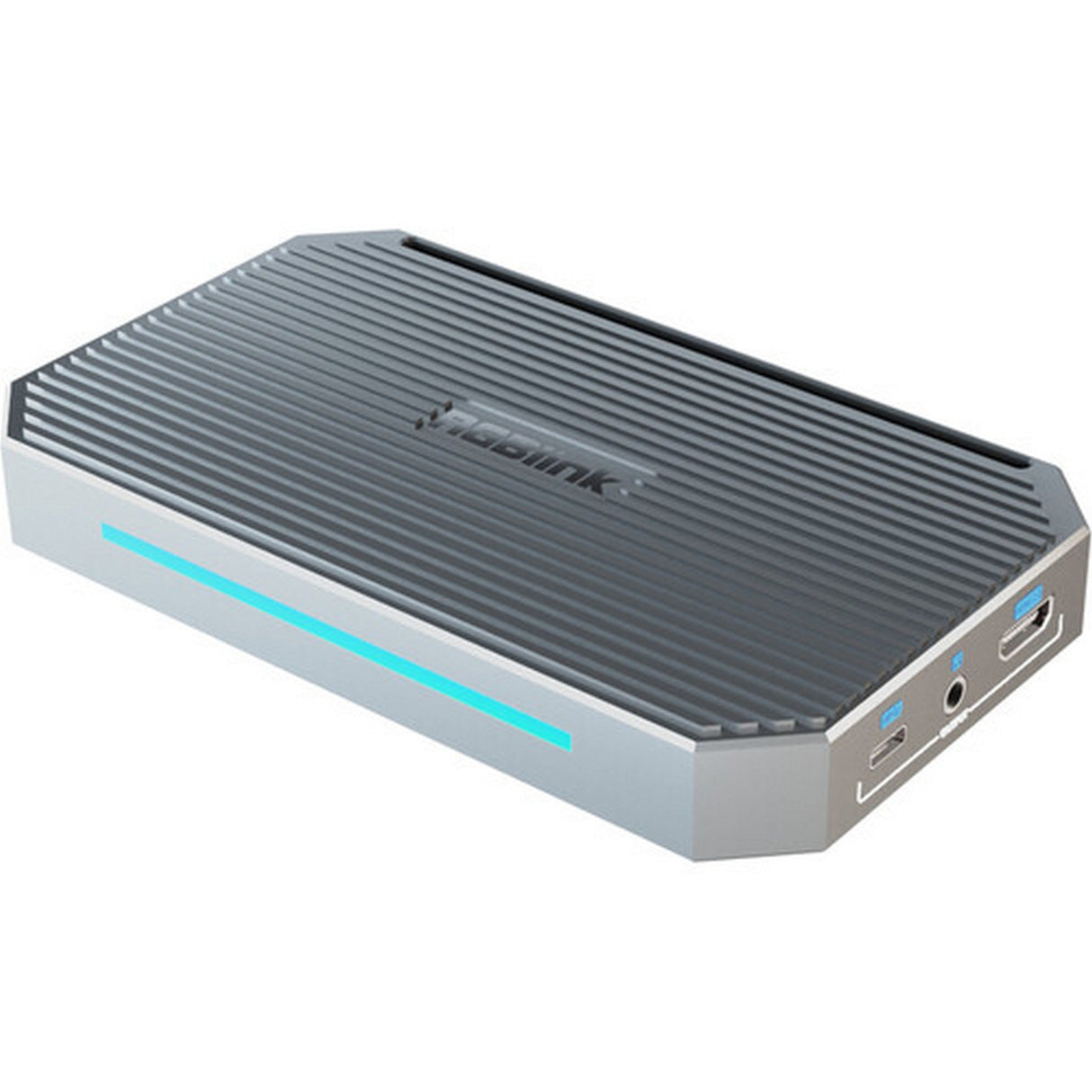

• Real-Time Status Display: Uses a dynamic illuminated status indicator to show power, HDMI input, and audio mixing conditions.

Technical Specifications

• Model: MSP 331U Gen2
• Product Code: 601-0331-04-1
• Product Type: HDMI 2.0 4K60 capture card

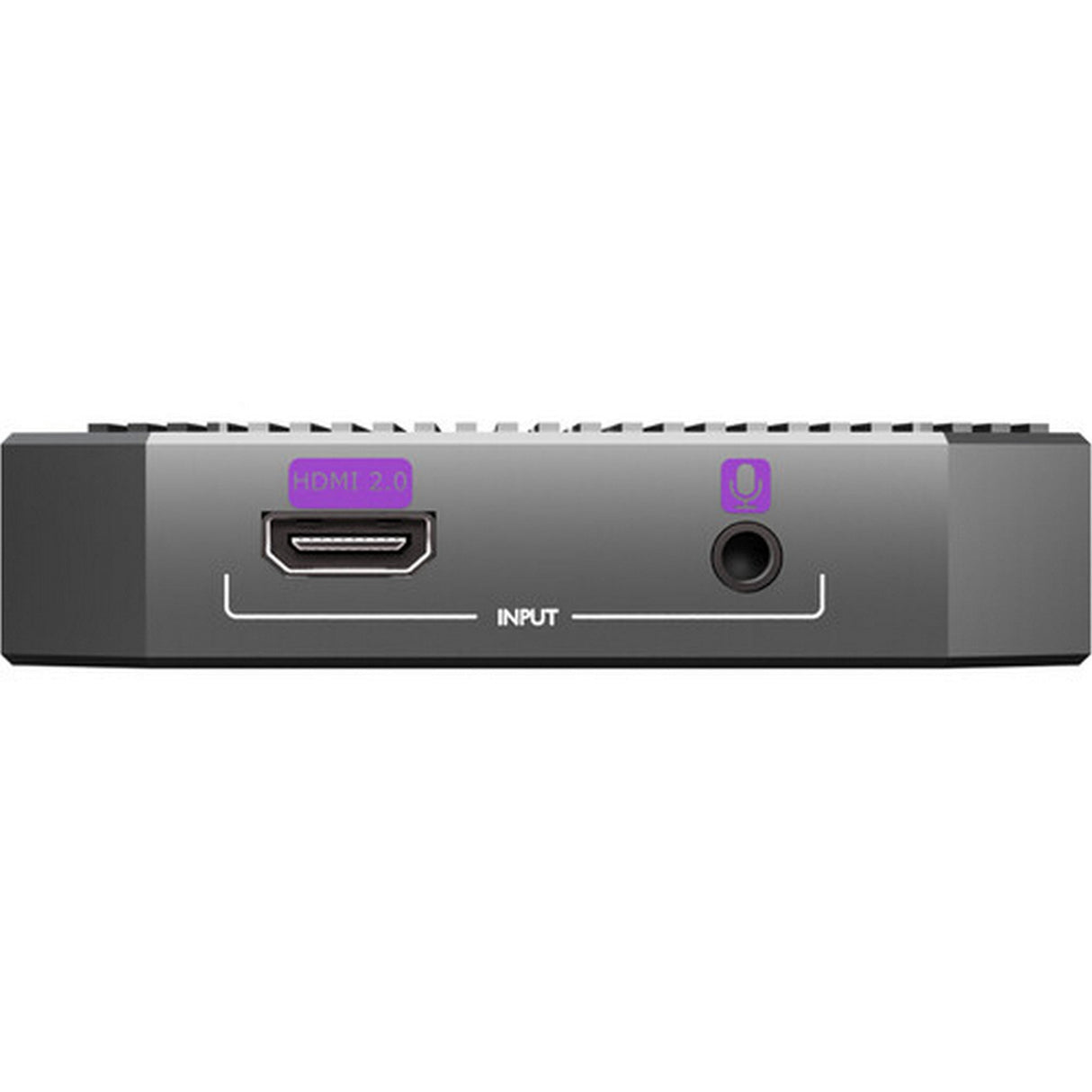

• HDMI Input: 1 x HDMI Type A

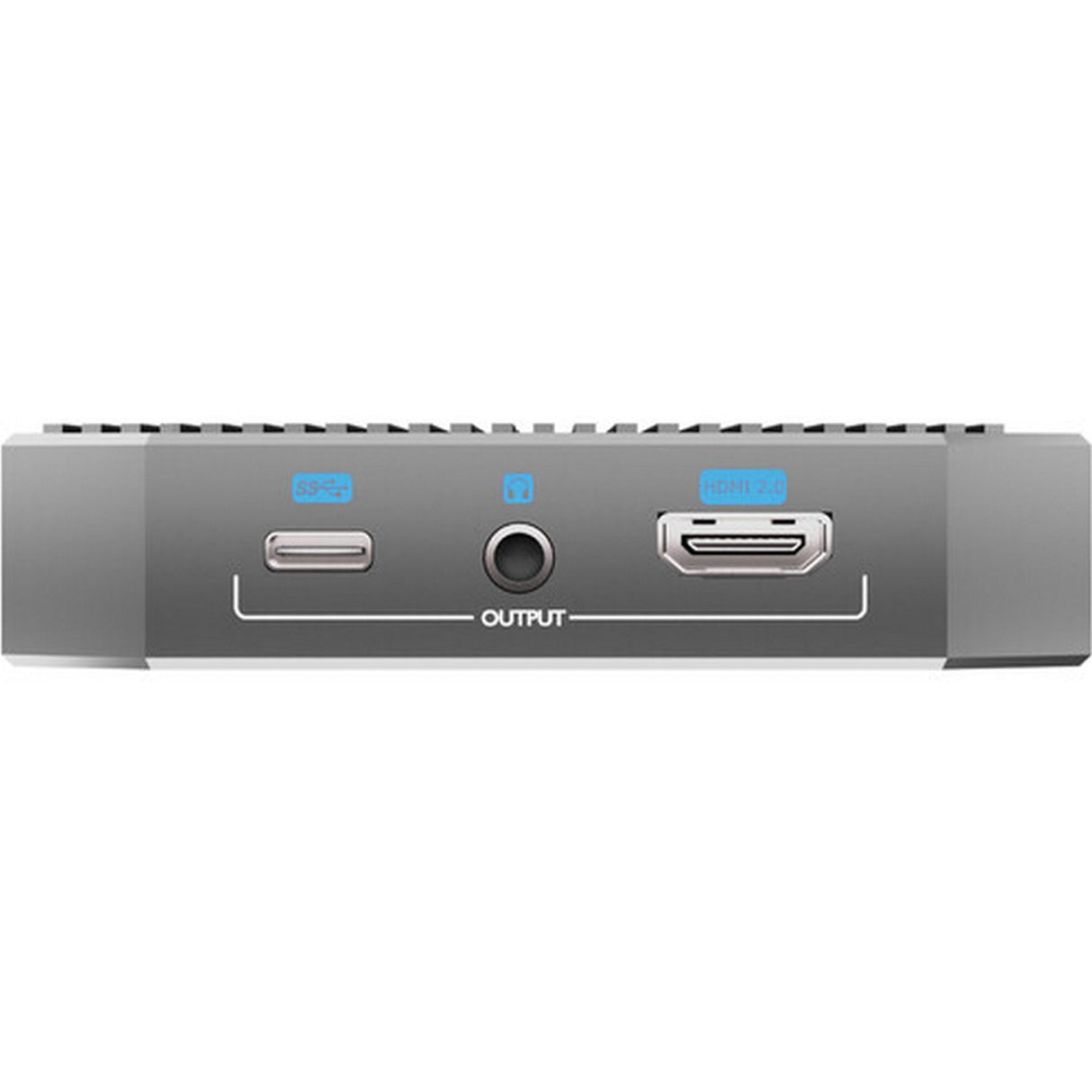

• HDMI Loop Output: 1 x HDMI Type A
• Capture/Power Interface: 1 x USB-C
• USB Standard: USB 3.2
• USB Bandwidth: 5 Gbps
• Analog Audio Input: 1 x 3.5mm audio jack
• Analog Audio Output: 1 x 3.5mm audio jack
• HDMI Standard: HDMI 2.0
• HDCP: HDCP 2.3 with backward compatibility
• UVC Standard: UVC 1.5
• UAC Standard: UAC 1.0
• Maximum HDMI Signal: RGB 4:4:4 8-bit 4K at 60 Hz
• HDMI SMPTE Input Resolutions: 2160p at 60/59.94/50/30/29.97/24/23.98 Hz; 1440p at 144/60 Hz; 1080p at 240/120/60 Hz; 720p at 60 Hz
• HDMI VESA Input Resolutions: 4096 x 2160 at 60/59.94/50/30/29.97/24/23.98 Hz; 3840 x 2160 at 60/59.94/50/30/29.97/24/23.98 Hz; 2560 x 1440 at 144/60 Hz; 2560 x 1080 at 60 Hz; 1920 x 1080 at 240/120/60 Hz; 1280 x 720 at 60 Hz
• RGB24 Capture: 1920 x 1080 at 60 Hz; 1280 x 720 at 60 Hz
• YUY2 Capture: 3840 x 2160 at 30/25 Hz; 2560 x 1440 at 60 Hz; 2560 x 1080 at 60 Hz; 1920 x 1080 at 60 Hz; 1280 x 720 at 60 Hz
• NV12 Capture: 3840 x 2160 at 30 Hz; 2560 x 1440 at 60 Hz; 2560 x 1080 at 60 Hz; 1920 x 1080 at 120/60 Hz; 1280 x 720 at 60 Hz
• I420 Capture: 3840 x 2160 at 30 Hz; 2560 x 1440 at 60 Hz; 2560 x 1080 at 60 Hz; 1920 x 1080 at 120/60 Hz; 1280 x 720 at 60 Hz
• P010 Capture: 1920 x 1080 at 60 Hz; 1280 x 720 at 60 Hz
• MJPEG Capture: 3840 x 2160 at 60 Hz; 2560 x 1440 at 144/60 Hz; 2560 x 1080 at 60 Hz; 1920 x 1080 at 240/60 Hz; 1280 x 720 at 60 Hz
• Video Capture Formats: YUY2, RGB24, NV12, I420, P010, and MJPEG
• Color Space: 8-bit RGB/YCbCr 4:2:2, 4:4:4, and 4:2:0; 10-bit RGB/YCbCr 4:2:2
• Audio Bit Depth: 24-bit default
• Audio Sample Rate: 48 kHz
• Audio Mixing: HDMI embedded audio and external line input
• HDR: Supported
• Supported Capture Software: OBS, PotPlayer, VLC, XSplit VCam, CameraFi, and Vmix
• Supported Meeting Software: Tencent Meeting, Ding Talk Meeting, Lark Meeting, and Microsoft Teams
• Supported Streaming Software: SINSAM
• Additional Software Compatibility: DirectShow, V4L2, and AVCaptureSession encoding or streaming applications
• Computer Interface Requirement: USB 3.0, USB 3.1, or USB 3.2
• Operating System Compatibility: Windows 10, Windows 8.1, Windows 7 SP1, macOS 10.15 or later, and Linux
• Power Input: 5V/1A through USB-C
• Maximum Power Consumption: 5W
• Operating Temperature: 32 to 158°F
• Dimensions: 5.2 x 3.2 x 0.9 in
• Weight: 0.6 lb

What's In the Box

• MSP 331U Gen2 capture card
• Type-C 2-in-1 cable
