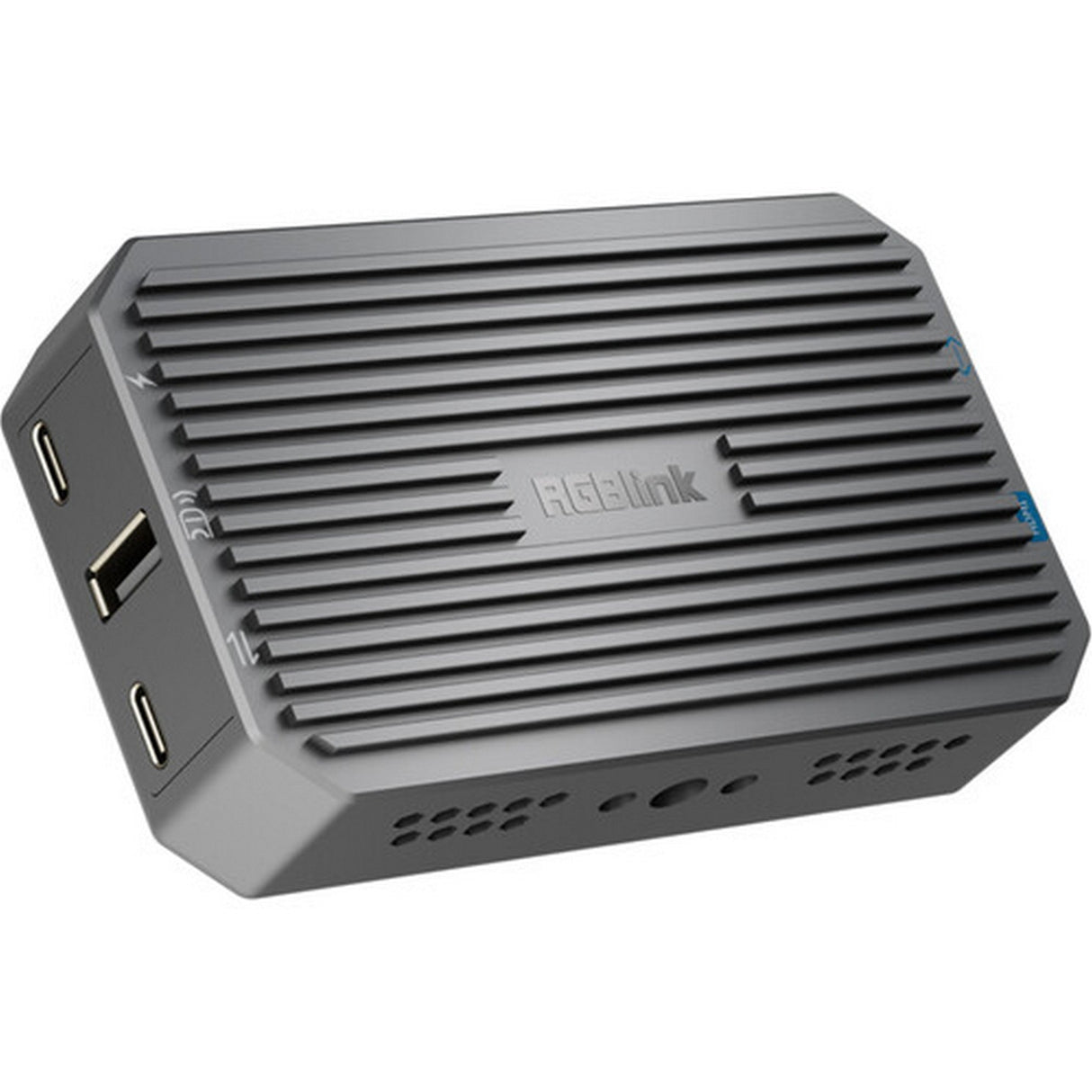

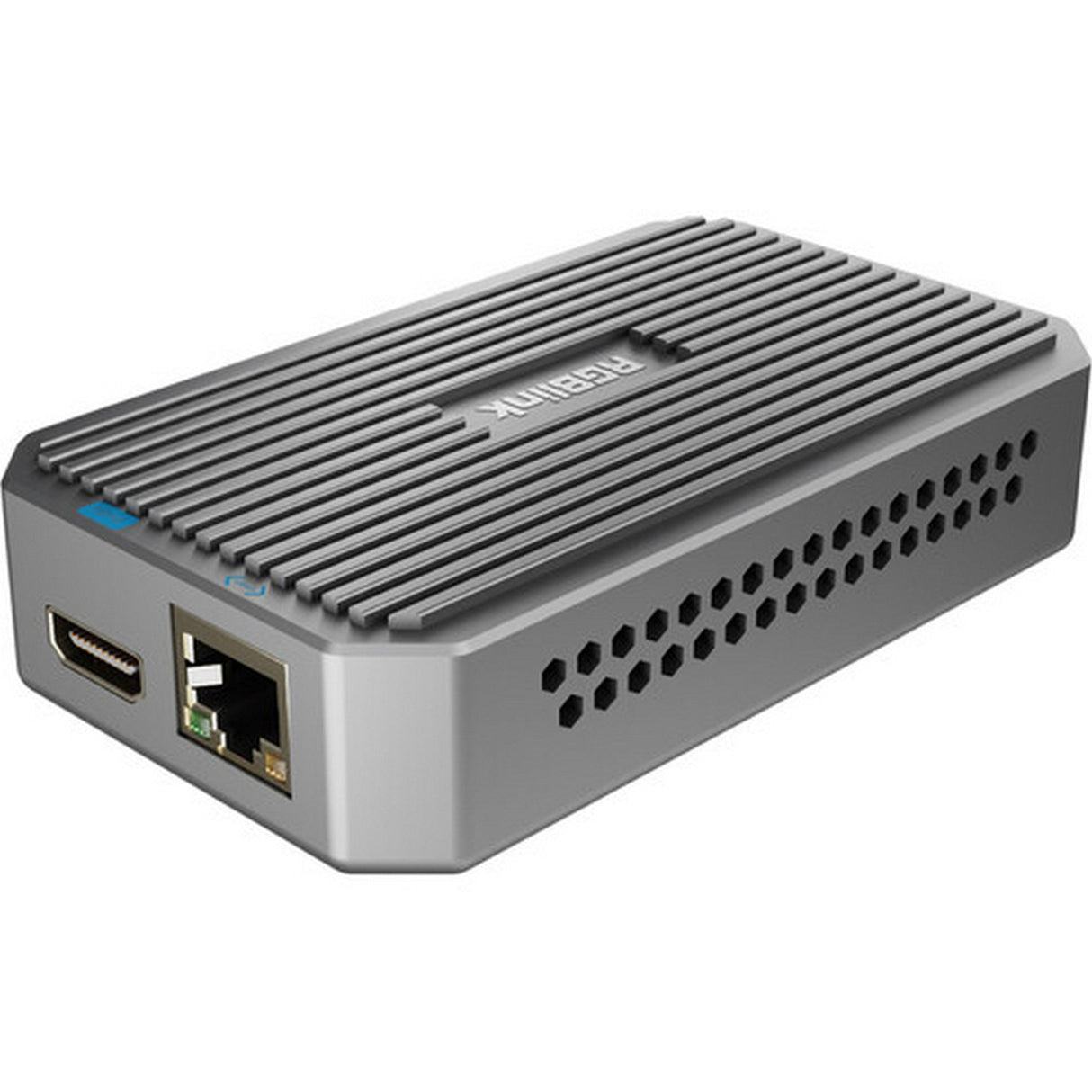

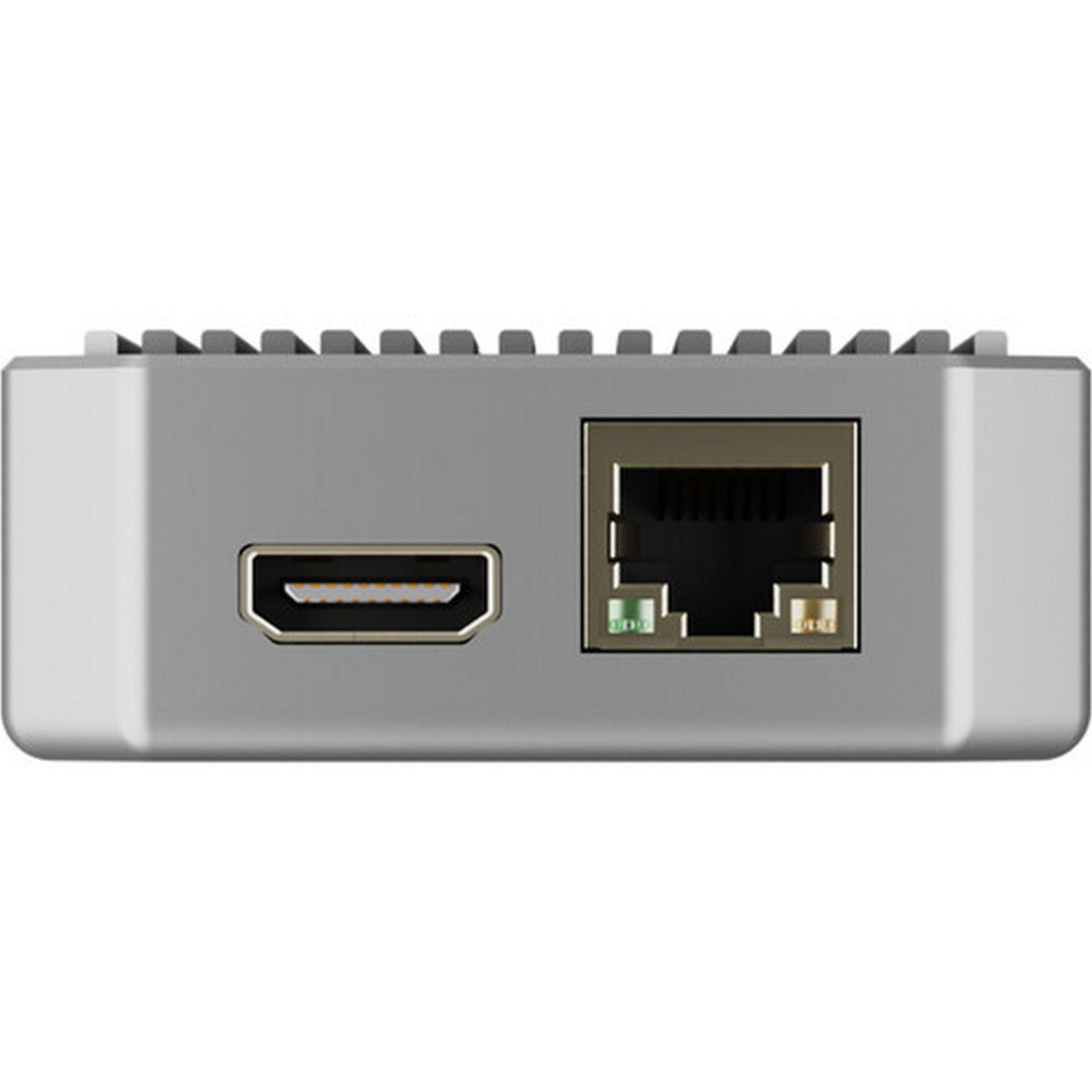

RGBlink TAO 1tiny 2 4K UVC to HDMI/NDI Converter

RGBlink TAO 1tiny 2 4K UVC to HDMI/NDI Converter

The RGBlink TAO 1tiny 2 UVC to HDMI/NDI converter connects compatible USB cameras to professional HDMI and IP video workflows. It accepts UVC video through USB-C at resolutions up to 3840 x 2160 at 30 Hz, provides HDMI 2.0 output up to 3840 x 2160 at 60 Hz, and supports NDI-based network transport.

Designed for webcams, PTZ cameras, presentation systems, streaming switchers, and live production setups, the compact converter turns USB camera feeds into display-ready HDMI signals without requiring a computer for basic conversion. Its Gigabit Ethernet connection also enables network streaming and decoding, making it useful for USB camera to HDMI conversion, NDI video distribution, and portable 4K presentation workflows.

The TAO 1tiny 2 supports UVC 1.1 and UVC 1.5 devices along with MJPEG, H.264, and H.265 video encoding capabilities. NDI|HX encoding and NDI|HX, HX2, and HX3 decoding broaden network compatibility, while web control, XPOSE configuration, optional USB wireless control, and USB storage recording provide flexible operation for professional and mobile production environments.

Key Features

• 4K USB Camera Input: Accepts UVC video through USB-C at resolutions up to 3840 x 2160 at 30 Hz.
• 4K60 HDMI Output: Connects USB cameras to HDMI 2.0 displays, switchers, projectors, and other compatible video equipment at up to 3840 x 2160 at 60 Hz.
• NDI Network Connectivity: Uses its Gigabit Ethernet interface for network video encoding and decoding workflows.
• Multiple Streaming Protocols: Supports RTMP, RTMPS, RTSP, and NDI transport.
• Broad NDI Support: Provides NDI|HX encoding plus NDI|HX, NDI|HX2, and NDI|HX3 decoding.
• USB Storage Recording: Supports direct recording to compatible USB storage for streamlined local capture.
• Flexible Control: Supports web-based control, XPOSE configuration, and USB-connected wireless control devices.
• Compact USB-C Power: Operates from compatible 5V/2A or 9V/2A USB-C power sources with a maximum 18W power requirement.

Technical Specifications

• Model: TAO 1tiny 2
• Manufacturer Part Number: 410-5513-12-0
• Product Type: UVC to HDMI and NDI video converter
• Video Input: 1 x USB-C
• Video Output: 1 x HDMI Type A
• HDMI Standard: HDMI 2.0
• Ethernet: 1 x RJ45 LAN
• Power Input: 1 x USB-C
• USB Standard: USB 3.0
• UVC Compatibility: UVC 1.1 and UVC 1.5
• USB-C Input SMPTE Resolutions: 720p at 25/30/50/60 Hz; 1080p at 30/50/60 Hz; 2160p at 30 Hz
• USB-C Input VESA Resolutions: 1280 x 720 at 30/50/60 Hz; 1280 x 768 at 60 Hz; 1920 x 1080 at 25/30/50/60 Hz; 3840 x 2160 at 30 Hz
• HDMI Output SMPTE Resolutions: 1080p at 30/50/60 Hz; 2160p at 30 Hz
• HDMI Output VESA Resolutions: 1280 x 720 at 30/50/60 Hz; 1280 x 768 at 60 Hz; 1920 x 1080 at 25/30/50/60 Hz; 3840 x 2160 at 60 Hz
• Video Encoding: MJPEG, H.264, and H.265
• Streaming Protocols: RTMP, RTMPS, RTSP, and NDI
• NDI Encoding: NDI|HX
• NDI Decoding: NDI|HX, NDI|HX2, and NDI|HX3
• Control: Web interface and XPOSE
• Wireless Control: Supports compatible USB wireless control devices
• Recording: USB storage recording
• Tested RGBlink Compatibility: mini, mini-pro, mini-edge, mini-mx, and vue PTZ 2K
• Additional Tested Compatibility: Blackmagic Design ATEM Mini; DJI Osmo Action 5, Osmo Action 4, and Pocket 3; Insta360 X3 and Link UHD 4K AI; OBSBOT Tiny 2K, Tiny 4K, Meet 2K, and Meet 4K
• Power Requirement: 9V/2A or 5V/2A depending on power adapter
• Minimum Adapter Rating: 5V/2A, 10W
• Maximum Power: 18W
• Operating Temperature: 32 to 131°F
• Operating Humidity: 20% to 55%
• Dimensions: 4.3 x 2.5 x 1 in
• Weight: 0.4 lb
