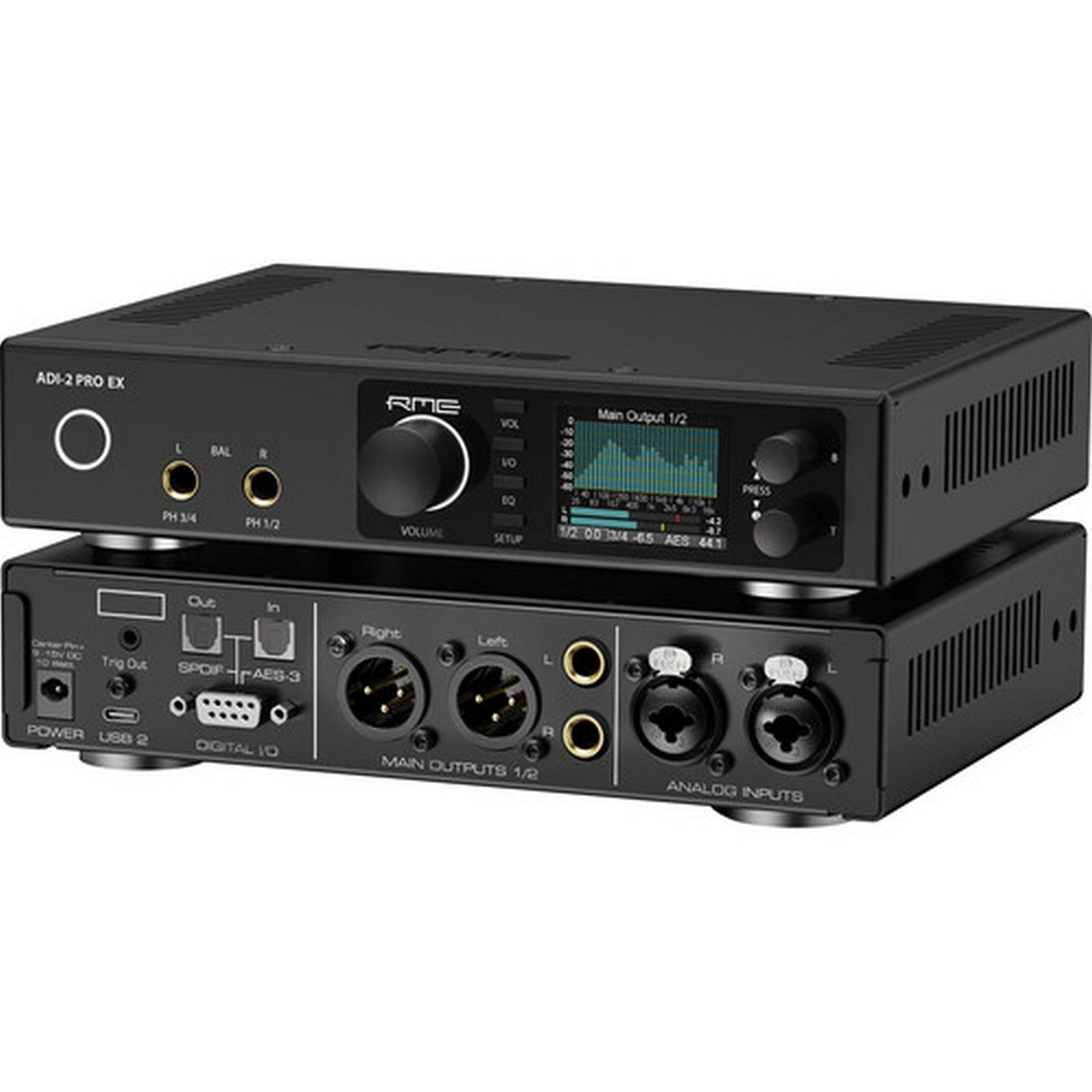

RME ADI-2 Pro EX 2-Channel 768 kHz AD/DA Converter

RME ADI-2 Pro EX 768 kHz AD/DA Converter

The RME ADI-2 Pro EX 768 kHz AD/DA Converter combines reference-grade analog-to-digital conversion, digital-to-analog conversion, USB audio interfacing, headphone amplification, and digital format conversion in one compact desktop unit. It supports PCM sample rates up to 768 kHz and DSD recording and playback for precision studio, mastering, and measurement workflows.

Designed for engineers, mastering rooms, hi-fi listeners, and technical audio users, the ADI-2 Pro EX is ideal for buying a professional AD/DA converter, upgrading a studio monitoring chain, or adding a high-end USB DAC and headphone amp. Its balanced analog I/O, digital connectivity, and onboard processing support demanding production and listening environments.

RME builds the ADI-2 Pro EX around SteadyClock FS clocking, AK5574 ADC conversion, AK4493 DAC conversion, and Class Compliant USB-C operation. Its DSP functions, dual Extreme Power headphone outputs, multi-format digital I/O, and hardware protection features make it a flexible reference tool for professional audio systems.

Key Features

• Reference AD/DA Conversion: Supports PCM sample rates up to 768 kHz for high-resolution studio recording, playback, and measurement use.
• AK5574 ADC and AK4493 DAC: Delivers premium analog-to-digital and digital-to-analog conversion for transparent monitoring and capture.
• Flexible Analog I/O: Includes two servo-balanced analog inputs on combo XLR/TRS jacks plus balanced and unbalanced analog outputs.
• Multi-Format Digital Conversion: Provides ADAT, SPDIF, and AES I/O for integration with professional digital audio systems.
• USB-C Audio Interface: Offers Class Compliant USB operation with stereo and multichannel modes for computer-based production.
• Dual Extreme Power Headphone Outputs: Drives demanding headphones with low output impedance, high output power, and balanced headphone operation.
• DSP-Based Monitoring Tools: Includes 5-band parametric EQ, bass and treble controls, crossfeed, loudness processing, M/S processing, stereo width, phase reversal, and spectral analysis.
• Enhanced EX Hardware Design: Adds a larger ventilated chassis, lockable USB-C connection, TS trigger output, channel-independent DC protection, and active PSU protection.

Technical Specifications

• Product Type: PCM/DSD AD/DA converter, USB audio interface, headphone amplifier, and digital format converter
• Maximum PCM Sample Rate: 768 kHz
• DSD Support: DSD recording and Direct DSD playback up to DSD256 / 11.2 MHz
• ADC: AK5574
• DAC: AK4493
• Analog Inputs: 2 x combo XLR/TRS servo-balanced inputs
• XLR Input Impedance: 18 kOhm balanced; 9 kOhm unbalanced
• Input Sensitivity: Switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu at 0 dBFS
• Digital Trim Gain Range: 0 dB to +6 dB
• Analog Input SNR: 120 dB RMS unweighted, 122 dBA at +13/+19/+24 dBu
• Analog Input THD: -120 dB, 0.0001% at -1 dBFS

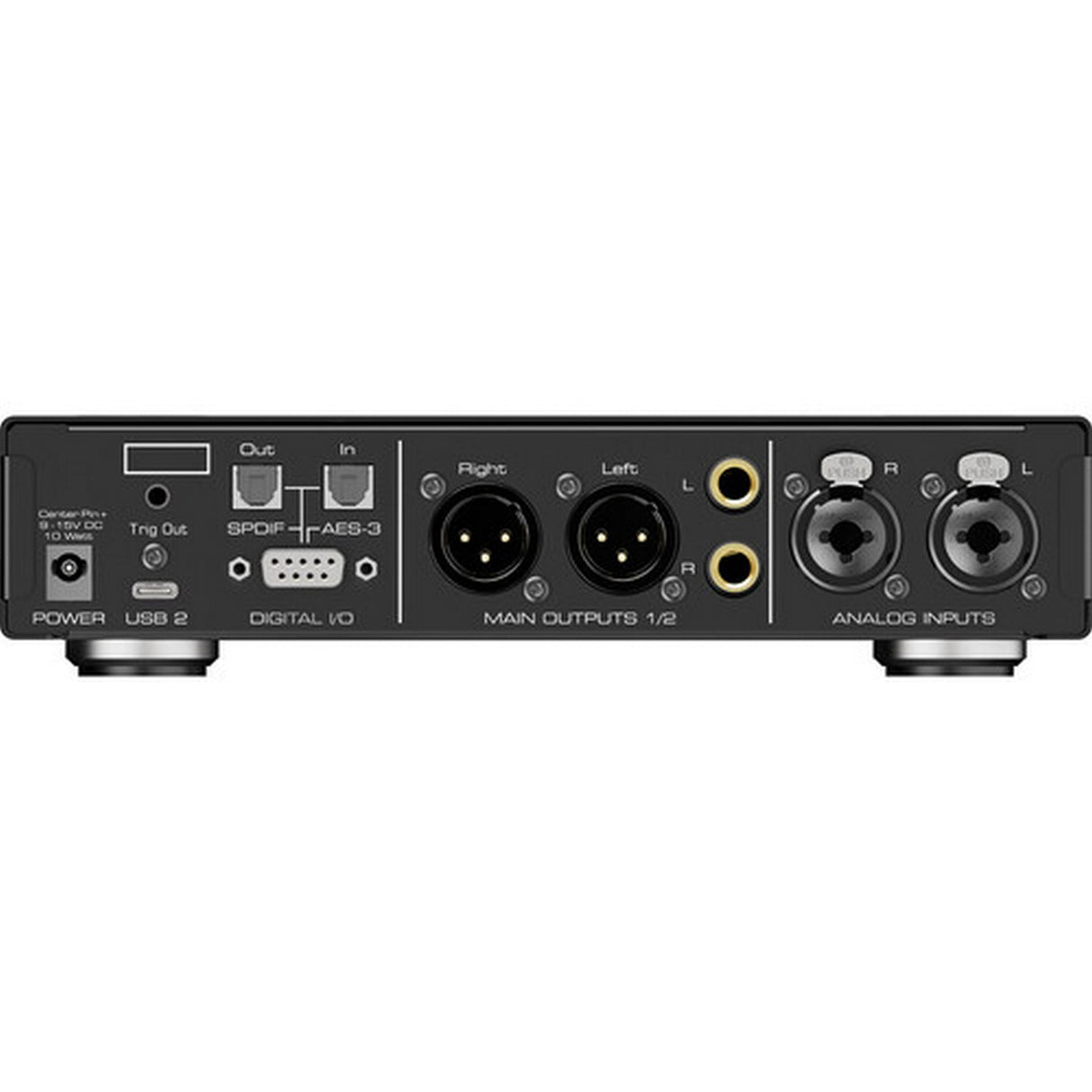

• Analog Outputs: XLR balanced outputs, rear 6.3 mm TRS outputs, and front headphone outputs
• XLR Output Impedance: 200 Ohm
• XLR Output Levels: Switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu at 0 dBFS
• XLR Output SNR: 120 dB RMS unweighted, 123 dBA at +13/+19/+24 dBu
• Rear TRS Output: 6.3 mm TRS jack, impedance balanced
• Rear TRS Maximum Output Level: +19 dBu

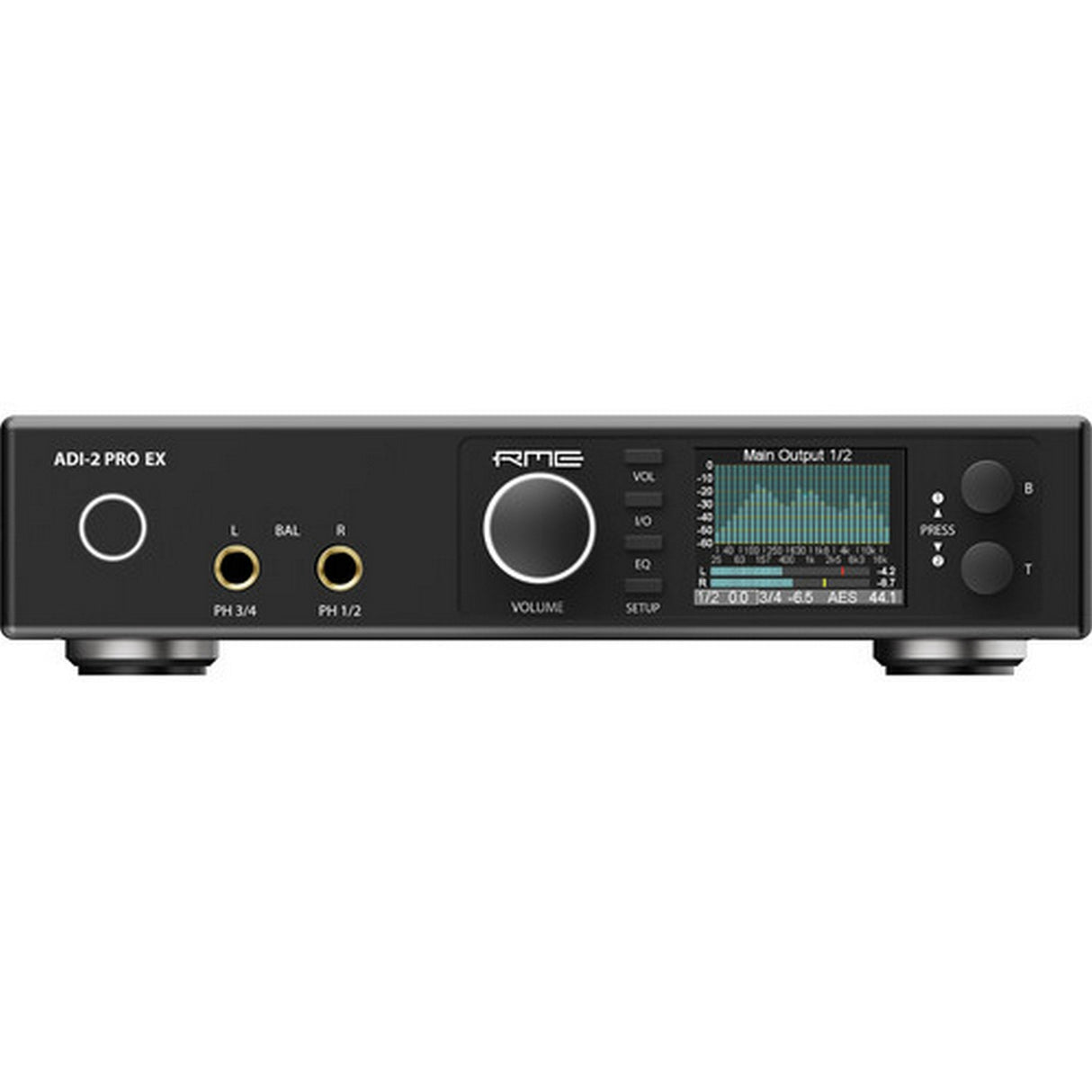

• Headphone Outputs: 2 x 6.3 mm TRS stereo outputs
• Headphone Output Impedance: 0.1 Ohm
• Headphone Output SNR: 120 dB RMS unweighted, 123 dBA at +22 dBu
• Headphone Output Power: Up to 1.9 W per channel at 32 Ohm in unbalanced mode
• Balanced Headphone Output Impedance: 0.2 Ohm
• Balanced Headphone Output Level: Up to +28 dBu with Hi-Power on
• Balanced Headphone Output Power: Up to 4.2 W per channel at 32 Ohm
• Digital Inputs: AES/EBU XLR, SPDIF coaxial RCA, SPDIF optical, and ADAT-compatible optical
• Digital Outputs: AES/EBU XLR, SPDIF coaxial RCA, SPDIF optical, and ADAT-compatible optical
• Digital Input Lock Range: 28 kHz to 200 kHz
• Clock Sources: Internal, AES In, SPDIF In, ADAT In
• Jitter Suppression: Greater than 50 dB
• Internally Supported Sample Rates: 44.1 kHz to 768 kHz
• USB Connection: Lockable USB-C, USB 2.0, no bus power
• USB Modes: Stereo 2-in/2-out and multichannel 6-in/8-out
• Class Compliant Mode: UAC 2 compatible
• Trigger Output: 12 V switching signal via 3.5 mm mono jack
• Included Power Supply: External switching PSU, 100-240 V AC, 2 A, 24 W
• Standby Power Consumption: 170 mW at DC 12 V; 280 mW at AC 230 V
• Power Consumption: 12 W idle; 24 W maximum
• Operating Temperature: 41°F to 122°F
• Relative Humidity: Less than 75%, non-condensing
• Dimensions: 6.3" x 8.5" x 1.73"
• Weight: 2.5 lbs

What's Included

• RME ADI-2 Pro EX
• Lockable 1.8 m USB-C cable
• Lockable NT-RME-13 universal power supply
• Breakout cable for coaxial SPDIF and AES I/O
