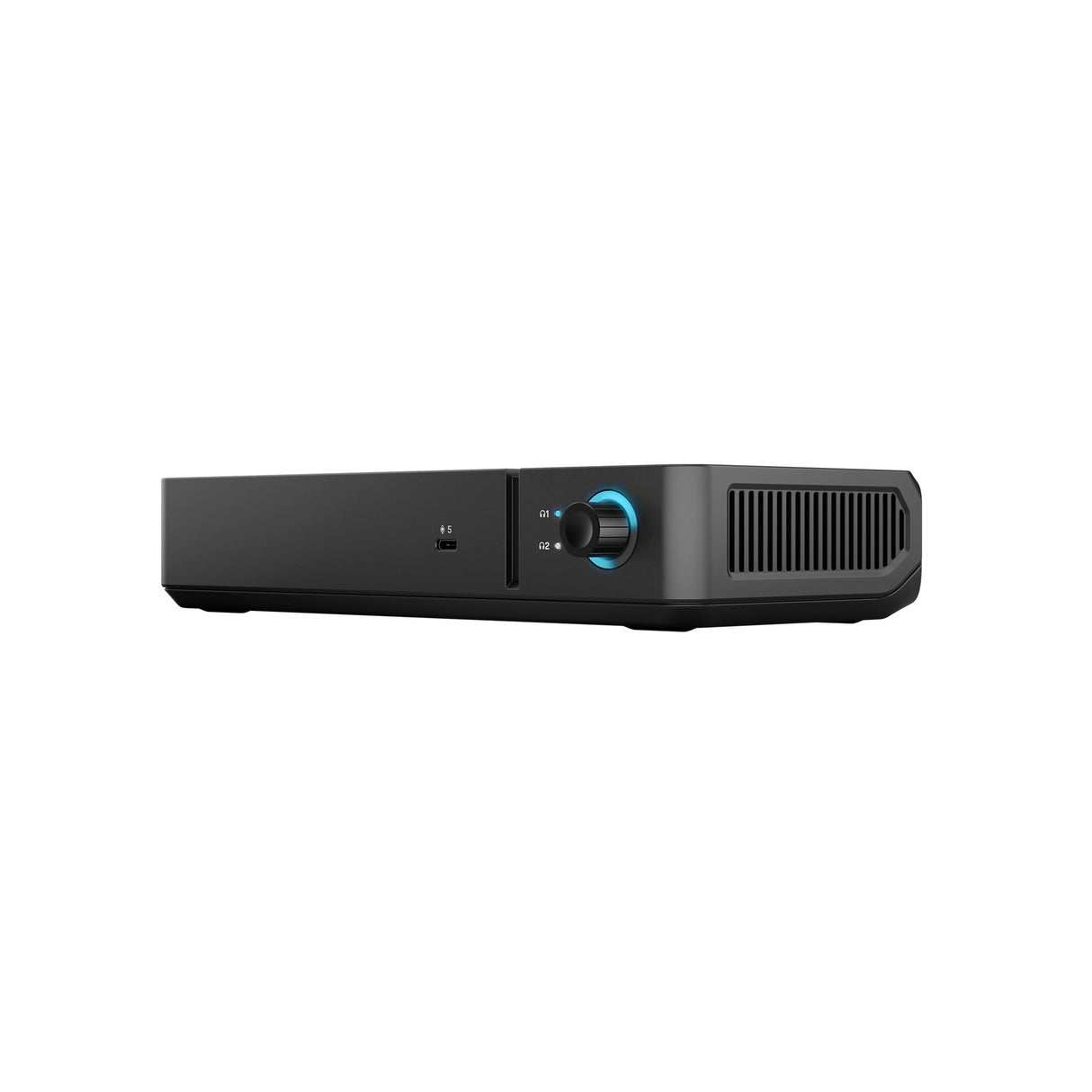

RODE RODECaster Video Core Video and Audio Production Console

RODE RODECaster Video Core Video and Audio Production Console

The RODECaster Video Core is an all-in-one console designed for professional video and audio production in a compact streamlined format. Built for software-based control or modular production setups with RODECaster Sync, it combines advanced video switching, recording, streaming, and audio mixing tools into a single production solution for podcasts, live streams, studio content, and broadcast-style workflows.

With support for multiple HDMI, USB-C, and network video sources, the RODECaster Video Core makes it easy to switch between cameras, build scenes, add graphics, and manage transitions in real time. Its integrated professional audio mixer features studio-grade combo inputs with Revolution Preamps and advanced APHEX processing, delivering polished broadcast-quality sound alongside flexible routing, monitoring, and recording options.

Designed for creators who need maximum flexibility, the RODECaster Video Core supports direct Ethernet streaming, isolated ISO recording, NDI video, dual USB-C audio interfaces, and seamless integration with the RODECaster Pro II and RODECaster Duo. Combined with app-based scene building, media playback, and remote control, it provides a powerful modern production hub for serious content creation.

Key Features

• Integrated production console: Combines video switching, streaming, recording, and professional audio mixing in one compact unit.
• Multi-source switching: Switch between up to four video sources and five fully customizable scenes.
• Advanced processor: High-performance octa-core CPU handles demanding real-time video and audio production tasks.

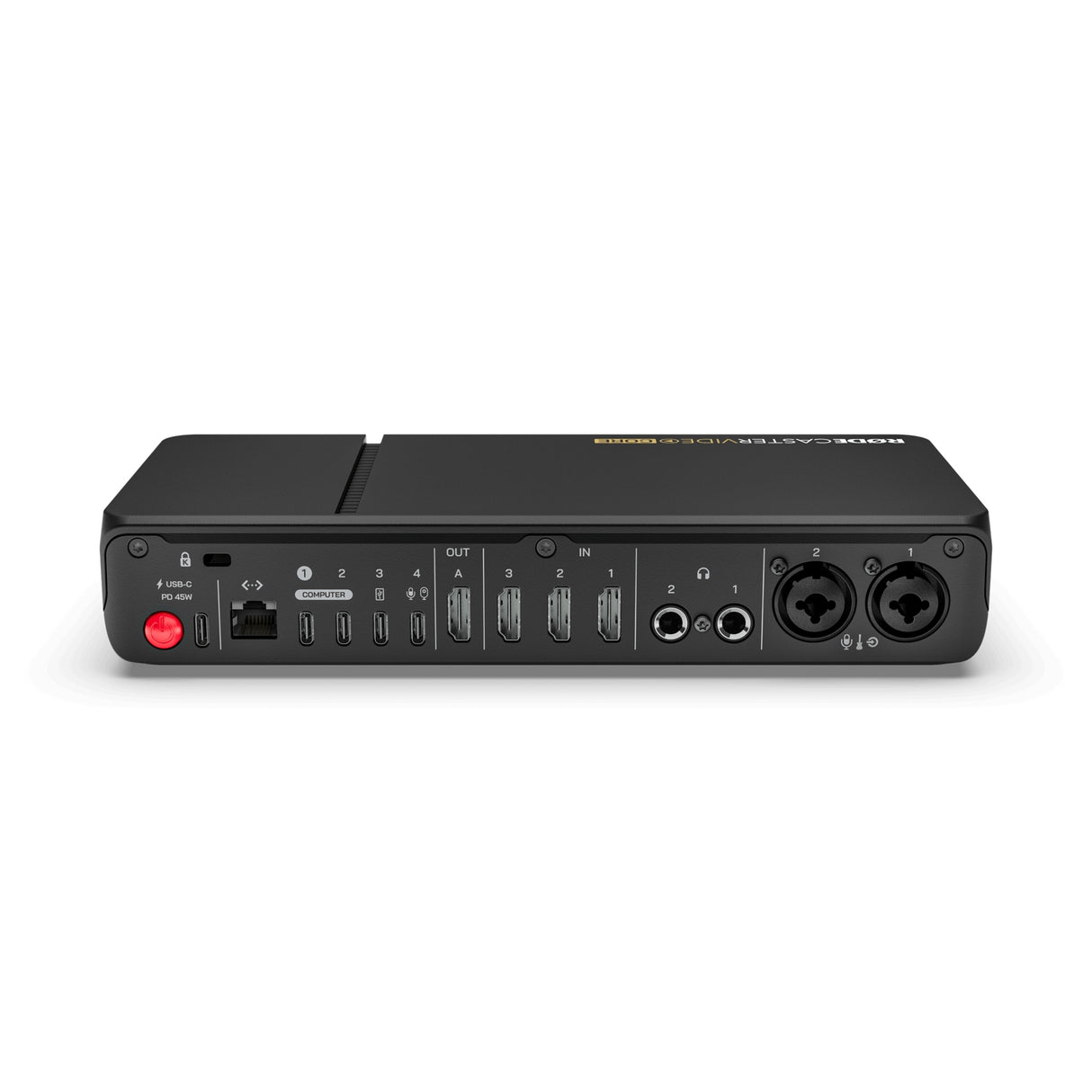

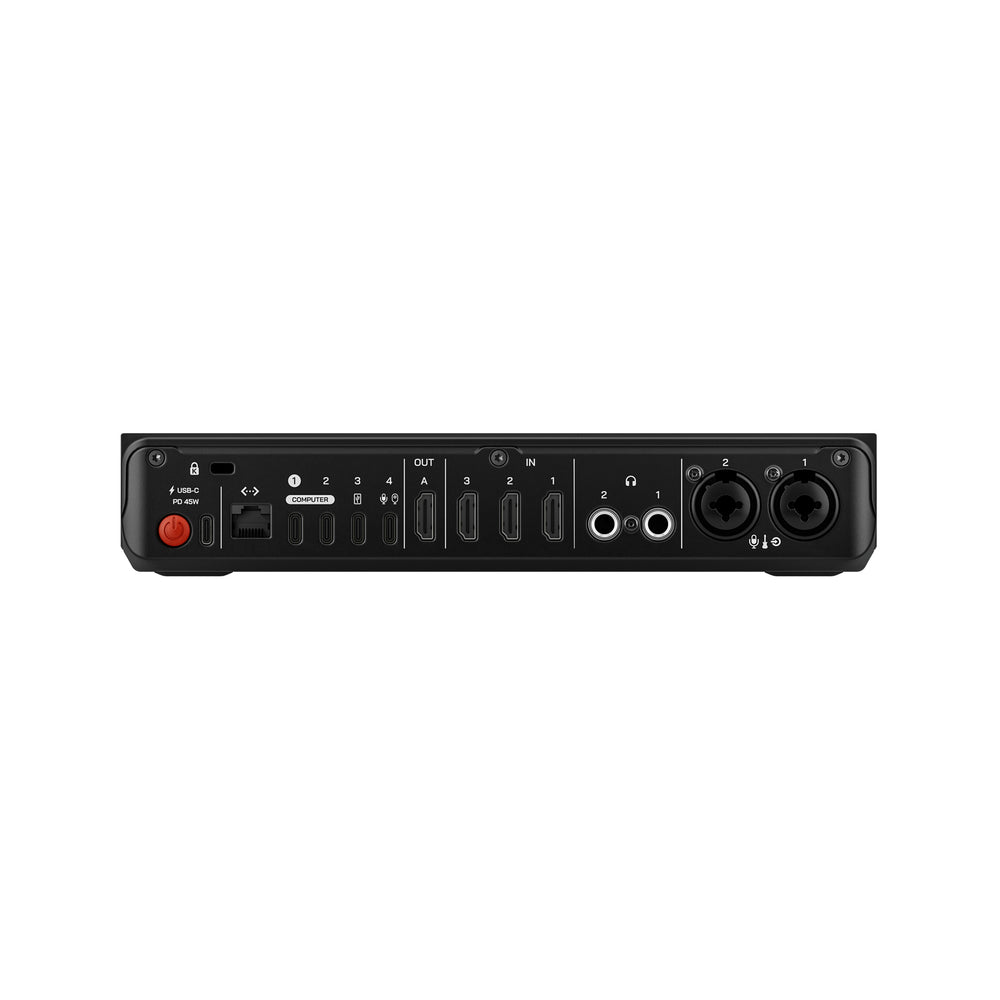

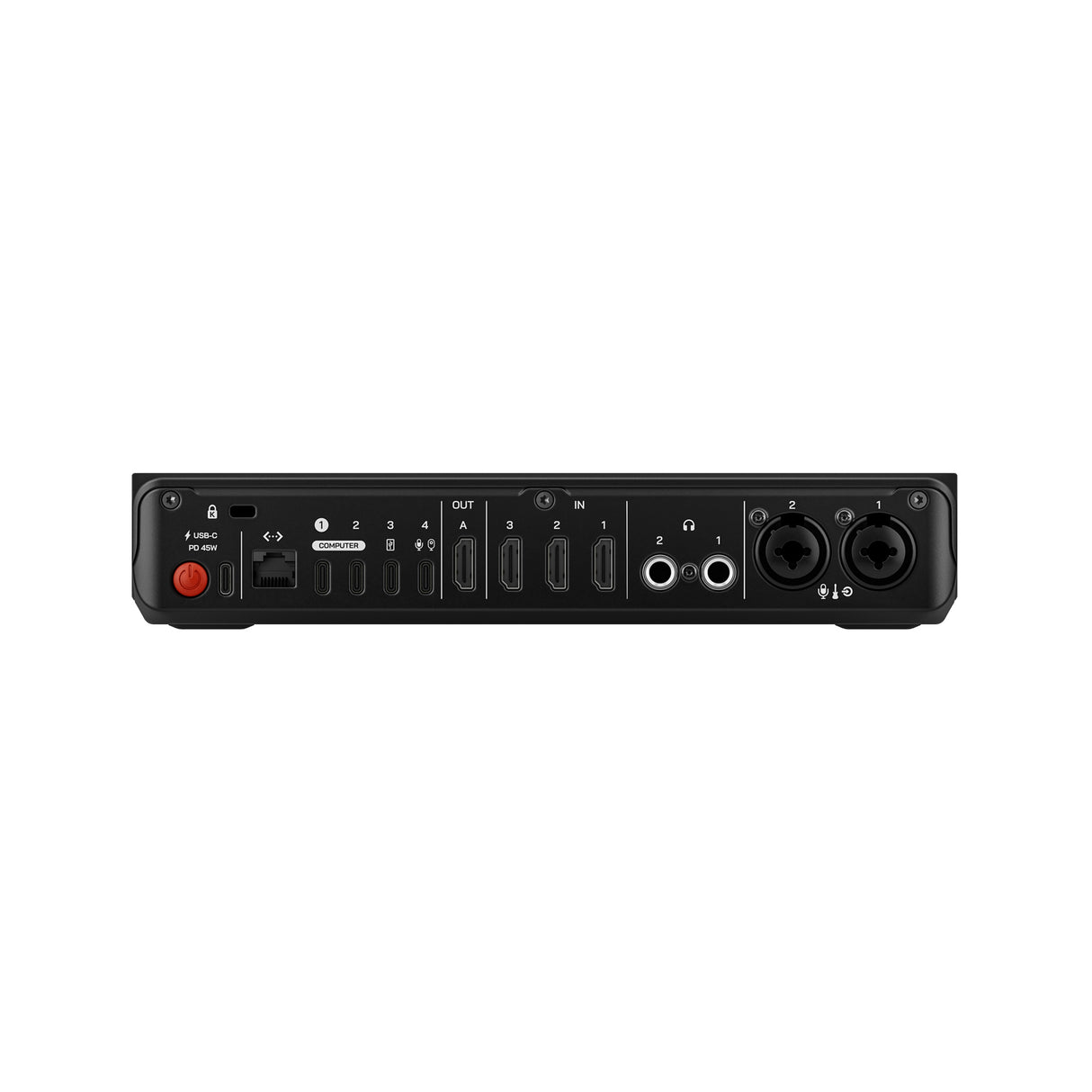

• Flexible video connectivity: Includes three HDMI inputs, USB-C video input support, and one configurable HDMI output.
• Professional audio capture: Two Neutrik combo inputs with ultra-low-noise Revolution Preamps support microphones, instruments, and line-level sources.
• APHEX audio processing: Includes EQ, compressor, de-esser, noise gate, high-pass filter, Aural Exciter, Big Bottom, and Compellor effects.
• RODECaster Sync compatibility: Expands production workflows with RODECaster Pro II and RODECaster Duo integration.
• NDI support: Supports up to four NDI inputs and one output over Ethernet, including PTZ-compatible workflows.
• Direct recording and streaming: Record to external USB storage, output via UVC, or stream directly to major platforms over Ethernet.
• App-based production control: Build scenes, manage switching, route audio, assign graphics, and configure advanced functions in the RODECaster App.
• Auto-switching workflow: Automatically switch sources and scenes based on audio input activity.
• Post-production support: EDL export for DaVinci Resolve accelerates editing workflows after recording.

Technical Specifications

Video
Video Input Feeds: 4 Simultaneous
HDMI Inputs: 3 Type-A (HDMI1.4b)
USB (UVC) Inputs: 1 Multi-function USB-C for UVC Video
HDMI Outputs: 1 Configurable - Preview, Program, Multiview
Video Input Frame Rates: 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only)
1920x1080i: 25, 29.97, 30
Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
Video Streaming Standards: 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit: 4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
Format and Frame Rate Converters: On all HDMI and USB inputs

Switching
Total Number of Layers: 9 simultaneous in Preview and Program
Downstream Keyers: 2 (Overlays and Logo)
Chroma Keyers (Green and Blue): 2 (Green, Blue, Luma)
Media Players: 2 simultaneous
Transitions: SMPTE wipes, dip and fade
True Preview: Display complete scenes and overlays simultaneously in preview and program
Generated Borders: All scenes
Multiview: Program and preview
Live inputs, scene and media thumbnails
Audio mixer and channel status
Recording, network and storage status
Run time, date and time information
Media Player: 24GB on-board storage

Audio
Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution Preamps™
Digital Audio Inputs: USB 1: 2-in/2-out or multichannel (20-in) output
USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus
USB 2: 2-in/2-out with MFi support
USB 4: compatible with RODE USB microphones and RODECaster Pro II and Duo
Analog Audio Outputs: 2 headphone outputs (1/4-inch) 2 balanced line outputs (1/4-inch, L/R)
Audio Processing: APHEX® VoxLab™ Processing: per channel
Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™
Preamps: Frequency range: 20Hz – 20kHz Input gain: up to 76dB Input
Equivalent Input Noise: -131.5dBV (A-weighted)
Streaming Sample Rate / Bit Depth: 48kHz / 32-bit
Recording Sample Rate / Bit Depth: 48kHz / 24-bit
11 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network.

Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs.

Streaming, Recording and Software
Direct Streaming: Real Time Messaging Protocol (RTMP/RTMP) over Ethernet
Supported Platforms: Youtube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom server
Network: Ethernet (10/100/1000 Base-T) for streaming, configuration, remote control with computer and over-the air updates
RODE Central Companion Software: Scene builder: advanced construction of scenes and remote control of device
Auto-switching: configuration of automatic switching based on audio input
Audio mixer: advanced configuration and control of audio sources, processing and routing
Stream profiles: configuration for streaming settings and profiles
Device configuration: advanced settings and customisations
Storage Media: External USB mass storage device (exFAT format) for recordings
Isolated (ISO) Video Recording: 4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
Audio Recording: 9 independent stereo WAV audio files
Compatible Operating Systems: MacOS 11 or later Windows 10 Version 1803 or later, Windows 11

NDI
NDI Protocols: Single TCP, Multicast
NDI Formats: Hx2, Hx3
NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz
NDI Interfaces: Wired Ethernet

Power and Mechanical
Power Supply Requirements: USB-C PD 45W, 20V 2.25A
Weight: 1.55 lbs
Length: 9.41"
Width: 4.92"
Height: 1.79"

What's in the Box

(1) RODECaster Video Core

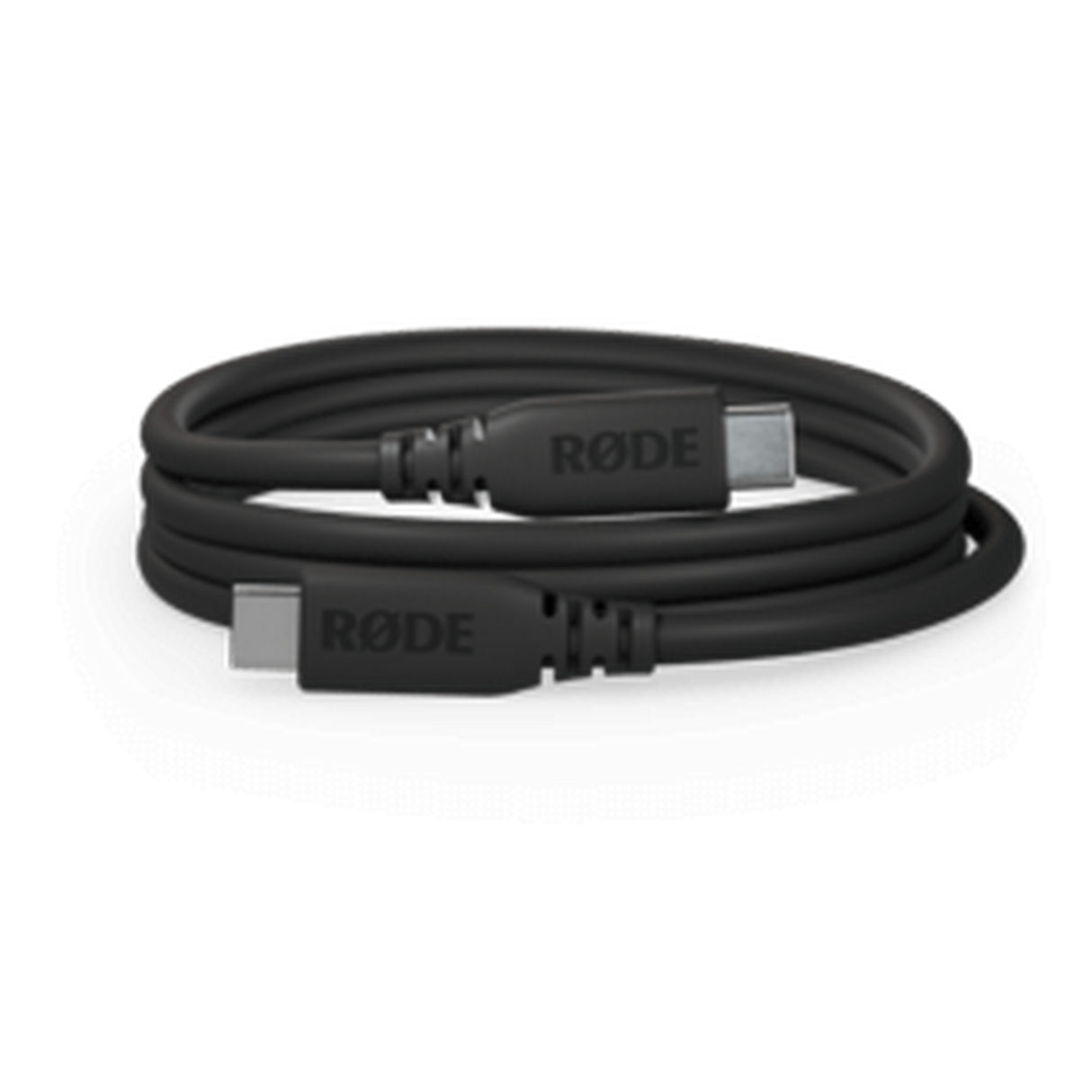

(1) SuperSpeed USB-C Cable

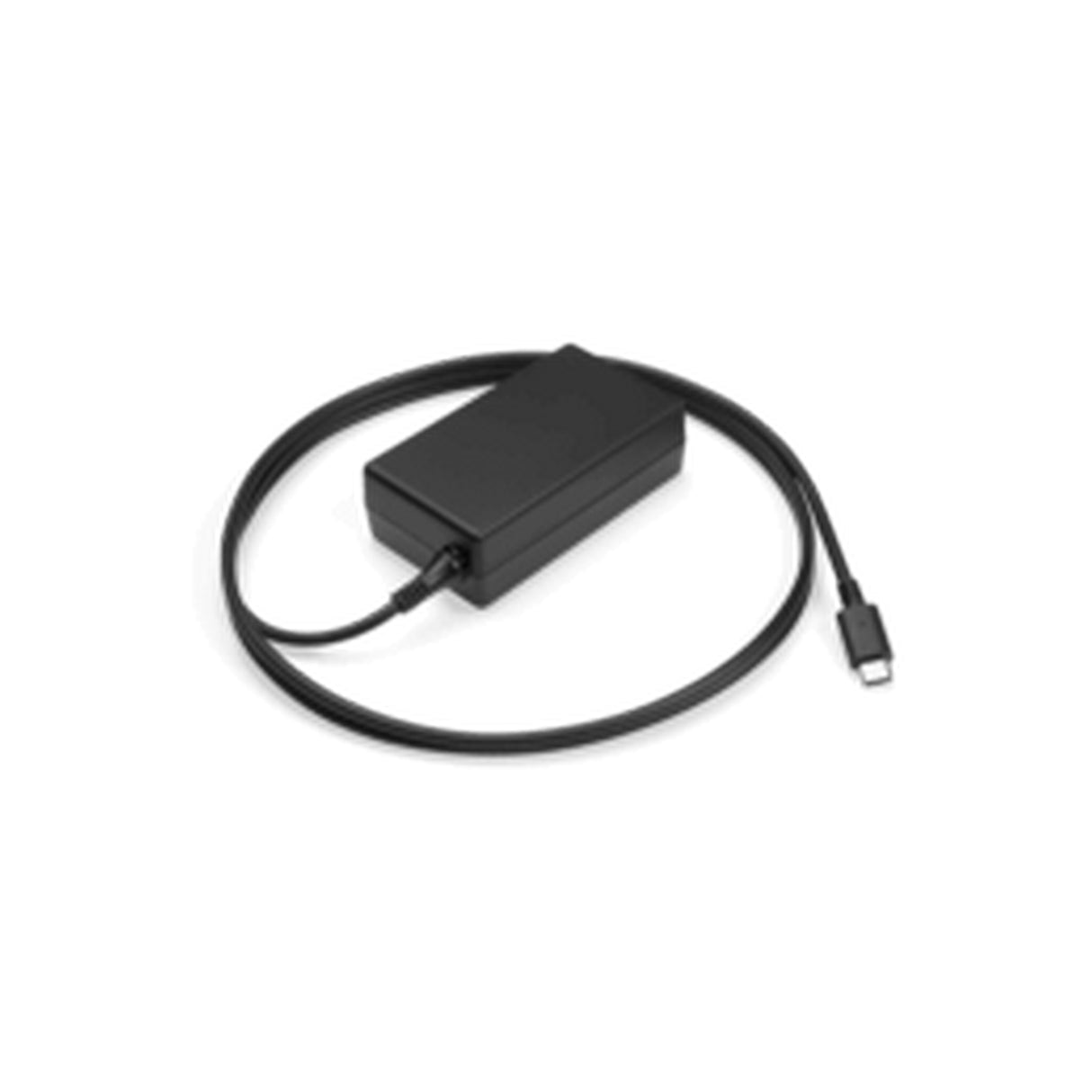

(1) Power Supply
