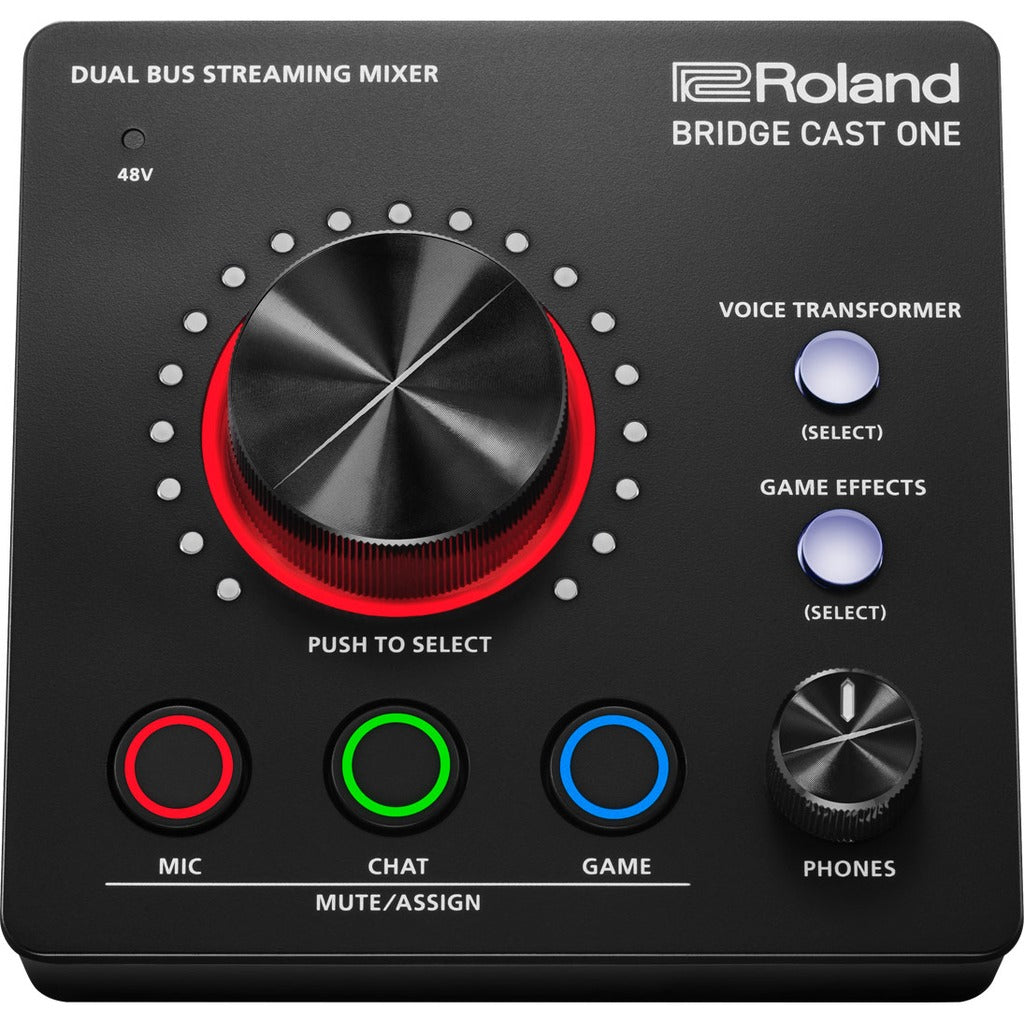

Roland BRC-ONE BRIDGE CAST ONE Compact Gaming & Streaming Audio Mixer

Streamers who want broadcast-grade audio without a desk full of gear will find the Roland BRIDGE CAST ONE does the heavy lifting in a palm-sized box. This compact dual-bus mixer runs separate STREAM and PERSONAL mixes, so your audience hears a polished balance while you monitor game audio, chat, and your own voice exactly the way you want.

Under the hood, 32-bit floating-point processing and sample rates up to 96 kHz (Windows) feed a high-gain +75 dB XLR mic preamp with 48V phantom power, handling everything from budget dynamics to studio condensers. Hardware DSP applies voice changer, noise suppression, compression, EQ, de-essing, and reverb to your mic with zero load on your gaming PC, while Game EQ presets and 5.1/7.1 USB virtual surround sharpen footsteps and positional cues.

Setup is a single USB-C cable to a Windows PC, Mac, PlayStation 5, or Nintendo Switch, with bus power keeping the desk clutter-free. The BRIDGE CAST companion app unlocks deep customization, and BGM CAST integration streams royalty-free music and sound effects straight into your broadcast.

Key Features

• Dual-bus design with independent STREAM MIX and PERSONAL MIX
• 32-bit floating-point internal processing; 44.1/48/96 kHz on Windows, 48 kHz on macOS
• High-gain +75 dB XLR mic preamp with 48V phantom power for dynamic or condenser mics
• Hardware DSP: voice changer, noise suppressor, compressor, EQ, de-esser, reverb, plus Game EQ presets and 5.1/7.1 virtual surround
• USB-C bus power; works with Windows, macOS, PlayStation 5, and Nintendo Switch; BRIDGE CAST app and BGM CAST music library

Technical Specifications

• Internal Processing: 32-bit floating point; AD/DA 24-bit
• Sample Rates: 44.1/48/96 kHz (Windows); 48 kHz (macOS)
• Mic Input: XLR with 48V phantom power, up to +75 dB gain (-85 to -10 dBu input level)
• Headset: stereo mini jack (CTIA, plug-in power)
• Aux In / Line Out: stereo mini jacks
• USB: Type-C, bus-powered (5V, 900 mA minimum)
• Virtual Surround: 5.1/7.1 USB surround sound
• Dimensions: 111 x 109 x 56 mm (4.4 x 4.3 x 2.2 in)
• Weight: 275 g (9.7 oz)

What's Included

• USB Type-C cable (2 m)
• Leaflet
