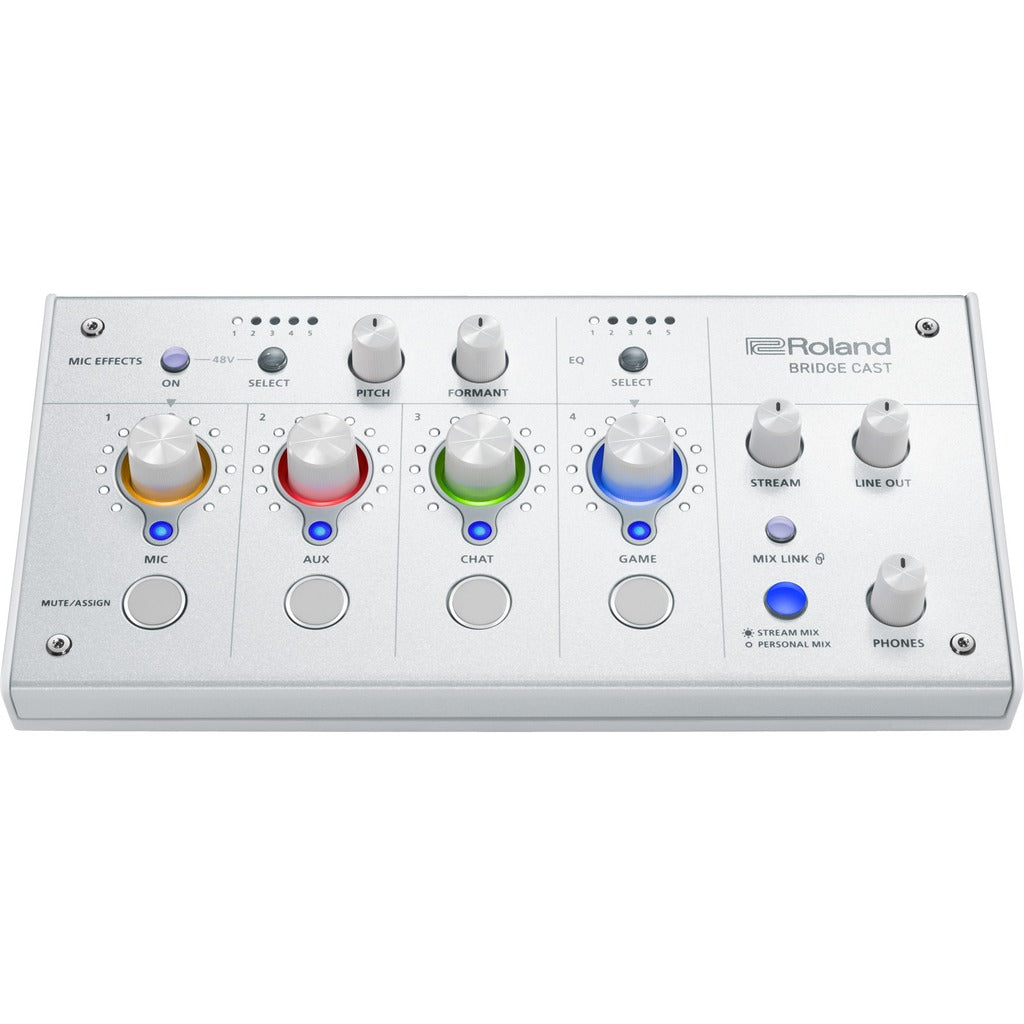

Roland BRC-WH BRIDGE CAST Dual-Bus Gaming Audio Mixer, White

Ice White style meets esports substance in this edition of Roland's BRIDGE CAST, the all-in-one dual-bus livestream audio command center for online gamers. Its two independent buses, STREAM MIX and PERSONAL MIX, let you send a polished balance to your audience while hearing your own custom blend of game, chat, and voice.

White-on-white aesthetics meet serious engineering: 32-bit floating-point processing with 24-bit AD/DA conversion, sample rates up to 96 kHz on Windows, and an XLR mic input with 48V phantom power. Hardware DSP handles the voice changer, noise suppressor, compressor, EQ, de-esser, reverb, and low-cut without taxing your gaming rig, while 5.1/7.1 USB virtual surround and 10-band Game EQ presets give competitive players an audible edge.

Grab-and-go level knobs with customizable LED colors, assignable mute/function buttons, and a detachable faceplate (with downloadable skin templates) make the BRIDGE CAST as personal as your stream overlay. USB-C bus power connects it to Windows, macOS, iOS, PlayStation 5, or Nintendo Switch, and BGM CAST supplies royalty-free music and sound effects.

Key Features

• Dual-bus architecture: independent STREAM MIX for the audience and PERSONAL MIX for you
• 32-bit floating-point processing, 24-bit AD/DA, up to 96 kHz (Windows)
• XLR mic input with 48V phantom power plus hardware DSP voice changer, noise suppressor, compressor, EQ, de-esser, and reverb
• 5.1/7.1 USB virtual surround and Game EQ presets for competitive audio clarity
• Ice White finish with customizable LED knob colors and detachable faceplate; works with PC, Mac, iOS, PS5, and Switch

Technical Specifications

• Internal Processing: 32-bit floating point; AD/DA 24-bit
• Sample Rates: 44.1/48/96 kHz (Windows); 48 kHz (macOS/iOS)
• Mic Input: XLR with 48V phantom power (6 mA max)
• Headset: stereo mini jack (CTIA, plug-in power); Aux In: stereo mini (TRRS); Line Out: stereo mini (TRS)
• USB: Type-C, USB 2.0; bus-powered (5V/1.0A minimum, 900 mA draw)
• Virtual Surround: 5.1/7.1 USB surround with 10-band EQ
• Dimensions: 222 x 110 x 70 mm
• Weight: 450 g (1 lb)
• Color: Ice White

What's Included

• USB Type-C to Type-C cable (2 m)
• USB Type-C to Type-A cable (2 m)
• Read Me First leaflet
