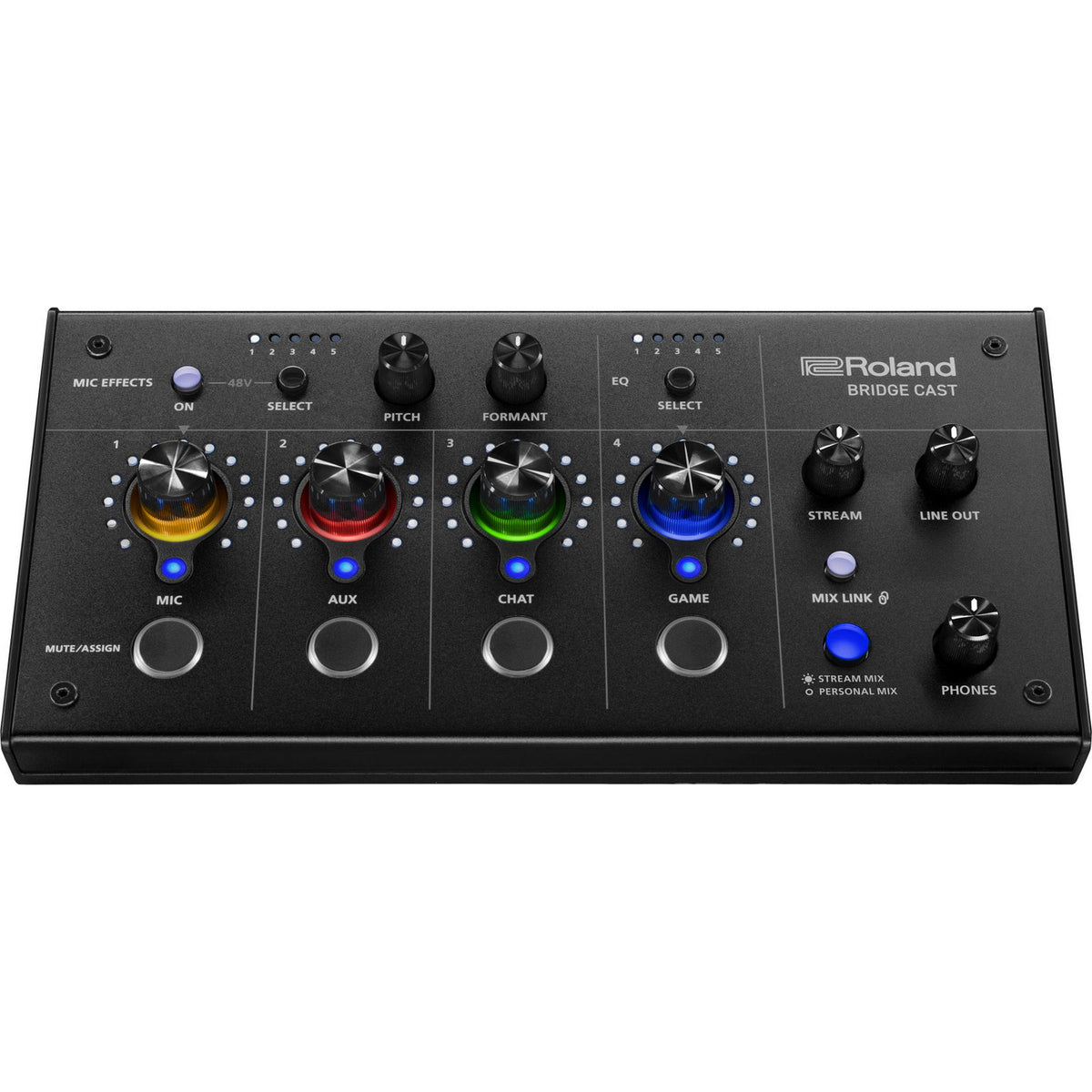

Roland BRIDGE CAST Dual-Bus Gaming Audio Mixer for Livestreaming, Black

Built by Roland specifically for online gamers, the BRIDGE CAST puts an entire broadcast audio chain into one black desktop console. Two independent buses — STREAM MIX and PERSONAL MIX — solve the streamer's core problem: your audience gets a polished, balanced feed while you hear game, chat, music, and your own voice in whatever blend keeps you competitive.

Audio quality is unapologetically pro: 32-bit floating-point internal processing, 24-bit AD/DA conversion, and sample rates up to 96 kHz on Windows. The XLR mic input with 48V phantom power feeds hardware DSP — voice changer with pitch and formant morphing, noise suppressor, compressor, EQ, de-esser, reverb, and low-cut — so vocal polish never steals frames from your game. Game EQ presets and 5.1/7.1 USB virtual surround tune the battlefield to your ears.

Physical control stays fast mid-match with grab-and-go level knobs, assignable mute and function buttons, and customizable LED colors, while the detachable faceplate accepts downloadable skin templates for stream-brand cohesion. A single USB-C connection with bus power links Windows, macOS, iOS, PlayStation 5, or Nintendo Switch, and BGM CAST adds royalty-free music and sound effects to your show.

Key Features

• Dual-bus architecture with independent STREAM MIX and PERSONAL MIX
• 32-bit floating-point processing, 24-bit AD/DA, up to 96 kHz sampling (Windows)
• XLR mic input with 48V phantom power and hardware DSP: voice changer, noise suppressor, compressor, EQ, de-esser, reverb
• Game EQ presets and 5.1/7.1 USB virtual surround for competitive audio
• Assignable buttons, customizable LED knob colors, detachable faceplate; USB-C for PC, Mac, iOS, PS5, and Switch

Technical Specifications

• Internal Processing: 32-bit floating point; AD/DA 24-bit
• Sample Rates: 44.1/48/96 kHz (Windows); 48 kHz (macOS/iOS)
• Mic Input: XLR with 48V phantom power (6 mA max)
• Headset: stereo mini jack (CTIA, plug-in power); Aux In: stereo mini (TRRS); Line Out: stereo mini (TRS)
• USB: Type-C, USB 2.0; bus-powered (5V/1.0A minimum, 900 mA draw)
• Virtual Surround: 5.1/7.1 USB surround with 10-band EQ
• Dimensions: 222 x 110 x 70 mm
• Weight: 450 g (1 lb)
• Color: Black

What's Included

• USB Type-C to Type-C cable (2 m)
• USB Type-C to Type-A cable (2 m)
• Read Me First leaflet
