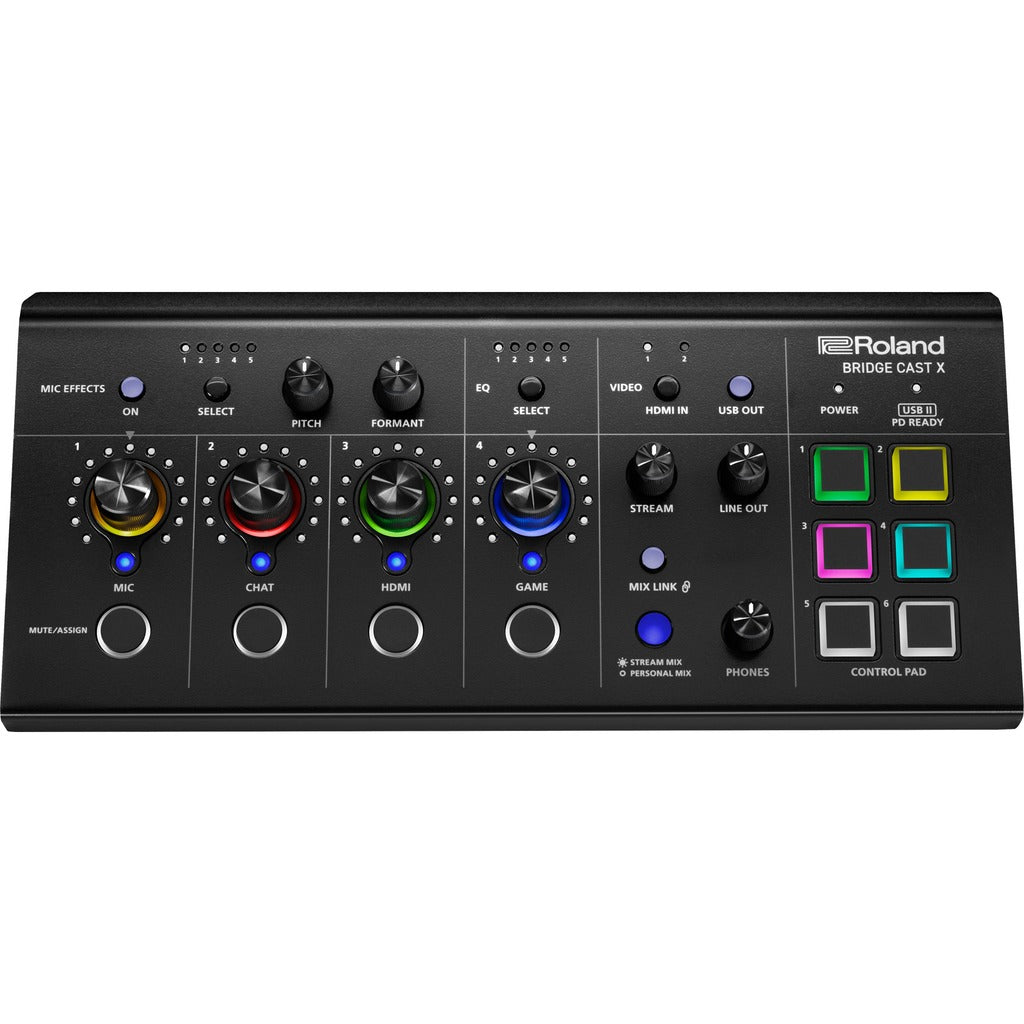

Roland BRIDGECSTX BRIDGE CAST X Streaming Mixer w/ 4K60 HDMI Video Capture

Video capture and broadcast-grade audio finally share one console: the Roland BRIDGE CAST X is a dual-bus streaming mixer that also captures HDMI video up to 4K at 60p — including ultrawide formats — with pass-through to your gaming monitor. Gamers, podcasters, and content creators get Roland's flagship production command center without juggling a separate capture card.

The audio section carries over everything that made the BRIDGE CAST famous: 32-bit floating-point processing with 24-bit AD/DA, an XLR mic input with phantom power, and hardware DSP delivering voice changer effects, professional EQ and compression, noise suppression, de-essing, reverb, and 5.1/7.1 virtual surround. Independent STREAM MIX and PERSONAL MIX buses keep the audience feed and your monitoring completely separate, and six assignable control pads put sound effects and scene actions a tap away.

Twin USB-C ports handle video, audio, MIDI, and HID simultaneously, and Power Delivery support (5V/3A or 9V/3A) charges a connected smartphone mid-stream — perfect for mobile-first creators. Game EQ presets, customizable LED colors, and BGM CAST royalty-free music round out a genuinely all-in-one production hub.

Key Features

• HDMI video capture up to 4K (3840 x 2160) at 60p with ultrawide format support and HDMI pass-through (2 inputs, one active at a time)
• Dual-bus audio: independent STREAM MIX and PERSONAL MIX
• 32-bit floating-point processing, 24-bit AD/DA; XLR mic input with phantom power and full hardware DSP voice effects
• Two USB-C ports carrying video, audio, MIDI, and HID, with Power Delivery (5V/3A or 9V/3A) smartphone charging
• Six assignable control pads, Game EQ presets, 5.1/7.1 virtual surround, and BGM CAST music library access

Technical Specifications

• Video: HDMI capture up to 3840 x 2160 at 60p, plus ultrawide formats; 2x HDMI in (one active), HDMI thru
• Internal Processing: 32-bit floating point; AD/DA 24-bit
• Sample Rates: 44.1/48/96 kHz (Windows); 48 kHz (Mac/iOS)
• Mic Input: XLR with phantom power
• Other I/O: headset/phones mini jack, stereo aux in, line out, 2x USB-C
• USB Power Delivery: 5V/3A or 9V/3A smartphone charging
• Controls: 6 assignable pads plus dedicated mix knobs and buttons
• Dimensions: 269 x 130 x 70 mm
• Weight: 1.35 kg (3 lbs)

What's Included

• USB 3.2 Type-C cable
• USB 2.0 Type-C cable
• Read Me First leaflet
