Roland PM-100 80W V-Drums Personal Monitor

Roland PM-100 80W V-Drums Personal Monitor

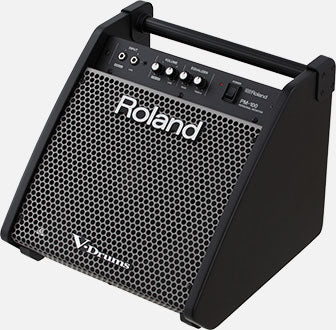

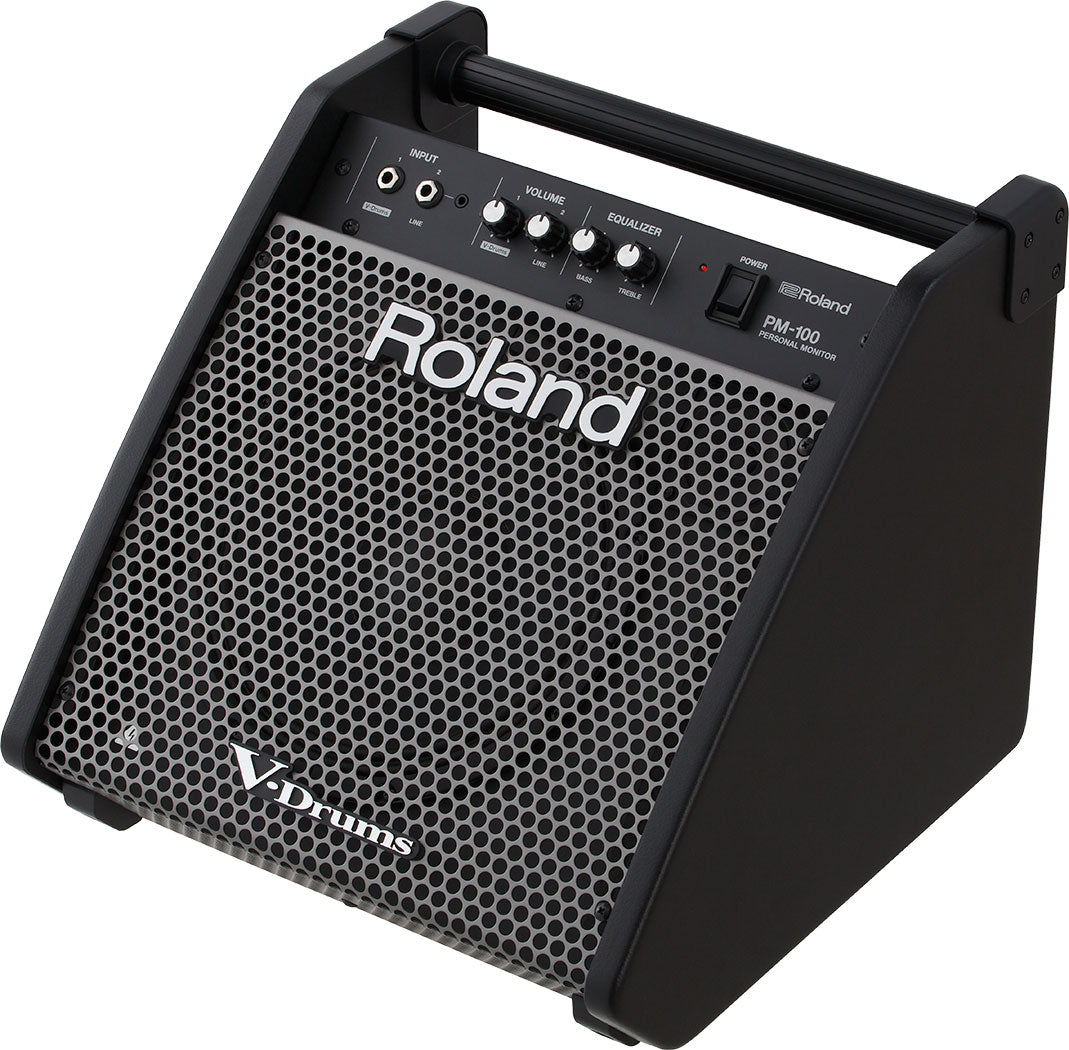

The Roland PM-100 is an 80-watt personal monitor speaker purpose-built for Roland V-Drums electronic percussion. Its angled front baffle delivers sound directly upward toward a seated drummer, while the custom full-range two-way speaker system — a 10-inch (25 cm) woofer and 2-inch tweeter — reproduces every detail of a V-Drums performance from deep kick fundamentals to the sharpest hi-hat transients. The compact footprint fits comfortably on the floor in front of a drum kit without obstructing movement.

An integrated two-channel mixer features independent volume controls for the dedicated V-Drums input and a general-purpose line input (accepting both 1/4-inch stereo and 1/8-inch stereo connections), making it easy to blend drum sounds with a backing track from a phone, laptop, or audio player. A two-band EQ (BASS and TREBLE knobs) provides basic tonal shaping to compensate for room acoustics or personal preference.

The full-width carrying bar integrated into the top panel makes repositioning easy and provides a comfortable grip for transport. All connections use standard 1/4-inch stereo phone jacks, ensuring direct compatibility with Roland V-Drums modules without adapters. Power consumption is only 36 watts at full output, making the PM-100 efficient and quiet for home practice environments.

Key Features

• 80-watt output; 10-inch (25 cm) woofer + 2-inch tweeter, angled front for seated drummer monitoring
• Dedicated V-Drums stereo input (1/4-inch TRS, –6 dBu, 10 kΩ) for direct module connection
• Line input: 1/4-inch stereo + 1/8-inch stereo (–6 dBu, 10 kΩ) for backing tracks
• Independent V-Drums and Line Input volume knobs
• Two-band EQ: BASS and TREBLE knobs
• Full-width carrying bar for transport and floor positioning
• Power consumption: 36W; compact footprint for floor placement

Technical Specifications

• Rated Power Output: 80 W
• Power Consumption: 36 W
• Speaker System: 25 cm (10-inch) Woofer ×1, 5 cm (2-inch) Tweeter ×1
• V-Drums INPUT: Stereo 1/4-inch phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ
• LINE INPUT (1/4-inch): Stereo 1/4-inch phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ
• LINE INPUT (1/8-inch): Stereo 1/8-inch (3.5 mm) phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ
• AC IN Jack

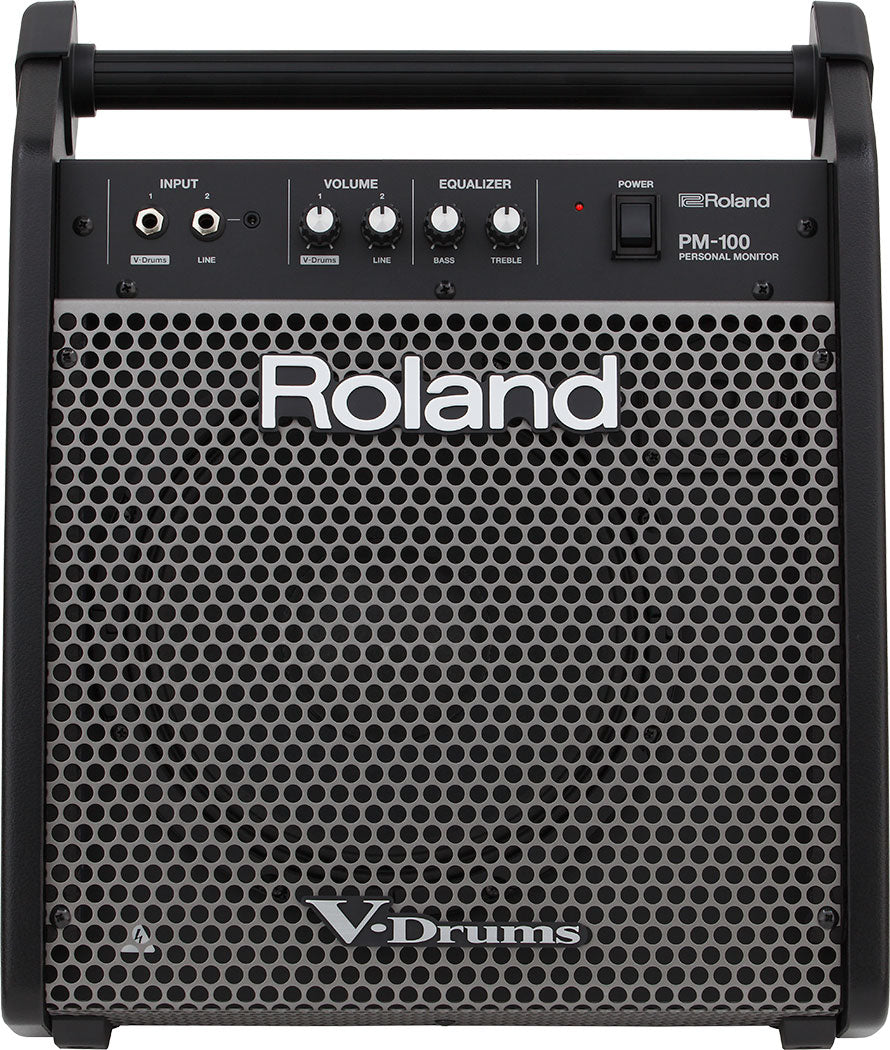

• Controls: Power Switch, V-Drums Volume Knob, Line Input Volume Knob, Bass Knob, Treble Knob
• Indicator: Power LED
• Width: 388 mm (15-5/16 inches)
• Depth: 407 mm (16-1/16 inches)
• Height: 354 mm (13-15/16 inches)
• Weight: 13.5 kg (29 lbs 13 oz)
• What's In The Box: Owner's Manual, Power Cord
