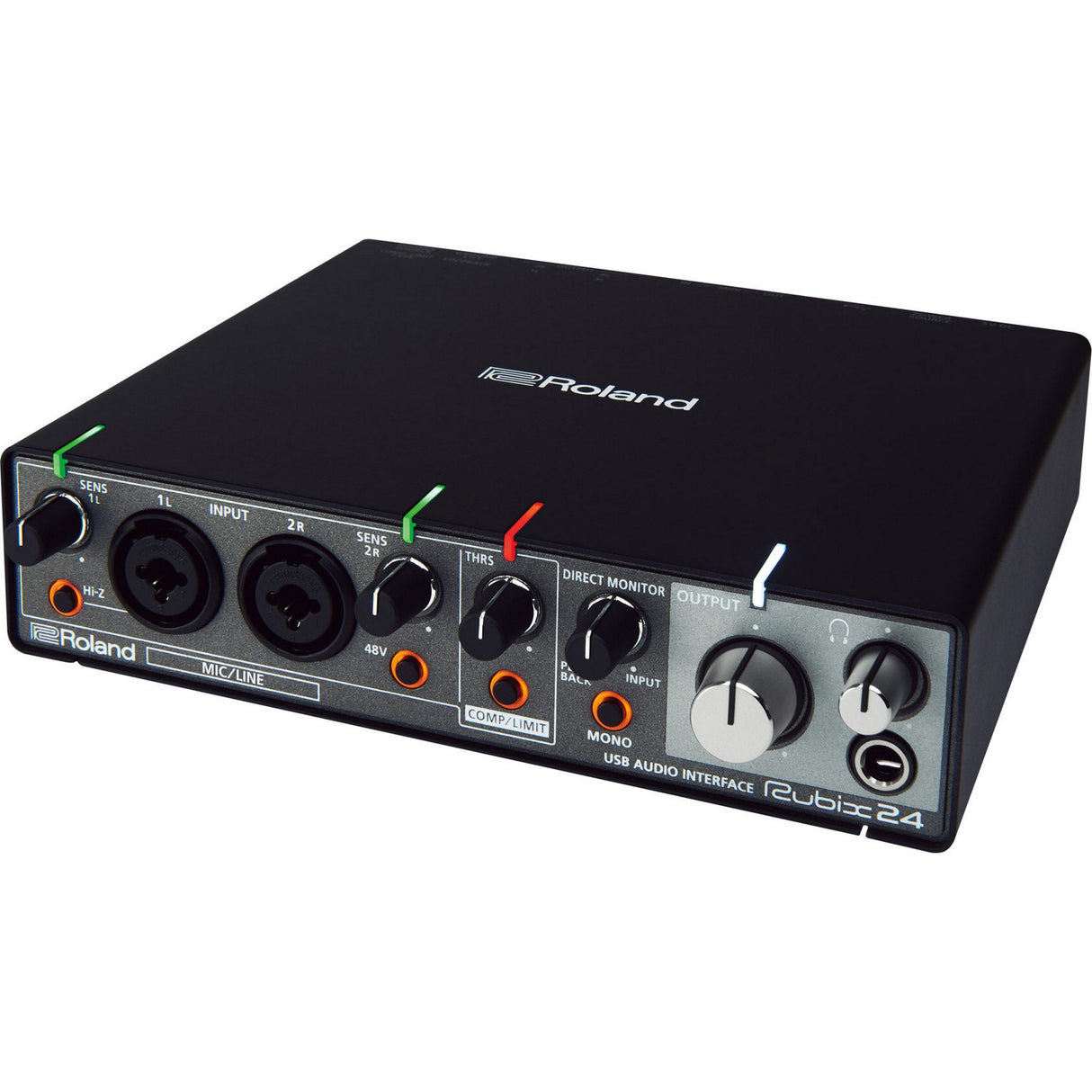

Roland Rubix24 2-In/4-Out 24-Bit/192kHz USB Audio Interface

Recording engineers and mobile producers who need more than a basic two-channel box will appreciate the Roland Rubix24, a 2-in/4-out USB audio interface that runs at resolutions up to 24-bit/192kHz. Its two low-noise mic preamps behind XLR combo jacks deliver transparent response with 48V phantom power for condenser microphones, while a Hi-Z input accommodates guitar or bass directly.

A hardware compressor/limiter - rare at this price point - tames dynamics on the way in with selectable modes and threshold control, protecting takes from clipping before they hit your DAW. Four balanced 1/4-inch TRS outputs enable separate monitor and headphone mixes or send feeds to outboard gear, and MIDI in/out connects controllers and synths. Extensive internal shielding and ground lifts keep noise out of your signal path, class-compliant drivers make it plug-and-play with Mac, PC, and iPad, and USB bus power means one cable does it all.

Key Features

• 2-in/4-out USB audio interface with 24-bit AD/DA and sample rates from 44.1 to 192 kHz
• Two low-noise mic preamps on XLR combo jacks with 48V phantom power and a Hi-Z instrument input
• Hardware compressor/limiter with selectable modes and threshold control
• Four balanced 1/4-inch TRS outputs plus MIDI IN/OUT
• Class-compliant USB bus-powered operation with Mac, PC, and iPad

Technical Specifications

• Recording/Playback Channels: 2 in / 4 out
• Resolution: 24-bit AD/DA; sample rates 44.1/48/96/192 kHz
• Inputs: XLR combo jacks (balanced, +48V phantom), 1/4" TRS balanced, Hi-Z 1/4" input
• Outputs: 4x 1/4" TRS (impedance balanced), stereo 1/4" headphone jack
• Dynamics: hardware compressor/limiter with selectable modes and threshold
• MIDI: IN/OUT
• Power: USB bus powered (500 mA); micro-USB DC 5V port
• Dimensions: 183 x 165 x 46 mm (W x D x H)
• Weight: 1.2 kg (2 lbs 11 oz)

What's Included

• USB cable
• Setup guide and safety leaflet
• Six months of Roland Cloud Pro membership
