Roland S-1 AIRA Compact 4-Voice Tweak Synthesizer

Roland S-1 AIRA Compact 4-Voice Tweak Synthesizer

The Roland S-1 AIRA Compact 4-Voice Tweak Synthesizer is a portable polyphonic instrument inspired by the classic SH-101. Roland's Analog Circuit Behavior (ACB) technology recreates the response of the original synth while adding four-voice polyphony, waveform manipulation, a 64-step sequencer, onboard effects, and modern USB-C audio and MIDI connectivity.

Designed for electronic musicians, producers, live performers, and mobile creators, the S-1 combines direct oscillator, filter, envelope, and LFO controls with 26 multifunction pads. Square, sawtooth, sub, and noise oscillators provide the foundation for sound design, while OSC Draw and OSC Chop create custom waveforms and more complex harmonic textures. Mono, poly, unison, and chord modes expand performance options.

The S-1 stores 64 patterns and supports motion recording, probability, sub steps, velocity, shuffle, portamento, and Step Loop functions. An eight-type arpeggiator and D-Motion control add performance flexibility, while delay, reverb, and chorus provide onboard processing. A rechargeable lithium-ion battery supports approximately 4.5 hours of operation for portable sequencing, synthesis, and live performance.

Key Features

• SH-101-Inspired Sound Engine: Uses Roland ACB technology to recreate classic SH-style character with expanded modern synthesis capabilities.
• Four-Voice Polyphony: Supports mono, poly, unison, and chord modes for basses, leads, chords, and layered electronic textures.
• Advanced Oscillator Tools: OSC Draw creates original waveforms, while OSC Chop divides waveforms into sections for additional harmonic variation.
• 64-Step Sequencer: Stores 64 patterns and supports motion recording, probability, sub steps, velocity, shuffle, and detailed step editing.
• 26 Multifunction Pads: Provide a two-plus-octave keyboard, sequencer controls, parameter access, and hands-on performance functions.
• D-Motion Performance Control: Uses physical movement of the synthesizer to manipulate assigned sound parameters in real time.
• Integrated Effects: Adds chorus, delay, and reverb processing without requiring external effects hardware.
• Portable Connectivity: Includes audio, MIDI, sync, AIRA Link, and class-compliant USB-C audio/MIDI support.

Technical Specifications

Synthesis and Performance

• Product Type: Polyphonic Synthesizer
• Sound Technology: Analog Circuit Behavior (ACB)
• Maximum Polyphony: 4 voices
• Voice Modes: Mono, Poly, Unison, Chord
• Oscillator Sources: Square, Sawtooth, Sub, Noise
• Waveform Functions: OSC Draw and OSC Chop
• Performance Pads: 26 multifunction pads
• Keyboard Range: More than 2 octaves
• Arpeggiator: 8 phrase types
• D-Motion: Motion-based parameter control

Sequencer

• User Patterns: 64
• Step Sequencer: 64 steps
• Sequencer Functions: Motion recording, probability, sub step, last step, velocity, shuffle, and Step Loop
• Pattern Transposition: Supported
• Portamento: Supported

Effects

• Effects: Delay, Reverb, Chorus
• Delay: Manual and tempo-synchronized operation
• Chorus: Includes chorus processing inspired by classic Roland synthesizers

Display

• Display: 7-segment, 4-character LED

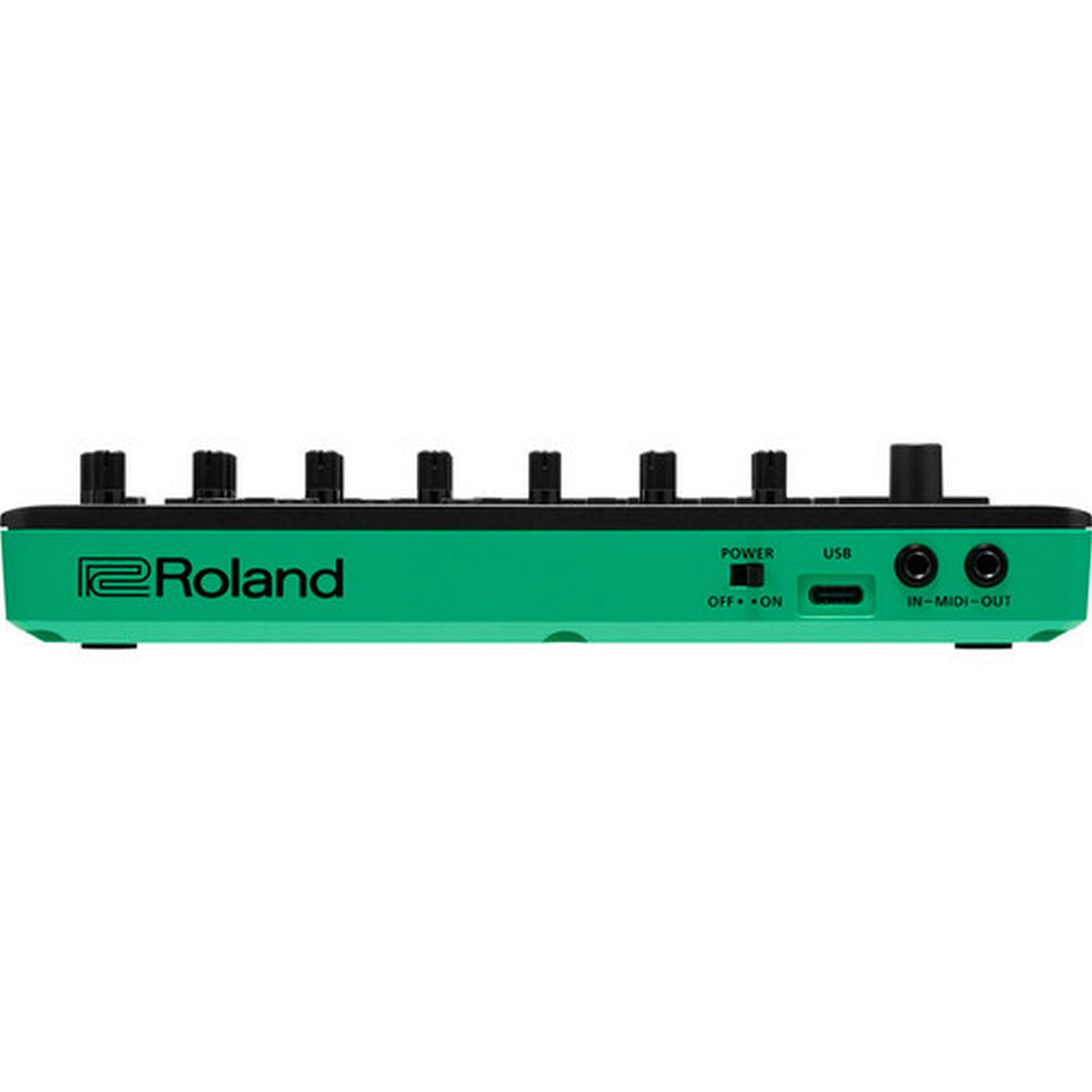

Connections

• Sync Input: 3.5 mm miniature phone type
• Sync Output: 3.5 mm miniature phone type
• Mix Input: 3.5 mm stereo miniature phone type
• Mix Output/Phones: 3.5 mm stereo miniature phone type
• MIDI Input: 3.5 mm stereo miniature phone type
• MIDI Output: 3.5 mm stereo miniature phone type
• USB: USB Type-C for audio and MIDI
• USB Audio/MIDI: Class compliant
• AIRA Link: Supported

Power

• Power Supply: Rechargeable lithium-ion battery or USB bus power
• Current Draw: 500 mA
• Expected Battery Life: Approximately 4.5 hours of continuous use
• Expected Charging Time: Approximately 3 hours
• USB Charging Requirement: 5V, 500 mA or higher

Physical Specifications

• Dimensions: 7.4 x 4.2 x 1.4 inches (W x D x H)
• Weight: 0.7 lb including battery

What's In the Box

• Roland S-1 AIRA Compact Tweak Synthesizer
• USB Type-C to USB Type-A Cable
• Read Me First Leaflet
