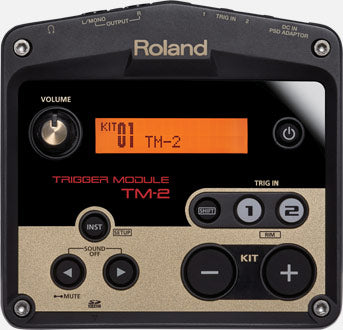

Roland TM-2 Trigger Module for Hybrid Drum Kits

Roland TM-2 Trigger Module for Hybrid Drum Kits

The Roland TM-2 is a compact, battery-powered trigger module that bridges the gap between acoustic and electronic drumming. With two 1/4-inch TRS trigger inputs, 162 built-in professional drum sounds, and support for up to 90,300 custom WAV samples via SD card, the TM-2 gives drummers instant access to a world-class electronic sound library from any acoustic kit.

Designed for working drummers who want maximum portability, the TM-2 runs on four AA batteries for up to 4.5 hours — no wall outlet required. Its 16-character backlit LCD display and intuitive interface make kit selection and customization fast even mid-session. MIDI IN/OUT connectivity allows integration with external sound modules and DAWs, while the included mounting plate attaches to any standard hi-hat stand or rack post.

The onboard 11-type multi-effects engine adds reverb, delay, flanger, and more, making the TM-2 equally capable in the studio and on stage. With 99 fully customizable kits and a stereo output alongside a dedicated headphone jack, the TM-2 is the most versatile, portable hybrid drum brain Roland has ever produced at this size and price point.

Key Features

• 2 trigger inputs (1/4-inch TRS) — connect pads, mesh heads, acoustic drum triggers
• 162 built-in professional drum sounds; 99 fully programmable kits
• SD/SDHC card slot supports up to 90,300 user WAV samples (44.1 kHz, 16-bit, stereo/mono; max 32 GB)
• 11-type multi-effects system including reverb, delay, and flanger
• MIDI IN and OUT connectors for DAW and external module integration
• Operates on 4× AA batteries (approx. 4.5 hrs alkaline / 6 hrs Ni-MH) or included AC adaptor
• Backlit 16-character × 2-line LCD display for easy navigation
• Included mounting plate fits hi-hat stand or rack post via included wing bolts

Technical Specifications

• Trigger Inputs: 2× 1/4-inch TRS phone jack
• Output L/MONO, R: 1/4-inch phone type
• Headphone Output: Stereo 1/8-inch (3.5 mm) miniature phone jack
• MIDI: 5-pin DIN IN and OUT connectors
• Power: DC IN jack (AC adaptor included) or 4× AA alkaline/Ni-MH batteries
• Current Draw: 400 mA
• Battery Life: ~4.5 hours (alkaline AA); ~6 hours (2,000 mAh Ni-MH AA)
• Display: 16-character × 2-line backlit LCD
• Kits: 99
• Internal Instruments: 162
• User Instruments: Up to 90,300 (WAV, 44.1 kHz, 16-bit, stereo or mono)
• Storage: SD/SDHC Memory Card, max 32 GB
• Multi-Effects: 1 system, 11 types
• Width: 135 mm (5-5/16 inches)
• Depth: 130 mm (5-1/8 inches)
• Height: 59 mm (2-5/16 inches)
• Weight: 360 g (0 lbs 13 oz) without batteries
• What's In The Box: Owner's Manual, Safety Leaflet, AC Adaptor, Mounting Plate, Wing Bolts M5×10 (×2)
