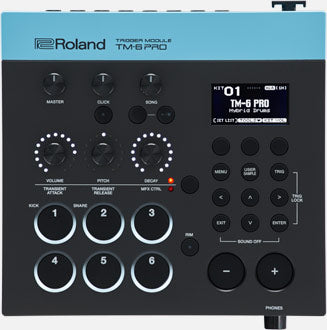

Roland TM-6 PRO Professional Trigger Module

Roland TM-6 PRO Professional Trigger Module

The Roland TM-6 PRO is a professional-grade trigger module built for drummers who demand studio-quality hybrid percussion. With six 1/4-inch TRS trigger inputs (expandable to 12 with optional Y-cables), 268 V-Drums sounds, 500 factory-loaded user samples from world-renowned studios, and a full 8-channel USB audio interface, the TM-6 PRO is the most capable acoustic-electronic hybrid brain Roland has ever made.

A 128×64 graphic LCD display and three real-time Sound Modify knobs give instant, tactile control over volume, pitch, decay, and effects on the fly — no deep menu diving required. The four configurable direct outputs can be assigned as four mono, two stereo, six mono, or three stereo channels, giving front-of-house engineers the routing flexibility they expect. Backing tracks and click track playback directly from SD card rounds out the live performance toolkit.

Under the hood, the TM-6 PRO features a comprehensive DSP engine: per-pad EQ, Transient control, Compressor, 30 types of multi-effects, five reverb types, and master EQ/compressor for the main bus. SD card support allows import of 16- or 24-bit WAV and MP3 files up to 1,000 samples. USB Hi-Speed Audio/MIDI connectivity at up to 96 kHz makes the TM-6 PRO a direct studio recording interface as well as a stage workhorse.

Key Features

• 6 trigger inputs (1/4-inch TRS), expandable to 12 pads with optional Y-cables
• 268 V-Drums sounds plus 500 preloaded studio samples (Real World, Rockfield); up to 1,000 total user samples
• 100 preset drum kits; 3 real-time Sound Modify knobs with LED indicators
• 4 configurable direct outputs (mono or stereo assignments)
• Hi-hat control jack for open/closed expression; dedicated foot switch jack
• 8-channel USB Audio/MIDI interface at 44.1, 48, and 96 kHz
• Per-pad EQ, Transient, Compressor, 30-type Multi-FX, 5-type Reverb, Master EQ and Compressor
• SD card backing track and click track playback; WAV (16/24-bit) and MP3 import

Technical Specifications

• Trigger Inputs: 6× 1/4-inch TRS phone jack (max 12 pads with Y-cable)
• Hi-Hat Control Input: 1× 1/4-inch phone jack
• Foot Switch Input: 1× 1/4-inch TRS phone jack
• MIDI IN Connector: 5-pin DIN
• MIDI OUT Connector: 5-pin DIN
• USB Port: Type B, Hi-Speed (Audio/MIDI)
• USB Audio: 8-channel record/playback; 44.1 kHz, 48 kHz, 96 kHz
• Master Output: L/R 1/4-inch phone jacks
• Direct Outputs: 4× 1/4-inch phone jacks (configurable 4 mono / 2 stereo / 6 mono / 3 stereo)
• Headphone Output: Stereo 1/4-inch phone jack
• Display: Graphic LCD, 128×64 dots
• Sound Modify Knobs: 3× with LED indicators
• Drum Kits: 100 presets
• Instruments: 268 V-Drums sounds + 500 preloaded / 1,000 max user samples
• User Sample Capacity: 48 min mono / 24 min stereo
• Audio Formats: WAV (44.1 kHz, 16-bit or 24-bit), MP3
• Storage: SD/SDHC card
• Effects: Per-pad EQ, Transient, Compressor; Multi-Effects 30 types; Reverb 5 types; Master EQ; Master Compressor
• Power: 9V DC adaptor, 453 mA
• Width: 228 mm (9 inches)
• Depth: 233 mm (9-3/16 inches)
• Height: 66 mm (2-5/8 inches)
• Weight: 1.0 kg (2 lbs 4 oz) excluding adaptor
• What's In The Box: AC Adaptor, Quick Start Guide, Safety Leaflet, 4 Mounting Screws
