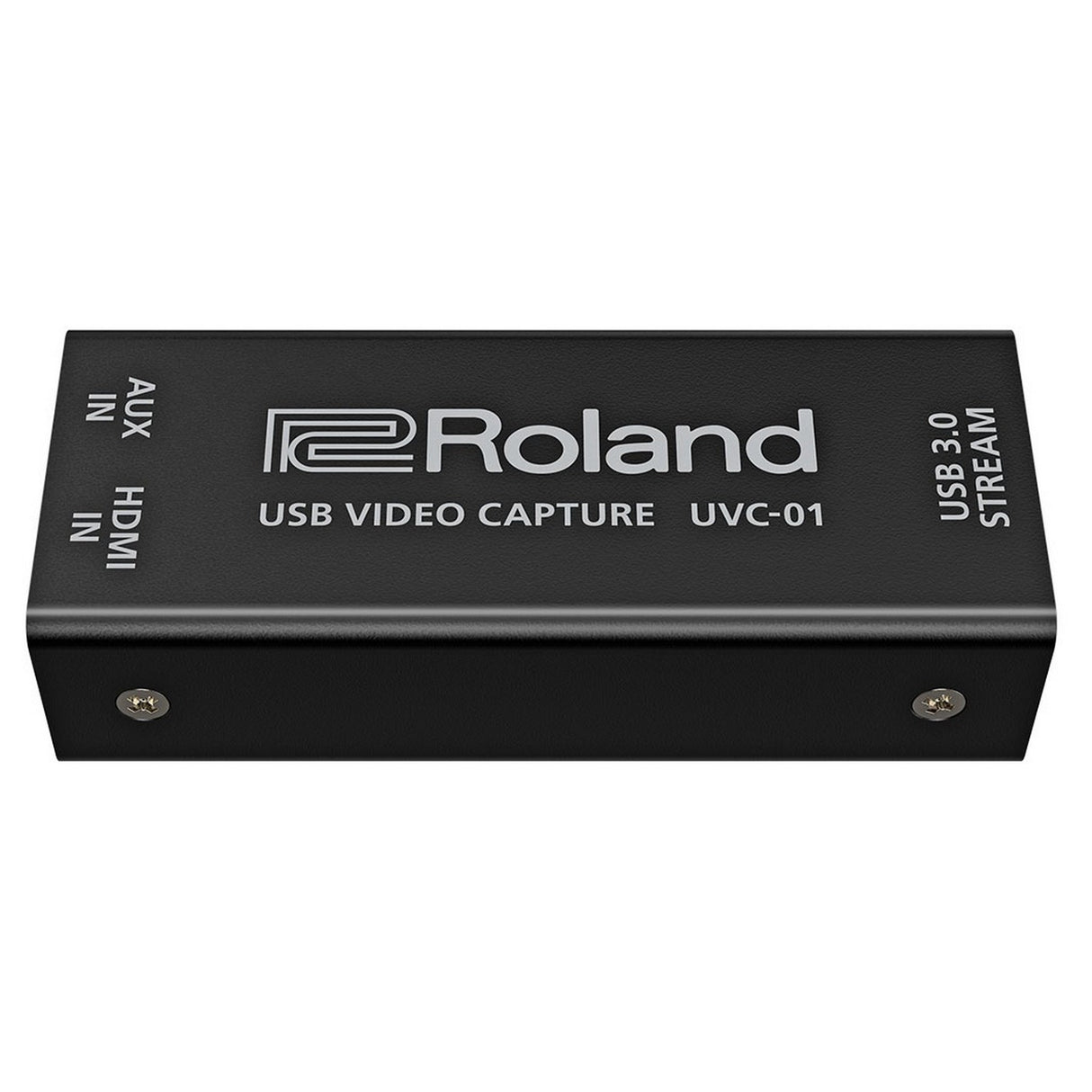

Roland UVC-01 USB 3.0 HDMI Video Capture Device for Streaming

Turn any HDMI camera, switcher, or playback source into a webcam-grade streaming input with the Roland UVC-01 USB video capture device. Built for live producers who need dependable, driver-free capture, the UVC-01 connects an HDMI source to a computer over USB 3.0 and appears as a standard UVC/UAC device, ready for OBS Studio, Zoom, Teams, YouTube, Twitch, and virtually any streaming or conferencing platform without additional software.

Video is delivered as uncompressed YUY2 at resolutions up to 1920x1080 and frame rates up to 60 fps, preserving the clean image quality of your camera or Roland video switcher. The unit accepts a wide range of HDMI input formats from 480i through 1080p plus computer resolutions from VGA to UXGA, and it passes HDMI embedded audio (Linear PCM up to 48 kHz/24-bit) alongside a stereo AUX mini-jack input for adding an external audio feed.

Powered entirely by the host computer's USB bus and weighing just 96 g in a pocket-size 90 x 37 x 23 mm housing, the UVC-01 is an ideal companion for Roland V-series switchers and mobile production kits. A USB 3.0 cable is included, so professional-quality HDMI capture is ready right out of the box.

Key Features

• Captures HDMI video to a computer via USB 3.0 as a standard UVC/UAC device — no drivers required
• Uncompressed YUY2 USB video output up to 1920x1080 at 60 fps
• Accepts HDMI input formats from 480i to 1080p plus VESA computer resolutions (VGA-UXGA)
• Stereo miniature AUX IN jack for mixing in an external audio source
• USB bus-powered, ultra-compact 96 g design with included USB 3.0 cable

Technical Specifications

• Input connector: HDMI type A (multi-format; HDCP not supported)
• Output port: USB STREAM, USB 3.0 type B
• USB video output: YUY2 uncompressed, up to 1920x1080, max 60 fps
• HDMI audio: Linear PCM 48/44.1 kHz, 24/20/16-bit stereo; USB audio: Linear PCM 48 kHz 16-bit stereo
• AUX IN: stereo miniature phone jack, nominal -10 dBu (max +8 dBu), 10k ohms
• Power: USB bus powered, 500 mA current draw
• Dimensions: 90 (W) x 37 (D) x 23 (H) mm
• Weight: 96 g (4 oz)

What's Included

• Owner's Manual
• USB 3.0 Cable
