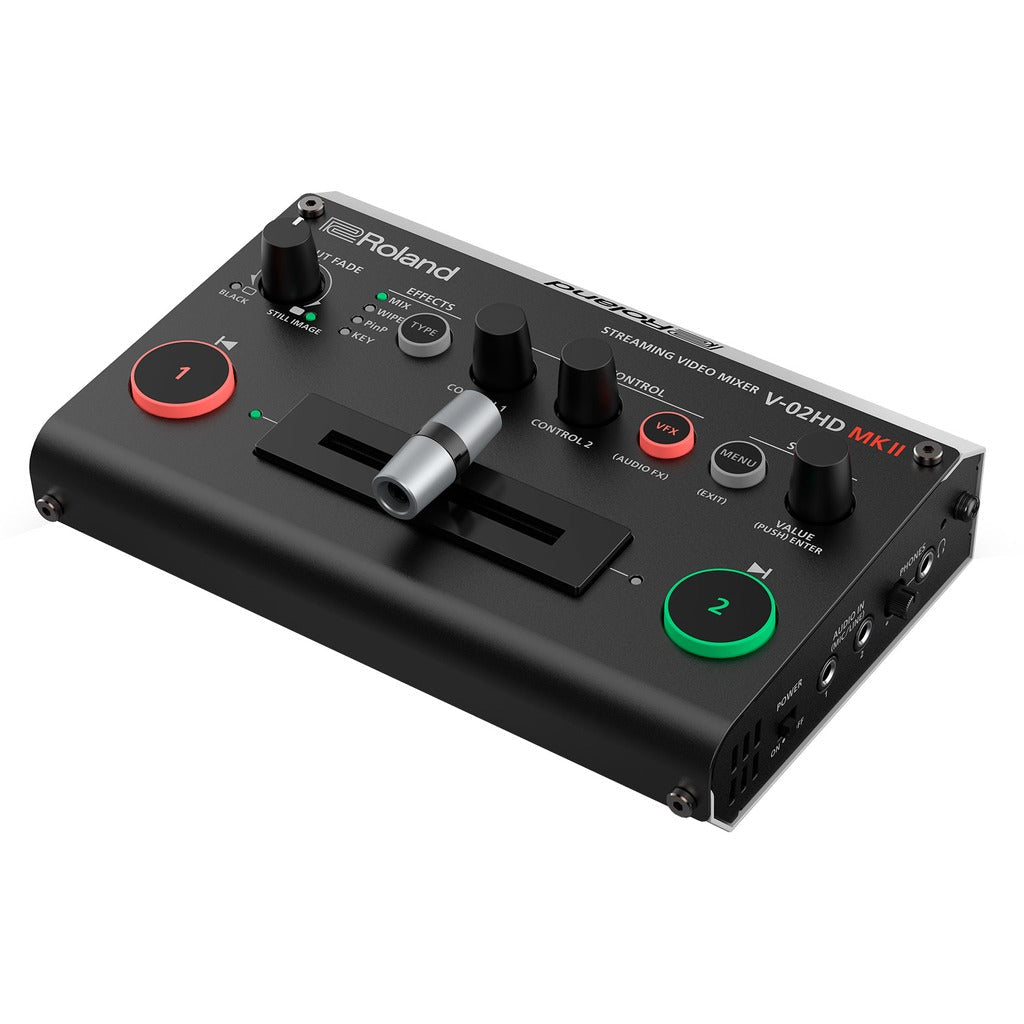

Roland V-02HD MK II Streaming Video Mixer with USB-C Output

Billed by Roland as the world's easiest two-camera livestreaming solution, the V-02HD MK II combines a compact HDMI video switcher, USB-C streaming interface, and digital audio mixer in one rugged tabletop unit. Connect two HDMI cameras or computers, switch with the built-in T-bar fader, and send polished program video straight to YouTube, Facebook, Twitch, Zoom, OBS Studio, StreamYard, or Restream, where the mixer is recognized as a standard webcam up to 1080p/60.

Production value comes standard: cut, mix, and nine wipe transitions are joined by picture-in-picture composition (rectangle, circle, diamond), luminance and chroma keying, and 14 visual effects. On the audio side, a 10-channel digital mixer blends HDMI embedded audio with two stereo mini-jack inputs (plug-in power supported) and applies reverb, compressor, EQ, noise gate, de-esser, and even a voice changer, all processed at 24-bit/48 kHz.

Hands-free and remote workflows are covered too, with support for up to two BOSS footswitches or expression pedals, a free iPad remote app, macOS/Windows RCS software, and the AeroCaster Switcher app that wirelessly adds up to five smartphone or tablet cameras. Eight preset memories, an EDID emulator, and auto-switching round out a streaming mixer that fits in a laptop bag at just 0.6 kg.

Key Features

• Switches two HDCP-capable HDMI inputs with dedicated Program and Preview HDMI outputs
• USB Type-C streaming output up to 1080/60p, recognized as a standard webcam (YUY2 or Motion JPEG)
• 10-channel digital audio mixer with reverb, compressor, EQ, voice changer, and more at 24-bit/48 kHz
• PinP composition, luminance/chroma key, 9 wipe patterns, and 14 visual effects
• Remote control via iPad app, macOS/Windows RCS software, and optional BOSS footswitches or expression pedals

Technical Specifications

• Video inputs: 2x HDMI type A (HDCP supported, multi-format)
• Video outputs: PROGRAM OUT and PREVIEW OUT HDMI type A; USB Type-C streaming
• Video processing: 4:4:4 (Y/Pb/Pr), 10-bit; formats 480i up to 1920x1200/60 Hz
• USB streaming: up to 1080/60p, uncompressed YUY2 or Motion JPEG
• Audio: 24-bit/48 kHz; 2x stereo mini inputs with plug-in power; input level -10 dBu (max +10 dBu)
• Audio effects: delay, reverb, high-pass filter, noise gate, de-esser, compressor, EQ, voice changer, multi-band compressor, limiter
• Preset memory: 8 types; panel lock, EDID emulator, auto-switching
• Power: AC adapter, 12.6 W consumption
• Dimensions: 160 (W) x 108 (D) x 51 (H) mm
• Weight: 0.6 kg (excluding AC adapter)

What's Included

• Startup guide
• AC adapter
• Power cord
• Cord hook
