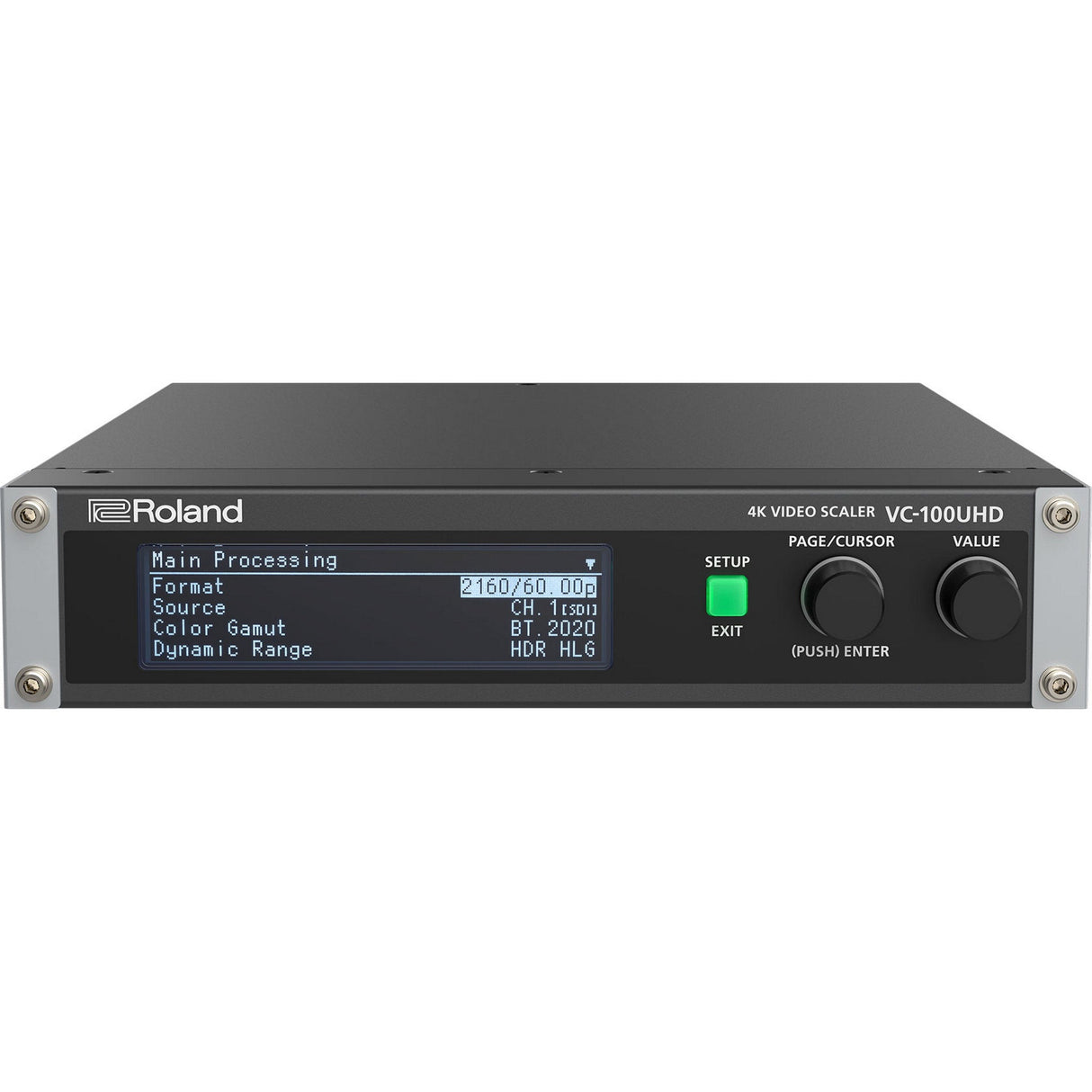

Roland VC-100UHD 4K Video Scaler, Converter and USB 3.0 Streamer

Bridging broadcast SDI, HDMI, and computer-based streaming worlds, the Roland VC-100UHD 4K video scaler converts, scales, and streams professional video up to 2160p/60 - including DCI 4K. With 12G-SDI input, output, and through connectors alongside 4K HDMI in and out, it handles the format mismatches that plague live production, from connecting a cinema camera to an LED wall to feeding a 4K HDMI source into an SDI broadcast chain.

A USB 3.0 port makes the VC-100UHD a high-quality streaming bridge as well, sending video to a computer for web broadcast or bringing USB video into an SDI/HDMI workflow. HDMI format support reaches up to 240 Hz refresh rates for gaming and esports applications, while audio is equally capable: 24-bit/48 kHz processing with up to 16 channels embedded on 12G-SDI, 8 channels on HDMI, balanced analog I/O on a 25-pin D-sub, and stereo RCA line connections.

Housed in a rack-friendly 210 x 284.5 x 43 mm chassis weighing 2.2 kg, the unit ships with rack-mount angles, rubber feet, an AC adapter with DC plug stopper, and a power cord, making it straightforward to deploy in flight cases, racks, or desktop setups where dependable 4K conversion is mission-critical.

Key Features

• Converts and scales video up to 4K DCI 2160p/60 between 12G-SDI, HDMI, and USB 3.0
• 12G-SDI input, output, and through BNC connectors plus 4K HDMI input and output
• USB 3.0 streaming input/output for web broadcast and computer integration
• 24-bit/48 kHz audio with up to 16 SDI channels, 8 HDMI channels, balanced D-sub 25-pin and RCA analog I/O
• Rack-mountable half-rack-style chassis with included mounting angles

Technical Specifications

• SDI: 12G-SDI input, output, and through (BNC)
• HDMI: 4K input and output (HDMI type A)
• USB: USB 3.0 type B streaming input/output (16-bit/48 kHz 2-channel audio)
• Video formats: up to 2160p DCI/UHD at 60/59.94/50 Hz; HDMI support up to 240 Hz refresh
• Audio processing: 24-bit/48 kHz; up to 16ch SDI embedded, 8ch HDMI embedded
• Analog audio: balanced 25-pin D-sub (2ch) and RCA stereo line I/O
• Power: AC adapter (DC 24V), 55 W consumption
• Dimensions: 210 (W) x 284.5 (D) x 43 (H) mm
• Weight: 2.2 kg (4 lbs 14 oz)

What's Included

• Owner's manual
• Safety leaflet
• AC adapter
• Power cord
• Rubber feet
• Rack mount angles
• DC plug stopper
