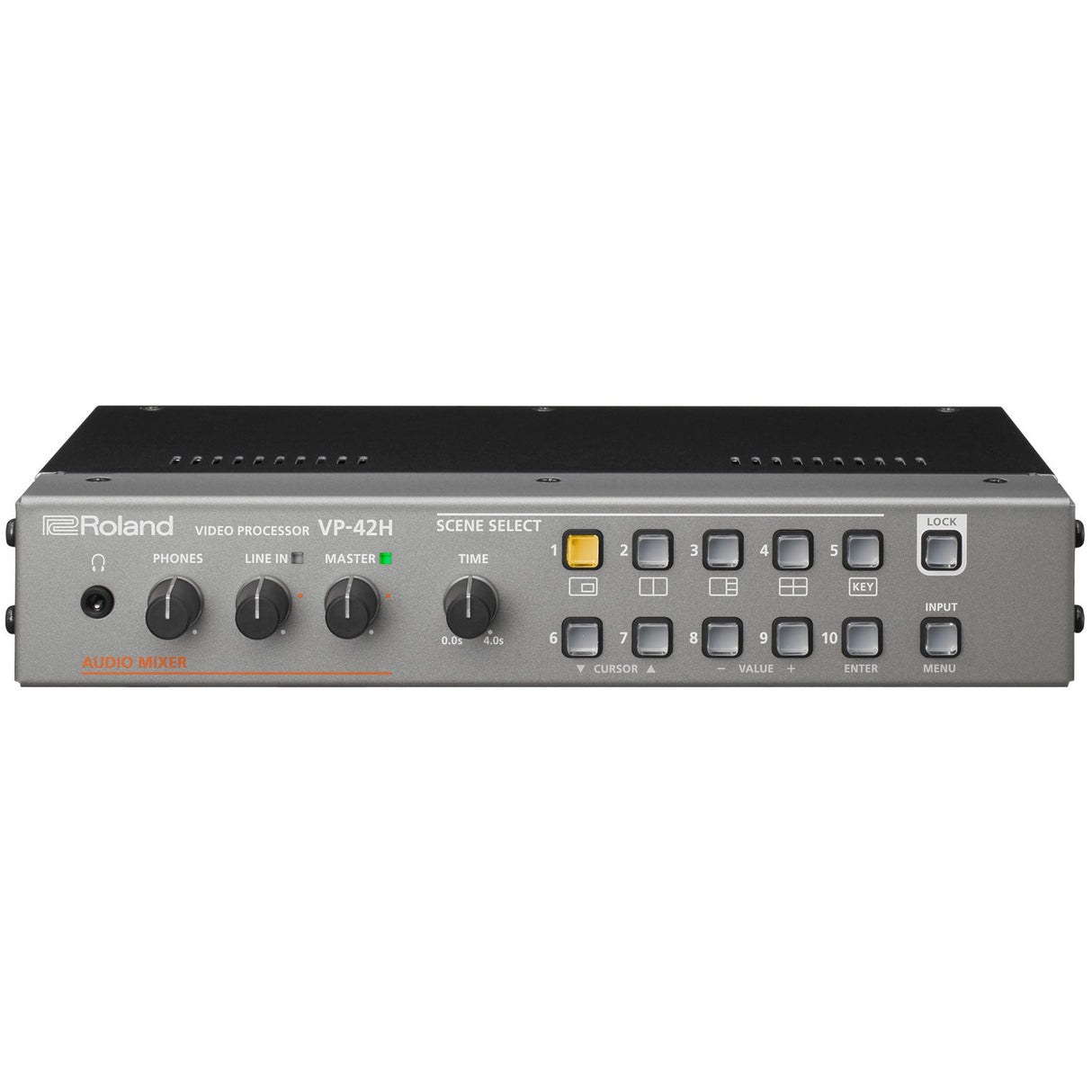

Roland VP-42H 4-Input HDMI Video Processor and Matrix Switcher

Installers and event producers who need flexible signal routing without a full production switcher will find the Roland VP-42H video processor hits a sweet spot. Four HDCP-supported HDMI inputs feed two independent HDMI outputs, letting one compact 1U-friendly box act as a matrix switcher, multi-window processor, and scaler for boardrooms, houses of worship, and live event displays.

Layer composition sets the VP-42H apart from a simple matrix: up to four picture-in-picture layers can be arranged per output, with a keyer on layer 1 for graphics or titles, plus black-insert, mix, cut, and motion transitions. Processing is 10-bit 4:4:4/4:2:2 quality across SD/HD formats from 480i to 1080p and computer resolutions up to 1920x1200/60, and a built-in 4-channel audio mixer with up to 250 ms of delay keeps embedded HDMI and RCA stereo audio in sync with the picture.

Ten scene memories store complete routing and layout setups for instant recall, while remote control over RS-232, LAN (RJ45), and USB integrates the processor into control systems and automated venues. At 242 x 125 x 44 mm and 1.2 kg with an included rack mount angle set, it deploys easily anywhere multi-source HDMI processing is needed.

Key Features

• 4 HDMI inputs to 2 HDMI outputs with HDCP support - matrix routing and multi-window processing in one unit
• 4-layer picture-in-picture composition per output, with luminance keyer on layer 1
• 10-bit 4:4:4/4:2:2 video processing across SD/HD and computer formats up to 1920x1200/60
• Built-in 4-channel audio mixer (48 kHz/24-bit) with up to 250 ms lip-sync delay
• 10 scene memories plus RS-232, LAN, and USB remote control for installed AV systems

Technical Specifications

• Inputs: 4x HDMI type A (HDCP supported)
• Outputs: 2x HDMI type A (HDCP supported)
• Processing: 4:4:4 (Y/Pb/Pr, RGB)/10-bit, 4:2:2 (Y/Pb/Pr)/10-bit
• Composition: 4 layers (PinP x4, keyer on layer 1); transitions: black-insert, mix, cut, motion
• Formats: 480i/p, 576i/p, 720p, 1080i/p (50/59.94 Hz) plus computer resolutions up to 1920x1200/60
• Audio: HDMI (4ch in / 2ch out) + RCA stereo I/O + headphone jack; 48 kHz/24-bit; 4ch mixer with up to 250 ms delay
• Control: RS-232, LAN (RJ45), USB; scene memory: 10; still image: 1 slot (BMP up to 1920x1200)
• Power: AC adapter, 25 W consumption
• Dimensions: 242 (W) x 125 (D) x 44 (H) mm; Weight: 1.2 kg

What's Included

• Owner's manual
• Safety leaflet
• AC adapter
• Power cord
• Rubber feet (4)
• Rack mount angle set
