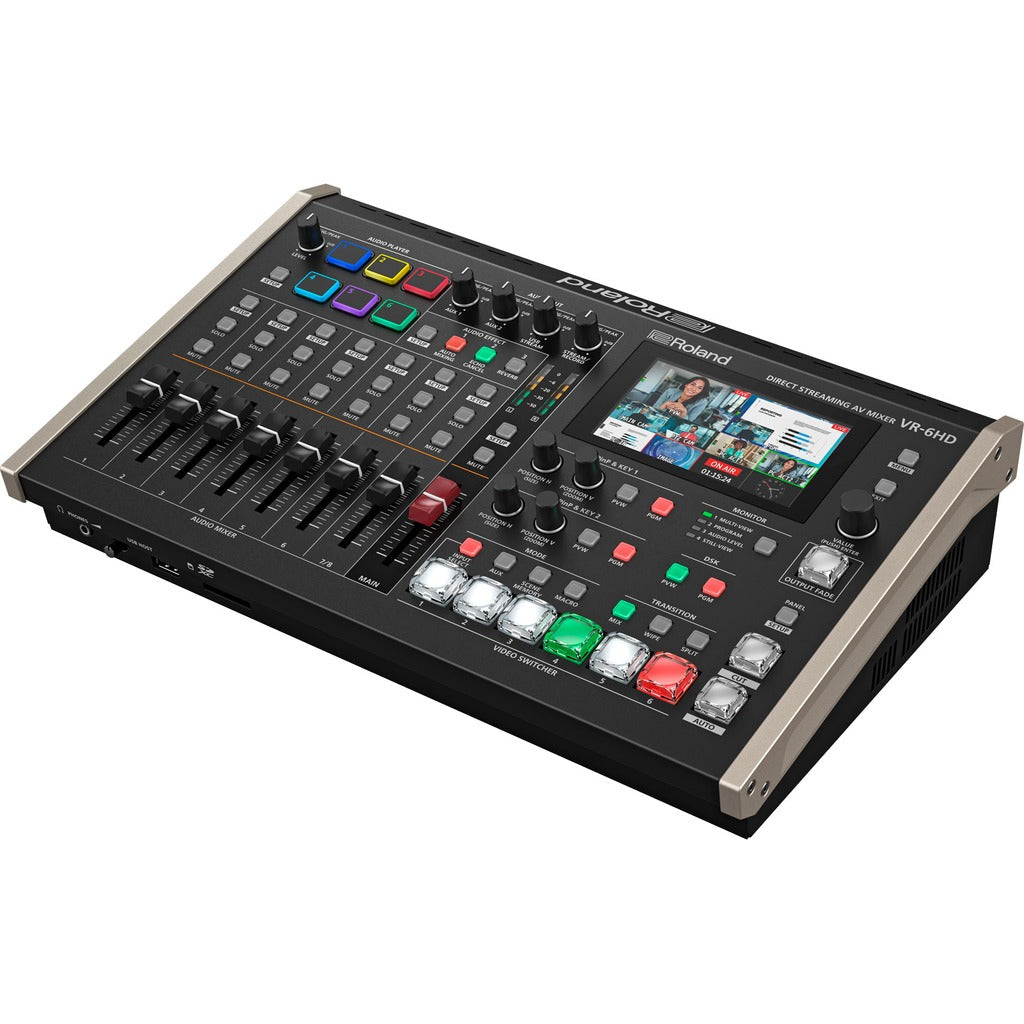

Roland VR-6HD Direct Streaming AV Mixer with 6 HDMI Inputs

Everything a solo producer needs to run a broadcast-grade livestream lives inside the Roland VR-6HD direct streaming AV mixer: video switching, audio mixing, dual-destination streaming, recording, and PTZ camera control in one console. Six 1080p HDMI inputs each carry a frame-rate converter and real-time scaler, feeding a five-layer video effects engine with transitions, composition, keying, and multi-view, all managed from a 4.3-inch touchscreen plus hardware knobs, faders, and buttons.

Streaming happens without a computer - a dedicated RJ45 direct streaming output pushes two simultaneous livestreams up to 1080p/60 over RTMP, RTMPS, or SRT, while a USB-C port offers standard UVC/UAC webcam connectivity for software workflows. The mixer records MP4 (H.264/AAC) to SDXC cards with independent WAV audio capture, and it remotely controls up to six PTZ cameras across mixed brands and protocols including Canon, Sony, Panasonic, JVC, PTZOptics, Avonic, and VISCA.

Under the hood is a 28-channel digital audio mixer with six phantom-capable XLR/TRS combo inputs, RCA, USB, Bluetooth, and HDMI embedded sources, processed with 4-band EQ, dynamics, reverb, noise suppression, de-essing, and auto-mixing. With 32 scene presets, 100 macros, a 1000-step sequencer, and remote apps for iPad, Windows, and macOS, the 3.4 kg VR-6HD condenses an entire production crew's rig into a carry-on-friendly console.

Key Features

• Six 1080p HDMI inputs, each with frame-rate conversion and real-time scaling, driving a five-layer effects engine
• Computer-free dual streaming up to 1080p/60 via RTMP/RTMPS/SRT, plus USB-C UVC/UAC webcam output
• 28-channel digital audio mixer with 4-band EQ, dynamics, reverb, noise suppression, de-essing, and auto-mixing
• Records MP4 (H.264/AAC) to SDXC with independent WAV audio capture
• Controls up to six PTZ cameras across mixed protocols (Canon, Sony, Panasonic, JVC, PTZOptics, Avonic, VISCA)

Technical Specifications

• Video inputs: 6x HDMI 1080p with frame rate converters and scalers; processing 4:2:2 (Y/Pb/Pr) 8-bit
• Formats: 480/59.94i through 1080p plus computer resolutions up to 1920x1200/60 Hz
• Video outputs: 3x HDMI, USB-C streaming, dedicated RJ45 direct streaming output
• Streaming: two simultaneous streams up to 1080p/60; RTMP, RTMPS, SRT protocols
• Recording: MP4 (H.264 video / AAC audio) to SDXC card; independent WAV audio recording
• Audio: 28-channel mixer; 6x XLR/TRS combo inputs, 2x RCA, USB, Bluetooth, HDMI embedded; 2x XLR + 2x RCA outputs + headphones
• Control: 4.3-inch touchscreen, 32 scene presets, 100 macros, 1000-step sequencer, iPad/Windows/macOS remote
• PTZ control: up to 6 cameras, multi-brand and mixed protocols
• Power: AC adaptor, 55 W consumption
• Dimensions: 370 (W) x 242 (D) x 100 (H) mm; Weight: 3.4 kg (excluding AC adaptor)

What's Included

• Startup Guide
• Safety leaflet
• AC adaptor
• Power cord
