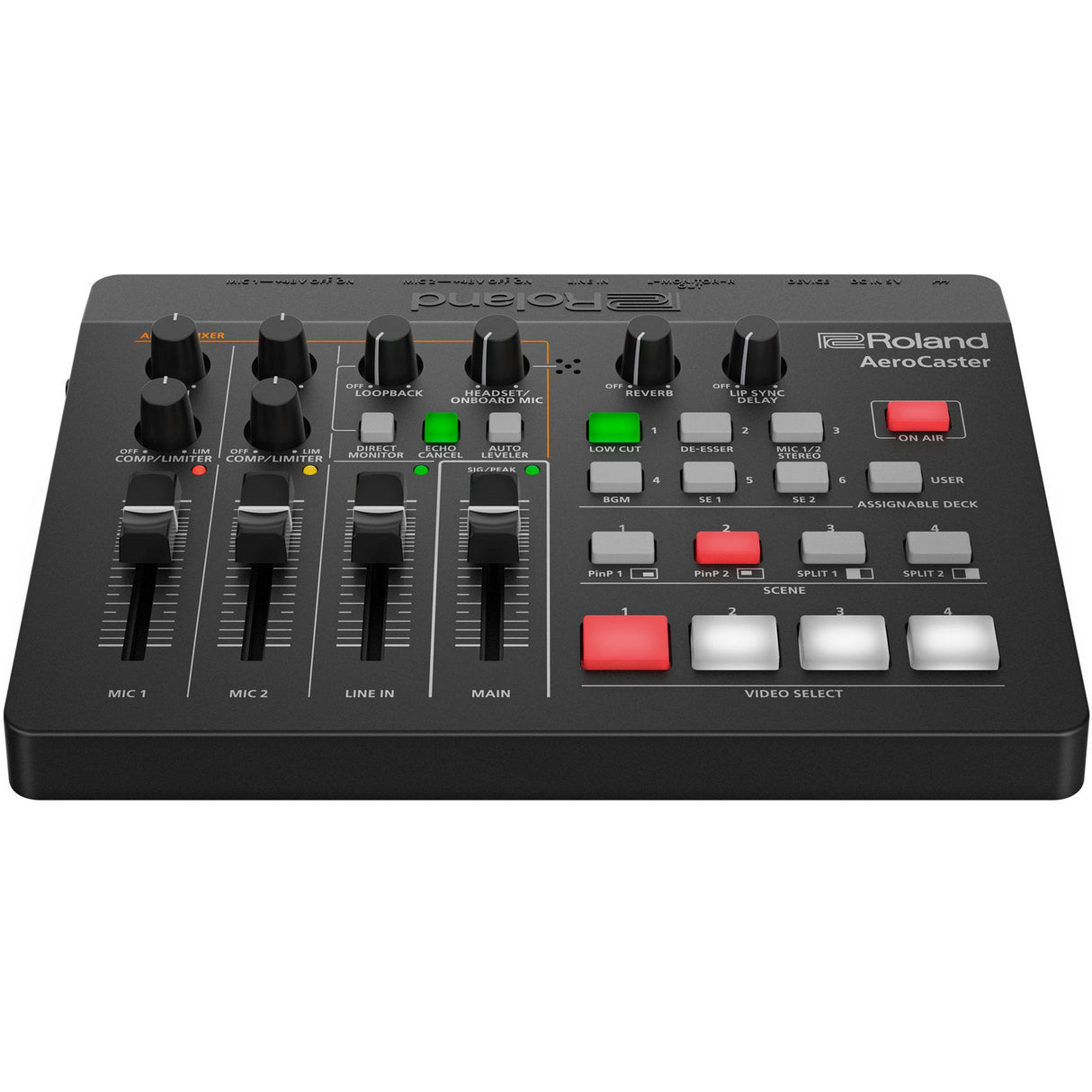

Roland VRC-01 AeroCaster Livestreaming System with Audio Mixer

Multi-camera livestreaming without cables, capture cards, or a production crew - that is what the Roland AeroCaster VRC-01 delivers by pairing a hardware audio mixer/control surface with the AeroCaster LIVE app for iPad. Up to four smartphones or tablets running the free Roland Satellite Camera app join the iPad's own camera wirelessly, giving you five switchable video angles plus browser-based screen sharing for a polished broadcast at up to 1080p.

While the iPad handles video switching, transitions, picture-in-picture, split-screen, and quad-view compositing, the VRC-01 hardware anchors your audio: two XLR/TRS combo inputs with 48V phantom power feed microphones, a stereo line input covers music sources, and onboard effects including compressor, limiter, de-esser, noise gate, delay, and reverb keep voices broadcast-clean. Stream to YouTube Live, Facebook Live, Twitch, or any custom RTMP destination, record MP4 locally with ISO camera feeds, and save up to 30 scene presets with text overlays and PNG graphics for repeatable, professional shows.

Key Features

• Up to five simultaneous video inputs: four wireless mobile cameras plus the iPad's built-in camera
• Hardware control surface with two XLR/TRS combo mic inputs (48V phantom power) and 3.5mm stereo line input
• Onboard audio effects: compressor, limiter, de-esser, noise gate, HPF, delay, and reverb
• Streams to YouTube Live, Facebook Live, Twitch, and custom RTMP at up to 1080/60p output
• MP4 recording with simultaneous ISO camera feeds and up to 30 saveable scene presets

Technical Specifications

• Video Sources: up to 5 (4 wireless iOS/Android cameras via Satellite Camera app + iPad camera); inputs up to 1080/30p, output up to 1080/60p
• Streaming: YouTube Live, Facebook Live, Twitch, custom RTMP; recording MP4 (H.264/AAC) 1-10 Mbps
• Audio Inputs: 2x XLR/TRS combo (balanced, 48V phantom), 3.5mm stereo line in
• Audio Outputs: RCA monitor outs, 3.5mm headphones/headset (15mW+15mW @ 32 ohms)
• Effects: Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter
• App Requirements: AeroCaster LIVE for iPad (iOS 16+, Apple A12 or better)
• Power: USB Type-C (5V/1.0A min) or USB bus power
• Dimensions: 220 x 166 x 60 mm (W x D x H)
• Weight: 600 g (1 lb 6 oz)

What's Included

• USB Type-C to Lightning cable
• USB Type-C to USB Type-A cable
• Leaflet "Read Me First"
