Rolls DA134 4 Channel Volume Control Mono Stereo RCA 1/8 inch Inputs Distribution Amplifier

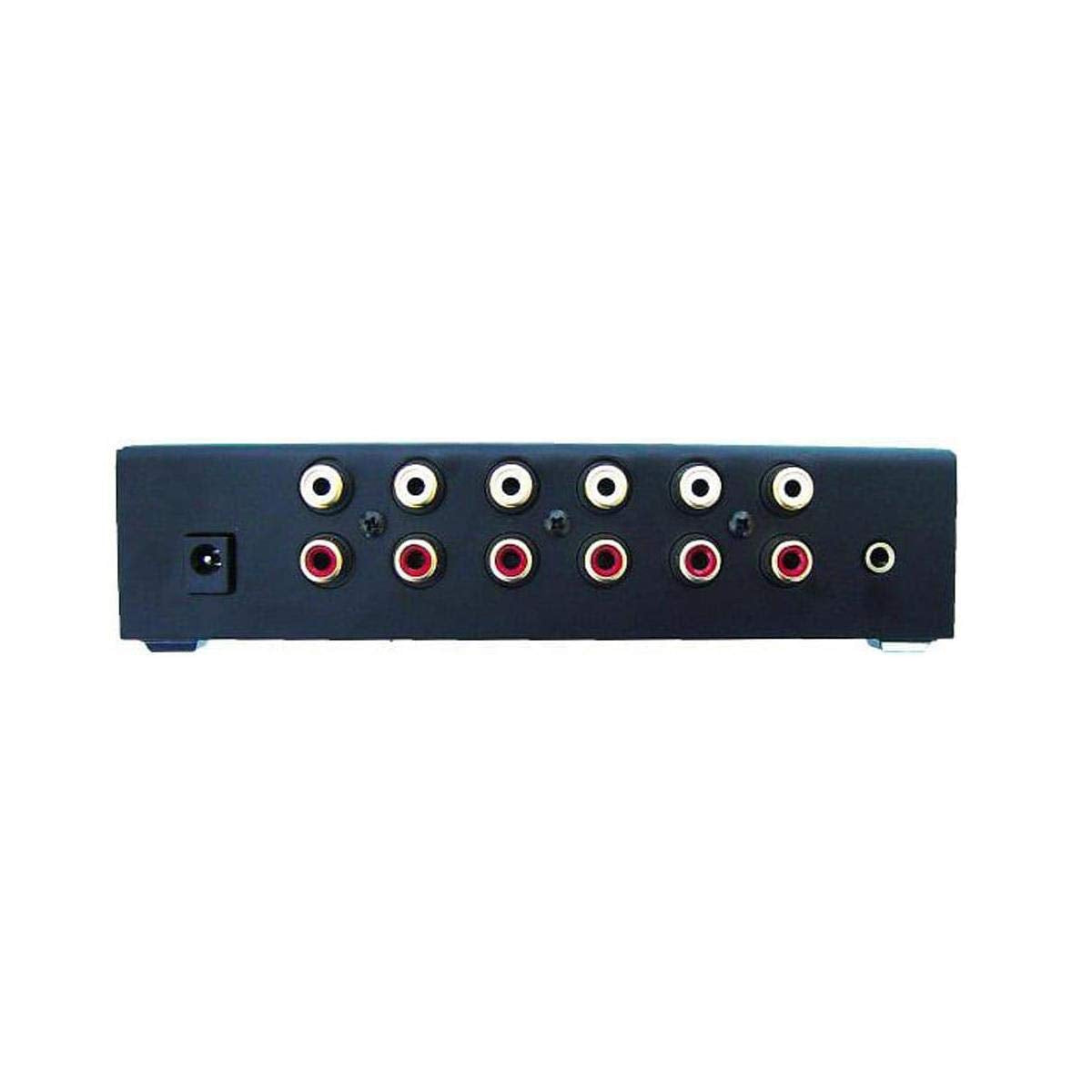

Designed for high end RCA audio distribution the DA134 is a four channel distribution amplifier. RCA and 1/8β inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.
Key Features
- Expands the output of a stereo device to multiple outputs
- Can raise the output level to true line level for any output
- Stereo 4 channel distribution amplifier

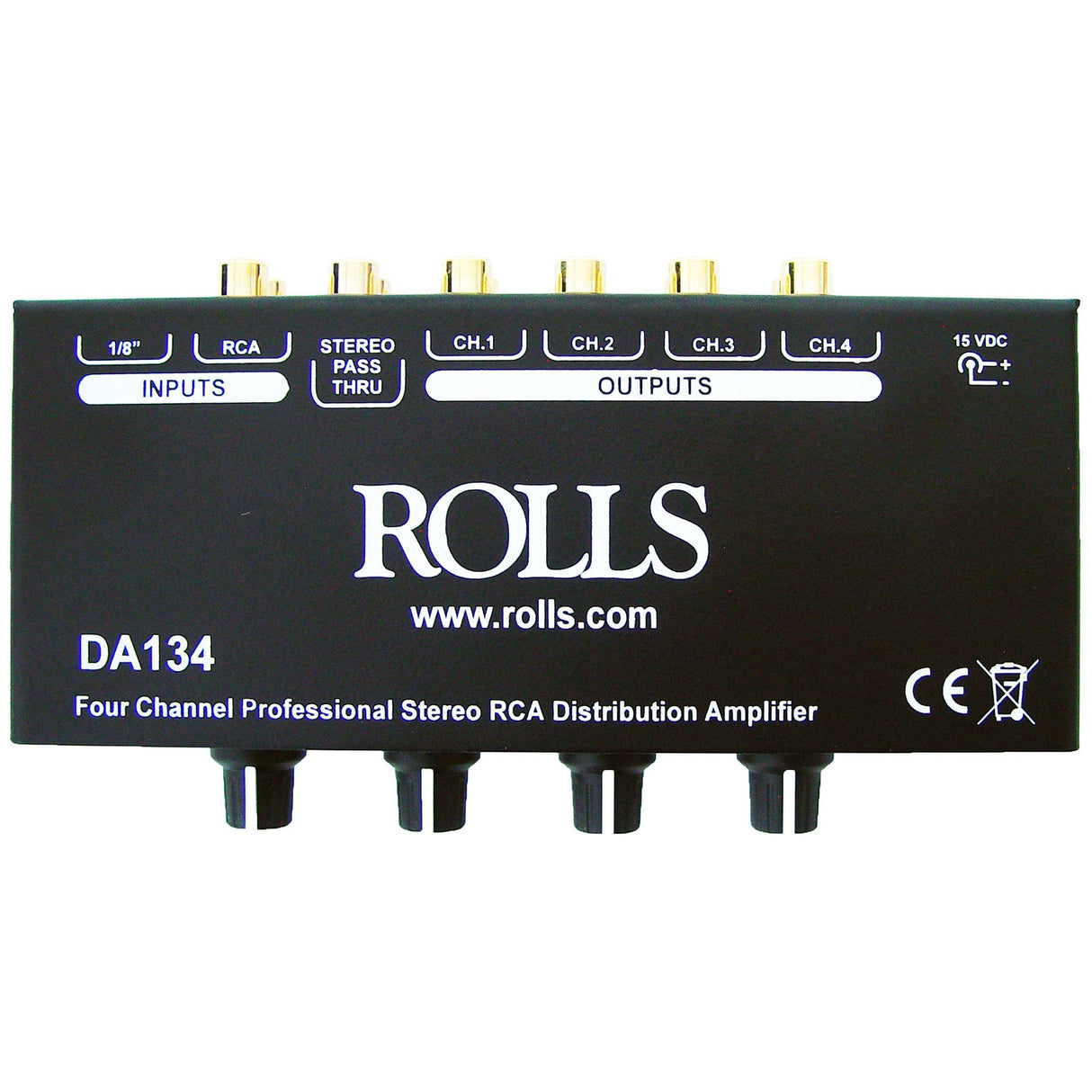

- Front panel volume controls
- Mono or Stereo operation
- DC low end frequency for audiophile frequency response
- Small compact design
- Accepts inputs directly from I-pad / I-pod or laptop
- Included Rolls PS27s power supply.
- Stereo pass thru: For connection to another DA134
Technical Specifications
Input Impedance: 10 K ohm
Max Input Level: +12 dBV
Output Impedance: 470 ohm
Max Output Level: +12 dB
Max Gain: 20 dB
S/N Ratio: >90 dB
Cross Talk: -70 dB (stereo)
Frequency Response: DC - 60 kHz, +/- 1 dB
THD: <.008%
Power: 15 VDC
Size: 6.5β x 3.5β x 1.5β
Weight: 1 lbs. 3 oz.
