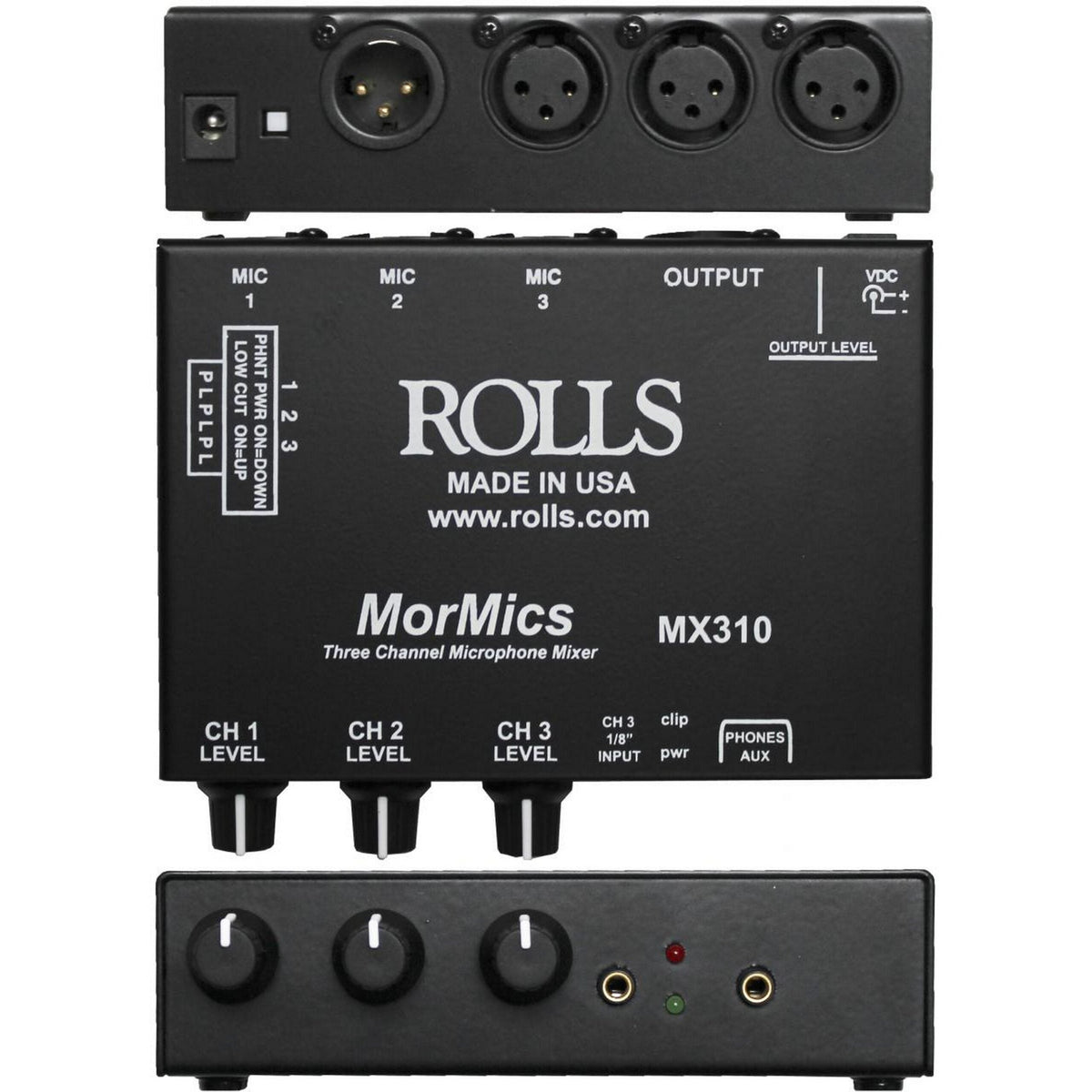

Rolls MX310 3 Channel Microphone Mixer/Combiner

The MX310 is a professional three channel microphone mixer. The mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input. With balanced XLR inputs, phantom power select able for each mic input, XLR Mic or Line level output the MX310 can be used in many different applications. A stereo 1/8” (3.5mm) Auxiliary input has been added for connection to any stereo line-level source such as a phone, AM/FM tuner, CD player etc. An additional 3.5mm stereo output jack is provided for connection to a camera, computer, ear buds, or other monitoring.

Technical Specifications

Size
5.25” x 3.75” x 1.5”
Weight
1 lbs.
Input Impedance
600 Ohms
Output Impedance
600 Ohms Mic - 200 Ohms line
THD Noise
.05% Typical
Frequency Response
20 Hz - 20 kHz ( 0 / -3 dB)
Voltage Gain
50 dB line/10 dB Mic
Low Cut
-3 dB @ 100 Hz
Current Draw
20 mA
Phantom Power
15 VDC
Maximum Supply Voltage
16 VDC
