Samson RXD1M Portable Receiver for Digital Wireless Systems

Samson RXD1M Portable Receiver for Digital Wireless Systems

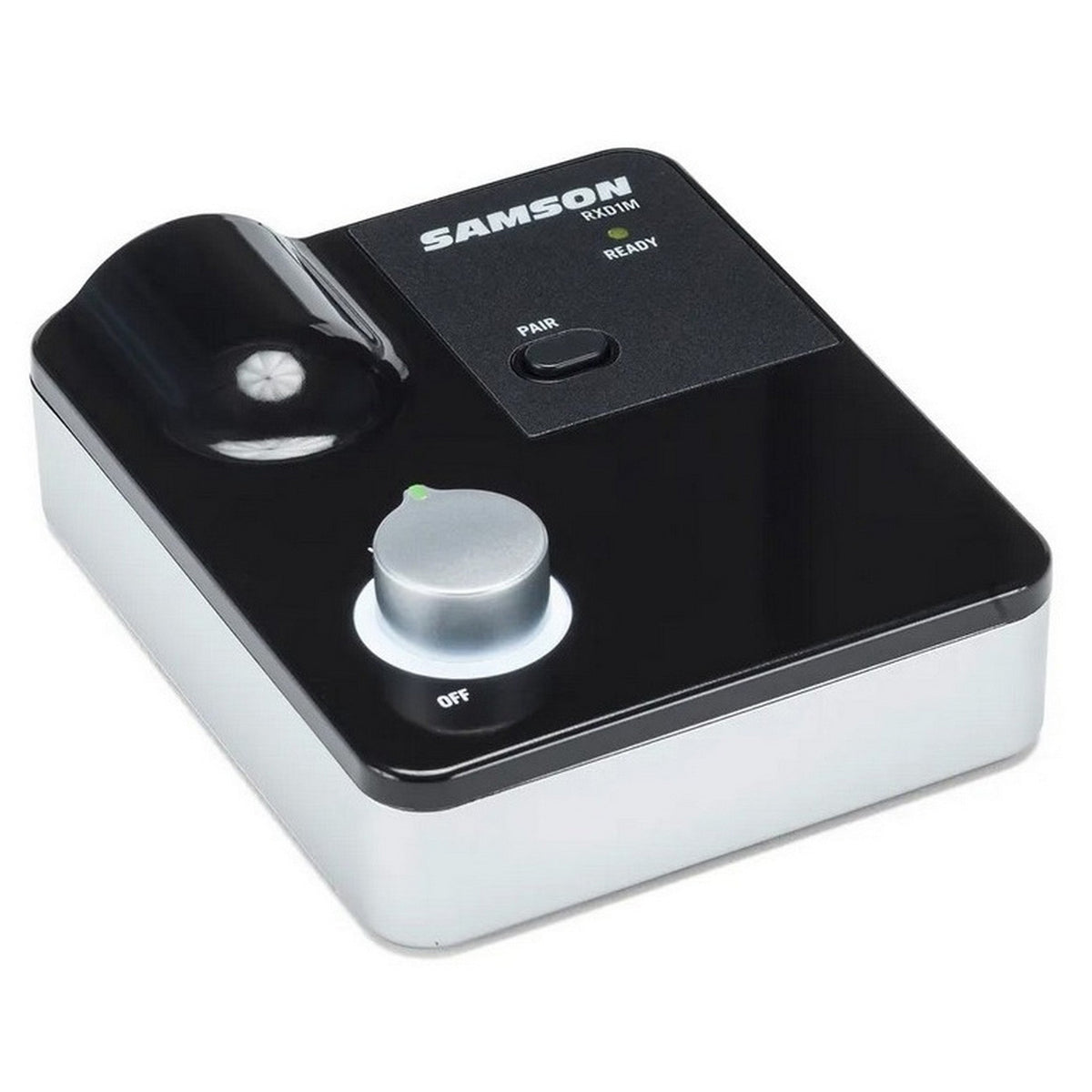

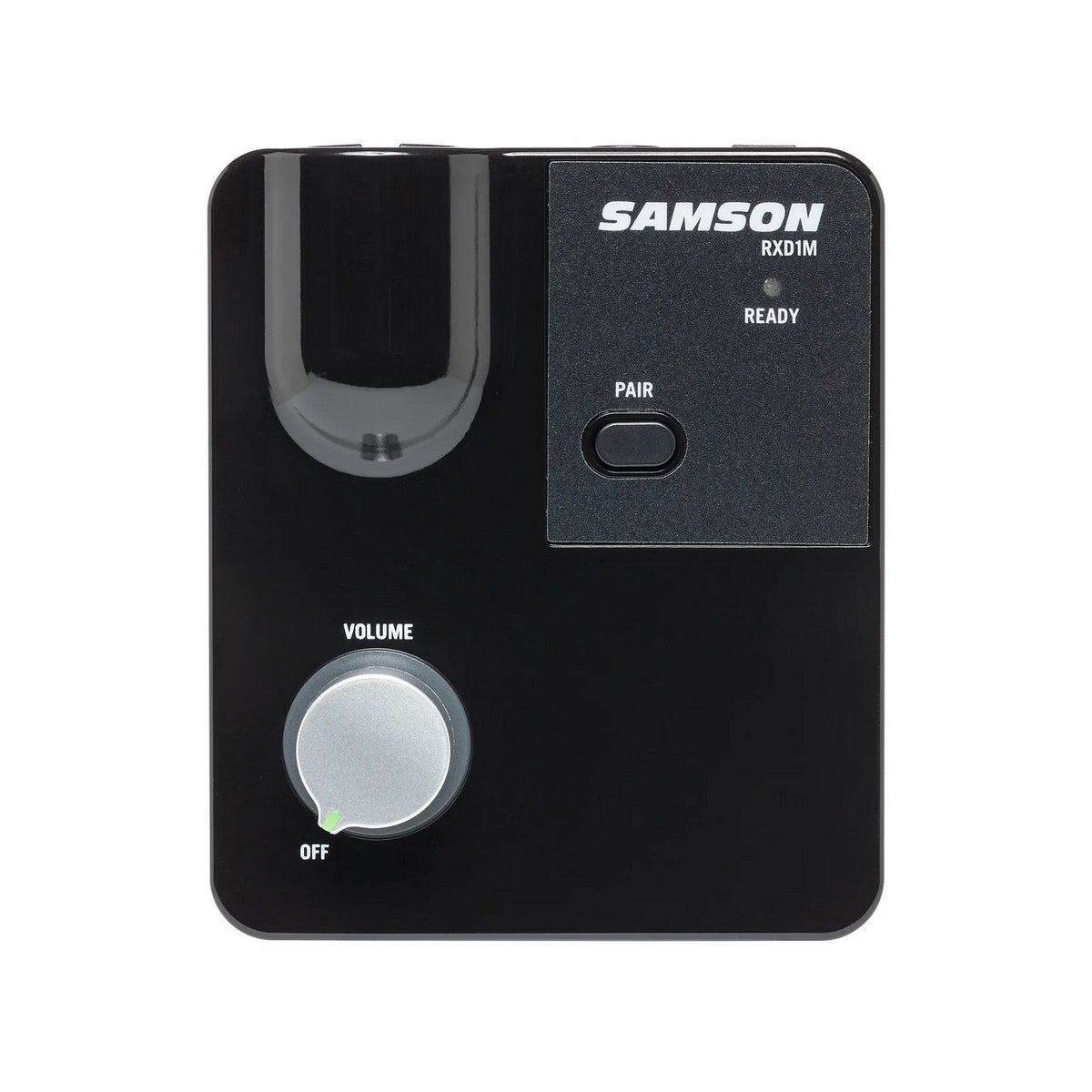

The RXD1M Tabletop Receiver is designed to seamlessly integrate your XPDm handheld wireless system into virtually any professional or portable audio setup. Lightweight, compact, and easy to position on a table, rack shelf, or workstation, this receiver provides multiple output options that make it ideal for live sound, presentations, recording environments, houses of worship, classrooms, and mobile production rigs. Its versatile connectivity ensures smooth integration whether you are connecting to mixers, powered speakers, audio interfaces, or recording devices.

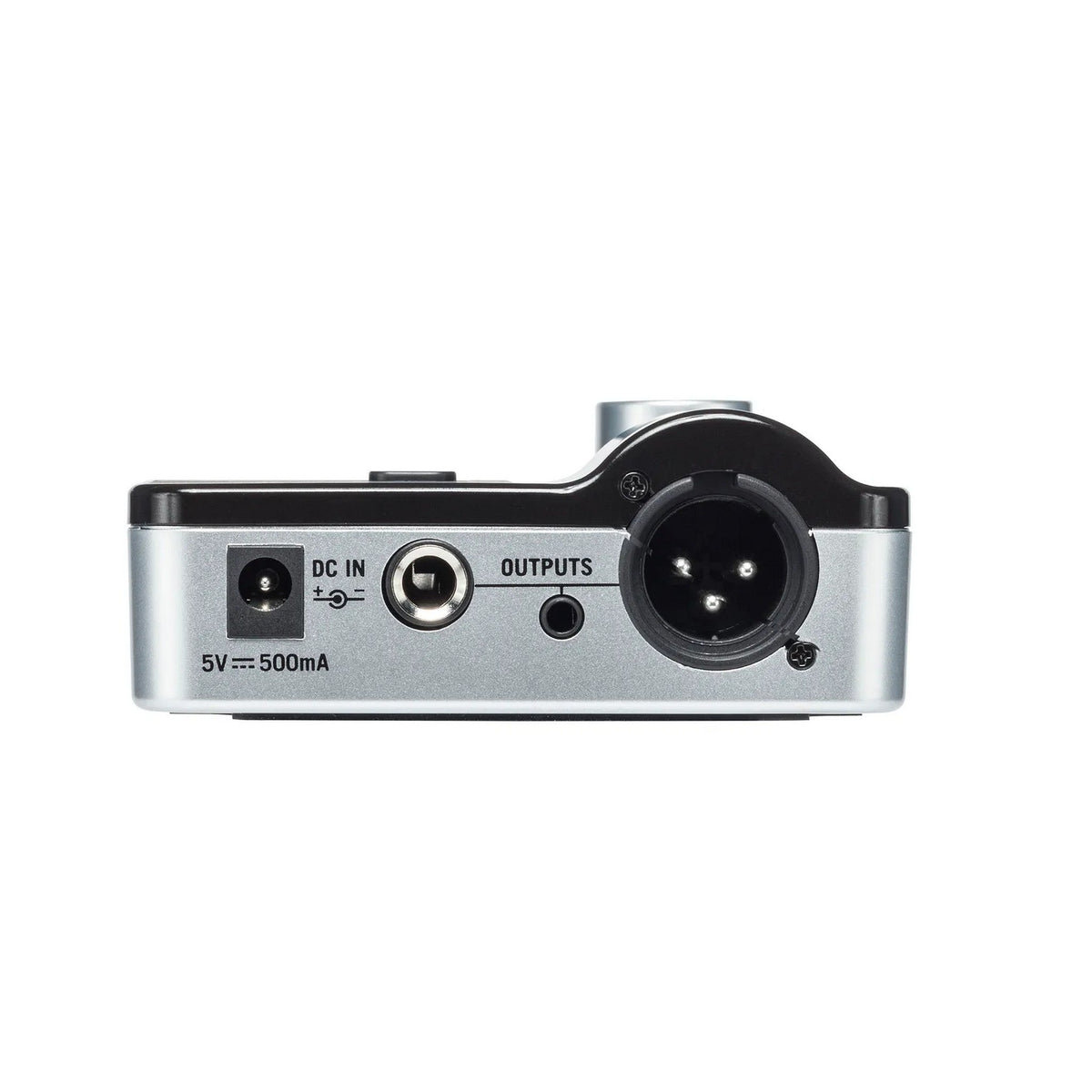

With balanced XLR, unbalanced 1/4", and unbalanced 1/8" outputs, the RXD1M provides the flexibility required for both professional and consumer-grade audio equipment. The balanced XLR output ensures clean signal transmission over longer cable runs, while the 1/4" and 1/8" outputs allow for quick connection to amplifiers, portable PA systems, and multimedia devices. Each output delivers consistent +4 dBu output level performance at 1 kHz with less than 0.6% THD+N, maintaining clarity and reliability across a wide range of applications.

Operation is simple and intuitive thanks to the one-touch pairing button, allowing fast synchronization with compatible transmitters. The rotary volume knob with integrated power switch gives you convenient control over output level and power in one streamlined interface. Built with portability in mind and powered via 5VDC at 500mA, the RXD1M is an efficient and dependable solution for wireless audio reception in compact environments.

Key Features

• RXD1M tabletop wireless receiver
• Balanced XLR output for professional audio connections
• Unbalanced 1/4" output for amplifiers and PA systems
• Unbalanced 1/8" output for multimedia and portable devices
• One-touch pairing button for quick transmitter connection
• Rotary volume knob with integrated power switch
• Lightweight and portable compact design
• Reliable RF performance with strong image rejection

Technical Specifications

Audio Output Level 1/8" & 1/4" (Unbalanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Level XLR (Balanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Impedance 1/8" & 1/4" (Unbalanced): 110 ohms @ 1 kHz
Audio Output Impedance XLR (Balanced): 2.4 kOhms @ 1 kHz
RF Sensitivity: -78 dBm / 20 dB SINAD
Image Rejection: >50 dB
Operating Voltage: 5 VDC, 500 mA
Dimensions: 4.3" x 3.7" x 1.5"
Weight: 0.33 lbs

What’s Included

RXD1M Tabletop Receiver
