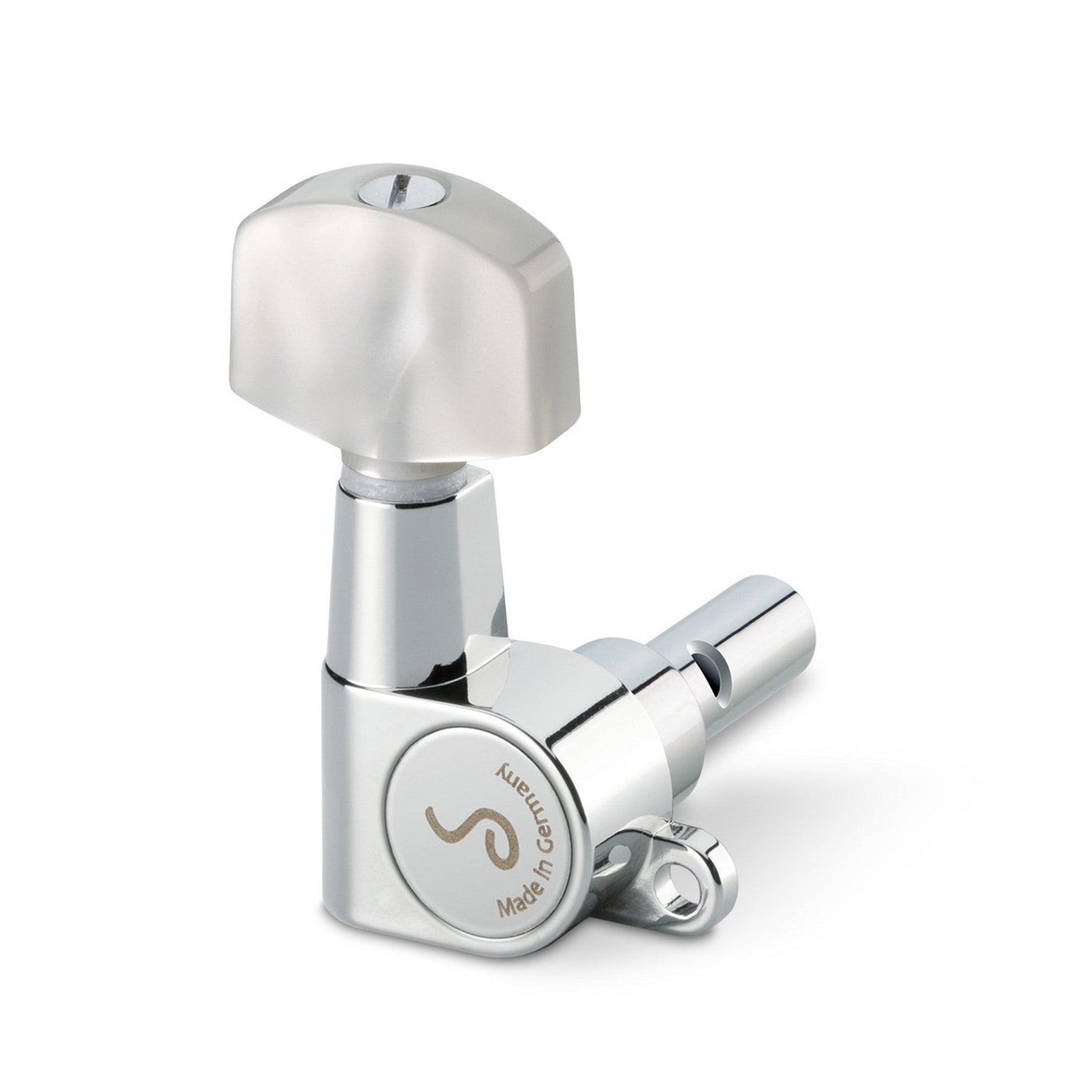

Schaller 10040223.03.36 M6 Mini Small Perloid

The Schaller M6 Mini tuning machines are designed for musicians seeking high-precision tuning in a compact and lightweight package. Ideal for guitars with small headstocks or 12-string configurations, these tuners offer a 1:18 gear ratio for fine-tuned adjustments. Manufactured in Germany, they combine Schaller's renowned engineering with a modern, sleek design.

These tuners feature a self-locking drive mechanism, ensuring stable tuning without the need for additional locking mechanisms. The sealed construction is lubricated with Schaller's special grease, providing maintenance-free operation. Available in various finishes and button styles, the M6 Mini tuners can be customized to match the aesthetic of your instrument.

Key Features:

• Gear ratio: 1:18 for precise tuning adjustments
• Self-locking drive mechanism for stable tuning
• Sealed construction lubricated with Schaller's special grease for maintenance-free operation
• High-grade brass string posts for optimal tuning accuracy and wear resistance
• Available in multiple finishes: Nickel, Chrome, Black, Gold
• Button options: Small Metal, Large Metal, Small Perloid, Large Perloid, Small Ebony, Large Ebony
• Post options: TopLocking, posts for solid headstock 14.65 mm, 19.7 mm, 21.7 mm, 23.7 mm

Technical Specifications:

• Gear Ratio: 1:18
• Weight per tuner with button:
  • Metal: 34 g (small), 36 g (large)
  • Perloid: 29 g (small), 30 g (large)
  • Ebony: 29 g (small), 30 g (large)
• Button Drill Hole Diameter: 4.2 mm with driving surface 3.6 mm
• Mounting Screws: M2.2 x 9.5 mm
• Threaded Bushings: Included (except for "posts for solid headstock 14.65" configuration)
• Step Washers: Included

Package Contents:

• 6 x Threaded Bushings (not included in "posts for solid headstock 14.65" configuration)
• 6 x Step Washers
• 6 x Mounting Screws (M2.2 x 9.5 mm)
