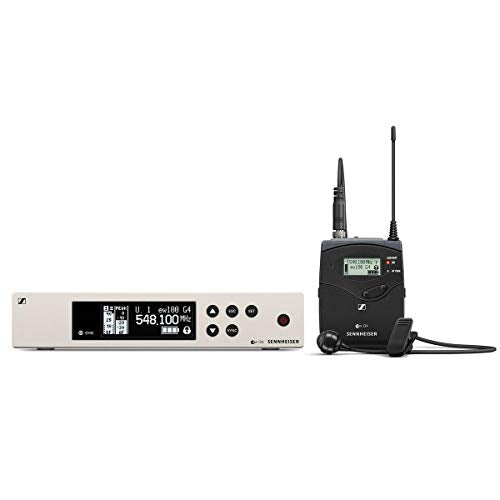

Sennheiser ew 100 G4-ME4-G | Wireless Lavalier Set

Discover the ultimate wireless solution for live sound with the Sennheiser ew 100 G4-ME4-G Wireless Lavalier Set. Designed for announcers, moderators, and performers, this versatile wireless system boasts up to 42 MHz tuning bandwidth within a stable UHF range, ensuring robust performance even in challenging environments. Seamlessly manage up to 12 linked systems simultaneously, making it the ideal choice for dynamic presentations, theater productions, and live music events.

Engineered with professional-grade components, the ew 100 G4-ME4-G features a rugged bodypack transmitter combined with an unobtrusive ME 4 clip-on microphone, delivering superior audio clarity and high speech intelligibility. The true diversity half-rack receiver, housed in full-metal construction, is equipped with an intuitive LCD display for comprehensive control. Experience the ease and flexibility of wireless synchronization between transmitter and receiver via infrared and benefit from fast frequency allocation across up to 12 receivers through innovative linking functionality.

The Sennheiser ew 100 G4-ME4-G offers exceptional audio quality with a transmission range of up to 100 meters (300 feet) and high RF output power of up to 30 mW, subject to country regulations. Whether on stage or in a conference room, this wireless lavalier set is built to perform, ensuring your message is heard loud and clear.

Key Features

• Professional live sound engineered for presenters and moderators
• Rugged bodypack transmitter with ME 4 clip-on microphone (cardioid)
• True diversity half-rack receiver with full-metal housing and intuitive LCD display
• Easy and flexible wireless synchronization via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies within a stable UHF range
• Transmission range: Up to 100 meters / 300 feet
• High RF output power up to 30 mW depending on country regulations

Specifications

• Dimensions (EM 100 G4): Approx. 190 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9 %
• Weight: Approx. 980 g (EM 100 G4)
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu; XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: Up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Adjacent channel rejection: Typically >= 65 dB
• Intermodulation attenuation: Typically >= 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps
• RF sensitivity: < 2.5 mcV for 52 dBA eff S/N
• Squelch: Low: 5 dBV; Middle: 15 dBV; High: 25 dBmcV
• Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature range: -10 C to +55 C
• Receiver principle: True diversity
• Blocking: >= 70 dB
• Dimensions (SK 100 G4): Approx. 82 x 64 x 24 mm
• Weight (incl. batteries): Approx. 160 g
• Operating time: Typically 8 h
• Power supply: 2 AA batteries, 1.5 V or BA 2015 Accupack
• Input impedance: 40 k OHM, unbalanced / 1 M OHM
• AF frequency response: Mic: 80 - 18,000 Hz; Line: 25 - 18,000 Hz
• Frequency stability: <= +/-15 ppm
• ME 4 connector: 3.5 mm jack
• Frequency response: 50 to 18,000 Hz
• Max. sound pressure level: 120 dB
• Cable length: Approx. 1.60 m
• Transducer principle: Pre-polarized condenser microphone
• Pick-up pattern: Cardioid
• Sensitivity in free field, no load (1kHz): 40 mV/Pa
• Equivalent noise level: 31 dB

Package Contents

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• ME 2 clip-on microphone (ew 100 G4-ME2 set only)
• ME 4 clip-on microphone (ew 100 G4-ME4 set only)
• GA 3 rackmount set
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
