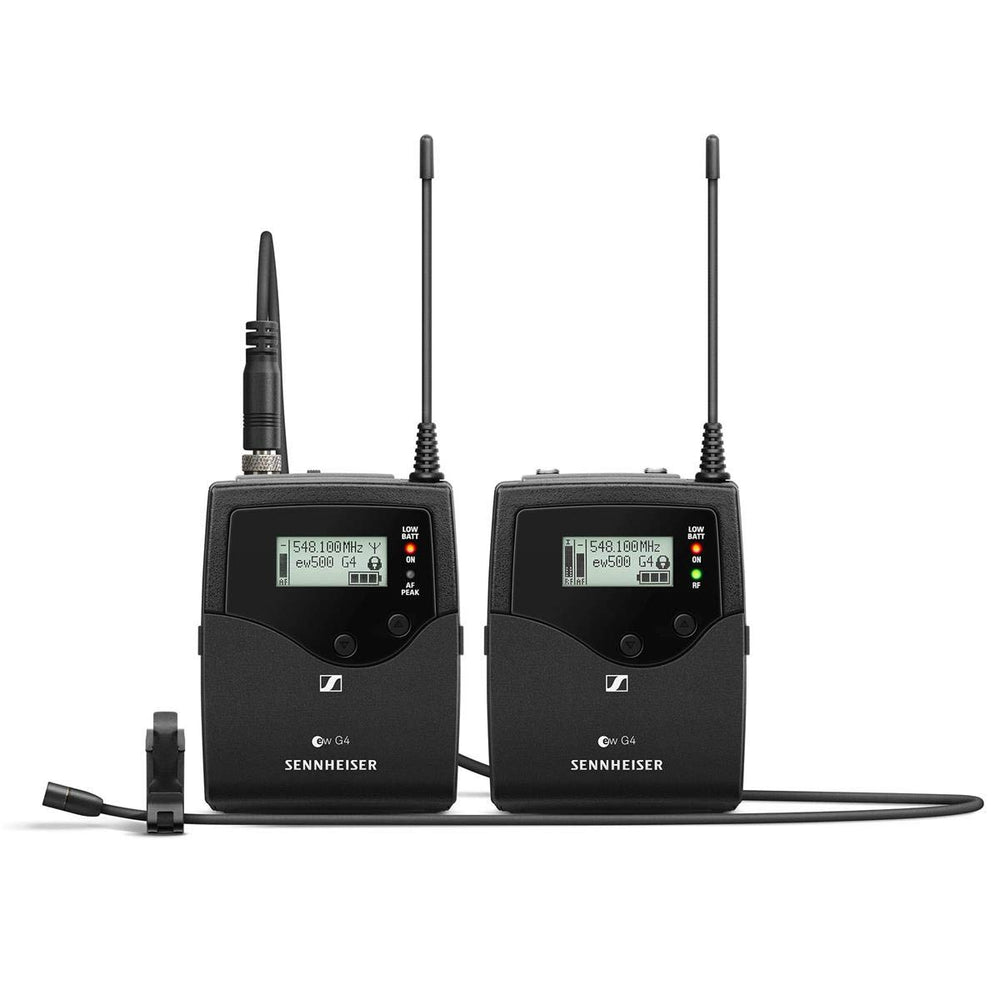

Sennheiser ew 512P G4-AW+ Portable Lavalier Wireless Set

The Sennheiser ew 512P G4-AW+ Portable Lavalier Wireless Set is the professional's choice for broadcast-quality sound. Providing the highest flexibility for your video sound and field recording applications, this robust wireless microphone system offers ultimate sound quality, simple mounting, and ease of use. Impressive film sound was never this easily achieved. The legendary MKE 2 Gold professional clip-on microphone ensures the best speech intelligibility, and the portable transmitter and receiver are easily mounted to ensure 8 hours of mobile operation.

Whether you are filming a documentary, conducting interviews, or working on location, the Sennheiser ew 512P G4-AW+ guarantees professional sound quality and reliable performance. With its rugged all-in-one design, this wireless system is built for professionals who demand the highest standards in audio recording. The user-friendly design allows for quick setup and flexible wireless synchronization between transmitter and receiver via infrared. Offering up to 88 MHz bandwidth and the ability to operate up to 32 channels, this system ensures seamless connectivity in any environment.

The comprehensive features, including up to 100 meters (330 feet) range and increased RF output power (10/30/50 mW), make the Sennheiser ew 512P G4-AW+ a versatile solution for various professional applications. Its efficient power management provides up to 8 hours of continuous operation, making it an ideal choice for extended shooting sessions. Elevate your audio recording experience with this state-of-the-art wireless set from Sennheiser.

Key Features

• Highly versatile solution for professional film sound
• Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• EK 500 G4 Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: < 0.9%
• Weight (incl. batteries): Approx 130g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, unbalanced)
• Signal-to-noise ratio: Line: > 110 dBA, Phones: Approx. 90 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 140 mA, with receiver switched off: < 25 A
• Adjacent channel rejection: Typically > 65 dB
• Intermodulation attenuation: Typically > 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 mcgV for 52 dBA eff S/N
• Squelch: Low: 5 dBV, Middle: 15 dBV, High: 25 dBmcgV
• Temperature Range: -10 C to +55 C
• Receiver Principle: Adaptive diversity
• Blocking: > 70 dB

Package Contents

• EK 500 G4 camera receiver
• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• Fur windscreen for MKE 2
• Quick guide
• Safety guide
• Manufacturer declaration sheet
