Sennheiser EW-DP ME2 SET Portable Digital UHF Wireless Omnidirectional Bodypack System

The Sennheiser EW-DP ME2 SET is a state-of-the-art portable digital UHF wireless omnidirectional bodypack system that delivers unrivaled audio quality and performance. Engineered for filmmakers, content creators, and broadcasters, this advanced system combines digital technology and UHF transmission to offer an exemplary audio workflow. At the core of the EW-DP is a compact digital receiver designed for user-friendly operation with Bluetooth synchronization and control facilitated through the Smart Assist app. An intuitive front OLED display makes navigation simple while Smart Notifications guide you through troubleshooting effortlessly, ensuring a smooth user experience.

Featuring a unique magnetically stackable design, the EW-DP system fits seamlessly into your camera setup, providing versatile mounting options. Multiple power sources, including primary-cells, rechargeable lithium-ion battery packs, and USB-C power, ensure uninterrupted operation during long shoots. Choose between the ME 2 omnidirectional lavalier for clear dialog or the ME 4 cardioid lavalier to isolate speech in noisy environments, ensuring pristine audio capture every time. Experience the industry's best with a 134 dB input dynamic range, enabling distortion-free transmission even in challenging RF environments.

With intelligent battery management extending up to 12 hours of transmitter life and 7 hours of receiver life, and exceptionally low latency of just 1.9 ms, you can trust the EW-DP to perform reliably in any situation. Control and monitor settings remotely via the Sennheiser Smart Assist app, which also provides automatic setup and detailed support resources. Comprehensive frequency options (Q1-6: 470.2-526 MHz, R1-6: 520-576 MHz, R4-9: 552-607.8 MHz) enhance this wireless system's flexibility, guaranteeing exceptional performance in any environment.

Key Features

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management with operating time displayed in hours and minutes
• Extended battery life: up to 12 hours on the transmitter, 7 hours on the receiver
• Magnetically stackable components for versatile mounting
• Industry-leading 134 dB input dynamic range for distortion-free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor and control
• Optional plug-on transmitter features XLR and 3.5 mm inputs +48V, and recording via microSD (ENG Set or component only)

Specifications

• Frequency Options: Q1-6: 470.2-526 MHz, R1-6: 520-576 MHz, R4-9: 552-607.8 MHz
• Bluetooth Low Energy (BLE) frequency range: 2402-2480 MHz
• Audio frequency response: 20 Hz - 20 @ 3 dBfs
• Audio THD: <= -60 dB for 1 kHz @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Relative air humidity: 5-95% (non-condensing)

Package Contents

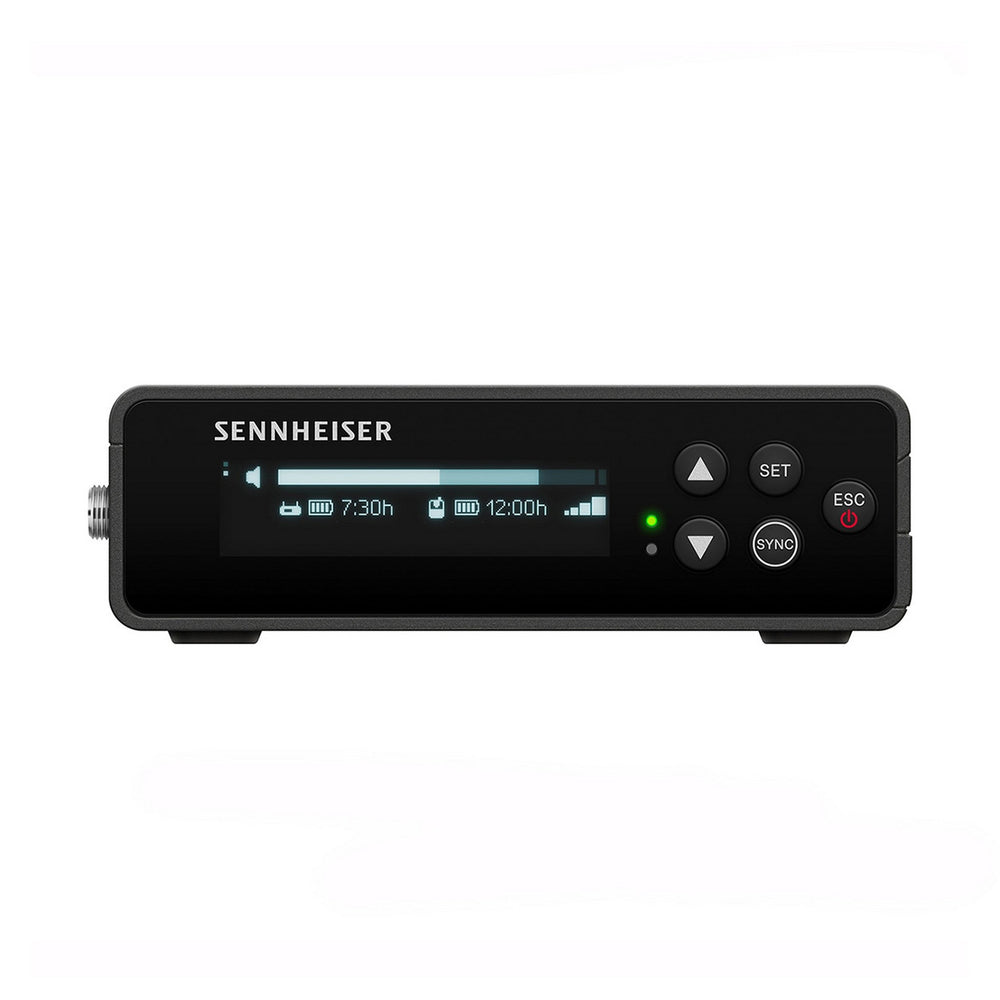

• EW-DP EK digital portable single channel receiver
• EW-D SK digital bodypack transmitter
• ME 2 omnidirectional lavalier microphone
• Mounting kit (cheese plate, cold shoe, belt clip, and screws)
• BA 70 li-ion battery and (2) AA batteries
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
