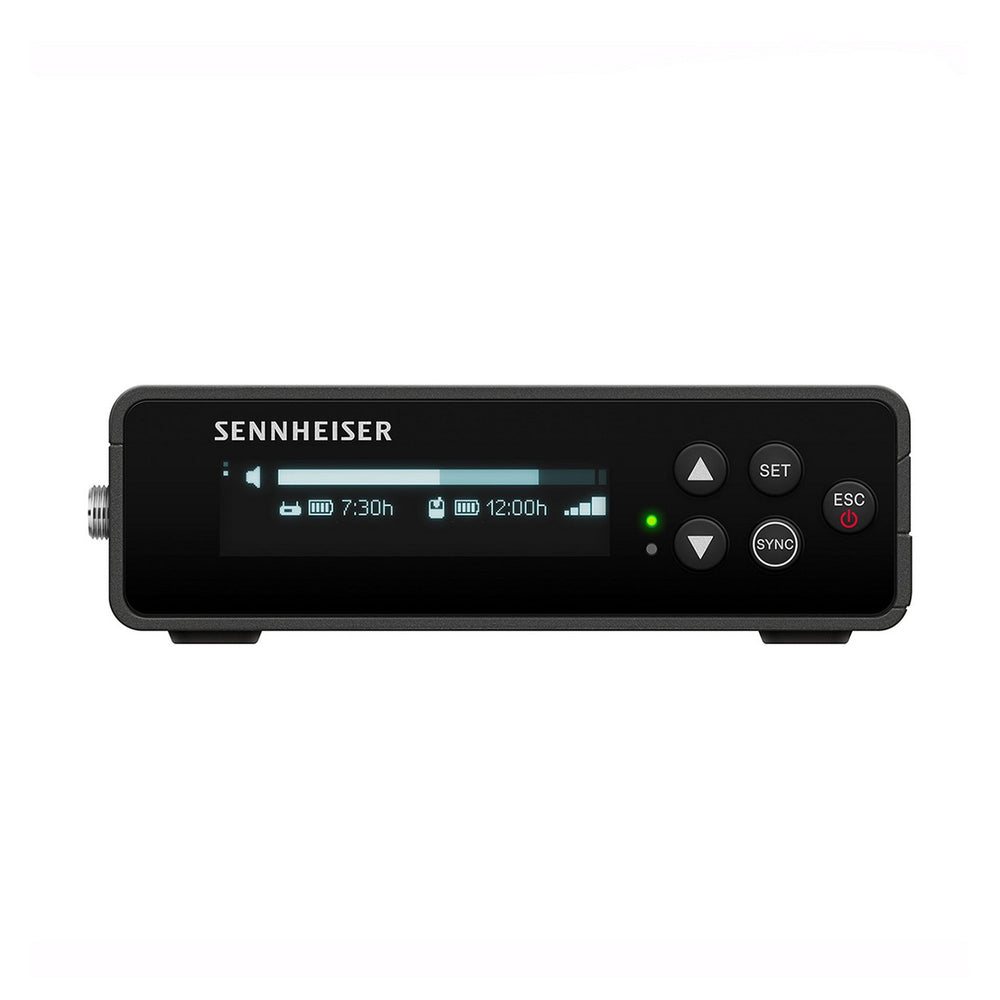

Sennheiser EW-DP ME4 SET Portable Digital UHF Wireless Cardioid Bodypack

The Sennheiser EW-DP ME4 SET Portable Digital UHF Wireless Cardioid Bodypack revolutionizes the industry with its advanced digital technology and superior UHF transmission. Designed with filmmakers, content creators, and broadcasters in mind, this wireless microphone system offers an unmatched audio workflow. At its core is a compact digital receiver that is user-friendly for all levels of experience. This cutting-edge device incorporates Bluetooth synchronization and system control via the Smart Assist app, saving you time and effort on set.

The EW-DP’s front-facing OLED display streamlines menu navigation, and Smart Notifications aid in troubleshooting any issues you might encounter. Thanks to its magnetic, stackable mounting configurations, the EW-DP seamlessly integrates into your camera setup. With multiple powering options, you're prepared for long hours on location. This set includes the ME 4 cardioid lavalier microphone, ideal for isolating speech in noisy environments, ensuring you capture every detail with exceptional clarity.

Whether you're a professional or an amateur, the EW-DP’s intelligent design focuses on enhancing user experience. Its ergonomic features include thoughtfully placed buttons, connections, and components. The magnetically stackable receivers and front-facing OLED display provide ease and flexibility, regardless of placement and lighting conditions. Various powering options, including primary cells, rechargeable battery packs, and USB-C direct power, ensure uninterrupted performance during extended shoots.

Key Features

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management with extended life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• 134 dB input dynamic range for distortion-free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency of 1.9 ms
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitoring and control
• Optional plug-on transmitter with XLR & 3.5 mm inputs +48V, and recording via microSD

Specifications

• Audio link frequency ranges: Q1-6: 470.2 - 526 MHz, R1-6: 520 - 576 MHz, R4-9: 552 - 607.8 MHz
• Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz @ 3 dBfs
• Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Dynamic range: 134 dB
• System Latency: 1.9 ms
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative air humidity: 5 - 95 % (non-condensing)
• Input voltage: ~1.8 - 4.35 V
• Input current: Typ. < 250 mA / Max. < 400 mA (BA 70), Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone)
• Power supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max): 5V / 1500mA, 9V / 900mA, 12V / 700mA
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
• Headphone Output: < 50 mW into 16 Ohms
• Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
• Weight: approx. 140g (0.31 lbs)

Package Contents

• EW-DP EK digital portable single channel receiver
• EW-D SK digital bodypack transmitter
• ME 4 cardioid lavalier microphone
• Mounting kit (cheese plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA batteries
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
